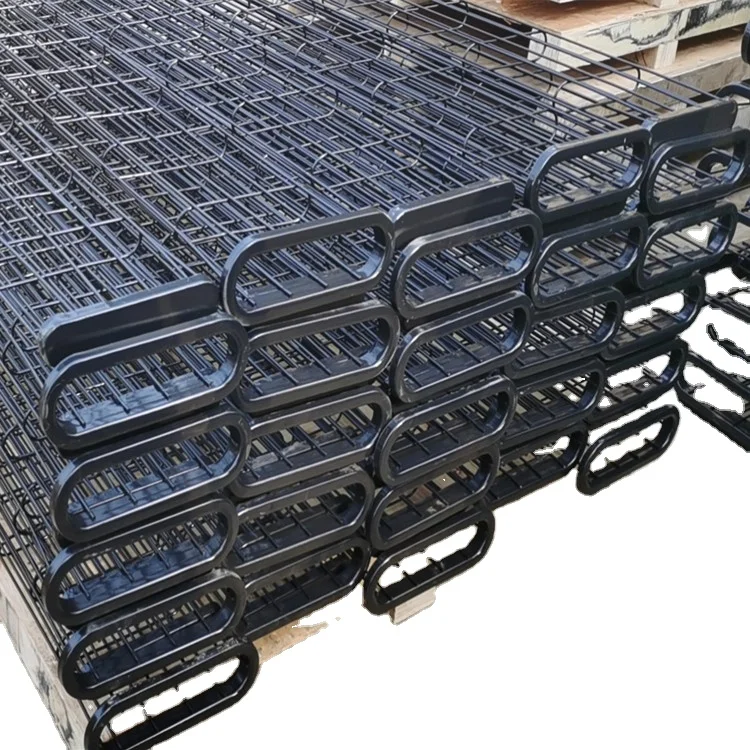

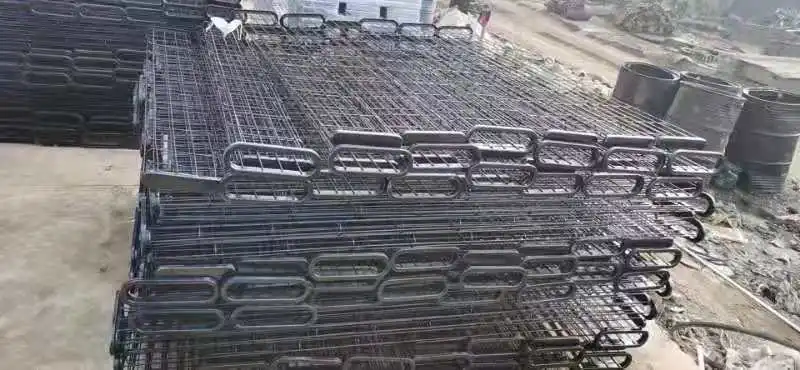

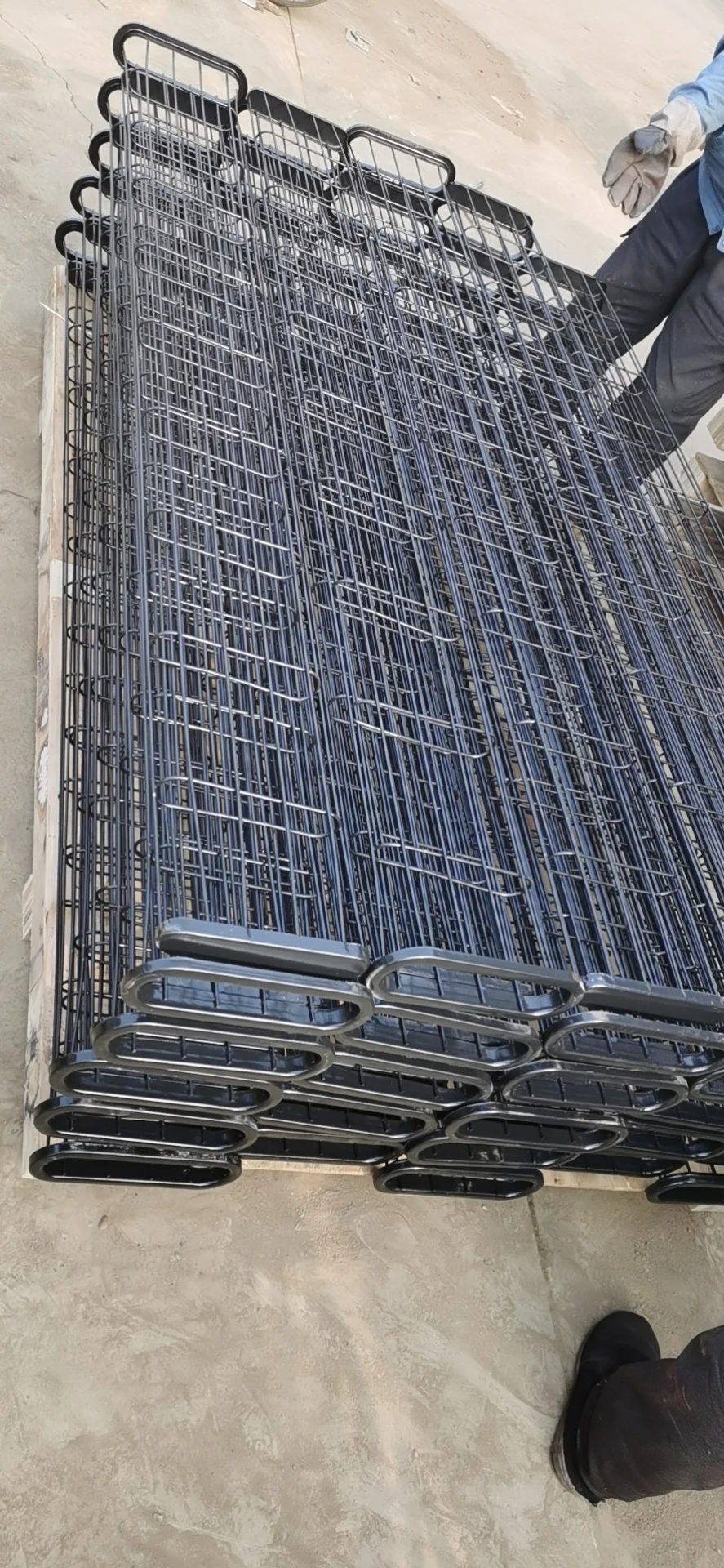

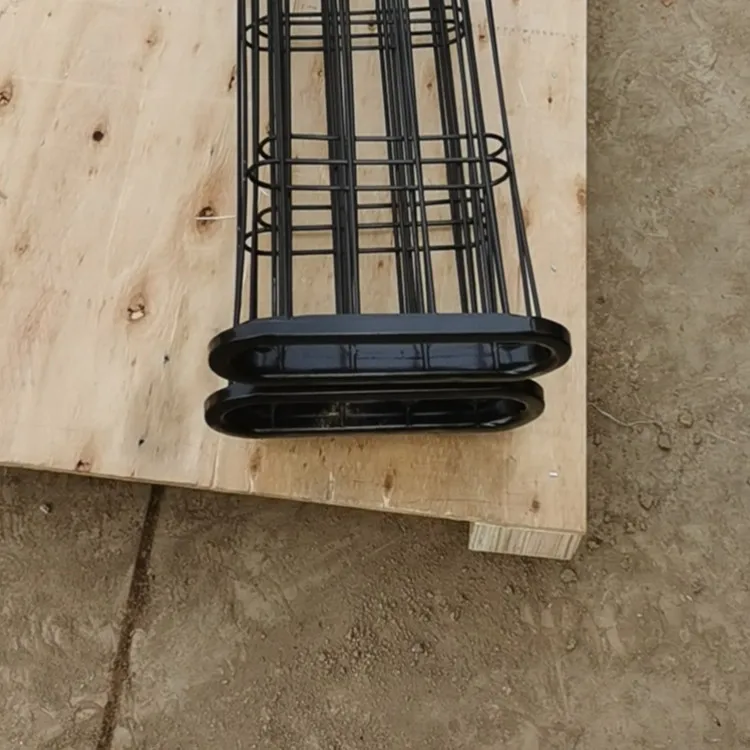

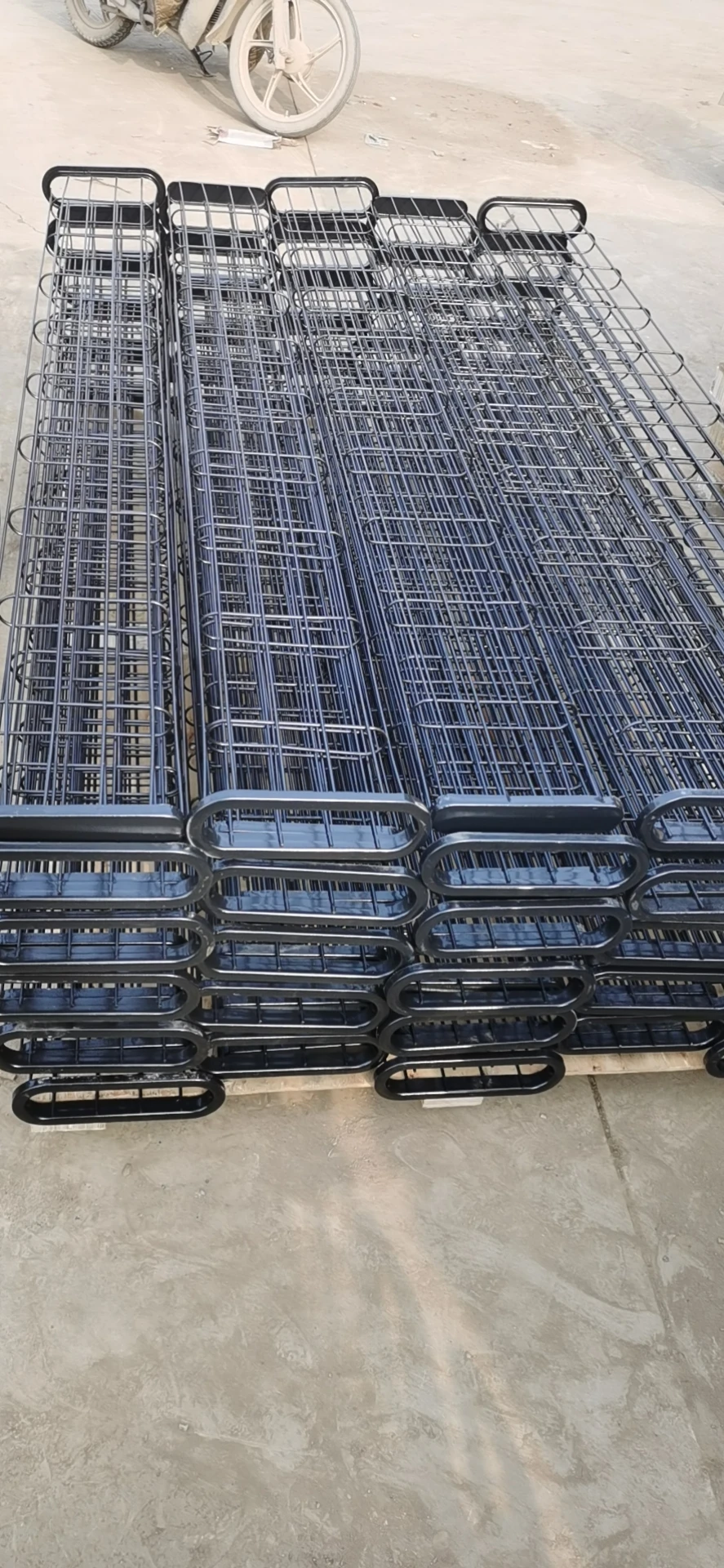

LJB1200 Asphalt Plant Spare Parts Dust Filter Bag Frame

Dust removal frame, also known as dust removal bag cage, is an indispensable accessory of bag filter. It is used as a frame to support dust removal filter bag. It can be compatible with six, eight, ten, twelve, sixteen, eighteen, Twenty, twenty-four ribs, the role of dust removal framework is very large, is widely used in metallurgy, chemical industry, coking, power generation, non-ferrous smelting, steel, building materials, coal and other industries.

The shape of dust filter frame :

1. (Outer filter bag)

2. (External filter)

3. (External filter) (ellipse, diamond)

4. Envelope type

5. Multi-section frame (ellipse multi-section frame. Round bag-type multi-section frame (insert type, chuck type))

6. Finished frame (frame with venturi tube. Plastic bag, iron frame packaging frame. Arranged diamond-shaped frame)



Specification of Dust Filter Bag Frame

Type	Diameter (mm)	Diamter of Filter Bag	Length (mm)
Round	115	120	2000, 2400 ,2800,3200,3600,4000, 4400,4800,5200,5600, 6000,
	125	130
	147	152
	195	200
Flat	800	800 perimeter	2000,3000, 4000,5000,6000
	900	900 perimeter
Envelope	Length*Width*Thickness		Diameter of Filter Bag
	1500*750*25		1500*750*25





Surface treatment:
There are galvanizing, plastic spraying, anti-corrosion treatment, surface organic silicon spraying, etc. The surface organic silicon coating is especially suitable for corrosive dust. .

The Service Life :

The dust removal frame is the rib of the filter bag. It should be light and easy to install and maintain. The quality of the frame directly affects the filtering state and service life of the filter bag. It is made of natural granite, which is machined into a circular curved plate, and the overall structure is smooth and flat. Corrosion resistance, wear resistance, and high temperature resistance. The exterior is cast with high-strength, high-temperature, acid- and alkali-resistant materials. The outer protective steel plate of the barrel equipment greatly enhances the strength and service life of the equipment. The body adopts a structure of 1 meter per section, There are concave-convex joints at each joint, and furan resin or acid and alkali-resistant glue is used to connect the joints during installation to ensure that the joints do not leak; it overcomes the common problems of water leakage and air leakage in the joints of the original granite dust collector. The upper sink is ceramic The structure, the ceramic dust collector ensures no water leakage during the water supply process, avoids the frustration of the original granite dust collector sink, and enhances the use effect of the dust collector. The installation is simple, generally 1 meter per section, and the installation can be completed in half a day after hoisting on site, reducing Construction period.



Influencing factors:
(1) The influence of the size of the dust removal framework: Among the geometric dimensions of the dust removal framework, the diameter of the dust removal framework, the gas inlet, and the shape and size of the exhaust pipe are the most important factors.

(2) The influence of gas parameters on the performance of dust removal framework: including the influence of gas flow, gas dust concentration, gas moisture content, gas density, viscosity, pressure, and temperature.

(3) The influence of the physical properties of the dust on the dust removal framework

(4) The influence of the roughness of the inner wall of the dust removal framework: The dust particles concentrated near the wall surface will cause swirling due to the rough surface, causing some dust particles to be thrown into the rising airflow and into the exhaust pipe, reducing the efficiency of dust removal.
