Двойная головка Портативный usb Ультразвуковой допплер
- Категория: Ультразвуковое, оптическое, электронное оборудование >>>
- Поставщик: Xuzhou,Sunbright,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 3070.89 $* | 3224.64 $* |
| Aug-19-2025 | 3044.22 $* | 3196.4 $* |
| Jul-19-2025 | 2554.61 $* | 2682.41 $* |
| Jun-19-2025 | 2993.8 $* | 3143.98 $* |
| May-19-2025 | 2606.63 $* | 2736.98 $* |
| Apr-19-2025 | 2941.71 $* | 3088.63 $* |
| Mar-19-2025 | 2915.93 $* | 3061.29 $* |
| Feb-19-2025 | 2890.66 $* | 3035.98 $* |
| Jan-19-2025 | 2864.19 $* | 3007.95 $* |
Характеристики
Product Description

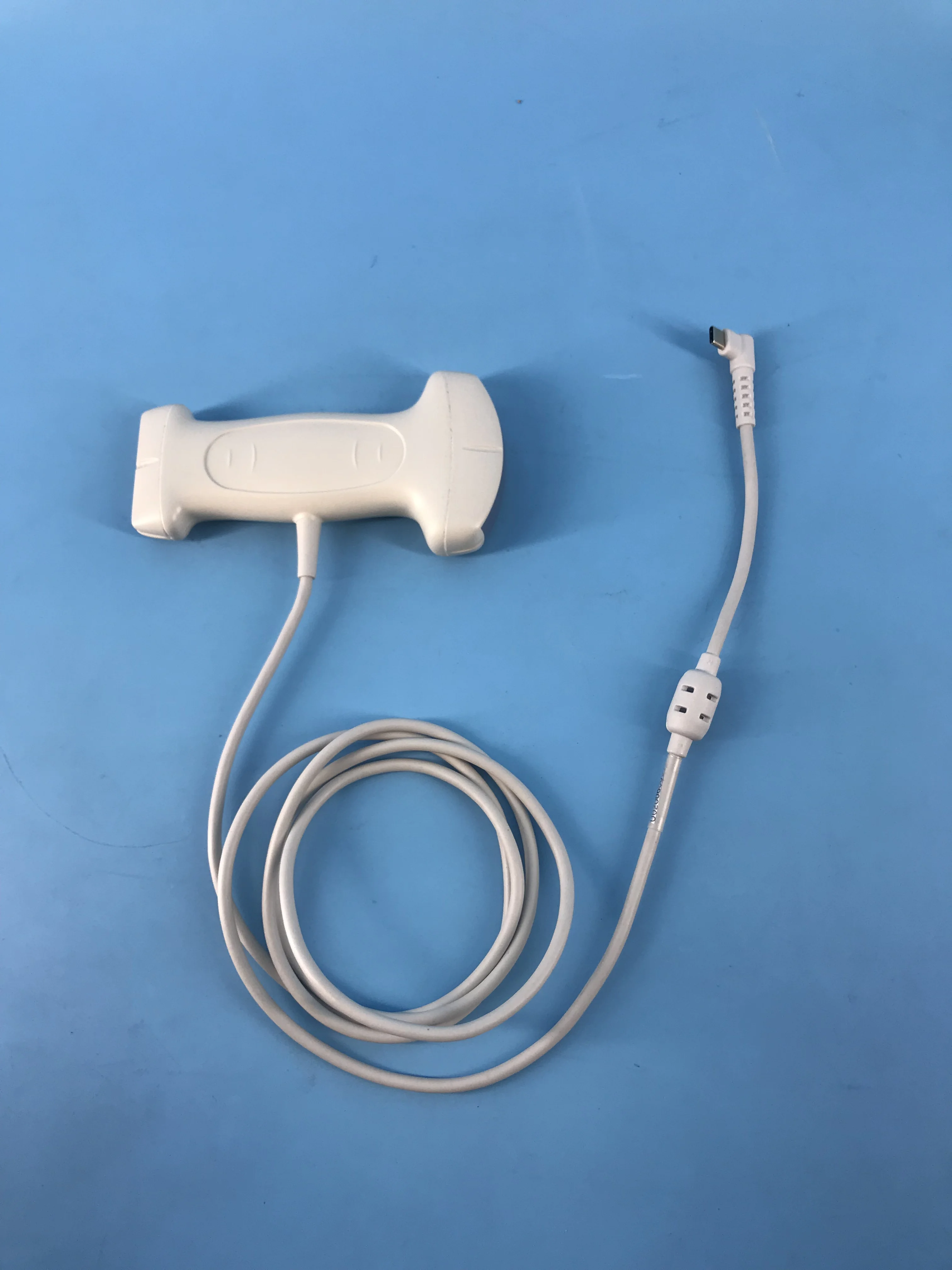

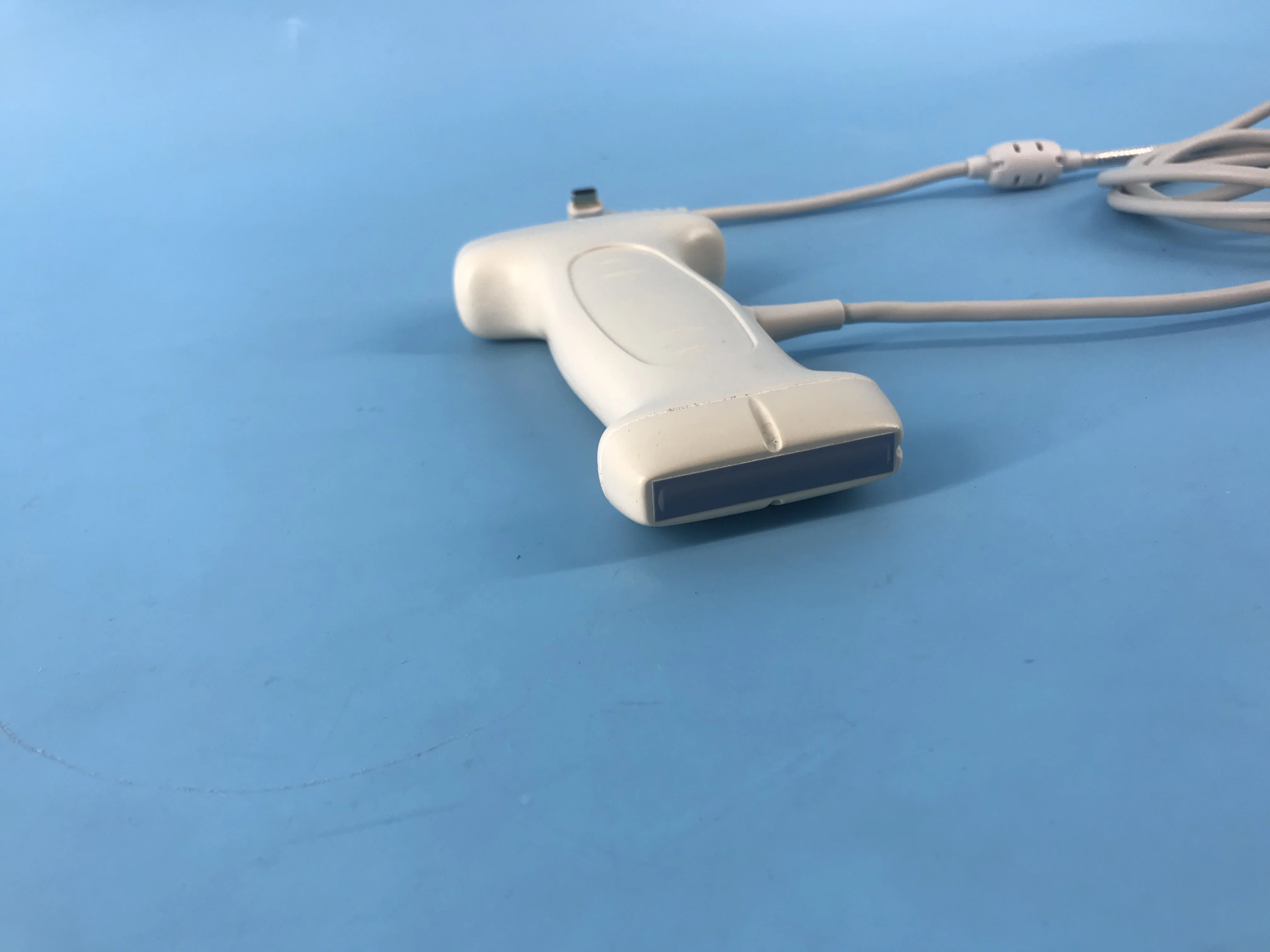

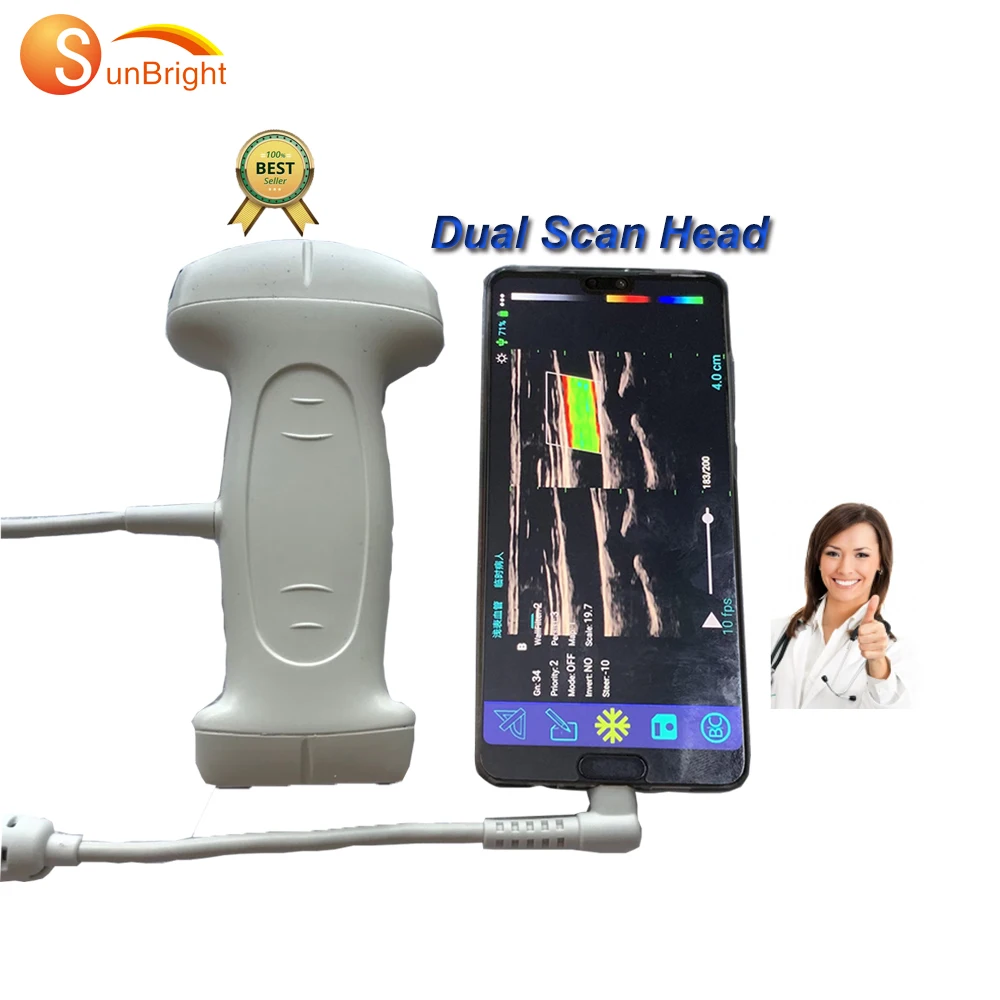

Dual head portable usb ultrasound Doppler probe
Specification
Application
Abdomen / Obstetrics / Gynecology / Urology / Small Parts / Vascular / Pediatrics / Musculoskeletal
Abdomen / Obstetrics / Gynecology / Urology / Small Parts / Vascular / Pediatrics / Musculoskeletal
Electrical Power
Voltage:5 V
Max Power:Max Power
Physical Specifications
Packing size:210mm×130mm×50mm
Packing weight:~400g
Cine/Image Memory
Cine Memory:200 frame
Capture area:Image only / full screen
DICOM Connectivity
DICOM3.0 Storage
Image Storage
Storage Format: JPEG, MP4
DICOM3.0 Storage
Image Storage
Storage Format: JPEG, MP4
Technology
Full field synthetic aperture imaging Tech |
Multi-beam formation Tech |
Speckle Reduction Tech |
Phase-inverse Harmonic Imaging Tech |
Duplex Synchronous Display |
Directional Power Doppler |
Imaging Parameters Preset |
General Performance
Digital Beamformer Channels | 64 channels |
Beam-former Frequency Range | 1~18 MHz |
Imaging Performance
Startup Time (Max) | Avg. < 10 seconds |
Preset Switching Time | Avg. < 1 second |
Storage Time (Image to Disk) | Storage Time (Image to Disk |
Transducers

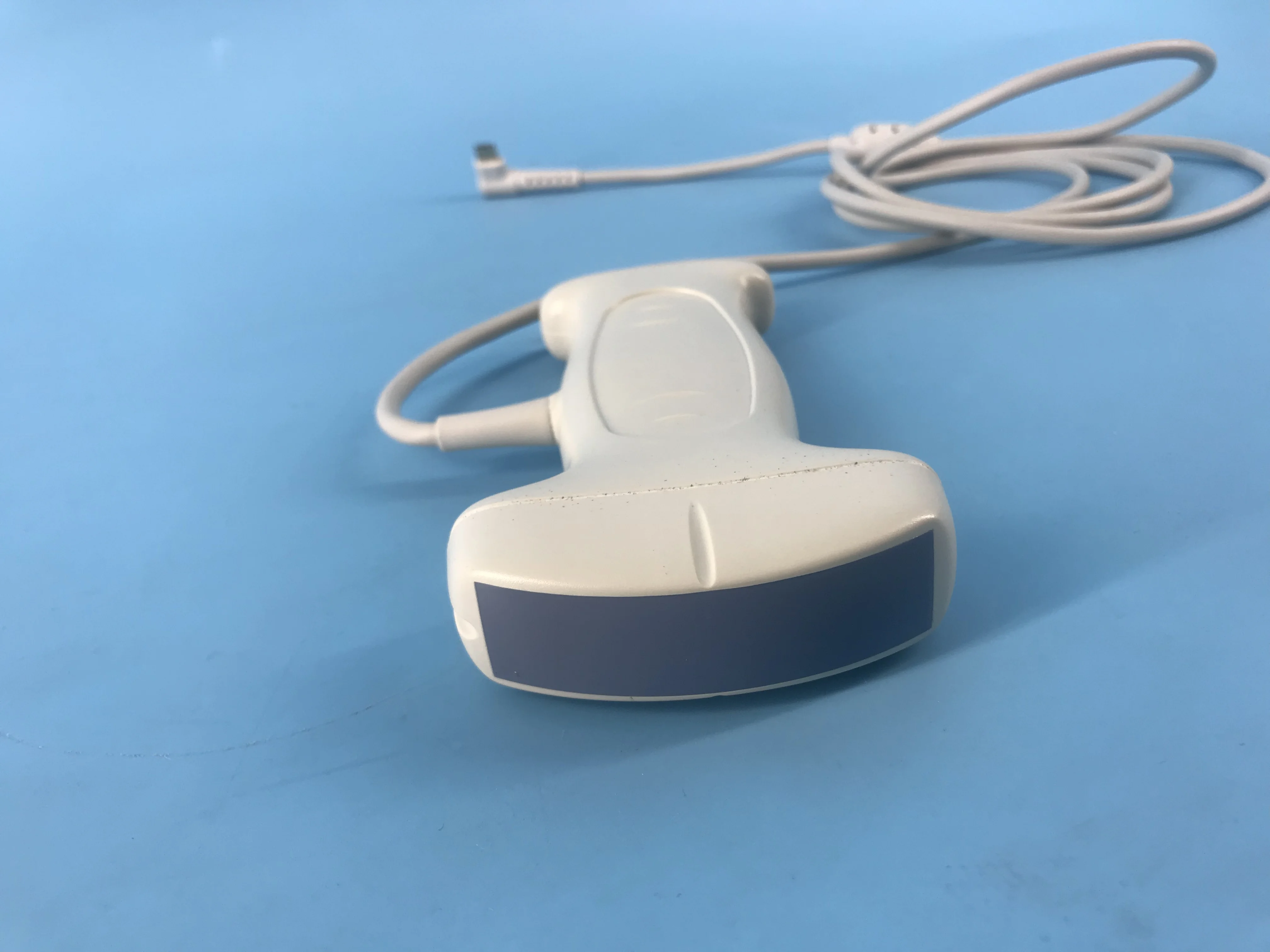

Probe | Convex Array Probe | Linear Array Probe |
Frequency | Central 3.5 MHz (2.0MHZ to 5.0MHZ) | Central 7.5 MHz (5.0MHZ to 10.0MHZ) |
Pitch | 0.78mm | 0. 5mm |
Radius | 60mm | N/A |
Elements | 128 | 128 |
User Interface
Full touch-screen-based operating principles
IMAGING MODES
B, M, 2B, B/C, B/D, B/C/D, CF+B, PW
Full touch-screen-based operating principles
IMAGING MODES
B, M, 2B, B/C, B/D, B/C/D, CF+B, PW
B-Mode
Maps | 8 |
Gain | 0~10 |
TGC | 6 Sliders |
Dynamic Range | 45~80dB |
Depth | Max. 24cm |
Chroma | 0~7 |
Grayscale Levels | 256 |
Frame Rate | Max.15 Hz |
Persistence/ Frame Average | 1~4 |
Top/Bottom/Left/Right Reverse | yes |
Speckle Reduction | yes |
Harmonic imaging | Yes (linear probe) |
Color Mode
Gain:0~100
Color Maps:1~12
Doppler Steer Angles:7 Steps
Wall Filter:1~4
Persistence/Frame Average:1~5
PW Mode
Gain:-20~20
D Linear Velocity:L/M/H
Doppler Steer Angles:5 Steps
Wall Filtering:1~3
Correction Angle:80°/-80°
Max PRF:10kHz
Baseline Adjustment:-3~3
MEASUREMENTS SPECIFICATIONS
Analysis Packages
Basic, Obstetrics, Urology
Analysis Packages
Basic, Obstetrics, Urology
Basic Measurement
B-mode | Distance, Perimeter and Area (ellipse or track-based method), Volume |
M-mode | Heart Rate, Time, Distance, Speed |
PW-mode | Heart Rate, Velocity, S/D, PI, RI |

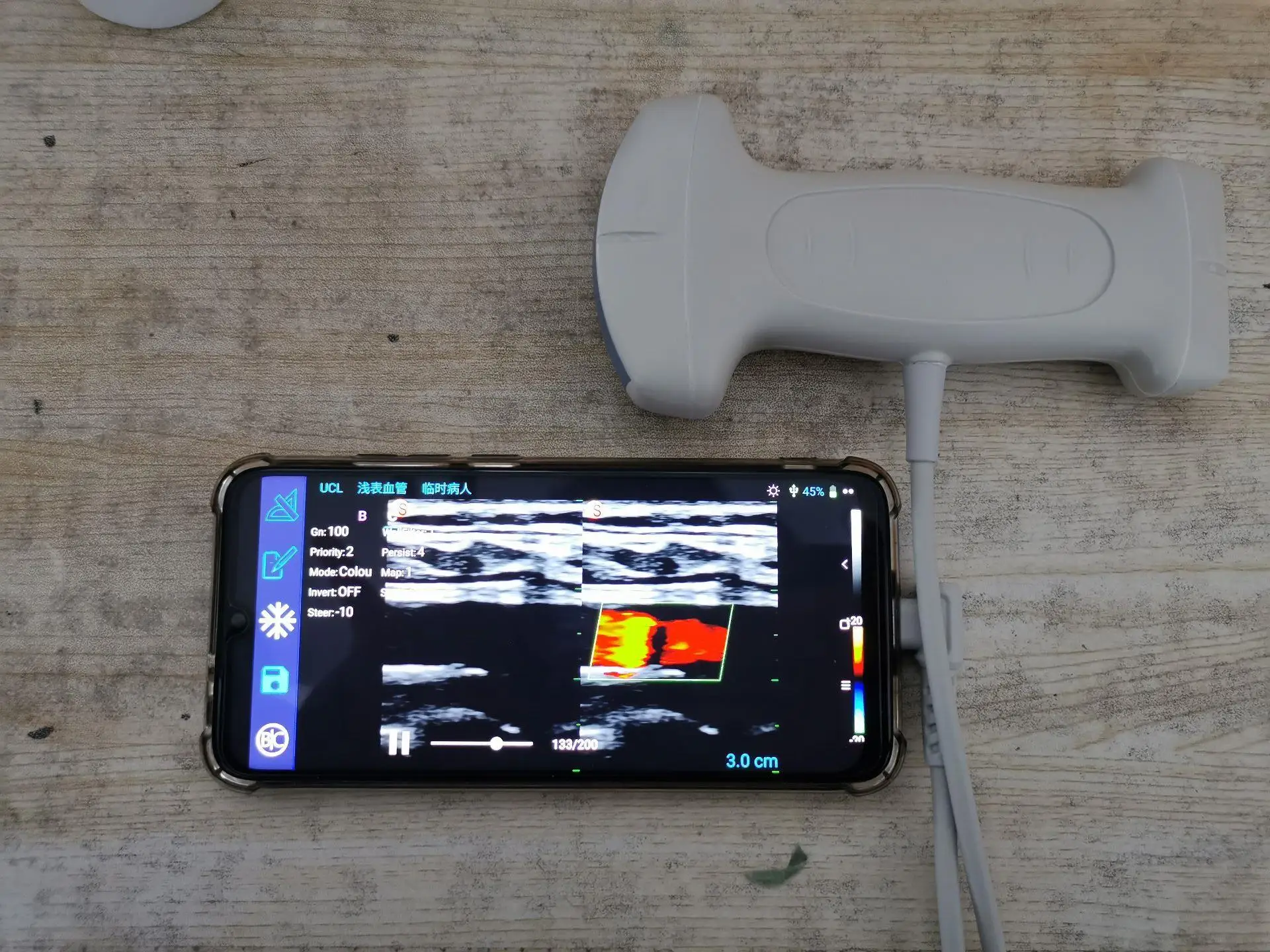

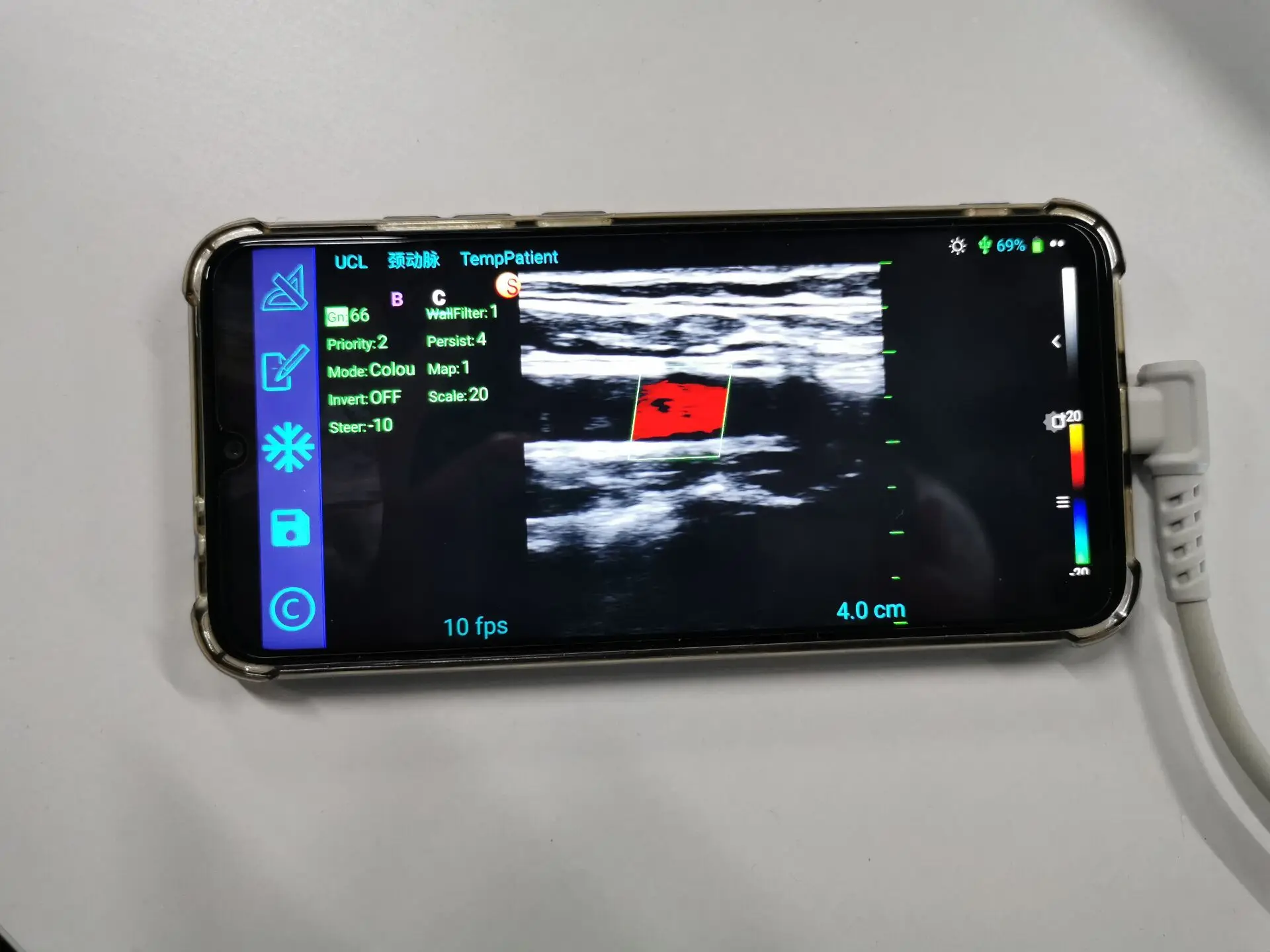

Details Images
Recommend Products
Packing & Delivery
1. Package: double carton boxes
2. Port: Shenzhen China, Shanghai China
3. Delivery time: 3-5 working days after receipt of payment
4. Payment term: T/T in advance, MoneyGram, Trade Assurance, Western Union, Escrow, Paypal, Credit Card!
2. Port: Shenzhen China, Shanghai China
3. Delivery time: 3-5 working days after receipt of payment
4. Payment term: T/T in advance, MoneyGram, Trade Assurance, Western Union, Escrow, Paypal, Credit Card!
