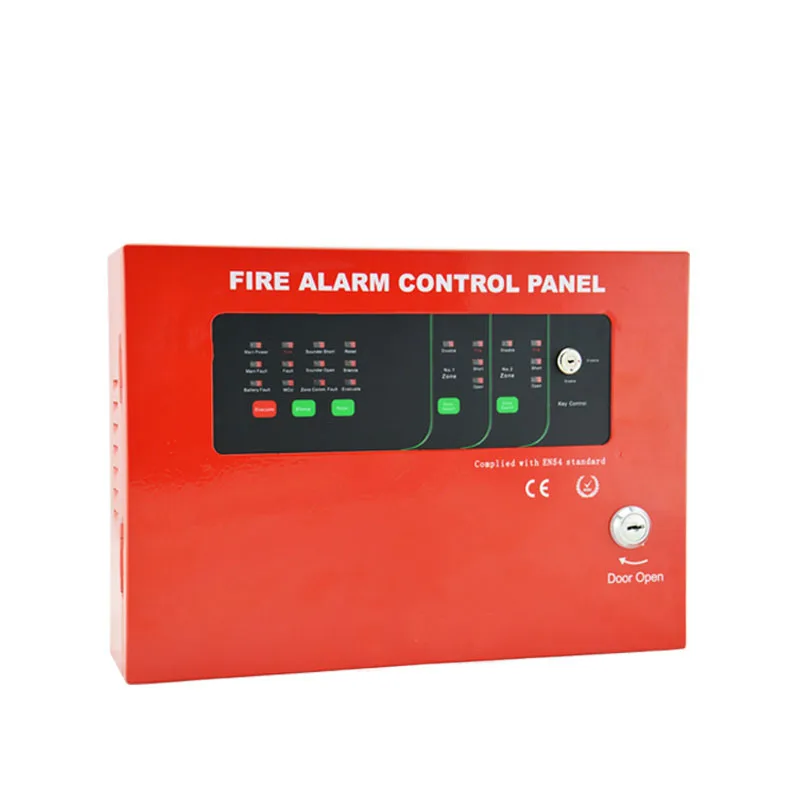

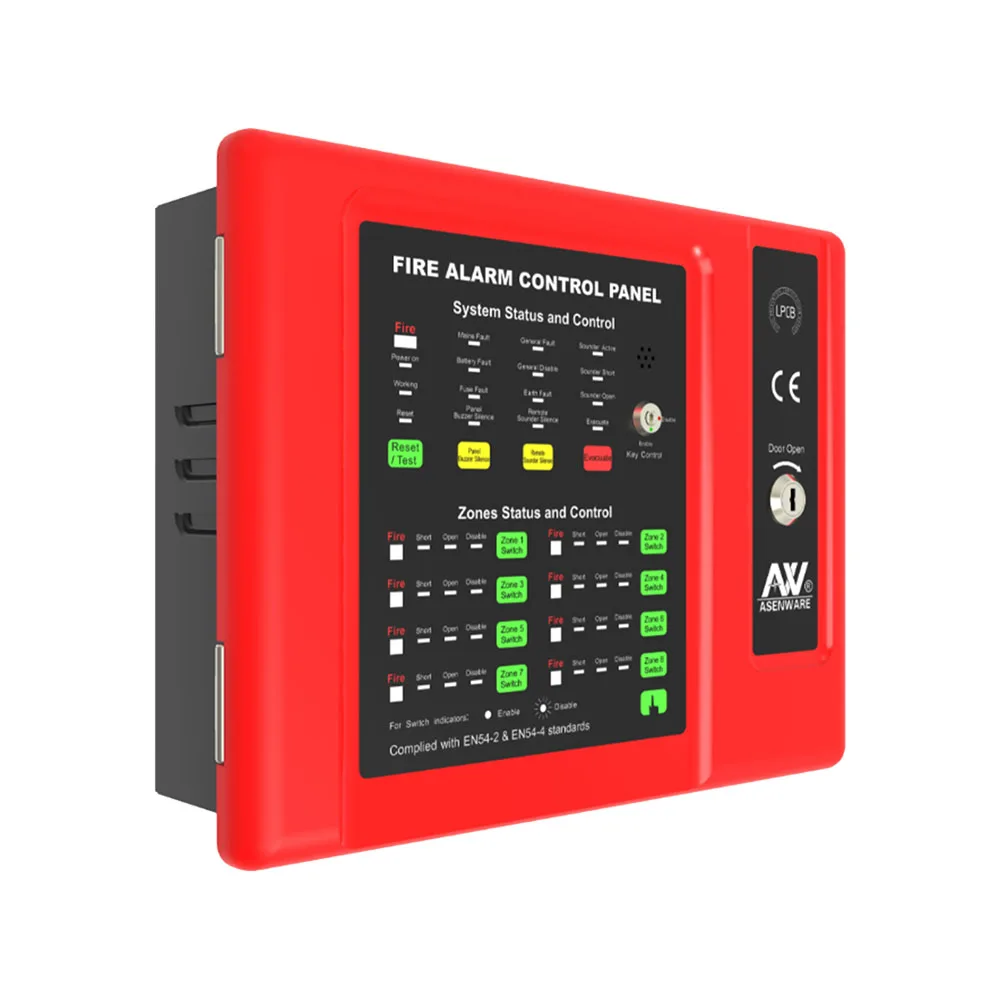

Панель управления обнаружением дыма 4 8 16 32 зоны обычная пожарная сигнализация красного

Model

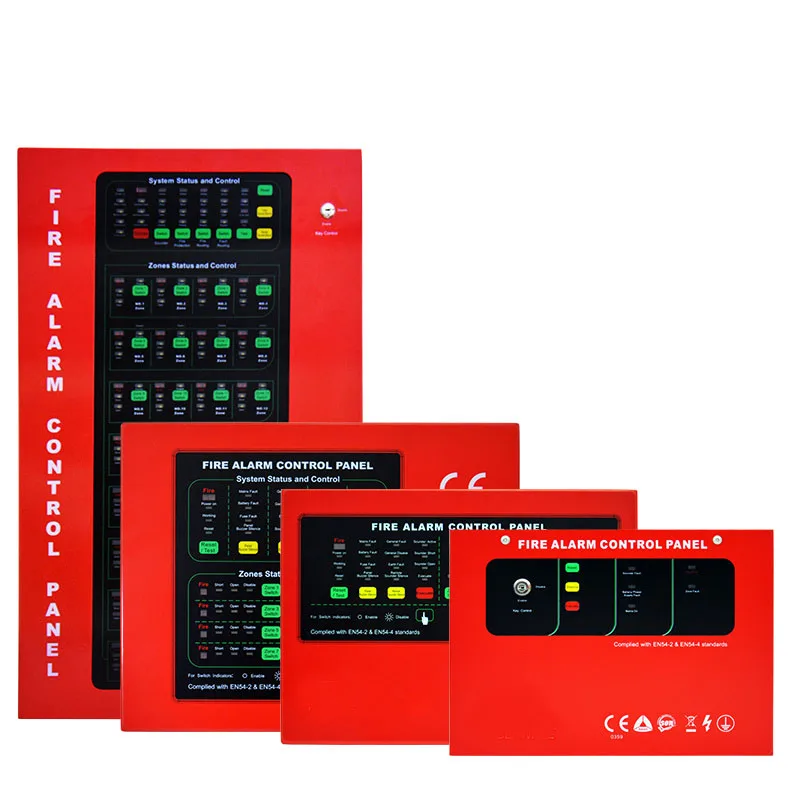

1 to 32 zones

Design principle

The series conventional fire alarm panel is designed based on EN54 part 2&4 standard.

control mode

2 level control mode by a lock

power supply output

27VDC

signal output

Has FIRE PROTECTION, FIRE ROUTING and FAULT signal output; the output can be configured to dry relay type or wet sources type.

sounders output

Has 2 channel general sounders output.

Special function

1. Each zone has 1 circuit detectors input .


2. Each zone can be disable by a button.


3. It has RESET button to reset the panel.


4. It has SILENCE button to stop BUZZER and SOUNDERS.


5. It has EVACUATE button to start a manual fire alarm immediately.


6. It has TEST button to test all LEDs orderly.


7. It has battery low protection function, when battery voltage lower than 21VDC, battery will be cut off automatically until the mains power is on.


8. It has an optional GSM module for fire alarm by SMS .

Service Environment

industrial and civil buildings

factories, hospitals, restaurants, hotels, schools, business buildings, government buildings,etc.

Advantage

Efficient feedback, steady and easy to work with other brands fire products,Humanization setting, Economic, User friendly,etc.
