WT32SC01 Custom Dual-Core CPU 2-Point Control Touch
LCD Display Screen 3.5 Inch 320*480 Wholesale
Product Description

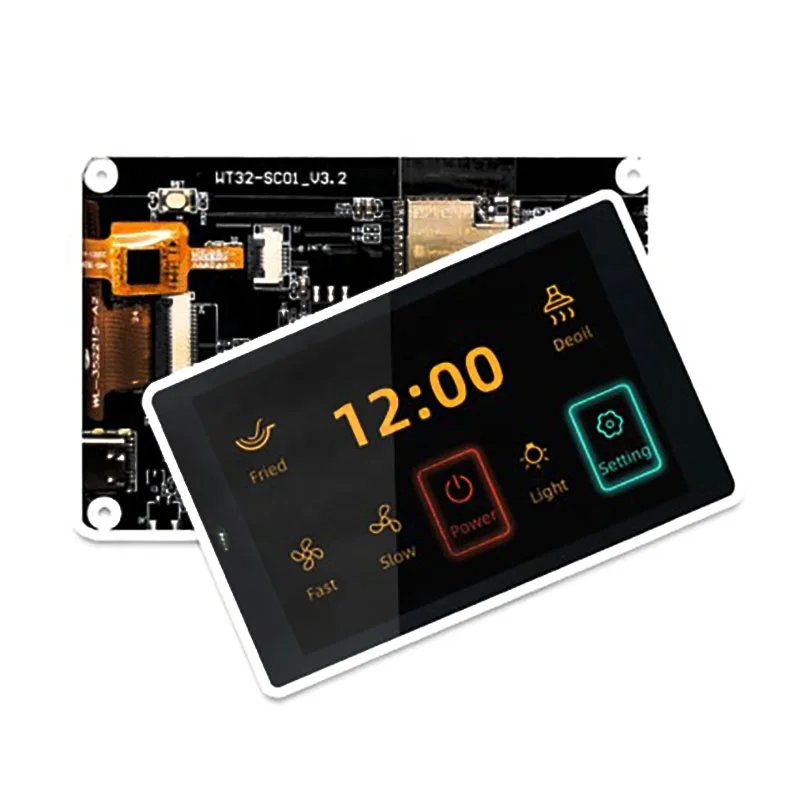

1. WT32-SC01 is a development board for visual touch screen, the board is equipped with GUI platform firmware developed independently, support graphic drag and drop programming to help users complete the development of customized control platform.

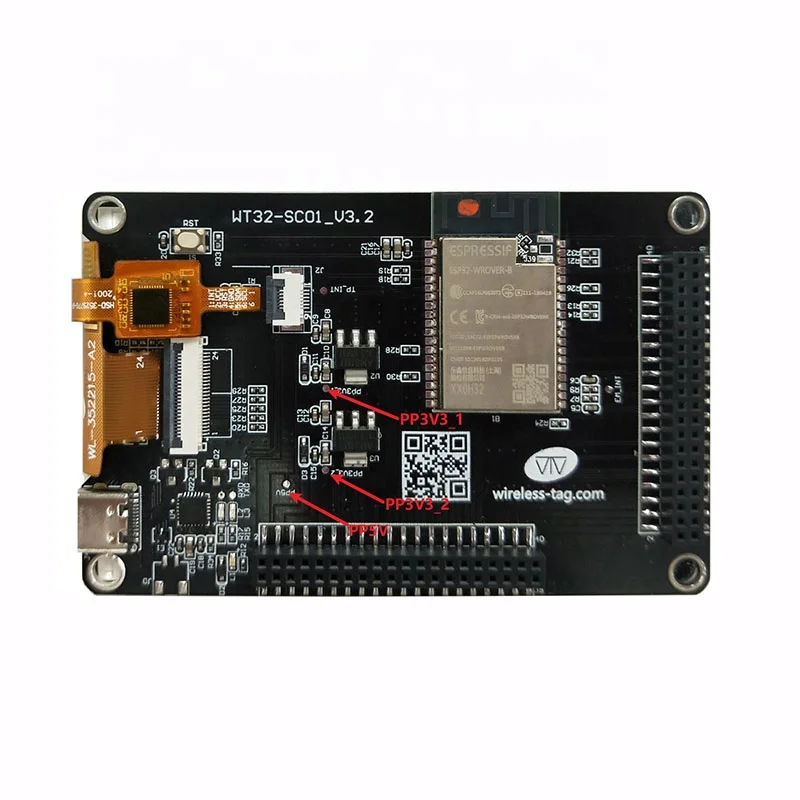

2. The main controller of WT32-SC01 development board adopts ESP32-WROVER-B module, this module is a general-purpose WiFi + BT + BLE MCU module, 4MB SPI flash and 8MB PSRAM are configured in.
3. WT32-SC01 development board can also develop and debug functions such as buttons, voice and camera through the expansion interfaces on both sides, greatly shorten the development cycle of users.
Detail Image
Notice: Graphical Interface Development
Users can quickly develop through our online platform- 8ms platform. It is similar to MIT APP Inventor, it
realizes the rapid development of building blocks. At present, the platform has improved the
development of graphical interface, more driver code blocks will be continuously improved in the future. And the technical sources of esp32 and ssd201 /202 are opened in 8ms platform.
Welcome to inquiry me to get more details
Users can quickly develop through our online platform- 8ms platform. It is similar to MIT APP Inventor, it
realizes the rapid development of building blocks. At present, the platform has improved the
development of graphical interface, more driver code blocks will be continuously improved in the future. And the technical sources of esp32 and ssd201 /202 are opened in 8ms platform.
Welcome to inquiry me to get more details
Product Application
Product Parameters
1.Specification Details
Product Type | Development board | Product Model | WT32-SC01 |
CPU | Dual core xtensa 32 bit LX6 MCU | Chip | ESP32-DOWD |
WIFI | 2.4GHz WiFi 802.11 B / g / N protocol | Blue-tooth | V4.2 BR/EDR/BLE standard |
Display | 3.5 inch, LCD screen, two touch | Resolition | 320*480 |
Power | DC 5V 2A | OperatingTemperature | -20~85 |
Interface | TP/LCM/2LDO/RST/Type-C/UART | Clock frequency | 80 ~ 240 MHz |
Antenna | PCB board | Dimension | 91mm*58mm*12mm |
2. PCB Dimension Diagram
3. Physical Dimension
