Сельскохозяйственный Электрический БПЛА для распыления пестицидов 25 л сельскохозяйственный Дрон растений медицинский
- Категория: Беспилотный летательный аппарат опрыскиватель >>>
- Поставщик: Shenzhen,TTF,Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.99 $* | 0.46 $* |
| Aug-15-2025 | 0.5 $* | 0.60 $* |
| Jul-15-2025 | 0.11 $* | 0.69 $* |
| Jun-15-2025 | 0.93 $* | 0.76 $* |
| May-15-2025 | 0.74 $* | 0.99 $* |
| Apr-15-2025 | 0.67 $* | 0.18 $* |
| Mar-15-2025 | 0.91 $* | 0.11 $* |
| Feb-15-2025 | 0.62 $* | 0.38 $* |
| Jan-15-2025 | 0.76 $* | 0.65 $* |
Характеристики
Product Specification
Diagonal Wheelbase | 1850mm | ||||||
Dimensions (mm) | Propellers Folded Only: 1900*1900*750(H) Arms and Propellers Folded: 1100*980*750(H) | ||||||
Material | Carbon Fiber and Aluminum Alloy | ||||||
Power Supply | Electric | ||||||
Motor | 10015-100KV | ||||||
ESC | FOC 120A | ||||||
Max Working Voltage | 58.8V | ||||||
Propeller | 36inch | ||||||
Pesticide Tank | 25L | ||||||
Number of Nozzle | 4 | ||||||
Spraying Shape | Full Cone | ||||||
Max Spraying Rate | 5L/min | ||||||
Theoretical Operating Efficiency (Acres per hour) | 25 | ||||||
FOV | 120° | ||||||
Resolution | 720P | ||||||
FPV Spotlight | 900Im | ||||||
Self Weight (Excluding Battery) | 19kg | ||||||
Standard Take-Off Weight | 51kg | ||||||
Max Take-Off Weight | 52kg | ||||||
Battery/Quantity needed | 14S 22,000mAh*1 | ||||||
Unit Battery Weight | 7kg | ||||||
Hovering Time | 18mins (Takeoff weight of 26kg) 8mins (Takeoff weight of 51kg) | ||||||
Max Tilt Angle | 15° | ||||||
Operating Temperature | 0-40℃ (32-104℉) | ||||||
Standard Spraying Speed (meters per second) | 5m/s | ||||||
Max Spraying Speed (meters per second) | 7m/s | ||||||
Max Flying Speed (meters per second) | 10m/s | ||||||
Remote Controller | T12 | ||||||
Voltage | 4.2V | ||||||
Control Distance | 2km | ||||||
Charger | PC1500 | ||||||
Input Voltage | AC100-240V | ||||||
Output Power | 1500W (750W*2) | ||||||
Package Specification
Our Packaging Standard
(Professional Flight Case)
What will be in the Package
(Parts might not be the same as the picture)
Aircraft
Remote Control
NOT in the Package (you might want to purchase in extra)
(Parts might not be the same as the picture)
Battery
Charger
Why you need to use Agricultural Drone
In Traditional Pesticide Spraying Methods
Manual Sprayer
Low efficiency of spraying;
High cost of labour;
Harmful to people's health
Tractor Sprayer
Low maneuverability;
Undesired soil panning;
Unsuitable for fields with rugged terrain;
Unsuitable for rice fields
Aviation
Unsuitable for spraying area less than 100 hectares;
Need for licenses to operate;
Need for government's permission;
Expensive
Agricultural Drone
The efficiency of spraying is 40-60 times better than other traditional methods;
Safe for people's health;
Won’t firm the soil or move over plants;
High usability to all types of field;
Able to take-off from anywhere, able to landing anywhere;
No need for driving licenses;
Lowest cost of labour;
Easy to operate;
Why you should choose TTF
We focus on drones
TTF Technology is a high-tech enterprise and professional Aero-Model manufacturer that unifies product design, research development, production, marketing and customer service. Our main products are UAV, including professional drones and consumer drones, as well as DIY components for drones. We has more than 20 years' experience on mechanical processing.

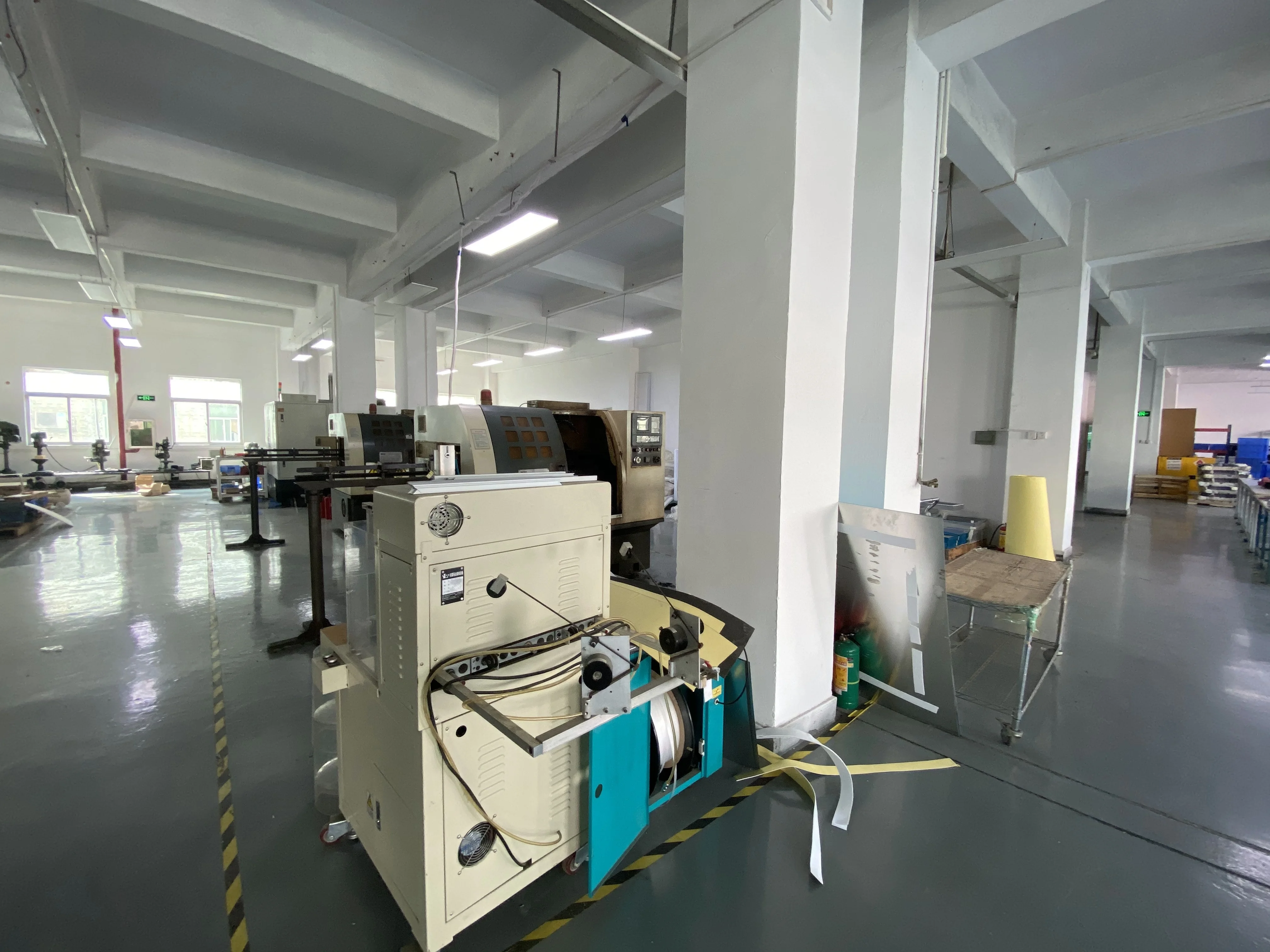

We have our own factory
We have a whole machining industry chain. All our products, from the materials processing to completed products, were manufacture red by ourselves. Thus, the quality and the consistency can be well controlled and always be the top of the industry. Besides the standard edition, we also supply customer-exclusive edition, which has its own SN for each product (Support all your requests).
We have rich overseas sales experience
Established in 2015, our company has been dealing with overseas marketing from the very beginning. Our products are sold into many countries. We are familiar with the customs, laws and agriculture situations of each country. And besides, we have many well-cooperated shipping agencies, who can arrange delivery to all over the world, without any issues.
TTF in exhibitions
TTF in the Saigon Exhibition & Convention Center-SECC (2019)
TTF in the 15th China Asean Expo
Our Customers came to visit the factory
FAQ
Q1. Can I make a sample order for agriculture drone?
A: Yes, we welcome sample order to test and check out quality. Different samples in an order are acceptable.
Q2. What about the lead time?
A:Sample needs 7-10 days.
Q3. Do you have any MOQ limit for drone?
A: We don't have any MOQ, 1piece is acceptable.
Q4. How do you ship the order and how long does it take to arrive?
A: We usually ship by air transportation. It takes around 7-12 days to arrive in most situations. Sea transportation is also available.
Q5. How to make an order for drone?
Step1: Let us know your requirements.
Step2: We quote according to your requirements or our suggestions.
Step3: Customer confirms the order and places deposit for formal order.
Step4: We arrange the production.
Q6. Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
If you have some questions, please do not hesitate to contact us.
Our team are more than willing to serve you!
