Горячая Распродажа гидравлический шланг DX68 DX69 для обжима масла 1/4-2

Горячая Распродажа гидравлический шланг DX68 DX69 для обжима масла 1/4-2

Категория: >>>
Поставщик: Guangzhou,Xunpo,Machinery,Equipment,Co.,Ltd.

Цена:1 400,00 $ - 1 550,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-20-2025	1666.90 $*	1749.46 $*
Aug-20-2025	1652.19 $*	1735.0 $*
Jul-20-2025	1386.70 $*	1455.95 $*
Jun-20-2025	1624.30 $*	1705.28 $*
May-20-2025	1414.72 $*	1485.51 $*
Apr-20-2025	1596.35 $*	1676.48 $*
Mar-20-2025	1582.59 $*	1661.58 $*
Feb-20-2025	1568.28 $*	1646.93 $*
Jan-20-2025	1554.51 $*	1632.97 $*

Характеристики

Product Description

SPECIFICATIONS:

Big force,low noise and easy to operate
Nice look,performance,price
ISO certificate

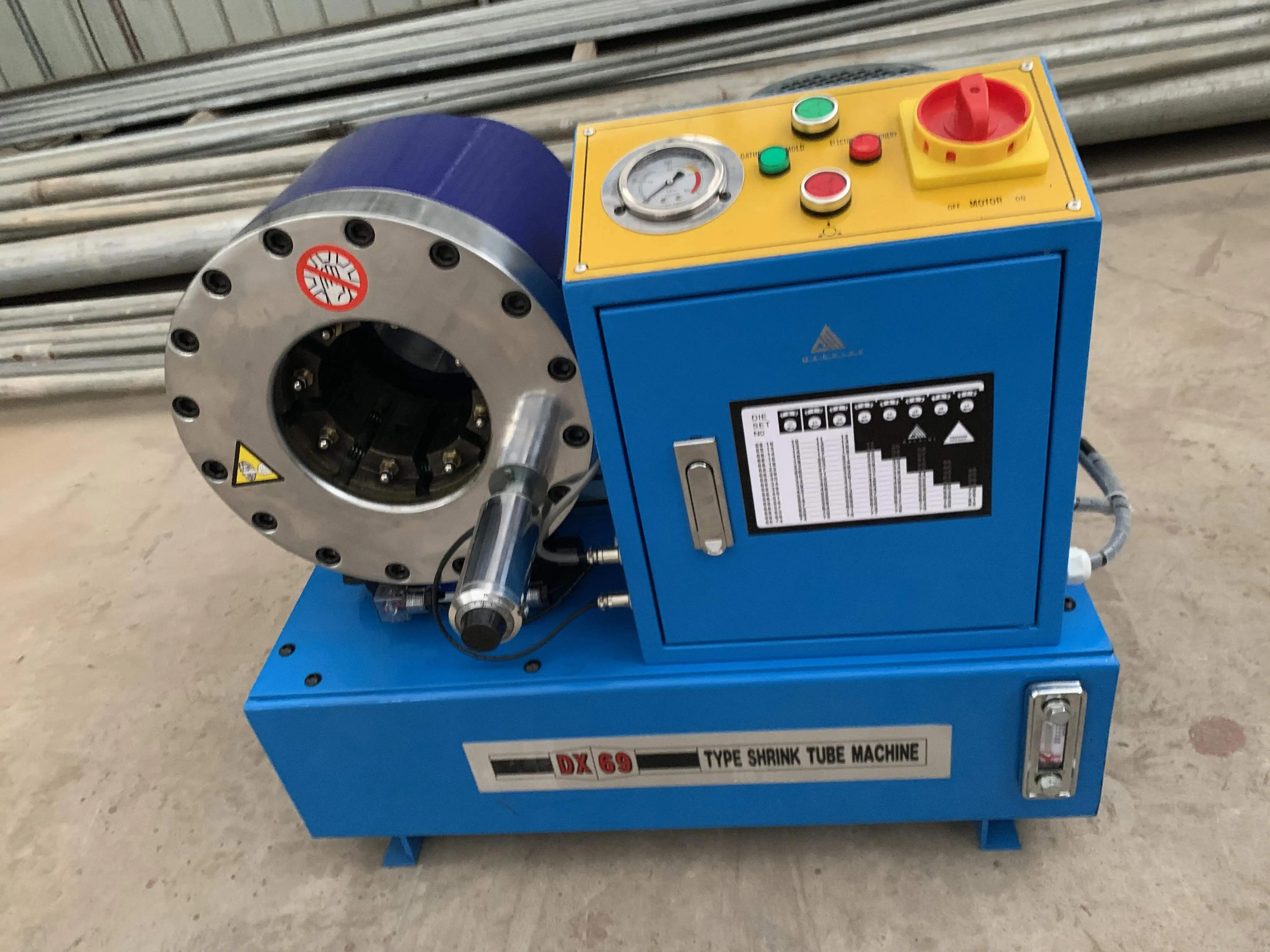

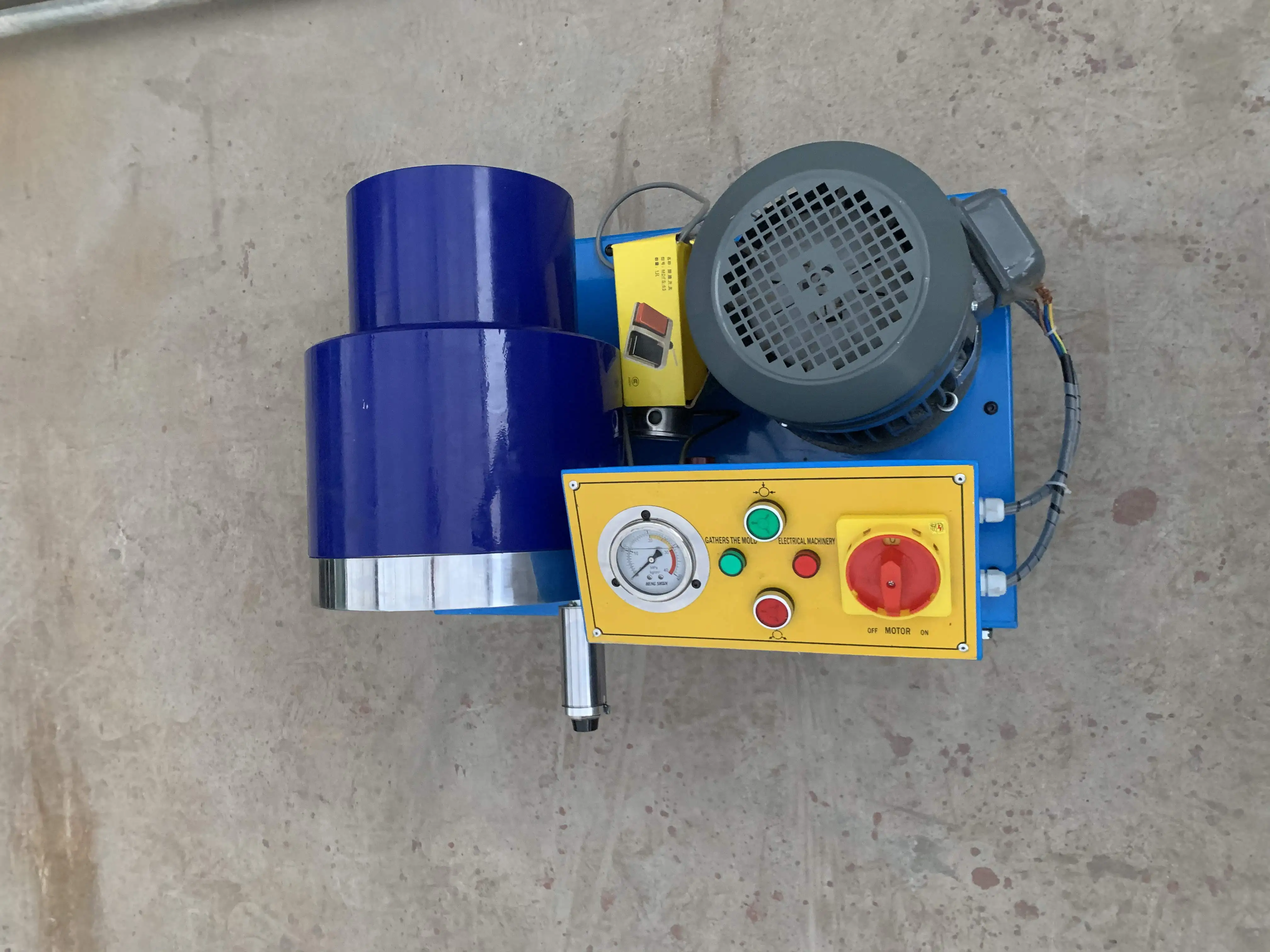

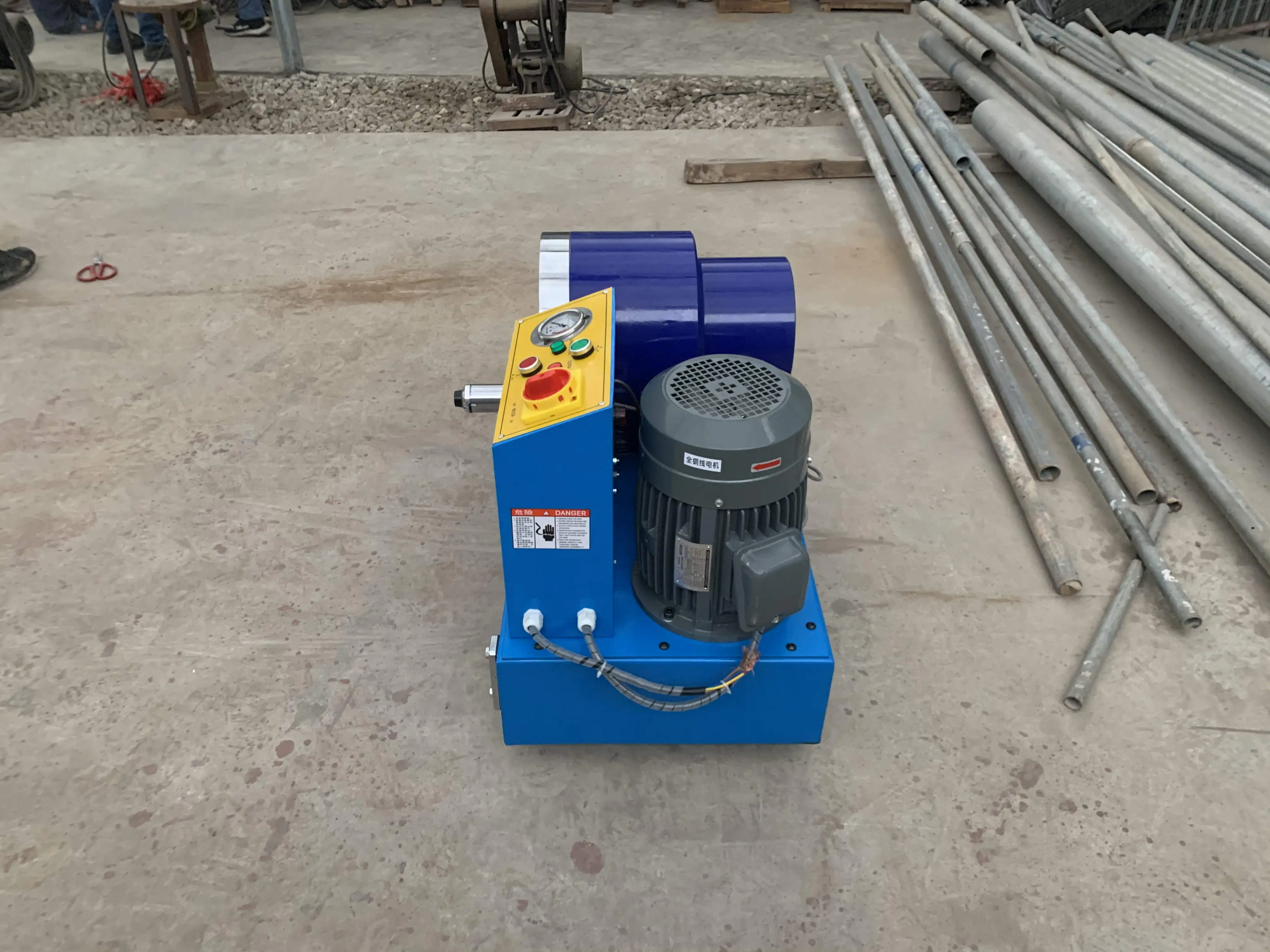

MODEL	DX68/DX69
Max hose ID	φ 6~ 51mm (maximum 2 inch, min 2 min)
Rated voltage	Three-phase AC380V or single-phase AC220V
Random supporting mold	10 set (15, 19, 23, 27, 31, 36, 41, 47, 53, 58) STD
Weight	230 Kg
Dimensions	630(L)x750(W)x800 (H)mm

Direction for use

使用说明

1. When crimping, place the fitiing in the center of the mold as much as possible, and do not press on the hexagonal nut.
2. Prevent tools and other foreign objects from entering the press head.
3. Every time after the work is completed, the eight mold bases must be opened to the maximum extent, so that the spring can be in an open state and the spring can be maintained, and the oil cylinder is also in a pressure relief state to extend the life of the oil seal.

Description of application effect:

1. When using the tube press for the first time, it should be crimped 20-30 times without load, and it can be used after observing that all parts are normal.

2. When using the pipe press in winter, it should be withheld 20-30 times without load to increase the oil temperature.

3. Press the open button, after the mold base is opened, select the corresponding mold to install on the mold base according to the specifications of the hose to be crimped, and adjust the micrometer scale.

4. Place the hose with the joint in the proper position in the press head so that the entire length is crimped at one time.

5. Press the crimp button to execute the crimping operation until the crimping head stops crimping and automatically opens the mold.

6. Take out the crimped hose assembly, use a vernier caliper to check the outer diameter of the crimped joint jacket. If it does not match the parameter table, fine-tune the micrometer scale until the next hose crimp meets the requirements.

Packing&Shipping

Packing Details :
Plastic cover with wooden case
Delivery Details :
1-10 set will be finished within 7 days.

Size Information

Related Products

After Sales Service

Quality Asurance

The company promises that all machines sold by the company can enjoy a quality guarantee period of 12-24 months from the day of sale. If any quality problem (not caused by human factors) occurs during the quality guarantee period, the company will send it free of charge Parts for repair.

Company Introduction

SOMPO Machinery Equipment Co., Ltd. was established in early 2010. Our company is located in the beautiful Tianhe District, Guangzhou City. We have 10 years of professional experience in producing and selling excavator seal kits and crimping machine, and we are the agent of SKF brand seals. We have won the trust of many customers with excellent product quality and service. Welcome new and old customers to guide.
