Характеристики
Products Description
Outside Micerometers Series 340, 104 with interchangeable Anvils
• Wide measuring range with interchangeable anvils.
• Measuring face of the spindle is carbide tipped (standard model).
• IP 65 water / dust protection (series 340)*.
* Models with a measuring range up to 300 mm.
• Equipped with Ratchet Stop for constant measuring force.
• Wide measuring range with interchangeable anvils.
• Measuring face of the spindle is carbide tipped (standard model).
• IP 65 water / dust protection (series 340)*.
* Models with a measuring range up to 300 mm.
• Equipped with Ratchet Stop for constant measuring force.
Specification
Metric Setting Standard
Order No. | Range (mm) | Resolution (mm) | Interchangeable anvils | Qty | Size (mm) | Micrometer head stroke (mm) |

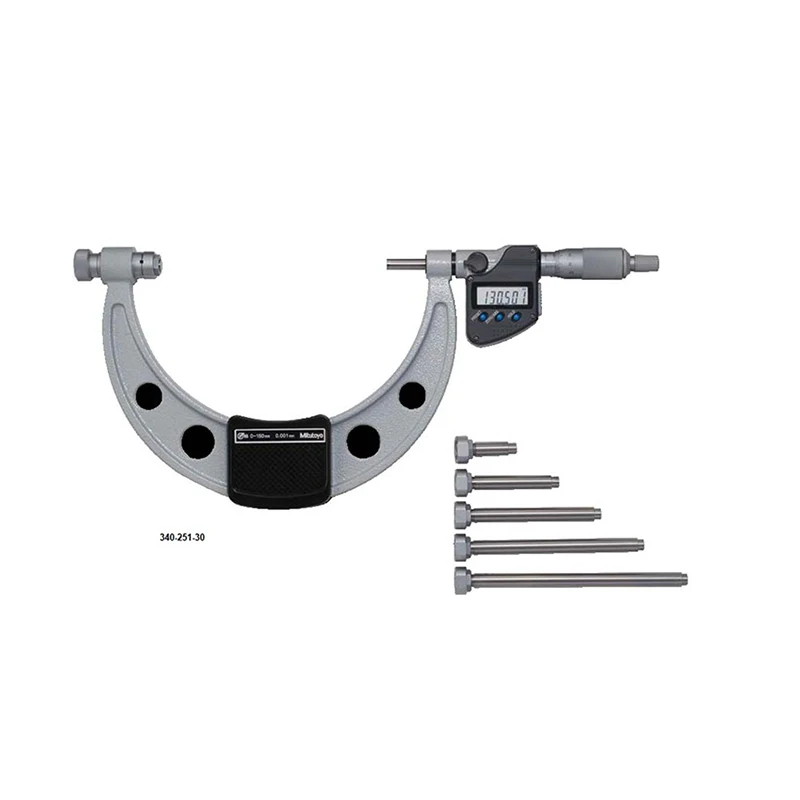

Digimatic (LDC) 340-251-30 | 0 - 150 | 0.001 | 6 pcs | 5 | 25 - 125 | 25 |
340-252-30 | 150 - 300 | 6 | 150 - 275 | |||
340-520 | 300 - 400 | 4 pcs | 4 | 300 - 375 | ||
340-521 | 400 - 500 | 400 - 475 | ||||
340-522 | 500 - 600 | 500 - 575 | ||||
340-523 | 600 - 700 | 600 - 675 | ||||
340-524 | 700 - 800 | 700 - 775 | ||||
340-525 | 800 - 900 | 800 - 875 | ||||
340-526 | 900 - 1000 | 900 - 975 |
Order No. | Range (in) | Resolution (in) | Interchangeable anvils | Qty | Size (in) | Micrometer head stroke (in) |
Digimatic (LCD) 340-351-30 | 0 - 6 | 0.00005 in/ 0.001 mm | 6 pcs | 5 | 1 - 5 | 1 |
340-352-30 | 6 - 12 | 0.0001 in/ 0.001 mm | 6 | 6 - 11 | ||
340-720 | 12 -18 | 12 - 17 | ||||
340-721 | 18 - 24 | 18 - 23 | ||||
340-722 | 24 - 30 | 24 - 29 | ||||
340-723 | 30 -36 | 30 - 35 |
Metric Setting Standard
Order No. | Range (mm) | Graduation (mm) | Interchangeable anvils | Qty | Size (mm) | Micrometer head stroke (mm) |
Analog 104-171 | 0 - 50 | 0.01 | 1pc | 1 | 25 | 25 |
104-139A | 0 - 100 | 4pcs | 3 | 25 - 75 | ||
104-135A | 0 - 150 | 6pcs | 5 | 25 - 125 | ||
104-161A | 50 - 150 | 4pcs | 4 | 50 - 125 | ||
104-140A | 100 - 200 | 100 - 175 | ||||

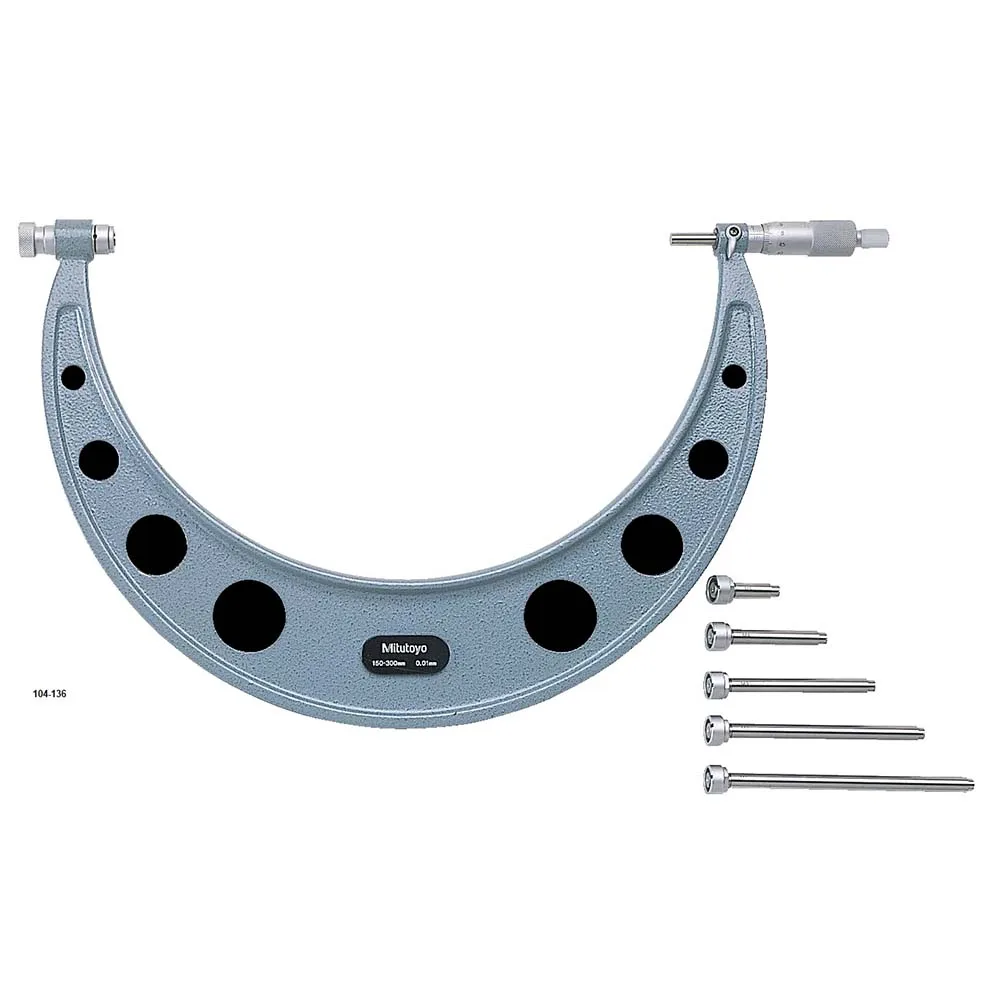

104-136A | 150 - 300 | 6pcs | 6 | 150 - 275 | ||
104-141A | 200 - 300 | 4pcs | 4 | 200 - 275 | ||
104-142A | 300 - 400 | 300 - 375 | ||||
104-143A | 400 - 500 | 400 - 475 | ||||
104-144A | 500 - 600 | 500 - 575 | ||||
104-145A | 600 - 700 | 600 - 675 | ||||
104-146A | 700 - 800 | 700 - 775 | ||||
104-147A | 800 - 900 | 800 - 875 | ||||
104-148A | 900 - 1000 | 900 -975 |
Inch Setting Standard
Order No. | Range (in) | Interchangeable anvils | Graduation (in) | Qty | Size (in) | Micrometer head stroke (in) |
Analog 104-165 | 0 - 2 | ipc | 0.0001 | 1 | ||
104-149 | 0 - 4 | 4pcs | 0.001 | 3 | ||
104-137 | 0 - 6 | 6pcs | 5 | |||
104-162 | 2 - 6 | 4pcs | 4 | |||
104-150 | 4 - 8 | |||||
104-138 | 6 - 12 | 6pcs | 6 | |||
104-151 | 8 - 12 | 4pcs | 4 | |||
104-152 | 12 - 16 | |||||
104-201 | 12 - 18 | 6pcs | 6 | |||
104-153 | 16 - 20 | 4pcs | 4 | |||
104-202 | 18 - 24 | 6pcs | 6 | |||
104-154 | 20 - 24 | 4pcs | 4 | |||
104-155 | 24 - 28 | |||||
104-203 | 24 - 30 | 6pcs | 6 | |||
104-156 | 28 - 32 | 4pcs | 4 | |||
104-204 | 30 - 36 | 6pcs | 6 | |||
104-157 | 32 - 36 | 4pcs | 4 | |||
104-158 | 36 - 40 | |||||
104-205 | 36 - 42 | 6pcs | 6 |
