Беспроводной мост Точки доступа 48 в POE Расстояние 1 км подключи и
Беспроводной мост Точки доступа 48 в POE Расстояние 1 км подключи и
Беспроводной мост Точки доступа 48 в POE Расстояние 1 км подключи и
Беспроводной мост Точки доступа 48 в POE Расстояние 1 км подключи и
Беспроводной мост Точки доступа 48 в POE Расстояние 1 км подключи и
Беспроводной мост Точки доступа 48 в POE Расстояние 1 км подключи и

Беспроводной мост Точки доступа 48 в POE Расстояние 1 км подключи и


Поделиться:


Цена:54,00 $ - 65,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-20-2025 64.69 $* 67.75 $*
Aug-20-2025 64.5 $* 67.22 $*
Jul-20-2025 53.17 $* 56.53 $*
Jun-20-2025 63.84 $* 66.75 $*
May-20-2025 55.55 $* 58.78 $*
Apr-20-2025 62.14 $* 65.67 $*
Mar-20-2025 61.17 $* 64.42 $*
Feb-20-2025 60.58 $* 63.3 $*
Jan-20-2025 60.26 $* 63.87 $*

Характеристики

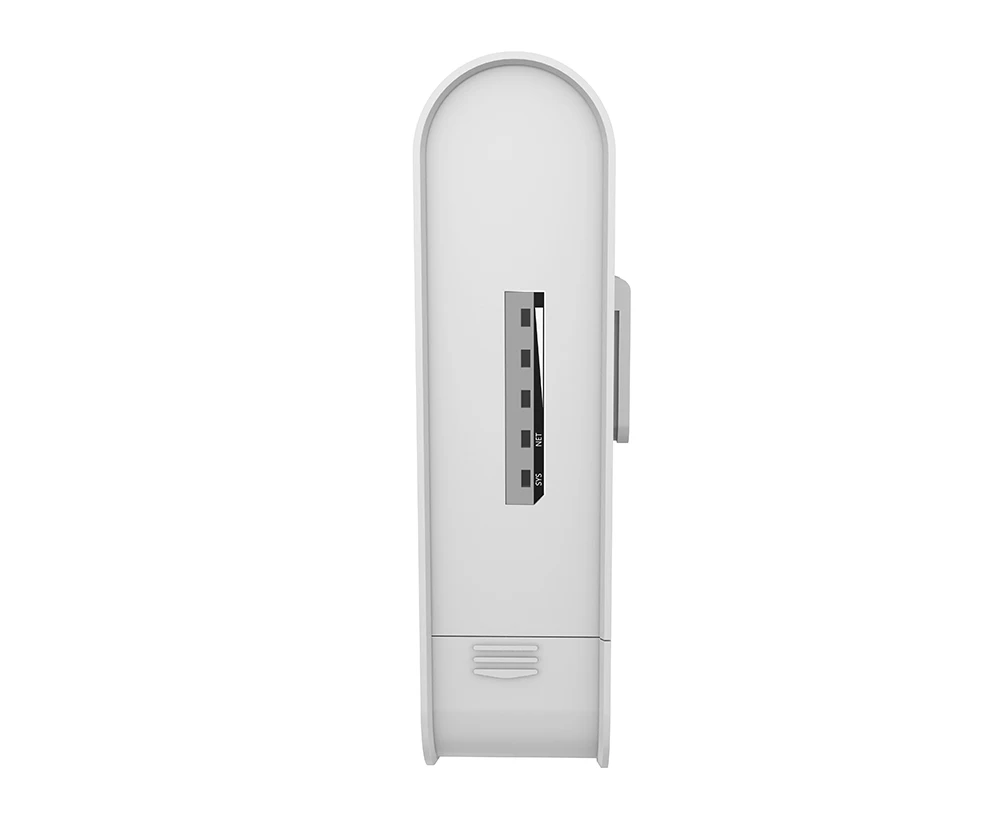

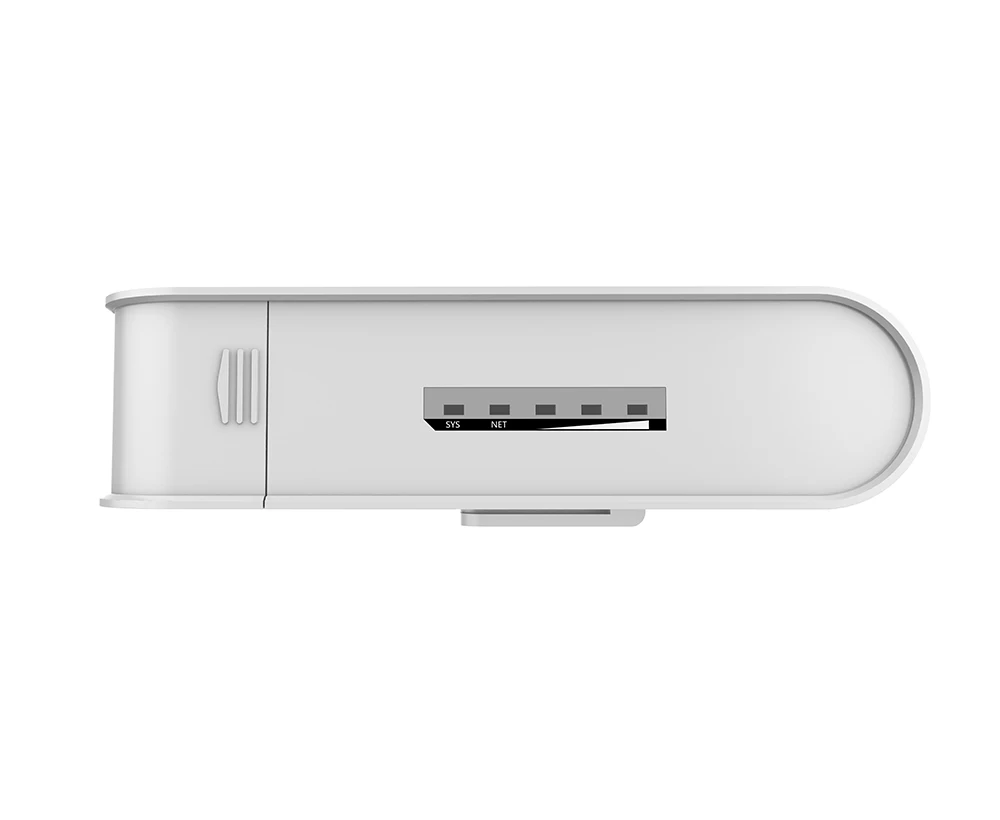

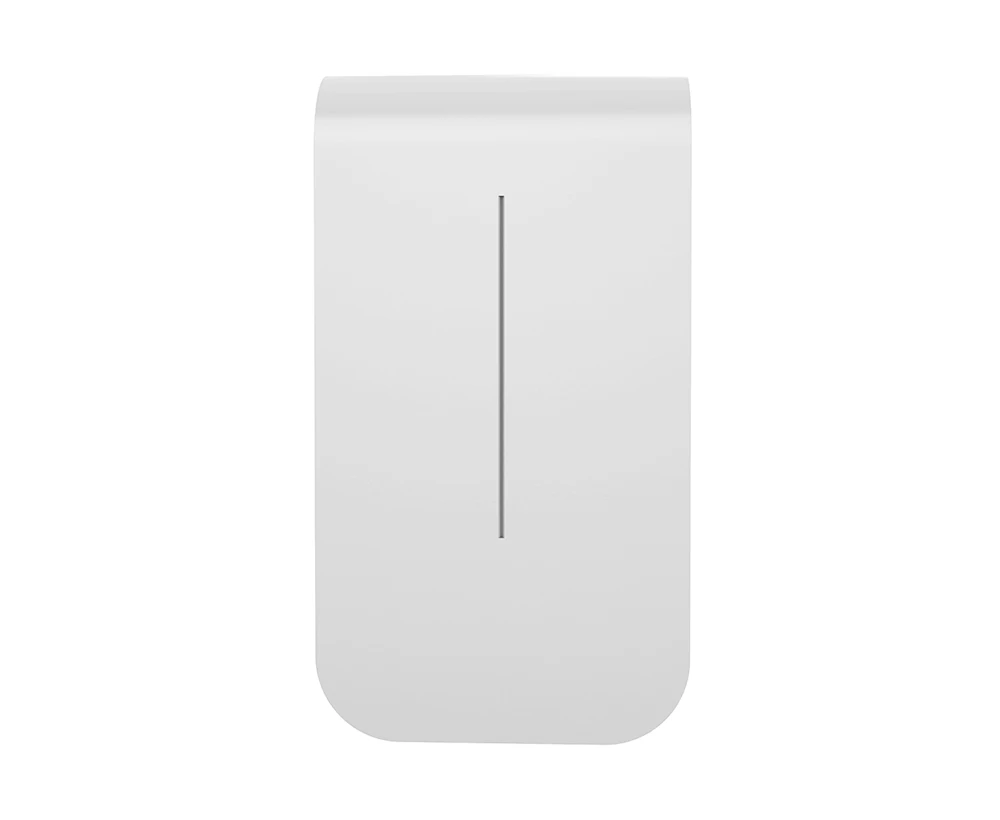

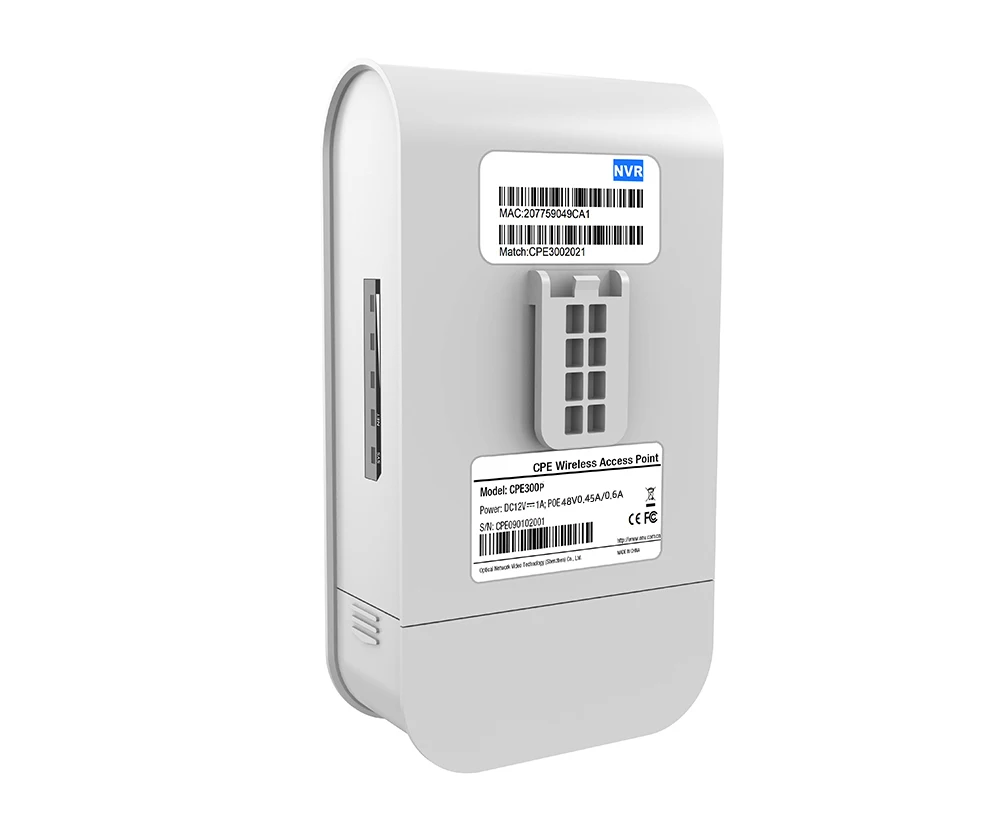

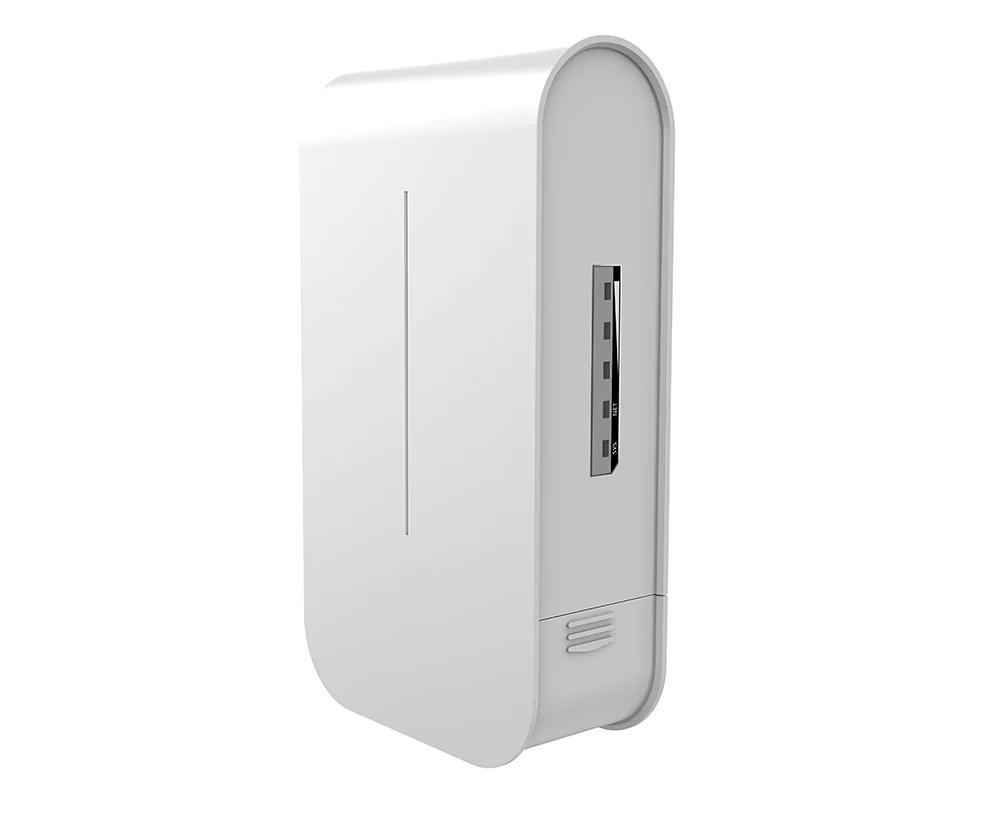

wireless bridge ONV-CPE300


ONV-CPE300P wireless bridge is a high-performance, high-stability 2.4GHz multi-purpose wireless transmission product developed by ONV. The wireless transmission rate is up to 300Mbps, and the built-in 8dBi high-gain directional antenna is adopted, so that the distance between receiving and transmitting can reach 1KM. ONV-CPE300P wireless bridge supports relay, which can realize long-distance wireless signal transmission, in addition, it also supports gateway and AP functions, which is suitable for wireless networking and wireless coverage. It adopts dust-proof, waterproof, and lightning-proof housing and antenna, which can work stably for a long time in various outdoor environments. It supports DC12V power supply/48V POE main/standby dual power supply and remote reset functions for easy management. It can realize point-to-point, point-to-multi-point, and outdoor wireless coverage and other applications to meet the wireless transmission coverage requirements of elevator monitoring, rural areas, factory districts, scenic spots, squares, and other indoor and outdoor environments.





High gain antenna, 300M high-speed transmission
Adopt 802.11n MIMO wireless technology, provide 300Mbps wireless transmission rate.
Built-in high gain dual-polarized antenna, the signal is stronger and the transmission is farther.



Engineering-level hardware design, professional outdoor transmission

 Qualcomm high-performance enterprise-level chips, industrial-grade materials, high-speed and stable anti-interference, meet the needs of various installation environments.
Industrial-grade integrated molding shell, with IP61 dustproof, waterproof, adaptable to various harsh environments such as wind and sun, rain, snow, and freezing, and can work normally and stably even in extremely high and low-temperature environments (-40°C~70°C).



Easy to install and easy to maintain

  The factory settings are free of matching. Support one-key quick digital pairing, easy and efficient.
Support point-to-point, point-to-multi-point data transmission, centralized management.
The installation is simple and convenient, and the signal strength is intelligently indicated.






Model
ONV-CPE300P

Interface Characteristics
Fixed Port
1*10/100M 48V PoE PD port(Data/Power)
1*DC5521 12VDC power port
Ethernet Port
10/100Base-TX auto-sensing,Full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission
10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter)
Chip Parameter
Chip
AR9531, 650MHz
Network Protocol
IEEE802.3u 100Base-TX, IEEE802.11b/g/n
DDR2 Memory
64MB
Flash
8MB
RF Design
Dual-stream single frequency, 2T2R 300M MIMO technology
Working Frequency
2.4~2.4835GHz,802.11b/g/n
Transmit Power
18dBi
 Antenna Type
Built-in dual-polarization directional antenna, horizontal 60 degrees, vertical 30 degrees, gain 8dBi
Transmission Rate
300Mbps
Wireless Transmission Distance
1km(Max)
LED Indicator
System: SYS (green), network: NET (green), signal indicator: (green)
Reset Switch
Yes, Press for 20 seconds and release to restore factory settings
RF Parameter
Modulation Mode
OFDM=BPSK,QPSK, 16-QAM, 64-QAM

DSSS=DBPSK, DQPSK, CCK
Receiving Sensitivity
802.11n(2.4GHz) , 802.11g, 802.11b
-90dBm @ MCS0, - 90dBm @ 6Mbps, - 95dBm @ 1Mbps
 -70dBm @ MCS7, - 72dBm @ 54Mbps, - 90dBm @ 11Mbps
-90dBm @ MCS8
-68dBm @ MCS15
Transmit Power
802.11n(2.4GHz) (±1.5dBm), 802.11g(±1.5dBm), 802.11b(±1.5dBm)
14dBm@ MCS0~2/MCS8~10, 18dBm @ 6~24Mbps, 18dBm @1~11Mbps
14dBm @ MCS3/MCS11, 18dBm @ 36Mbps
14dBm @ MCS4/MCS12，16dBm @ 48Mbps
<2.2kg
14dBm @ MCS5/MCS13， 16dBm @ 54Mbps
14dBm @ MCS6/MCS14
14dBm @ MCS7/MCS15
Power
Power Supply Mode/
Input Voltage
12VDC or 48V Passive PoE power supply

Power Consumption
Standby<3W,Full Load≤5W
Power Supply
Wall-mounted style 48VDC PoE power supply. Input AC:100~240V 50-60Hz 0.5A
Physical Parameter
Operation TEMP / Humidity
-40~+70°C;5%~90% RH Non condensing
Storage TEMP / Humidity
-40~+75°C;5%~95% RH Non condensing
Dimension (L*W*H)
147.5*81*44mm
Net /Gross Weight
<0.2kg / <1.0kg
Installation
Pole-mounted, Wall-mounted
Certification & Warranty
Lightning protection / protection level
Port lightning protection: 6KV 8/20us; Protection level: IP61
Warranty
3 years, lifelong maintenance.
Software Features
Operating Mode
Wireless bridge mode or AP mode or universal interrupt mode
Wireless Set-up
BSSID
Automatically select the signal channel
Distance control 802.1x ACK time output
Multiple SSIDs, Max 4 can be configured
Wireless Security
Hide SSID
WPA/WPA2 (WPA-EAP uses TKIP)
WPA/WPA2 (WPA-PSK uses TKIP or AES)
WEP, 64/128/152 bit WEP security password
System Set-up
WEB configuration (HTTP/remote login)
Software Upgrade
WEB webpage or TFTP to upgrade the software
User Management
Configurable user and password
System Monitoring
Equipment and network status statistics
Log
Local log, host log, file transfer log
Restore Set-up
Restore factory default set-up
Backup Function
Back up the system configuration and restore the user's configuration when needed












Model
Description
ONV-CPE300P
2.4G/300Mbps PoE wireless bridge can support 1*10/100M 48VDC passive PoE power supply, transmission distance 1km, pole-mounted
installation. 48VDC POE power supply




PACKING LIST
CONTENT
QTY
UNIT
2.4G/300Mbps PoE wireless bridge
1
SET
48VDC PoE power supply
2
PC
Double head RJ45 network cable
2
PC
Hanging ear and stainless steel band
1
SET
User Guide
1
PC
Warranty Card
1
PC
Note:PoE switch does not match the SFP module.








ONV-POE36028PFM
ONV-POE36036PFM
ONV-POE36048PFM
