Защелкивающаяся термозащитная деталь для холодильника 2149641 2149643 биметаллический термостат размораживания PL008(301)

Защелкивающаяся термозащитная деталь для холодильника 2149641 2149643 биметаллический термостат размораживания PL008(301)

Цена:*

Количество:

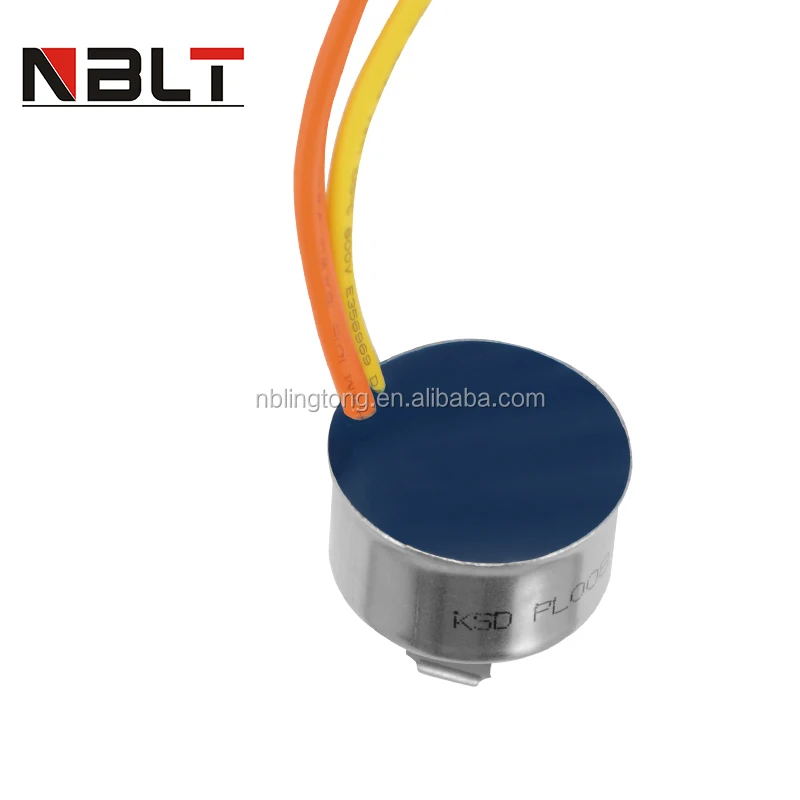

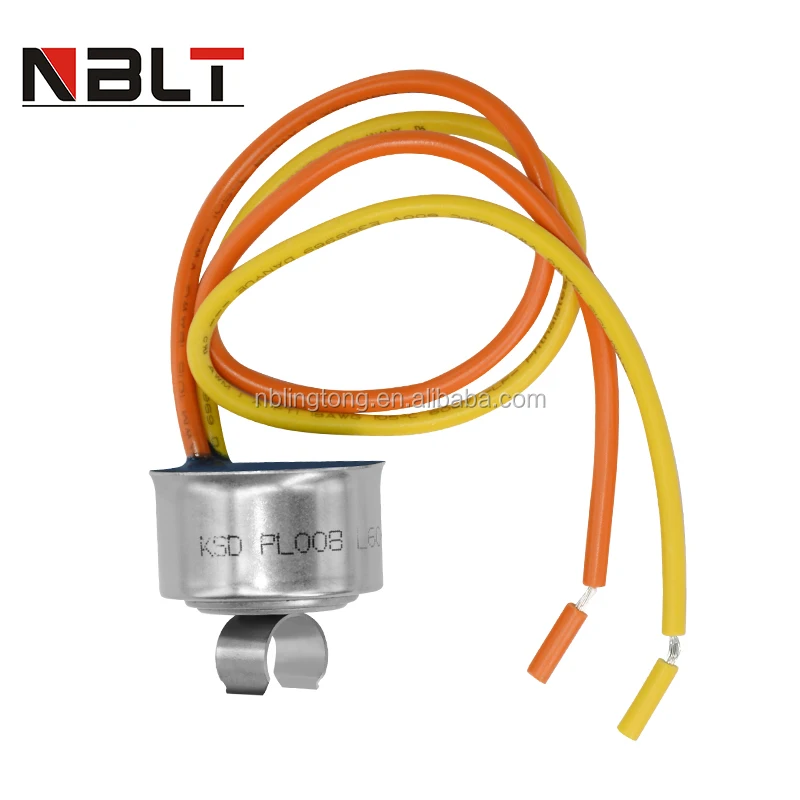

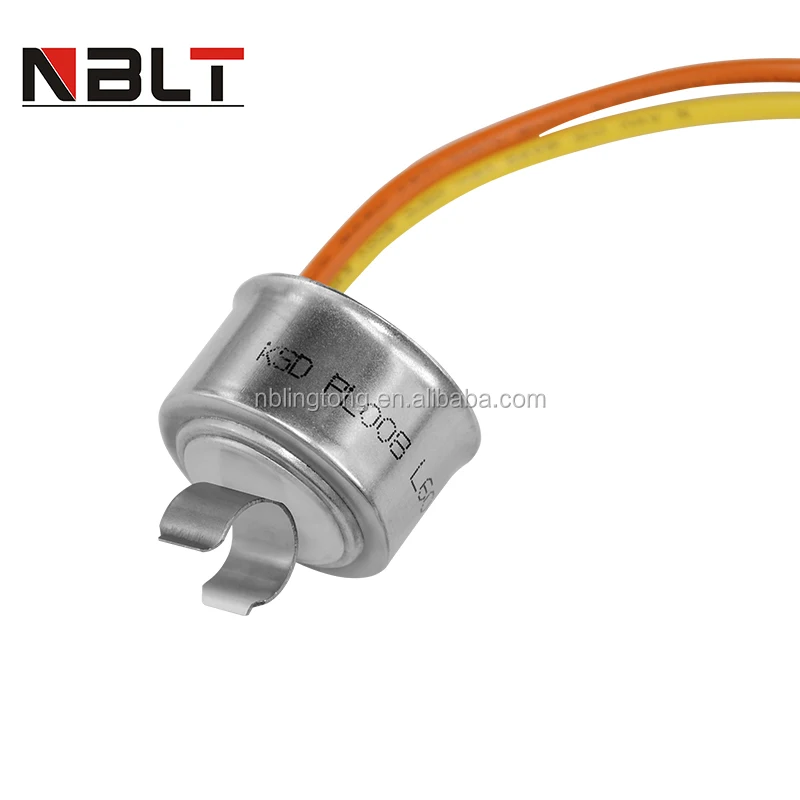

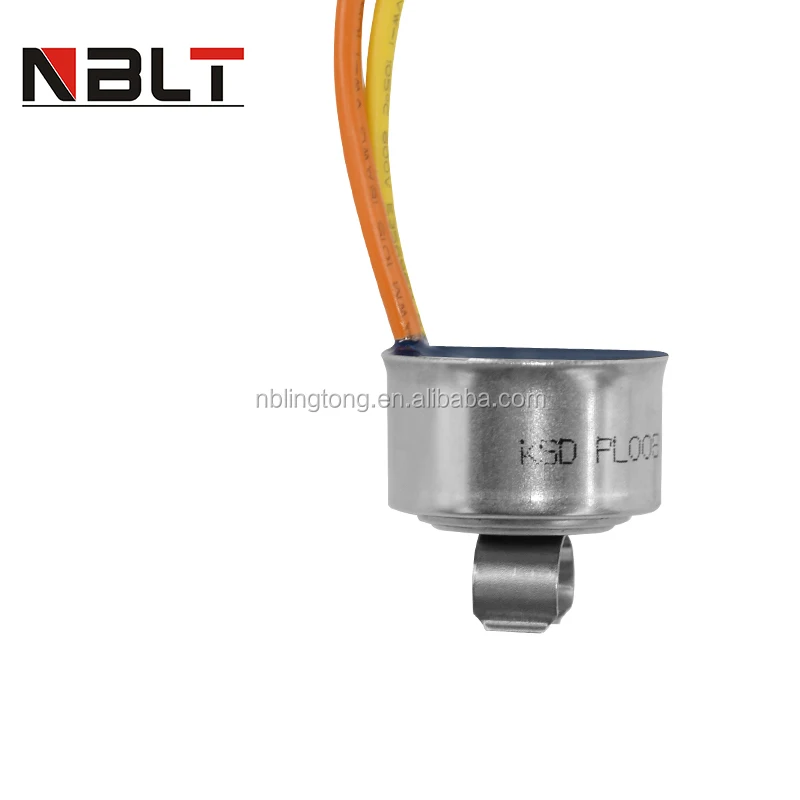

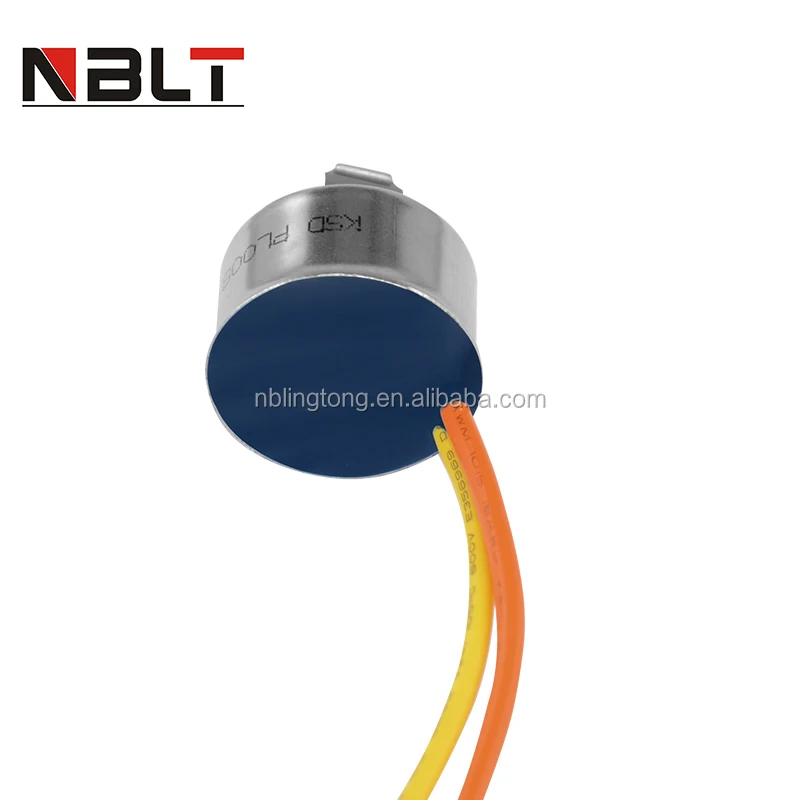

Snap-Action Temperature Protection Refrigerator Replacement Part 2149641 2149643 Bi-metal Defrost Thermostat PL008(301) 1409A

Specification

ltem NO	PL008(301) 1409A
Use	Defrost/Temperature control/Protection
Appliance	refrigerators, freezer
Reset type	Automatic
Base material	stainless steel, epoxy resin,silver,copper
Amperage	3A/6A/10A/25A
Max. Operating Temperature	90°C
Differential	According to the requirement
Min. Diff	8°C
Tolerance	Refer to the regulation
Cold-resistant Temperature	-30°C
Limit of the tolerance(OFF)	±3°C
Limit of the tolerance(ON)	±3°C
Contact material	Silver
Dielectric Strength	Parts between electriferous components and non-electriferous ones can bear 2000V (3750V for Reinforced insulation type) 50Hz AC current, which is nearly sine wave, for one minute as bearing test. Resulted no breakdown, no flashover.
Insulation Resistance	With a DC 500V megger, borne DC 500V, the tested value is over 10MW.
Resistance Between Terminals	Below 50mW
Temperature characteristics	Normal close, Normal open
Maximum ambient temperature	90°C
Diameter of bimetal disc	25.4mm(1″)
Line	Color: white/brown/yellow/blue Length: customized
Terminal type	Customized (Refer to our specification)
Cover/Bracket	Customized (Refer to our specification)
Sample price	Free sample,USD 50 freight charge.Refund after mass order
