BO 410 сельскохозяйственный Дрон опрыскиватель для сельскохозяйственных
- Категория: Aircraft >>>
- Поставщик: Cangzhou,Blue,Ocean,Environmental,Protection,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 4760.96 $* | 4998.89 $* |
| Aug-17-2025 | 4720.5 $* | 4956.81 $* |
| Jul-17-2025 | 3960.24 $* | 4158.79 $* |
| Jun-17-2025 | 4640.65 $* | 4872.86 $* |
| May-17-2025 | 4040.9 $* | 4242.82 $* |
| Apr-17-2025 | 4560.57 $* | 4788.19 $* |
| Mar-17-2025 | 4520.16 $* | 4746.99 $* |
| Feb-17-2025 | 4480.0 $* | 4704.2 $* |
| Jan-17-2025 | 4440.81 $* | 4662.11 $* |
Характеристики
Product Description

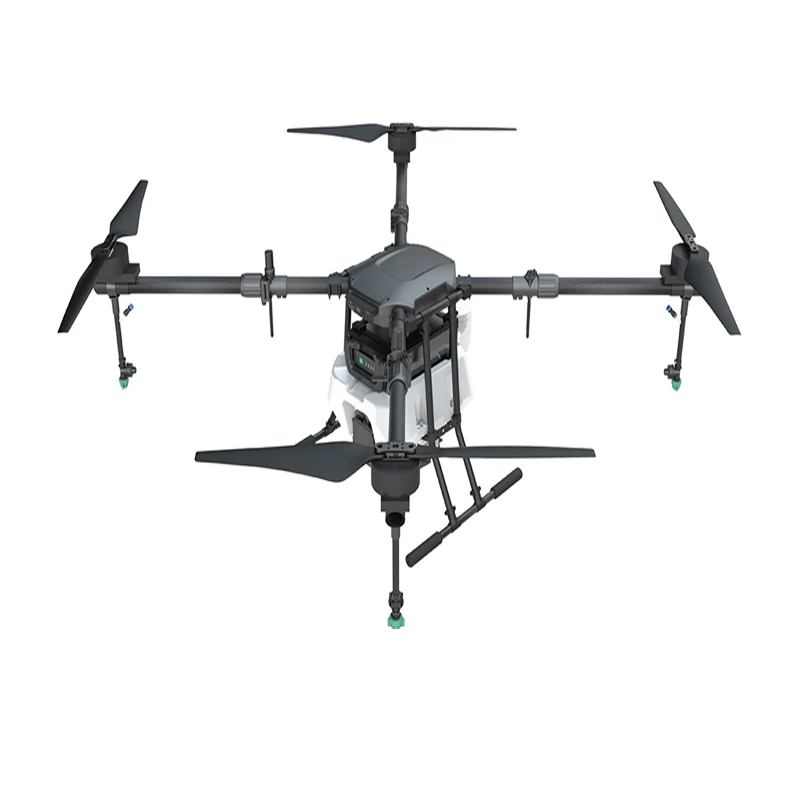

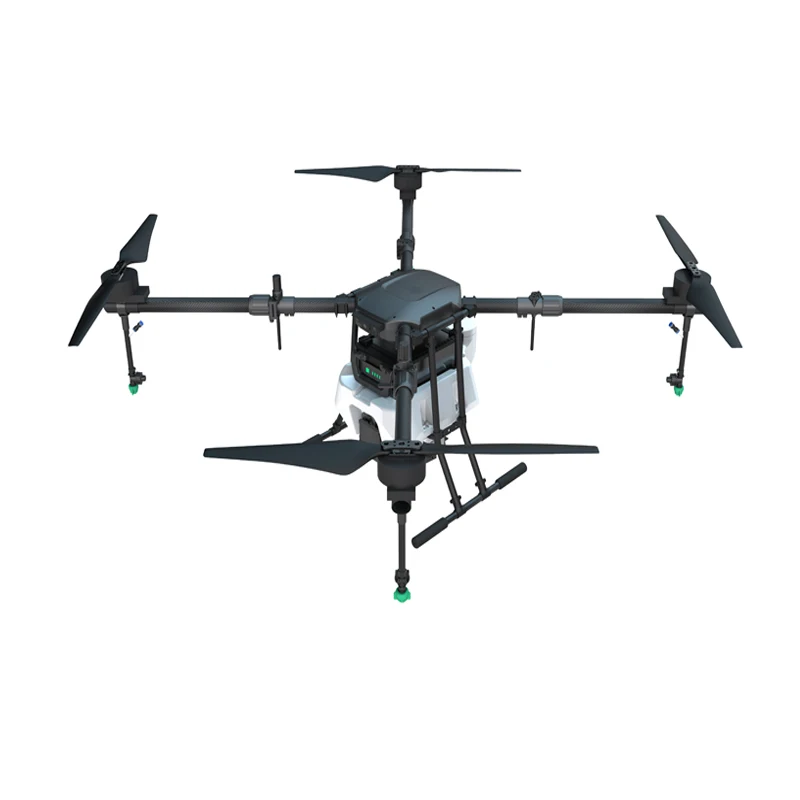

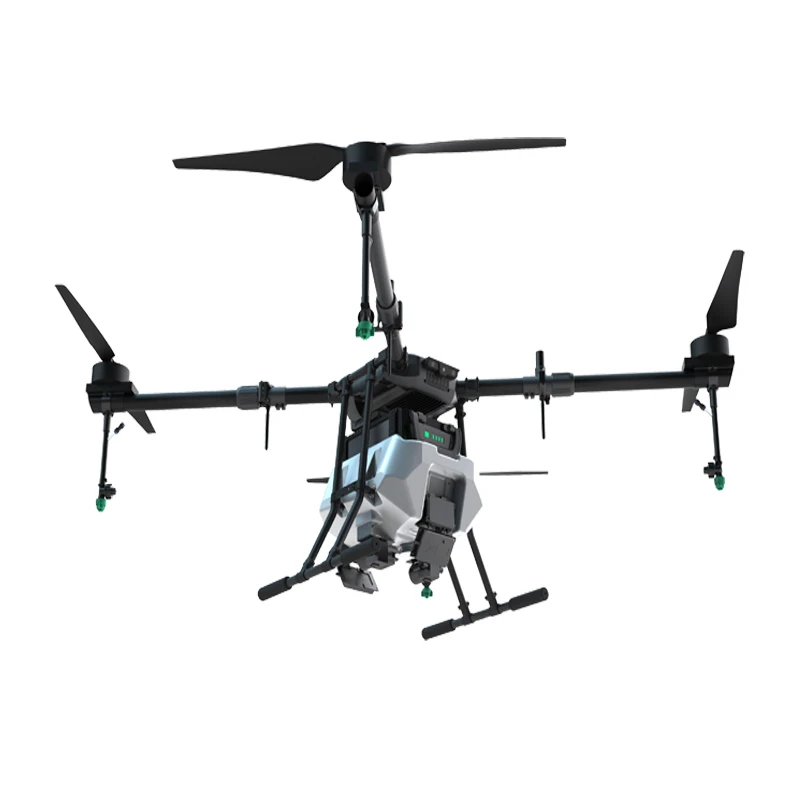

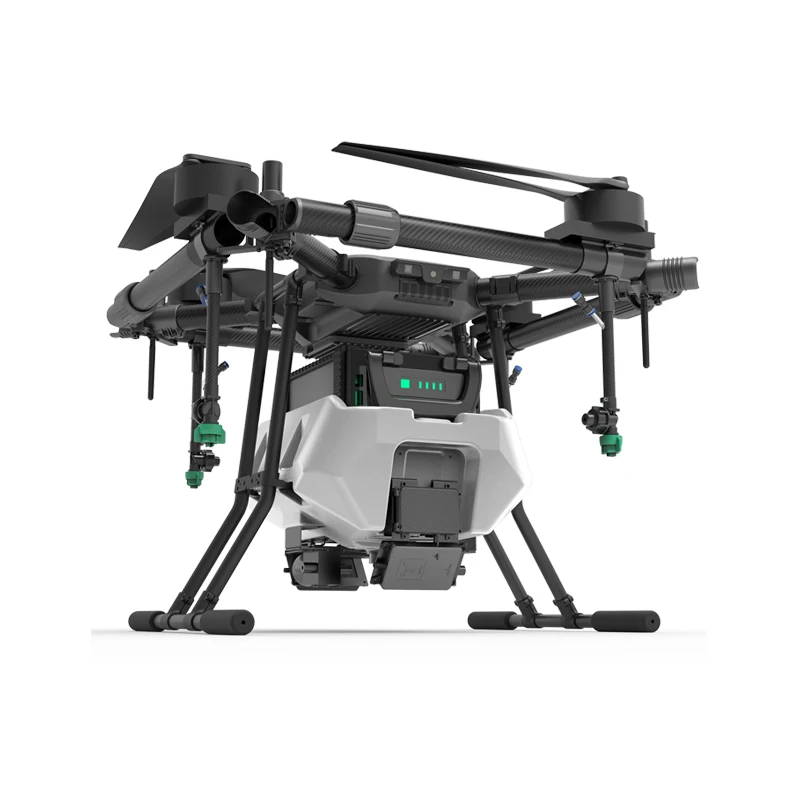

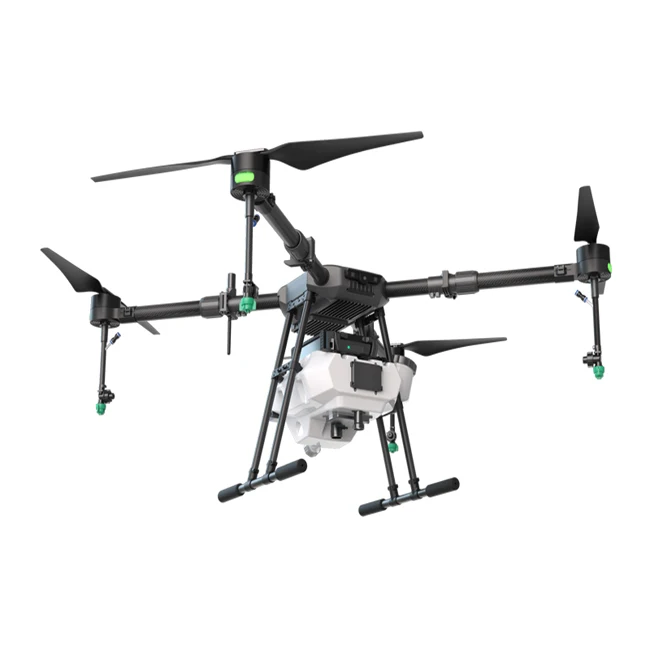

Blue ocean agricultural and forestry plant protection solution adopts the brand-new BO -series plant protection UAV,
carries the flight controller especially for plant protection and the agricultural intelligent data processing platform, dual-pump accurate measuring and spraying system combines the FPV,
obstacle avoidance and other auxiliary operation systems to realize the accurate plant protection operation, making the plant protection operation become simpler and safer.
Basic parameters | Flight parameters | ||||
Wheelbase | 1495mm(4 axis) | Hovering time | 18min(no load) 10min(full load) | ||
Outline dimension | spread: 1152*1152*630mm fold : 666.4*666.4*630mm | Operation height | 1.5m-3.5m | ||
Width of spray | 4-6m(depending on different crops) | Max. flight angle | 25°(attitude mode) | ||
Medicine box capacity | 10.5L | Max. flight speed | 10m/s(GPS mode) | ||
Operational efficiency | 80Mu/h | Hovering accuracy | horizontal±1.0m vertical±0.5m horizontal±10cm vertical±10cm(RTK) vertical±0.1m(radar) | ||
Weight | 11.6kg(battery excluding) | Accurate altitude | 0.02m | ||
Max.takeoff weigh | 26kg | Hold of radar | |||
Power battery | 14000mAh | Altitude hold rage | 1-10m | ||
Nozzle type | high pressure fan nozzle | Obstacle avoidance | 2-20m | ||
Atomized particles | 135-250um(XR11001VS) | Detect range | |||
Plant protection UAV agricultural sprayer
BO series agriculture?drone adopt convenient surrounded type airframe design, modular mainte-nance design,dual-pump accurate?spraying system, supporting the one-key setting of the dosageof mu;it is also equipped with FPV, obstacle avoidance and other auxiliary operating systems,making?the operation of the sprayer simple and safe.
The intelligent data platform based on 4G high-speed network can efficiently transmit plant pro-
tection operation data, and the background system can conduct synchronous analysis and pro-
cess to make the management visible and controllable in real time.
tection operation data, and the background system can conduct synchronous analysis and pro-
cess to make the management visible and controllable in real time.
Related Products
Certificate
Company Introduction
Cangzhou blue ocean environmental protection equipment(Group) Co., Ltd. is a national high-tech enterprise. Our company is located in Botou Jiaohe Development Zone, Cangzhou City, Hebei province. Since its foundation, our company has been researching , innovating and developing new products and new projects,is a key research and development base for spraying machinery and dust removal equipment in our country. Our company is an environmental protection manufacturer integrating R & D, production, sales and installation.
FAQ
1. Q: How to visit our company? A: Fly to Beijing Airport: By fast train From Beijing South station to Cangzhou west station
(1hour), then we can pick up you to factory(40min). Fly to Shanghai Airport: By fast train From Shanghai Hongqiao station to Cangzhou west station(4.5 hours), then we can pick up you to factory(40min).
2. Q: What should I provide if I want to customized machine? A: You need provide profile drawing, material, thickness, voltage and your special requirements.
3. Q: What is the Warranty? A: Within 12 mouths, all technicals are ready to serve you at any time.
4. Q: What can you do if the machine broken? A: Our machine's warranty period is 12 months, if the broken parts can't repair, we will send new parts replace the broken parts free, but you need pay the express cost if after warranty period. we can negotiate to solve the problem, and we supply the technical support for whole life of equipment.
5. Q: If need technician to workshop to debug and teach, how to do? A: We sent technician to your country to fix the machine.
Buyer should bear cost including: visa, round trip ticket and suitable accommodation, also buyer should pay the salary 100
USD/day.
(1hour), then we can pick up you to factory(40min). Fly to Shanghai Airport: By fast train From Shanghai Hongqiao station to Cangzhou west station(4.5 hours), then we can pick up you to factory(40min).
2. Q: What should I provide if I want to customized machine? A: You need provide profile drawing, material, thickness, voltage and your special requirements.
3. Q: What is the Warranty? A: Within 12 mouths, all technicals are ready to serve you at any time.
4. Q: What can you do if the machine broken? A: Our machine's warranty period is 12 months, if the broken parts can't repair, we will send new parts replace the broken parts free, but you need pay the express cost if after warranty period. we can negotiate to solve the problem, and we supply the technical support for whole life of equipment.
5. Q: If need technician to workshop to debug and teach, how to do? A: We sent technician to your country to fix the machine.
Buyer should bear cost including: visa, round trip ticket and suitable accommodation, also buyer should pay the salary 100
USD/day.
