Промышленный Android серийный экран дисплей модуль 7 дюймов 1 сенсорный
- Категория: Промышленные компьютерные и аксессуары >>>
- Поставщик: Leadingtouch,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.77 $* | 0.28 $* |
| Aug-19-2025 | 0.46 $* | 0.52 $* |
| Jul-19-2025 | 0.52 $* | 0.84 $* |
| Jun-19-2025 | 0.75 $* | 0.41 $* |
| May-19-2025 | 0.33 $* | 0.46 $* |
| Apr-19-2025 | 0.16 $* | 0.40 $* |
| Mar-19-2025 | 0.17 $* | 0.77 $* |
| Feb-19-2025 | 0.57 $* | 0.85 $* |
| Jan-19-2025 | 0.42 $* | 0.30 $* |
Характеристики
Product Description

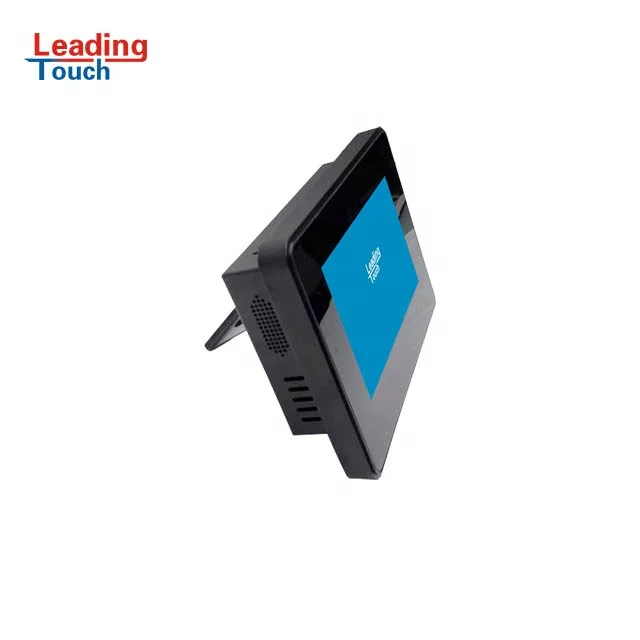

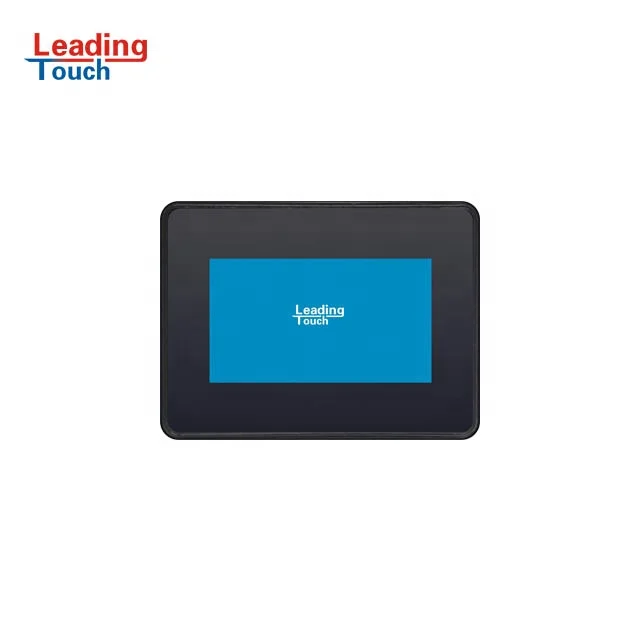

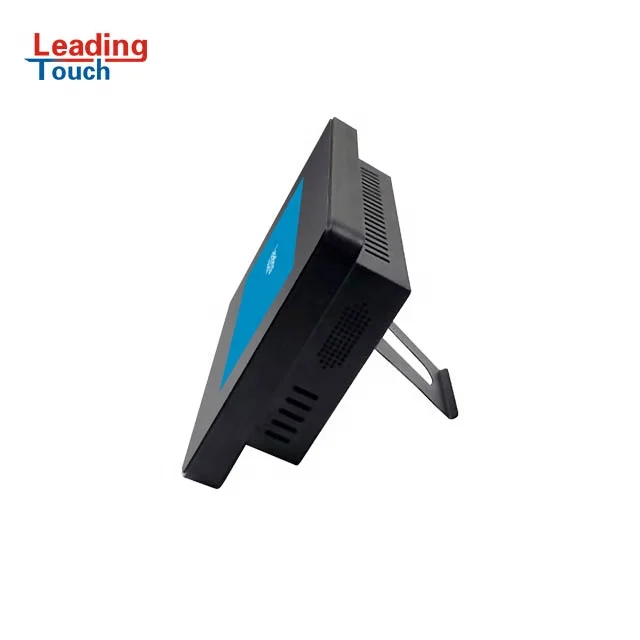

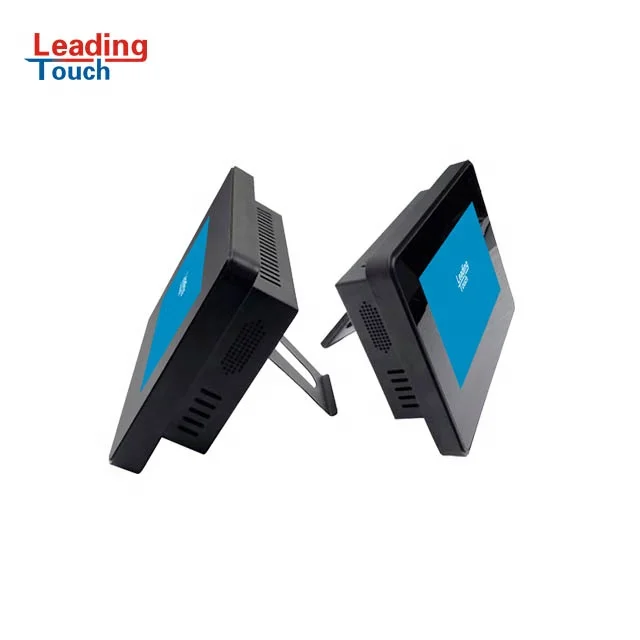

7” Android All-in-One PCAP Touch Computer
TC-0702A is 7inch capacitive All-in-one Android touch monitor with stands; Aluminum alloy front bezel, inside PCAP touch meet IP65 waterproof, Highlight display with Anti-vandal tempered cover glass meet UL60950, Suitable for outdoor application, which is designed for Kiosks, Interactive Digital Signage, ATM, Gaming, Casino, Industrial, Education, etc., is easily connected and integrated by user.
Features
Zero-bezel flat touch monitor, slim housing
10Point multitouch project capacitive touch technology
Aluminum alloy front bezel, meet IP65 waterproof
Standard VESA mounting and four side bracket options
High brightness LED panel
3mm Anti-vandal tempered cover glass meet UL60950
Efficient and stable Android computer system
Installation Options
Products Model | TC-0702A | ||
Description | 7” Android All-in-One PCAP Touch Computer | ||
Case/Bezel Color | Black | ||
Display Module | Display Size | 7inch 16:9 Active Matrix TFT LCD | |
91Useful Screen Area | 154.7mm x 86.5mm | ||
Optimal Resolution | 1024 x 600 | ||
Color Depth | 8bit,16.7 Million colors | ||
Brightness | 450cd/m² | ||
Contrast Ratio | 800:1 (Typical) | ||
Viewing Angle(CR≥10) | Right/Left 75º/75º Up/Down 75º/75º | ||
Android System | Android OS | 7.1 | |
CPU | Quad-core ARM Contex-A17 up to 1.8G | ||
GPU | Mail-T764 GPU | ||
RAM and ROM Flash | RAM:2G/4G DDR3 ROM Flash:Nand Flash 16GB | ||
SD and SIM Card Socket | SD Card Stoch:1,(Max 32G) SIM Card Socket:1 | ||
USB and COM Port | 2x USB Port | ||
OTG Port | 1 x OTG | ||
Video Input | 1 x HDMI | ||
Ethement Port | 1 x LAN RJ45(Gigabit) | ||
Wireless | Wi-Fi 802.11 a/b/g/n/ac | ||
Bluetooth | Bluetooth 4.0 | ||
Audio and Microphone | 1 x 3.5mm line out, and 1 x microphone out | ||
Speaker | 2 x12W internal speakers | ||
4G Module | Options | ||
Touch Technology | Project Capacitive Touch Technology | ||

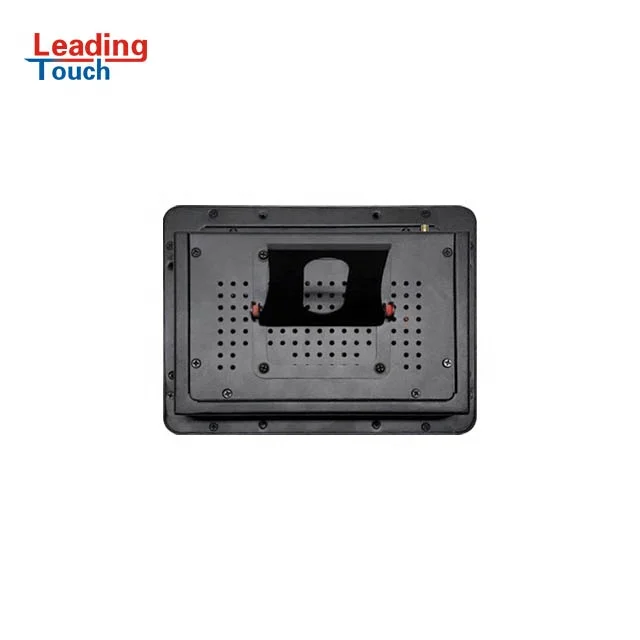

Mounting Options | VESA 75 and 100 and External Bracket | ||
Power Supply | External Adapter: 100-240VAC, 50-60Hz | ||
Temperature Range | Operating: 0℃ to 50℃; Storage: -20℃ to 60℃ | ||
Humidity Range | Operating: 20%-80%; Storage: 10%-90%( (no condensing) | ||
Dimension | 221.5mm x 168.5mm x 55mm | ||
Warranty | 1 year | ||
Agency Approvals | FCC, CE, RoHS | ||
Packing & Delivery
Related Products
Certifications
Our Company
Founded in 2001, LeadingTouch, the global leader in touch technology, develops, manufactures and markets a complete line of touch screen and touch monitor products, with PCAP, SAW, Infrared, Resistive touch technology. LeadingTouch offers the largest selection of touch screen technologies and LCD touch monitors and carefully designs each product for the demanding requirements of diverse applications, such as Industrial, Medical, POS, Kiosks, Retail, Hospital, Transportation, Office Automation, and Gaming.
FAQ
Q1: What is your main size for your PCAP android tablet Panel PC monitor? | ||||||||
A1: 7” 10.1” 10.4” 12.1” 15” 15.6” 21.5” Tablet PC 27” 32” 43” 55” 65” PCAP android panel pc | ||||||||
Q2: Is it waterproof? Vandal proof? | ||||||||
A2: Yes, the front panel is waterproof. It is anti-vandal. | ||||||||
Q3: Is it anti-glare? Do you have high brightness 1000nits for outdoor. | ||||||||
A3: If you need anti-glare one or high brightness, pls tell us before make order. | ||||||||
Q4: Is the monitor IPS? Do you have 2K or 4K monitor? | ||||||||
A4: Yes, we have IPS, 2K, 4K different type, any requirement pls contact us get confirm. | ||||||||
Q5: Do you have the Android tablet working temperature -20℃ to 70℃ one? | ||||||||
A5: Yes, it is industrial application. Pls tell us your application before make order. | ||||||||
Q6: What is your RAM and ROM Capacity? | ||||||||
A6: Our standard is 2G+8G, we can supply different kinds, such as 2G+16G, 4G+16G, 4G+32G, 4G+64G customized. | ||||||||
Q7: Is it need driver for calibration? | ||||||||
A7: No, it is driver free, connection-use one. | ||||||||
Q8: Whether your PCAP Capacitive android tablet Panel PC monitor support OEM? | ||||||||
A8: Yes, our PCAP android tablet Panel PC monitor support customization with size, brightness, function, appearance, resolution, etc. | ||||||||
Q9: What is your capacitive touch pc monitor application? | ||||||||
A9: Hotel lobbies, Office buildings, Auto dealerships, Bank branches, Gaming casinos, Healthcare waiting rooms, Retail stores and train stations, Industrial Control, Education, Artificial Intelligence, etc. | ||||||||
Q10: What is your payment method? | ||||||||
A10: T/T, Paypal, Credit card, secure payment on alibaba. | ||||||||
Q11: What is your guarantee period? | ||||||||
A11: 1 Year. If you have any requirement, pls contact us. | ||||||||
