Крепеж для изготовления крепежный винт заголовок машина соединительных деталей
- Категория: Metal Forging Machinery >>>
- Поставщик: Foshan,Nanhai,District,Yu,Hai,Machinery,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 10829.45 $* | 11370.88 $* |
| Aug-16-2025 | 10738.80 $* | 11275.6 $* |
| Jul-16-2025 | 9009.99 $* | 9459.26 $* |
| Jun-16-2025 | 10556.23 $* | 11084.65 $* |
| May-16-2025 | 9191.32 $* | 9651.85 $* |
| Apr-16-2025 | 10374.14 $* | 10893.63 $* |
| Mar-16-2025 | 10283.4 $* | 10797.40 $* |
| Feb-16-2025 | 10192.43 $* | 10702.25 $* |
| Jan-16-2025 | 10101.50 $* | 10606.98 $* |
Характеристики

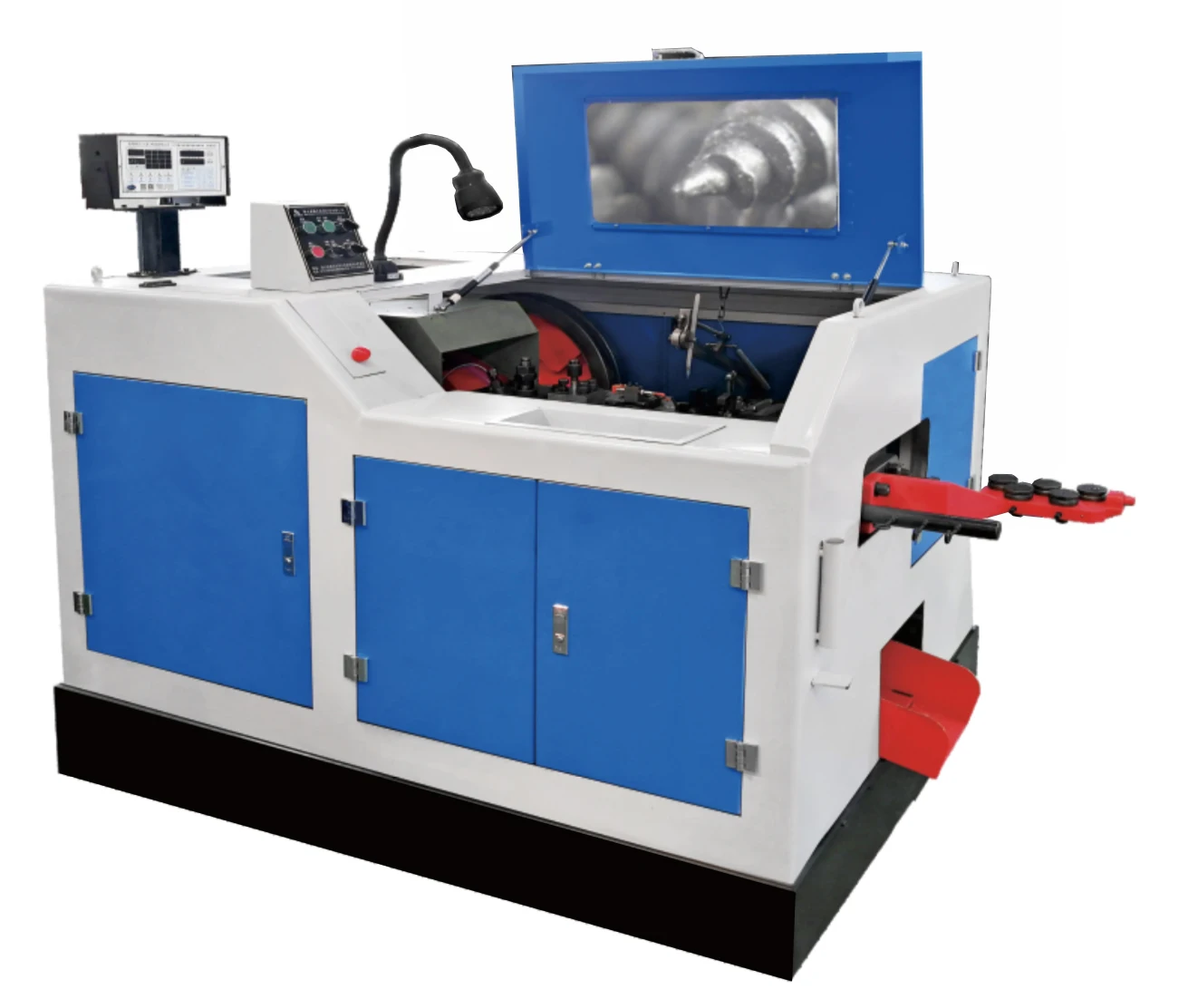

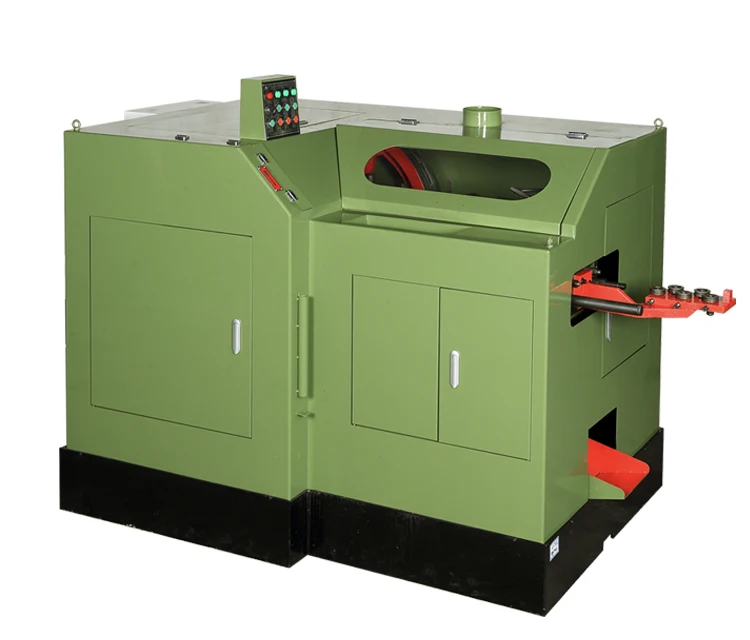

Products Description
Model | Max.Blank Diameter/mm | Max.Blank Length/mm | Max.Cut-off Length/mm | Stroke/mm | Capacity/ pcs/min | Main Die Diameter/mm |
YHD3-20 | Ф0.8-4.0 | 20 | 30 | 37 | 150-210 | Ф20×35 |
YHD4-40 | Ф2.0-5.0 | 40 | 47 | 60 | 160-180 | Ф30×60 |
YHD5-60 | Ф3.0-7.0 | 60 | 67 | 90 | 110-140 | Ф32×80 |
YHD5-80 | Ф3.0-7.0 | 80 | 95 | 110 | 90-110 | Ф32×100 |
YHD5-100 | Ф3.0-7.0 | 100 | 120 | 130 | 80-100 | Ф35×120 |
YHD5-150 | Ф3.0-7.0 | 150 | 168 | 190 | 80-100 | Ф40×180 |
YHD6-70 | Ф4.0-9.0 | 70 | 110 | 100 | 100-120 | Ф50×120 |
YHD6-90 | Ф4.0-9.0 | 90 | 131 | 120 | 80-100 | Ф50×120 |
YHD6-120 | Ф4.0-9.0 | 120 | 148 | 150 | 70-90 | Ф50×150 |
YHD6-150 | Ф4.0-9.0 | 150 | 170 | 190 | 60-70 | Ф50×180 |
YHD6-170 | Ф4.0-9.0 | 170 | 190 | 230 | 50-60 | Ф50×220 |
YHD6-200 | Ф4.0-9.0 | 200 | 220 | 240 | 40-50 | Ф50×240 |
YHD6-250 | Ф4.0-9.0 | 250 | 270 | 285 | 30-45 | Ф50×290 |
YHD8-90 | Ф5.0-11 | 90 | 120 | 130 | 80-90 | Ф60×120 |
YHD8-120 | Ф5.0-11 | 120 | 140 | 156 | 60-80 | Ф60×160 |
YHD8-150 | Ф5.0-11 | 150 | 180 | 190 | 60-70 | Ф60×190 |
YHD8-200 | Ф5.0-11 | 200 | 220 | 250 | 40-50 | Ф60×240 |
YHD8-250 | Ф5.0-11 | 250 | 270 | 290 | 30-45 | Ф60×290 |
YHD8-300 | Ф5.0-11 | 300 | 330 | 360 | 25-35 | Ф60×360 |
YHD10-120 | Ф6.0-13 | 120 | 140 | 150 | 50-60 | Ф80×160 |
YHD10-220 | Ф6.0-13 | 220 | 240 | 260 | 40-50 | Ф80×260 |
YHD10-260 | Ф6.0-13 | 260 | 280 | 300 | 30-40 | Ф80×290 |
YHD10-300 | Ф6.0-13 | 300 | 320 | 350 | 25-35 | Ф80×360 |
YHD12-70 | Ф7.0-15 | 70 | 90 | 120 | 60-70 | Ф80×120 |
YHD12-150 | Ф7.0-15 | 150 | 170 | 190 | 40-50 | Ф80×200 |
YHD12-200 | Ф7.0-15 | 200 | 220 | 250 | 30-40 | Ф88×260 |
YHD12-300 | Ф7.0-15 | 300 | 320 | 330 | 25-35 | Ф88×360 |
YHD12-450 | Ф8.0-16 | 450 | 480 | 540 | 20-30 | Ф90*530 |
Model | The Initial Punch Die Diameter/mm | The Precise Punch Die Diameter/mm | Cut-off Die Diameter/mm | Cutter Size/mm | Main Motor Power/kw | Volume（L*W*H）/mm | Weight/kg |
YHD3-20 | Ф18×50 | Ф18×50 | Ф13×25 | 6×25×42 | 1.5HP/1.1KW | 1.40×0.75×0.90 | 624 |
YHD4-40 | Ф25×65 | Ф25×65 | Ф15×30 | 10×35×72 | 3.0HP/2.2KW | 1.80×0.85×1.15 | 1274 |
YHD5-60 | Ф30×75 | Ф30×75 | Ф20×35 | 10×35×72 | 4.0HP/3.0KW | 2.30×1.08×1.25 | 2080 |
YHD5-80 | Ф30×80 | Ф30×80 | Ф20×35 | 10×35×72 | 4.0HP/3.0KW | 2.40×1.15×1.35 | 2145 |
YHD5-100 | Ф30×80 | Ф30×80 | Ф20×35 | 10×35×72 | 4.0HP/3.0KW | 2.50×1.15×1.35 | 2210 |
YHD5-150 | Ф35×100 | Ф35×100 | Ф20×35 | 10×35×72 | 4.0HP/3.0KW | 2.60×1.15×1.35 | 2990 |
YHD6-70 | Ф35×120 | Ф35×120 | Ф24×40 | 12×35×77 | 7.5HP/5.5KW | 2.6×1.40×1.60 | 3280 |
YHD6-90 | Ф35×120 | Ф35×120 | Ф24×40 | 12×35×77 | 7.5HP/5.5KW | 2.7×1.40×1.60 | 3380 |
YHD6-120 | Ф35×100 | Ф35×100 | Ф24×40 | 12×40×77 | 7.5HP/5.5KW | 2.80×1.40×1.60 | 3640 |
YHD6-150 | Ф35×100 | Ф35×100 | Ф24×55 | 12×35×77 | 7.5HP/5.5KW | 3.00×1.40×1.60 | 4160 |
YHD6-170 | Ф35×120 | Ф35×120 | Ф24×55 | 12×35×77 | 5.5HP/4.0KW | 3.20×1.40×1.60 | 4160 |
YHD6-200 | Ф35×120 | Ф35×120 | Ф24×55 | 12×35×77 | 5.5HP/4.0KW | 3.65×1.40×1.45 | 4940 |
YHD6-250 | Ф35×140 | Ф35×140 | Ф24×60 | 12×35×77 | 7.5HP/5.5KW | 3.70-1.50×1.70 | 5460 |
YHD8-90 | Ф40×120 | Ф40×120 | Ф28×45 | 12×42×90 | 10HP/7.5KW | 3.6×1.60×1.80 | 4810 |
YHD8-120 | Ф40×120 | Ф40×120 | Ф28×45 | 12×42×90 | 10HP/7.5KW | 3.75×1.60×1.80 | 4940 |
YHD8-150 | Ф40×120 | Ф40×120 | Ф28×45 | 12×42×90 | 10HP/7.5KW | 3.90×1.60×1.80 | 6240 |
YHD8-200 | Ф40×150 | Ф40×150 | Ф28×60 | 12×42×90 | 10HP/7.5KW | 4.15×1.60×1.85 | 6500 |
YHD8-250 | Ф40×150 | Ф40×150 | Ф28×60 | 12×42×90 | 10HP/7.5KW | 4.30×1.60×1.90 | 7800 |
YHD8-300 | Ф40×180 | Ф40×180 | Ф28×60 | 12×42×90 | 10HP/7.5KW | 4.30×1.60×1.90 | 8500 |
YHD10-120 | Ф55×150 | Ф55×150 | Ф40×50 | 16×55×115 | 15HP/11KW | 4.80×1.80×1.32 | 8450 |
YHD10-220 | Ф55×150 | Ф55×150 | Ф40×50 | 16×55×115 | 15HP/11KW | 5.00×1.80×1.32 | 9100 |
YHD10-260 | Ф55×150 | Ф55×150 | Ф40×60 | 16×55×115 | 15HP/11KW | 5.15×1.80×1.32 | 1020 |
YHD10-300 | Ф55×180 | Ф55×180 | Ф40×50 | 16×55×115 | 15HP/11KW | 5.50×1.80×1.32 | 1180 |
YHD12-70 | Ф55*120 | Ф55*120 | Ф35*45 | 16×50×125 | 20HP/15KW | 4.50×2.00×1.32 | 8680 |
YHD12-150 | Ф60×180 | Ф60×180 | Ф45×60 | 18×60×125 | 25HP/18.5KW | 5.20×1.90×1.80 | 14040 |
YHD12-200 | Ф60×180 | Ф60×180 | Ф45×60 | 18×60×125 | 25HP/18.5KW | 5.20×1.90×1.80 | 14300 |
YHD12-300 | Ф60×180 | Ф60×180 | Ф45×60 | 18×60×125 | 25HP/18.5KW | 5.20×1.90×1.80 | 15860 |
YHD12-450 | Ф60×270 | Ф60×270 | Ф45×60 | 18×60×125 | 25HP/22KW | 6.50×2.25×2.10 | 20800 |
Matching equipment
Technical Process

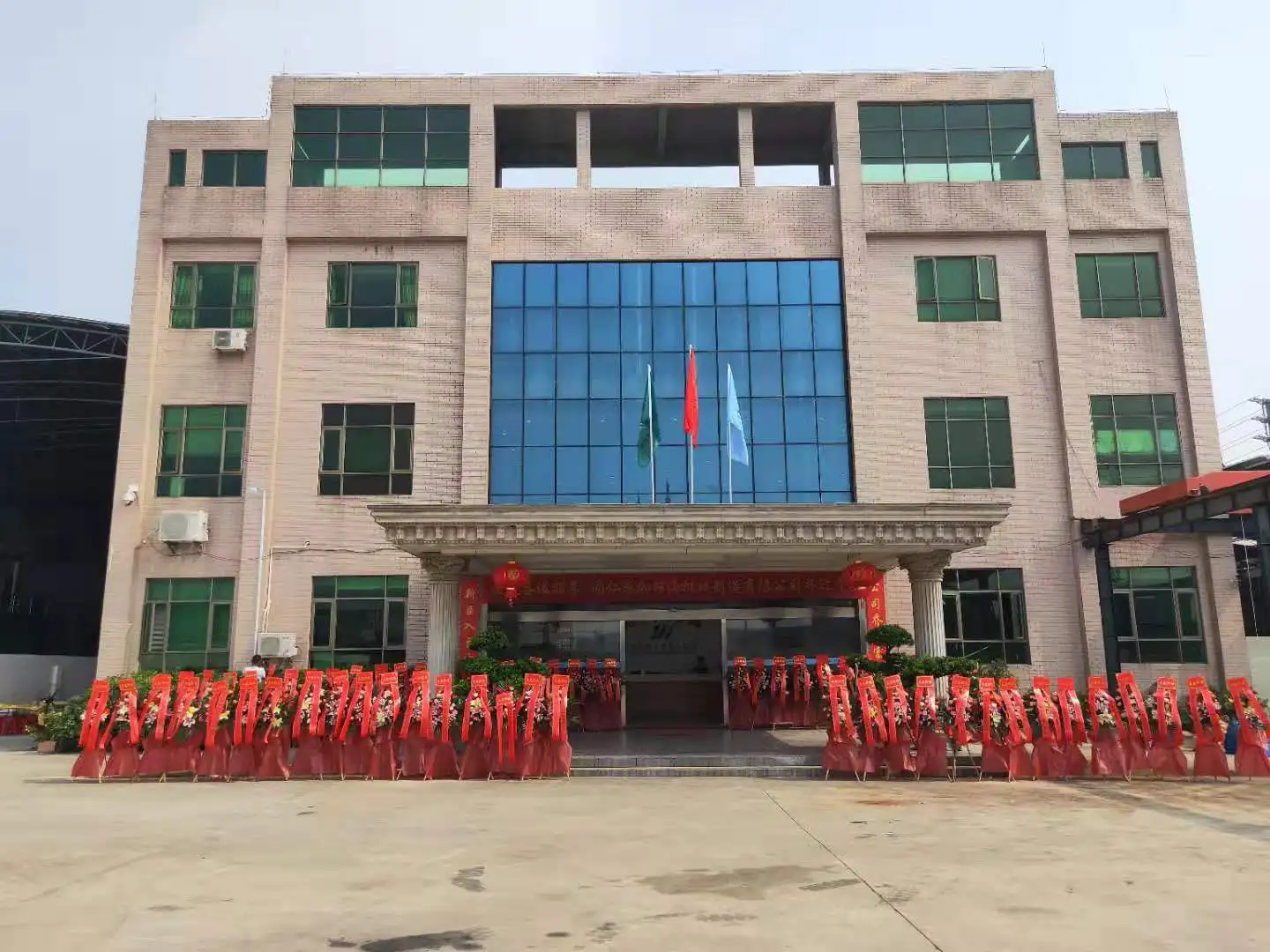

Company Profile
Guangdong Foshan Yuhai Machinery Manufacturing Co., Ltd is situated in Foshan, and specialized in the production of screw machinery for more than a decade. Our company has advanced R&D technology and rich experience, by widely absorbing the advanced technologies of such countries and regions as China’s Taiwan, Japan, Germany, etc, thoroughly taking the processing needs of modern
screw industry into consideration, and keeping revising and improving. Thanks to our adopting the latest processing technology, precise assembly and debugging technology, and strict quality test, our products are of good quality and stable performance.
Our group has opened a branch(Hubei Tengfeng Machinery Science and Technology Co., Ltd) in Huanggang, Hubei province, and also invested a newly built manufacturing base covering an area of more than 60,000 square meters, and possessing more than 200 professional technical backbones. The management system of precise production management and process innovation, and strict
quality test has been adopted in the elaborate production process to ensure the outputs of various types of fastener machineries in high speed, long durability and stable performance, such as various types of automatic standard parts forming machines, spare parts forming machine, etc.
screw industry into consideration, and keeping revising and improving. Thanks to our adopting the latest processing technology, precise assembly and debugging technology, and strict quality test, our products are of good quality and stable performance.
Our group has opened a branch(Hubei Tengfeng Machinery Science and Technology Co., Ltd) in Huanggang, Hubei province, and also invested a newly built manufacturing base covering an area of more than 60,000 square meters, and possessing more than 200 professional technical backbones. The management system of precise production management and process innovation, and strict
quality test has been adopted in the elaborate production process to ensure the outputs of various types of fastener machineries in high speed, long durability and stable performance, such as various types of automatic standard parts forming machines, spare parts forming machine, etc.

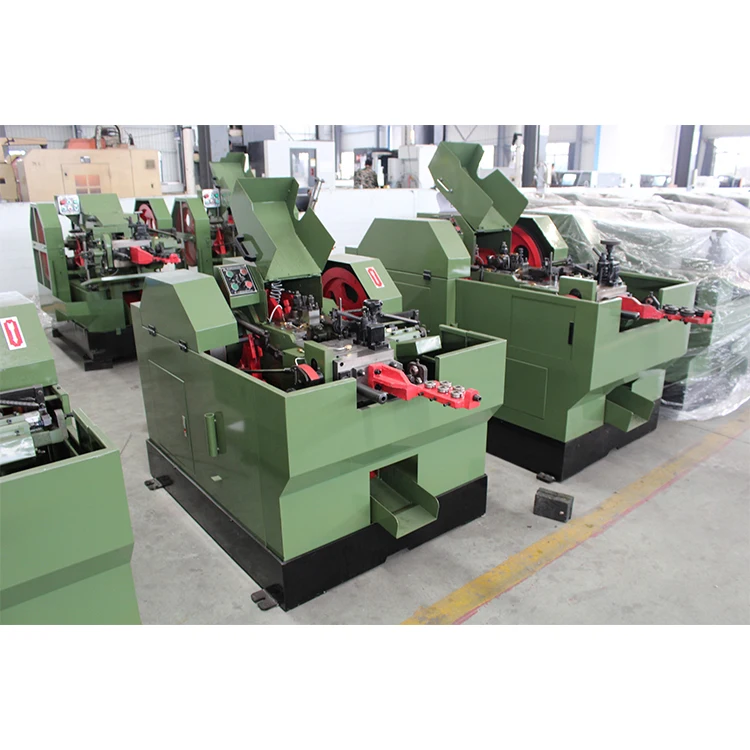

Factory Introduction
Our main products: multi-station cold forging machine, nut forming machine, open/close mould cold heading machine, high speed cold heading machine, high speed threading machine, hexagon head trimming machine, semi-tubular rivets cold heading machine, full-tubular
rivets cold heading machine, thread rolling machine, wire drawing machine, etc.
Sticking to the principle of quality for survival and reputation for development, our company continuously develops new products and improves their quality.
rivets cold heading machine, thread rolling machine, wire drawing machine, etc.
Sticking to the principle of quality for survival and reputation for development, our company continuously develops new products and improves their quality.
Yuhai is sincere in cooperation with people from all walks of life to create jointly great success.
Certifications
Packaging & Delivery
FAQ
1. How can I get the price?
- We usually quote within 24 hours after we get your inquiry (except weekend and holidays). If you are urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
2. What is your lead time?
- It depends on the order quantity and the season you place the order. Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.
3. What is your payment term?
- T/T, Western Union, MoneyGram, and Paypal. This is negotiable.
4. What is the shipping method?
- It could be shipped by sea, by air, or by express (EMS, UPS, DHL, TNT, FEDEX etc). Please confirm with us before placing orders.
5. How do you make our business long-term and good relationship?
- We keep good quality and competitive price to ensure our customers benefit. Furthermore, we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
- We usually quote within 24 hours after we get your inquiry (except weekend and holidays). If you are urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
2. What is your lead time?
- It depends on the order quantity and the season you place the order. Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.
3. What is your payment term?
- T/T, Western Union, MoneyGram, and Paypal. This is negotiable.
4. What is the shipping method?
- It could be shipped by sea, by air, or by express (EMS, UPS, DHL, TNT, FEDEX etc). Please confirm with us before placing orders.
5. How do you make our business long-term and good relationship?
- We keep good quality and competitive price to ensure our customers benefit. Furthermore, we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
