Новейшая модель; Безвентиляторный DDR4 6 Lan порт core i5-8265U промышленных pfsense мини-компьютер поддержка AWAL РТК шерстяные PXE промышленный
- Категория: Промышленные компьютерные и аксессуары >>>
- Поставщик: Shenzhen,Eglobal,Import,And,Export,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.89 $* | 0.13 $* |
| Aug-18-2025 | 0.25 $* | 0.17 $* |
| Jul-18-2025 | 0.50 $* | 0.74 $* |
| Jun-18-2025 | 0.12 $* | 0.69 $* |
| May-18-2025 | 0.61 $* | 0.23 $* |
| Apr-18-2025 | 0.31 $* | 0.97 $* |
| Mar-18-2025 | 0.51 $* | 0.74 $* |
| Feb-18-2025 | 0.83 $* | 0.11 $* |
| Jan-18-2025 | 0.9 $* | 0.49 $* |
Характеристики
Title

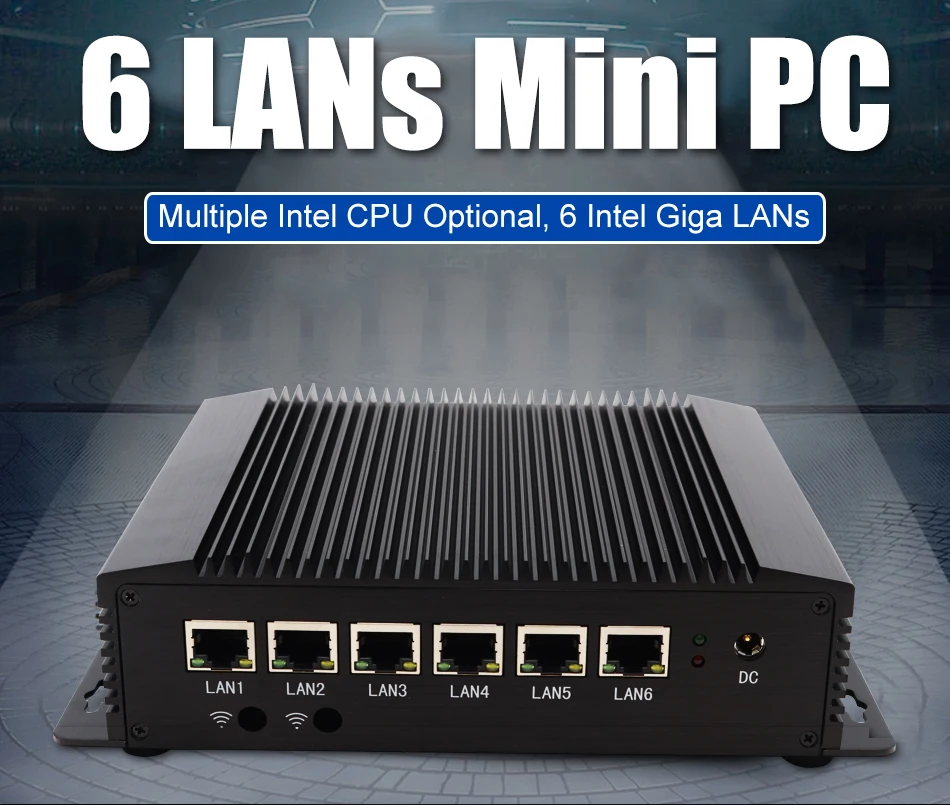

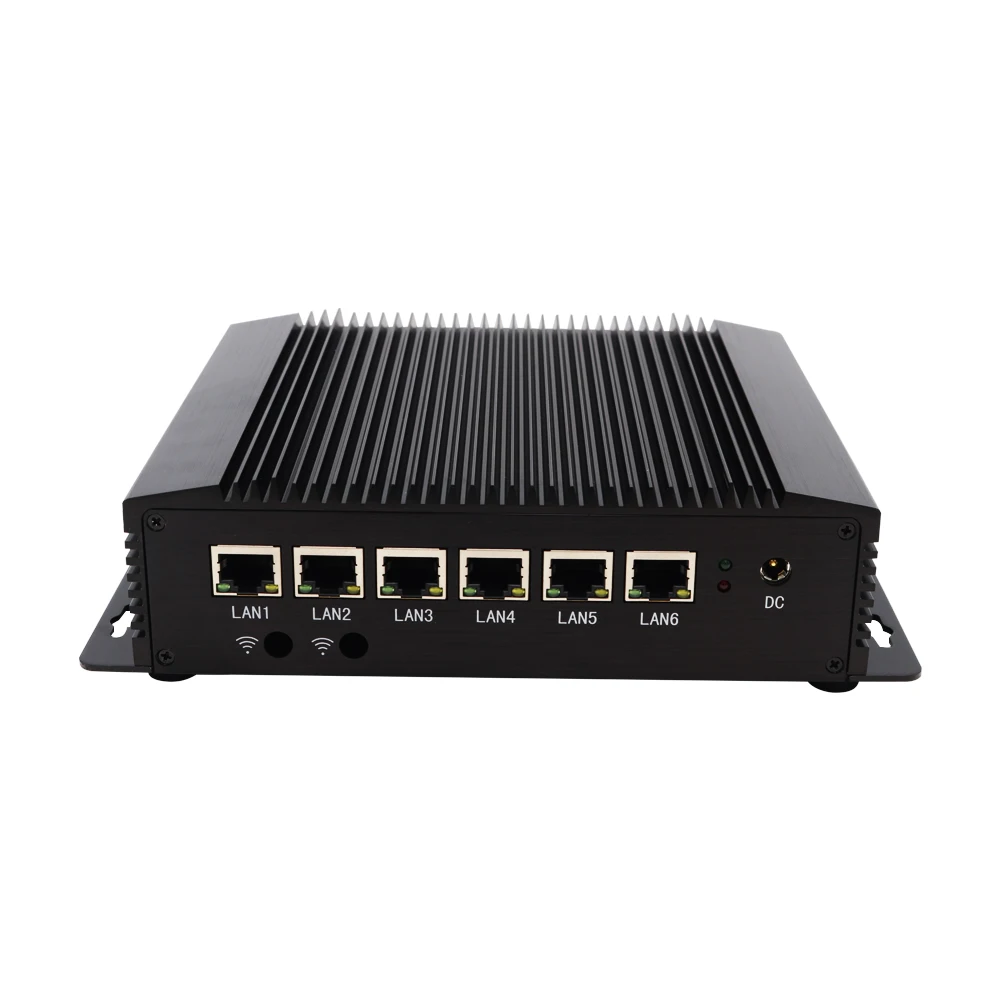

High quality 6 Lan port core i5-8265U industrial embedded mini firewall computer support Watchdog AWAL RTC WOL PXE Reset
Product Description
Product Highlight
- Brushed Full Aluminum Alloy Black color shell, fanless system without cooling
fan, no any noise, work as long as 24 hours.
- Intel Celeron/4th/5th/6th/7th/8th Gen Core i3/i5/i7 CPU for optional.
- 6 x Intel i201/i211 Gigabit RJ45 LANs and 2 x RS232 COM ports.
- Can install MSATA SSD+2.5” SATA HDD together.
- One embedded SIM card slot onboard for 3G/4G Wi-Fi.
- Low consumption can save much energy and eco-friendly.
- Support Watchdog, AWAL, RTC, WOL, PXE, Reset functions.
fan, no any noise, work as long as 24 hours.
- Intel Celeron/4th/5th/6th/7th/8th Gen Core i3/i5/i7 CPU for optional.
- 6 x Intel i201/i211 Gigabit RJ45 LANs and 2 x RS232 COM ports.
- Can install MSATA SSD+2.5” SATA HDD together.
- One embedded SIM card slot onboard for 3G/4G Wi-Fi.
- Low consumption can save much energy and eco-friendly.
- Support Watchdog, AWAL, RTC, WOL, PXE, Reset functions.

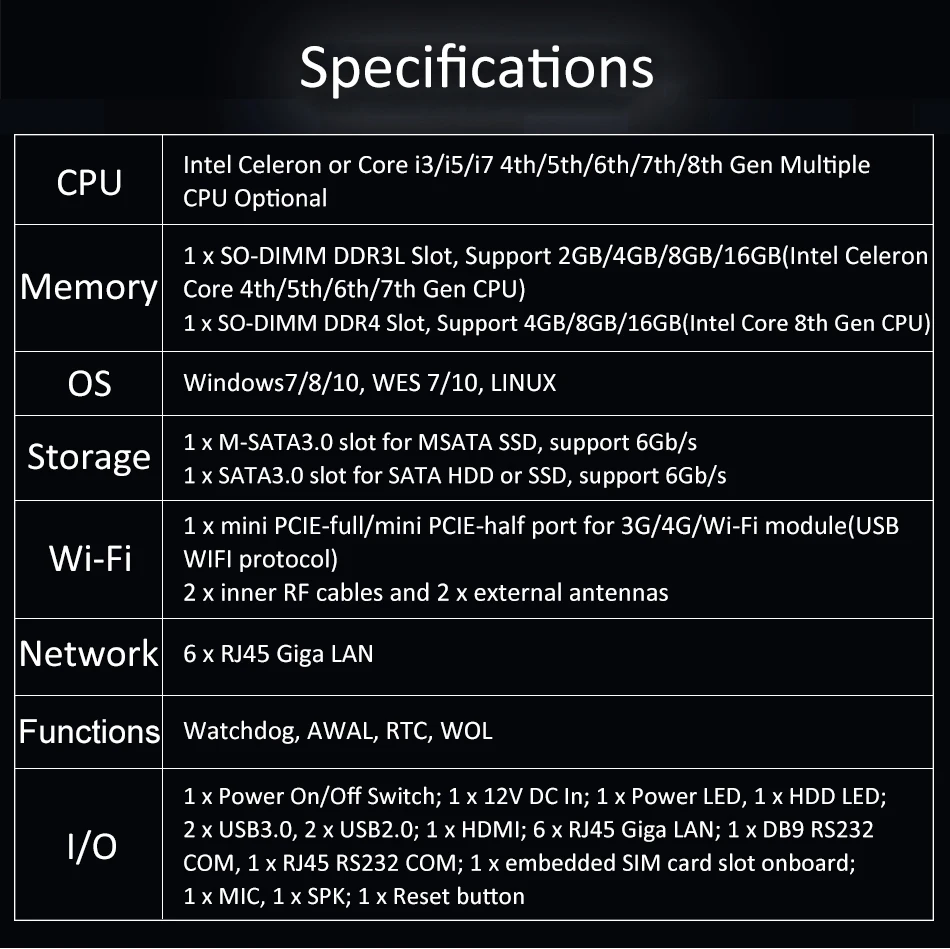

Basic Information: | ||
CPU | Onboard Intel Whiskey Lake 14nm CPU Intel Core i5-8265U 1.60GHz Max 3.90GHz(Turbo boost Technology) Quad Cores Eight Threads 6MB cache TDP 15W Intel® UHD Graphics | |
TDP | 15W | |
Motherboard | 150 x 150mm customized size | |
BOIS | American Megatrends Inc.5.12 | |
Chipset | Intel Sunrise Point-LP, Intel Kaby Lake-U | |
Memory | 1 x SO-DIMM DDR3L Slot, Support 2GB/4GB/8GB/16GB | |
OS | Windows® 7/8/10, WES 7/10, LINUX | |
PXE | YES | |
Audio | Intel Kaby Lake HDMI @ Intel Sunrise Point-LP PCH - High Definition Audio Controller | |
Network | Intel(R) i210/i211 Gigabit Network Connection 10/100Mbps/1000Mbps BaseT LAN | |
Video | Intel® HD Graphics | |
Input/output port | ||
Switch | 1 x Power On/Off Switch | |
Power | 1 x 12V DC In | |
LED | 1 x Power LED, 1 x HDD LED | |
USB | 2 x USB3.0 2 x USB2.0 | |
Display | 1 x HDMI | |
LAN | 6 x RJ45 Giga LAN | |
COM | 1 x DB9 RS232 COM, 1 x RJ45 RS232 COM | |
SIM | 1 x embedded SIM card slot onboard | |
Audio | 1 x MIC, 1 x SPK | |
Others | 1 x Reset button | |
Storage | ||
MSATA | 1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s | |
SATA | 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s | |

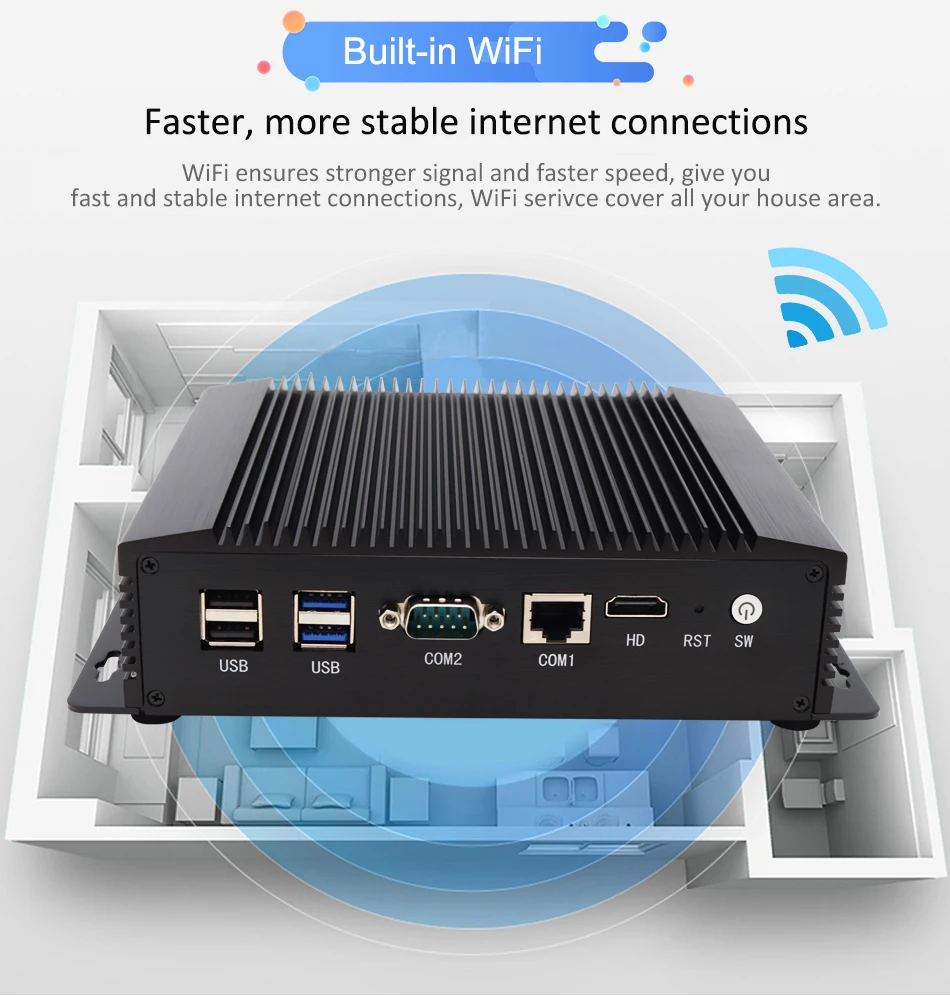

Wi-Fi | ||
Module | 1 x mini PCIE-full/mini PCIE-half port for 3G/4G/Wi-Fi module(USB WIFI protocol) | |
Antenna | 2 x inner RF cables and 2 x external antennas | |
Power and Working Environment | ||
Input | DC100-240V AC/50-60Hz | |
Output | DC +12V~+19V, recommend 12V/5A | |
Operating Temperature | -20/+60 Centigrade | |
Storage Temperature | -30/+70 Centigrade | |
Relative Humidity | 10%~90%@30 Centigrade(non-condensing) | |
Product Dimension & Details | ||
Size | 209*150*57mm | |
Weight | Net 1.35kg, Gross 2.5kg | |
Shell | Black/Silver color aluminum alloy(any customized color for bulk order) | |
Mounting | 4 mounting holes on case | |
Cooling Mode | Fanless | |
Functions | Watchdog, AWAL, RTC, WOL | |

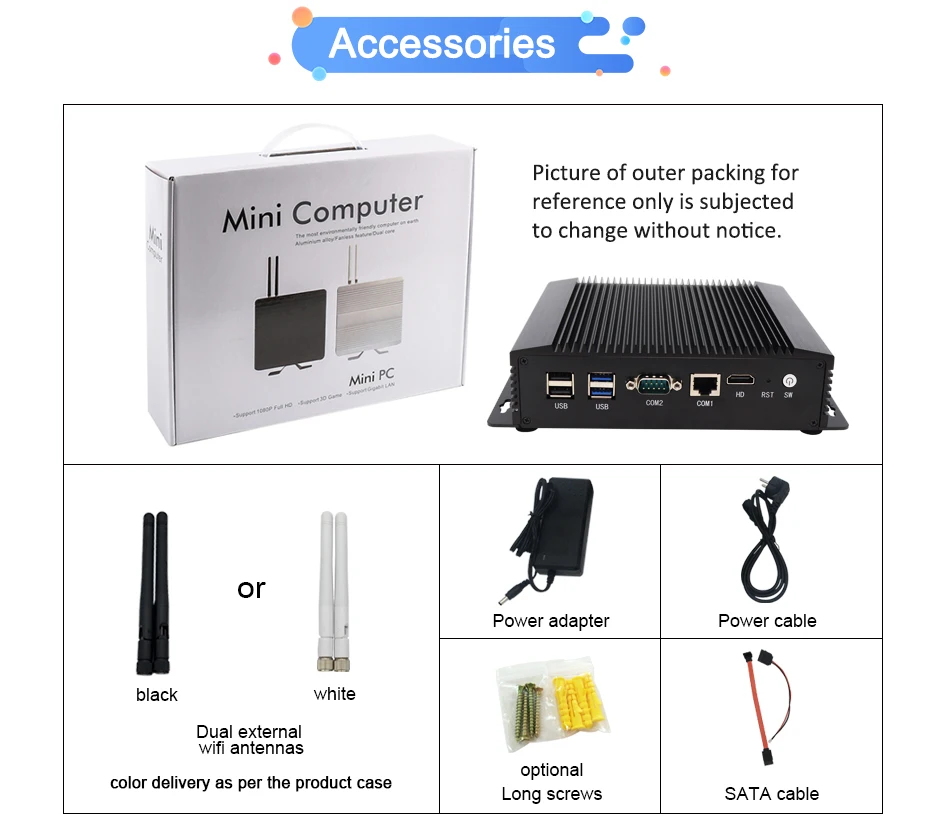

Package Content | ||
Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag | |
Optional | Wi-Fi antennas, 1xHDMI cable, 1xUser Manual, 1xLong Screws Bag | |
CPU information:
Model: G9-2955U
CPU:Onboard Intel Haswell 22nm Intel Celeron 2955U 1.4GHz Dual Core Dual Threads 2MB cache TDP 15W Intel® HD Graphics.
Model: G9-4005U
CPU: Onboard Intel Haswell 22nm CPU Intel Core i3-4005U 1.7GHz Dual Core Four Threads 3MB cache TDP 15W Intel®
HD Graphics 4400..
Model: G9-4200U
CPU: Onboard Intel Haswell 14nm Intel Core i5-4200U 1.6GHz Max 2.60GHz Dual Core Four Threads 3MB cache TDP 15W
Intel® HD Graphics 4400.
CPU:Onboard Intel Haswell 22nm Intel Celeron 2955U 1.4GHz Dual Core Dual Threads 2MB cache TDP 15W Intel® HD Graphics.
Model: G9-4005U
CPU: Onboard Intel Haswell 22nm CPU Intel Core i3-4005U 1.7GHz Dual Core Four Threads 3MB cache TDP 15W Intel®
HD Graphics 4400..
Model: G9-4200U
CPU: Onboard Intel Haswell 14nm Intel Core i5-4200U 1.6GHz Max 2.60GHz Dual Core Four Threads 3MB cache TDP 15W
Intel® HD Graphics 4400.
Model: G9-6157U
CPU:Onboard Intel SKYLAKE 14nm CPU Intel Core i3-6157U 2.4GHz Dual Cores Four Threads 3MB cache TDP 28W Intel® Iris® Graphics 550.
Model: G9-8265U
CPU:Onboard Intel Whiskey Lake 14nm CPU Intel Core i5-8265U 1.60GHz Max 3.90GHz(Turbo boost Technology) Quad Cores Eight Threads 6MB cache TDP 15W Intel® UHD Graphics.
Packing&Shipping
Company Introduction
FAQ
Welcome to read the following questions carefully at first when you place order via the product link. Thanks.
Q: What Operating System is Mini PC I buy here?
A: Free Operating System: Default installed our trial activated OEM windows 10 pro English for free, other languages can be selected among: Russian,Spanish,Portuguese,French,German,Arabic,Italian,Japanese,Turkish,Greek etc. Please inform us which language you want to install. Other systems we can install free are like Linux, Ubuntu etc if you need. Seller is NOT responsible and makes no compensation for trial OEM system.
Q: What brand of Ram, SSD and HDD I buy here?
A: Accessories as Ram, SSD, HDD, we use famous brand: samsung, micron, SanDisk, toshiba, hynix, crucial, liteon, kingfast, phison etc, what brand we use depends on our test and our stock.
A: Accessories as Ram, SSD, HDD, we use famous brand: samsung, micron, SanDisk, toshiba, hynix, crucial, liteon, kingfast, phison etc, what brand we use depends on our test and our stock.
A: We are honored to offer you samples for quality check, MOQ is 1 set, welcome to order via the link directly.We also provide free OEM service for your sample order, just feel free to contact our Sales here.
Q: How does your factory do related quality control?
A: Quality is top priority. We attach great importance to quality control from the very begining of manufacturing and 3 Years Wareanty.
Q: How about Shipping?
1. We send to buyer's address specified on Aliexpress. Please check your address/city/ post code, making sure it's matched with you shipping address.
2. We can't control the delivery time because it is processed by Third-party service. If parcel has not arrive within expected
time, please contact us, we will extend the delivery date before open dispute.
3. Normally we shipping free by faster shipment such as DHL, EMS,Fedex,Our express agent special line,etc.it depends on different countries and different cases.but for those remote areas,we have to shipping free by registered post, it will be slower than EMS, DHL,Fedex,etc.you can also add extra fee for DHL EMS Fedex etc faster shipment, thanks for understanding.All goods will be packed to make sure they arrive at high condition.
Q: How about Tax?
1. Normally we declare item as MINI PC CASE or TV BOX with value(like $20-$100), buyers are fully responsible for paying fees involved, such as dispatching fees, storage costs, brokerage, taxes or VAT etc.
2. If you have special requirement of the value,please leave a message to us when you make order.
3. Due to the tax problem, buyer refuse to receive the goods, buyer need to be fully responsible for the freight back and
forth.Thank you for you cooperation.
Q: What's EGLOBAL's Warranty?
1. EGLOBAL Mini pcs have 3 years warranty service is completely reliable and professional technical team. Motherboard warranty time 3 years, ram, hard drive, accessories(excluding gift) etc warranty time 1 year.
2. Within warranty time, if mini PC appear non-human damages and quality problems, buyer return Mini PC or Mini PC components, we free repair/exchange Mini PC or Mini PC components ( include RAMs, Hard Drive, Motherboard and other accessories ). Within 1 month, seller bear all the shipping cost for return(maximum 15USD)and resend;Over 1 month to 1 year, buyer self bear the shipping cost for return and seller bear shipping cost for resend; Over 1 year to 3 years, buyer bear all shipping cost return and resend.
3. Within 15 days, we accept refund or exchange goods (buyer bear all the shipping cost, if non-human damages and quality problem, we bear all shipping cost.
4. All time calculate from the day buyer receive goods.
1. We send to buyer's address specified on Aliexpress. Please check your address/city/ post code, making sure it's matched with you shipping address.
2. We can't control the delivery time because it is processed by Third-party service. If parcel has not arrive within expected
time, please contact us, we will extend the delivery date before open dispute.
3. Normally we shipping free by faster shipment such as DHL, EMS,Fedex,Our express agent special line,etc.it depends on different countries and different cases.but for those remote areas,we have to shipping free by registered post, it will be slower than EMS, DHL,Fedex,etc.you can also add extra fee for DHL EMS Fedex etc faster shipment, thanks for understanding.All goods will be packed to make sure they arrive at high condition.
Q: How about Tax?
1. Normally we declare item as MINI PC CASE or TV BOX with value(like $20-$100), buyers are fully responsible for paying fees involved, such as dispatching fees, storage costs, brokerage, taxes or VAT etc.
2. If you have special requirement of the value,please leave a message to us when you make order.
3. Due to the tax problem, buyer refuse to receive the goods, buyer need to be fully responsible for the freight back and
forth.Thank you for you cooperation.
Q: What's EGLOBAL's Warranty?
1. EGLOBAL Mini pcs have 3 years warranty service is completely reliable and professional technical team. Motherboard warranty time 3 years, ram, hard drive, accessories(excluding gift) etc warranty time 1 year.
2. Within warranty time, if mini PC appear non-human damages and quality problems, buyer return Mini PC or Mini PC components, we free repair/exchange Mini PC or Mini PC components ( include RAMs, Hard Drive, Motherboard and other accessories ). Within 1 month, seller bear all the shipping cost for return(maximum 15USD)and resend;Over 1 month to 1 year, buyer self bear the shipping cost for return and seller bear shipping cost for resend; Over 1 year to 3 years, buyer bear all shipping cost return and resend.
3. Within 15 days, we accept refund or exchange goods (buyer bear all the shipping cost, if non-human damages and quality problem, we bear all shipping cost.
4. All time calculate from the day buyer receive goods.
Q: How to solve the product problem?
A: Welcome to contact our Sales about any problems, they will provide nice service to each customer directly.
