6 inch Tricone hard rock drill bit oil water gas well drilling equipment API tricone bit





TCI Teeth Tricone Bit for sale

Type	Tricone Bit (3 7/8"~26", steel/milling tooth or TCI)
Application	oil field, water well, geothermal, underground foundation, quarry
Formation	sticky, soft, medium hard, hard formations
Bearing	open/sealed bearing, rubber/metel seal bearing
packing	wooden/steel box
MOQ	one piece
Delivery	within 25days for standard model, within 35days for customized



Description of tricone bit
(1) Cutting Structure:
The durability of premium tungsten carbide inserts is improved with new formulas and new techniques for insert bit.The wear-resistance of teeth is enhanced with premium tungsten carbide hardfacing on the tooth surfaces for steel tooth bit.
(2) Gauge Structure:
Multiple gauge protection with gauge trimmers on heel and gauge inserts on the gauge surface of the cone, tungsten carbide inserts and hardfacing on the shirttail increases gauge holding capability and bearing life.
(3)Bearing Structure:
High precision bearing with two thrust faces. Balls lock the cone.Hardface heard bearing surface. Cone bearing inlaid with friction-reducing alloy and then silver-plated. Abrasion resistance and seizure resistance of the bearing are improved and suitable for high rotary speed.
(4)Seal and Lubrication:
The advanced metal seal package consists of two metal seats and two elastic energizers. Compressed energizers ensure good contact being kept on two sealing surfaces of metal rings by elastic force, and achieve the bearing seal. In the drilling, metal seal are relatively dynamic, and the energizers are static. This will improve the reliability and durability of bearing seal. The pressure compensator system and advanced grease can greatly increase the lubricating reliability.



IADC CODE SELECTION

IADC	WOB	RPM
	(KN/mm)	(r/min)
111/114/115	0.3-0.75	200-80
116/117	0.35-0.8	150-80
121	0.3-0.85	200-80
124/125		180-60
131	0.3-0.95	180-80
136/137	0.35-1.0	120-60
211/241	0.3-0.95	180-80
216/217	0.4-1.0	100-60
246/247	0.4-1.0	80-50
321	0.4-1.0	150-70
324	0.4-1.0	120-50
437/447/435	0.35-0.9	240-70
517/527/515	0.35-1.0	220-60
537/547/535	0.45-1.0	220-50
617/615	0.45-1.1	200-50
637/635	0.5-1.1	180-40
Note: Above limitts of WOB and RRPM should not be used simultaneously

PIN SIZE

Bit Diameter		API PIN
(inch)	(mm)
3 7/8"~5 1/4"	98~134	2 3/8", 2 7/8"
5 5/8"~6 3/4"	143~171	3 1/2"
7 1/2"~9 1/2"	190.5~241	4 1/2"
9 5/8"~13 3/4"	245~350	6 5/8"
14 5/8"~26"	371~660.4	7 5/8"

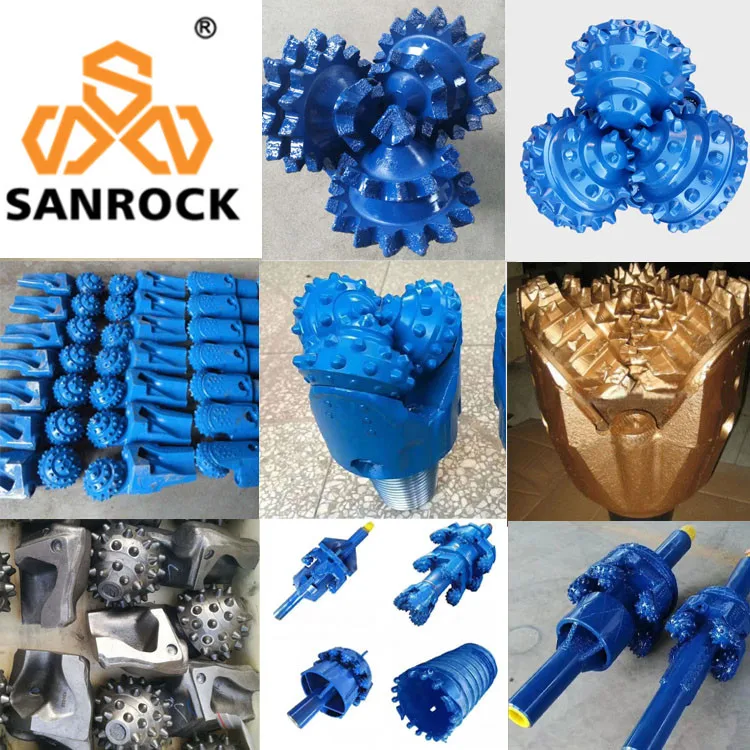

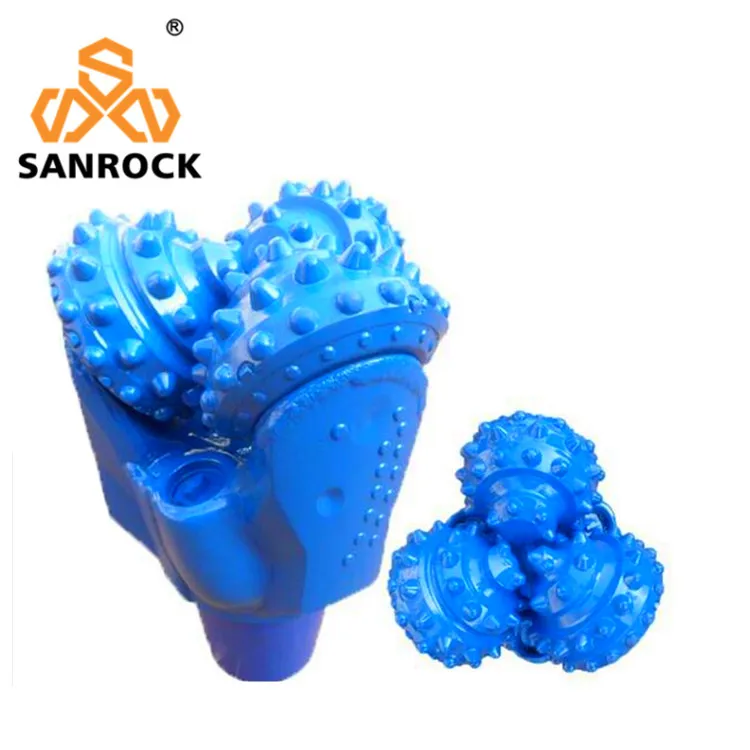

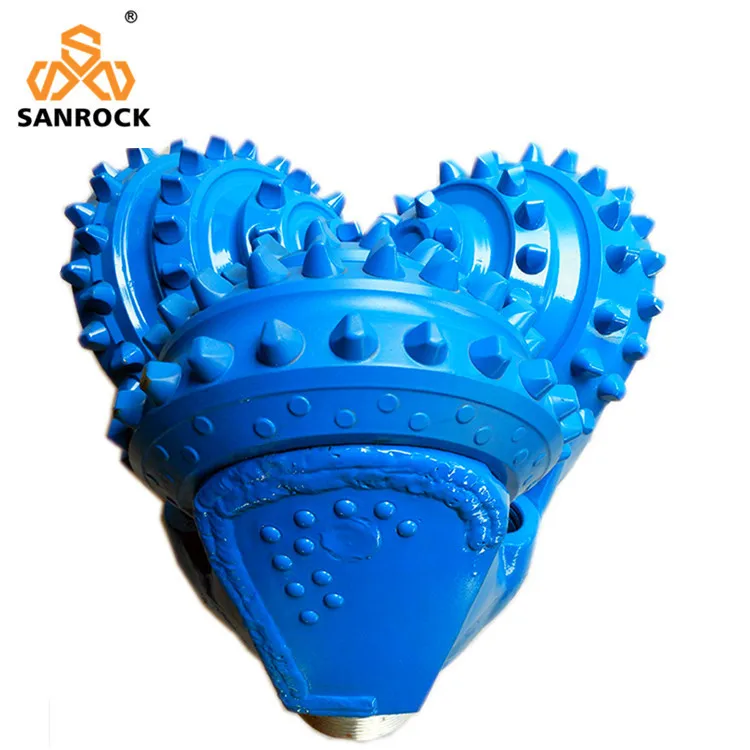

Product Pictures

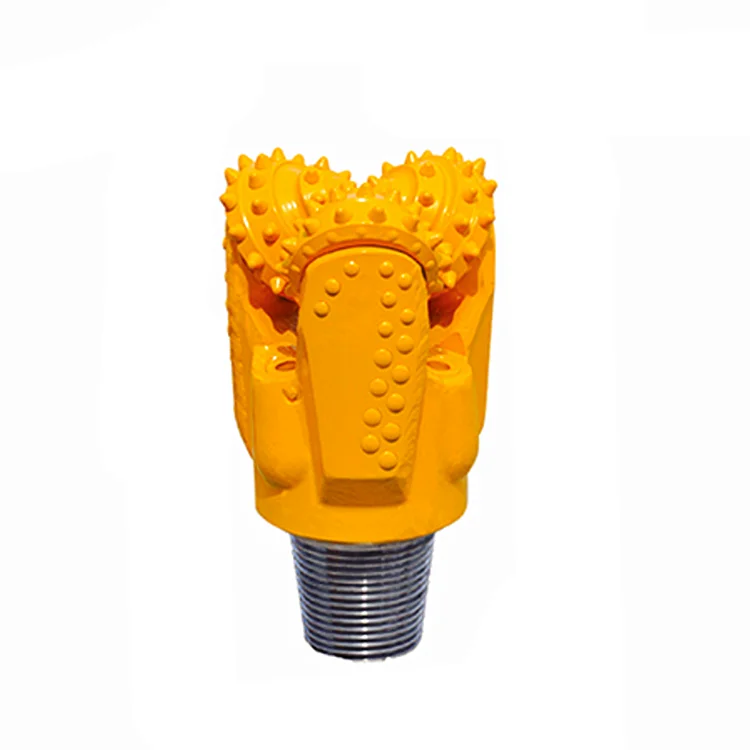

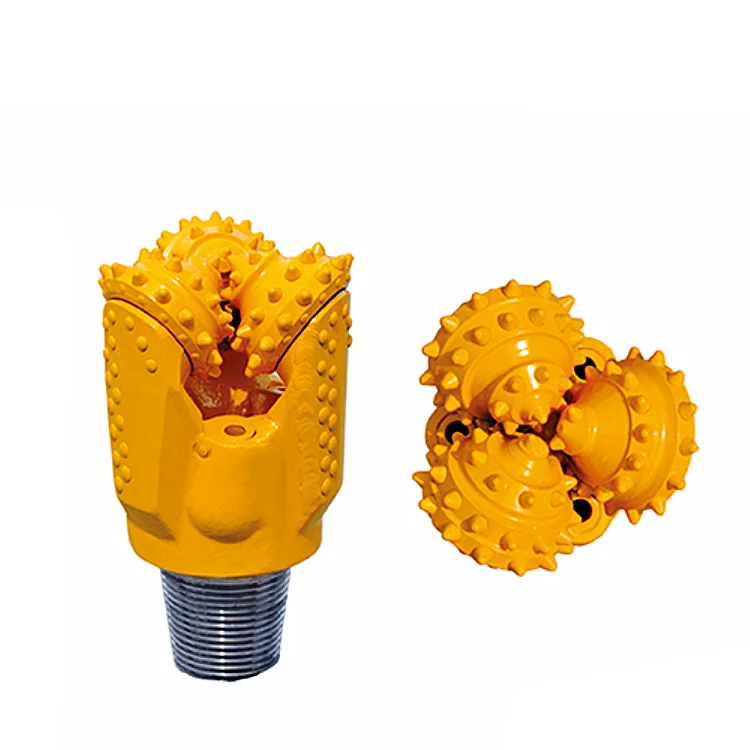

Product Details

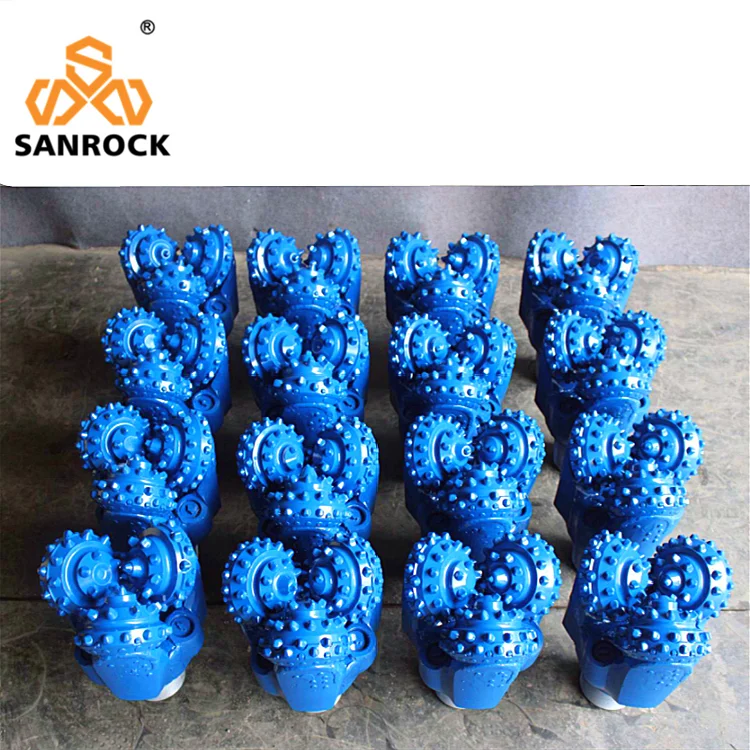

Product Package
