Характеристики
Product Description
Feature
1.Evenly-sprayed particles on coated surface
2.Good intensity & flexility, suitable for polishing on different facets
3.Suitable for polishing with dry, water or oil medium
4.The fiber polishing film is durable polishing rate compared to existing polishing films and offers economical operations
2.Good intensity & flexility, suitable for polishing on different facets
3.Suitable for polishing with dry, water or oil medium
4.The fiber polishing film is durable polishing rate compared to existing polishing films and offers economical operations
Applications

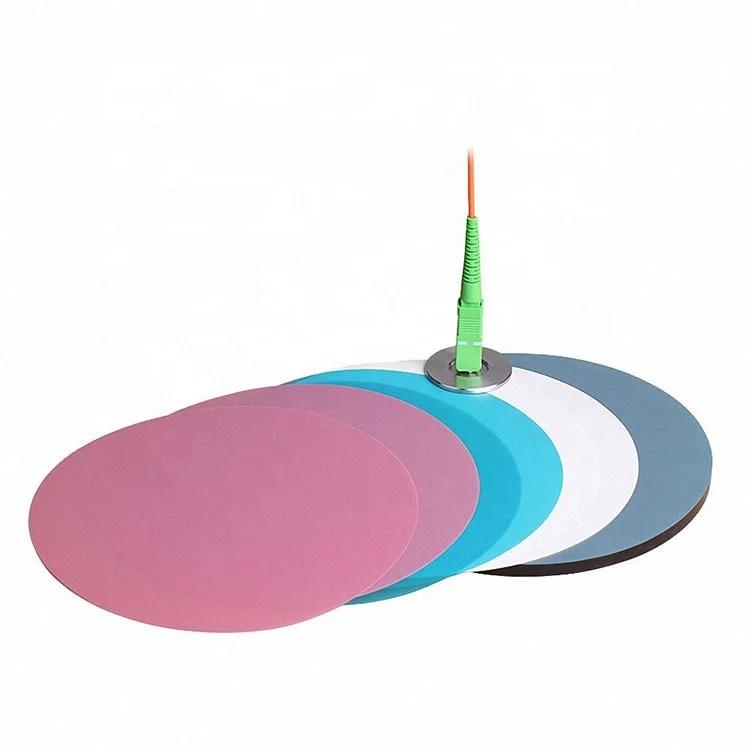

1.Cutting angle of fiber optic connector, rough grinding, medium grinding, fine grinding
2.Grinding and polishing of optical lens, crystals, LED and LCDs.
3.Polishing of Motor shafts, steering devices, Metal rollers & shafts, magnetic head, HDD, semiconducting materials, etc.
2.Grinding and polishing of optical lens, crystals, LED and LCDs.
3.Polishing of Motor shafts, steering devices, Metal rollers & shafts, magnetic head, HDD, semiconducting materials, etc.
Description

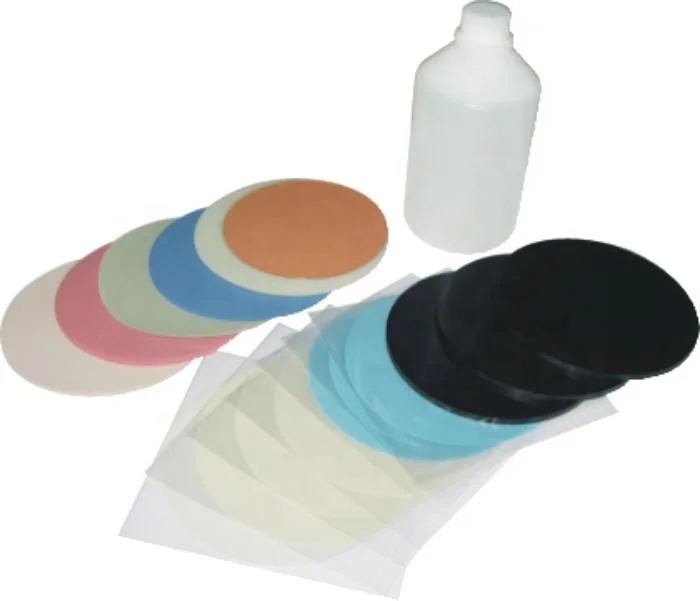

Lapping Film is coated with precisely graded minerals (such as diamond, aluminum oxide, silicon carbide, silicon oxide, cerium oxide and so on) on the high strength polyester backing to provide a uniform, consistent finish. Available in 0.01-45 μm grades, with or without PSA (Pressure Sensitive Adhesive) backing.
Product Paramenters

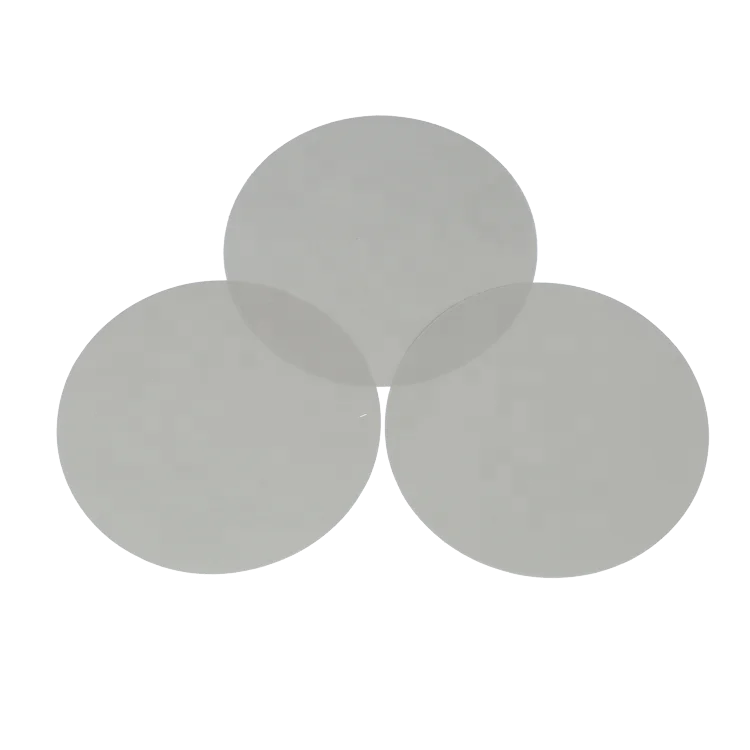

Product name | Diamond polishing film | Model | D30,D9,D1 | ||||
Specification | Circle diameter 127mm | Colour | D30 green, D9 orange, D1 White | ||||
This product evenly disperses the diamond prepolymer and the new polymer material, coats the surface of the high-strength film and then processes it by a high-precision cutting process. It is used for degumming, rough grinding and fine grinding of the optical fiber connector's fiber ferrule end face. | |||||||
Main feature | 1.High self-sharpness and stability, can provide continuous grinding force; 2.Large cutting force, short grinding time and high efficiency; 3.The coating has high adhesion, good scratch resistance and long service life; 4.After polishing, the end face of the fiber is fine, which is good for the next polishing. | ||||||
Storage temperature | 0-35 ℃ | Storage humidity | 20-80% | ||||
Shelf life | 2 years | ||||||
Service life | 50 ~ 80 times, different service life according to different models of polishing machine and grinding process | ||||||
Instructions | 1.Before use, clean the fiber polishing rubber pad, moisten it with a small amount of water, and attach a polishing film on it. 2.Wipe the coating surface of the polishing film with water, and squeeze out the air between the polishing film and the polishing pad; 3. Set the grinding time and pressure during use, please clean the surface after each use | ||||||
Precautions | Do not use organic solvents to scrub the surface of the polishing film. | ||||||
Ordering Options

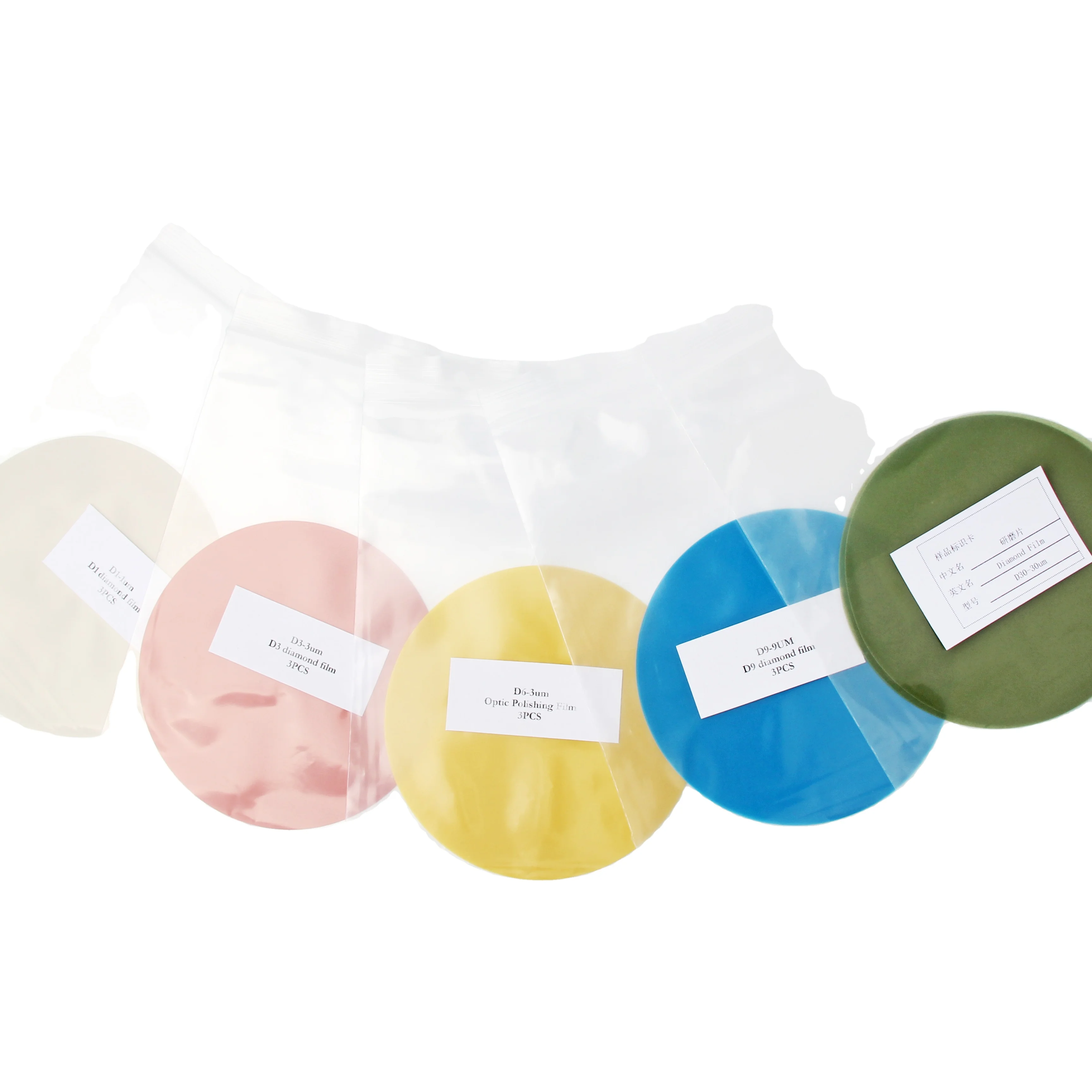

Part Number | Material | Application | Packing | |||
GA5D-30um | Silicon Carbide | Epoxy Removal | 20pcs/pack | |||
DR5D-9um | Diamond | Coarse Polishing | 20pcs/pack | |||
DG5D-5um | Diamond | Medium Polishing | 20pcs/pack | |||
DH5D-3um | Diamond | Medium Polishing | 20pcs/pack | |||
DI5D-1.5um | Diamond | Fine Polishing | 20pcs/pack | |||
DJ5D-1um | Diamond | Final Polishing | 20pcs/pack | |||
XF5D-0.02um | Silicone Dioxide | UPC Final Polishing | 100pcs/pack | |||
D30-30um | Diamond | Adhesive Removal | 50pcs/pack | |||
D9-9um | Diamond | Coarse Polishing | 50pcs/pack | |||
D5-5um | Diamond | Medium Polishing | 50pcs/pack | |||
D3-3um | Diamond | Medium Polishing | 50pcs/pack | |||
D1-1um | Diamond | Fine Polishing | 50pcs/pack | |||
ADS-127 | Silicone Dioxide | Final Polishing | 100pcs/pack | |||
SC-16um | Silicon Carbide | Medium Polishing | 50pcs/pack | |||
SC-3um | Silicon Carbide | Medium Polishing | 50pcs/pack | |||
SC-1um | Silicon Carbide | Fine Polishing | 50pcs/pack | |||
AA1-MFPS | Flocked Film Without Abrasive | MPO Polishing | 50pcs/pack | |||
CE1-MFPS | Flocked Film Without Abrasive | MPO Polishing | 50pcs/pack | |||
MFP610 | Flocked Film Without Abrasive | MPO Final Polishing | 50pcs/pack | |||
Remark: (1) All polishing films could be manufactured according to custom design. | ||||||
(2) If you could not find the polishing films you want, please feel free to contact us via email or phone. | ||||||
