Гранулированная Вибрирующая флюидизированная

Категория: Fluid Bed Drying Equipment >>>
Поставщик: Henan,Workers,Machinery,Co.,Ltd.

Цена:44 000,00 $ - 45 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	52360.58 $*	54978.66 $*
Aug-15-2025	51920.49 $*	54516.2 $*
Jul-15-2025	43560.58 $*	45738.36 $*
Jun-15-2025	51040.3 $*	53592.0 $*
May-15-2025	44440.42 $*	46662.75 $*
Apr-15-2025	50160.67 $*	52668.31 $*
Mar-15-2025	49720.16 $*	52206.47 $*
Feb-15-2025	49280.32 $*	51744.17 $*
Jan-15-2025	48840.78 $*	51282.26 $*

Характеристики

Product Description

Introduction

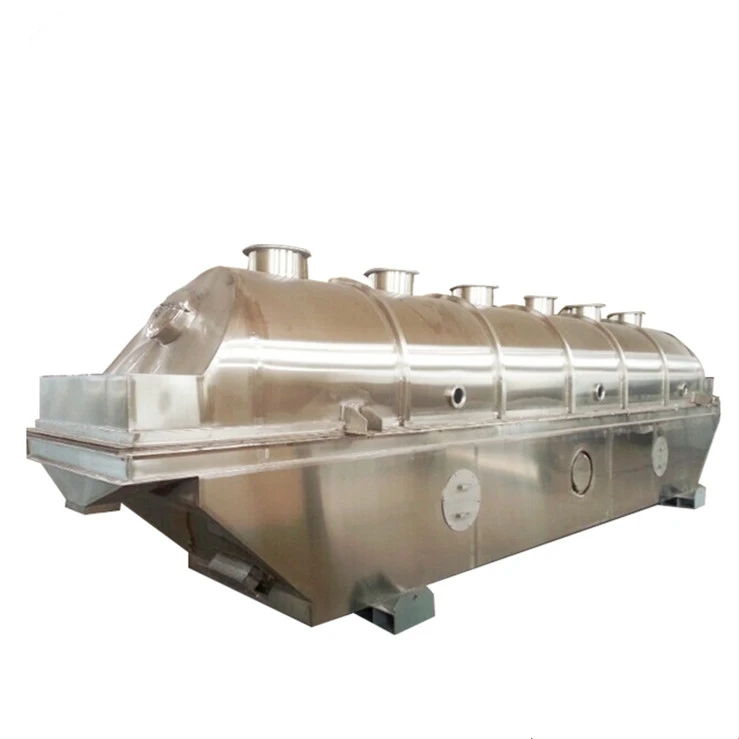

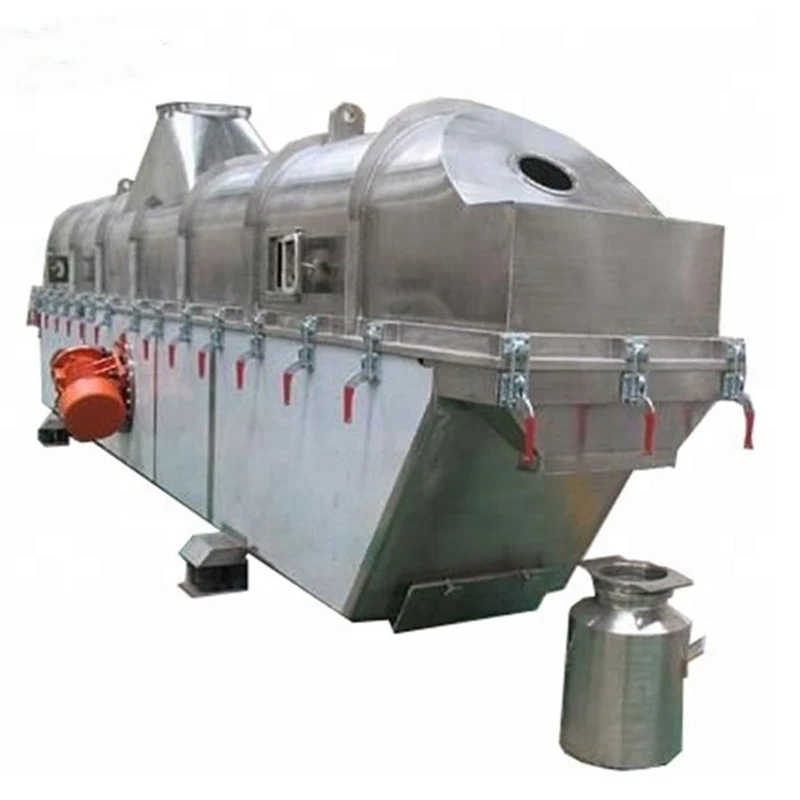

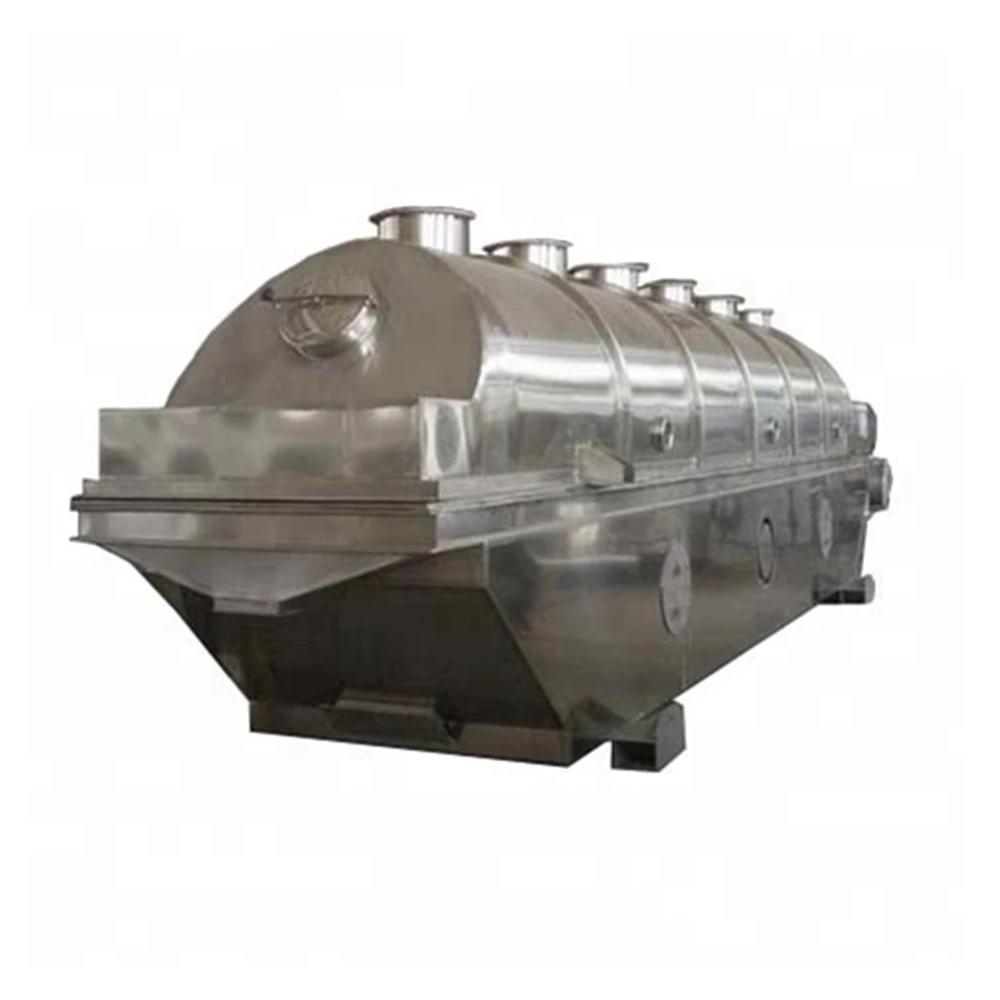

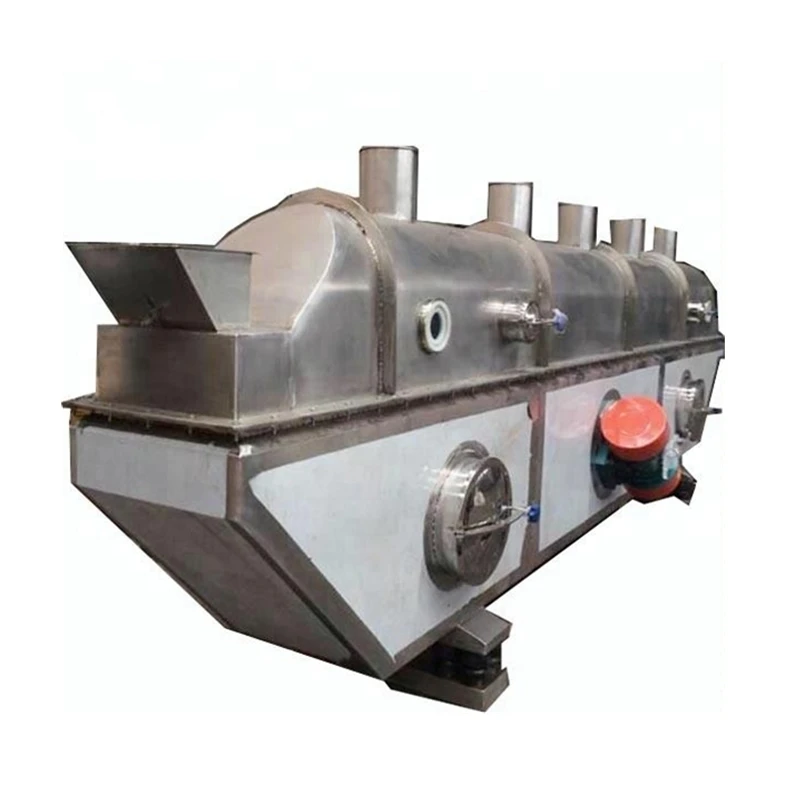

WKS series of vibration fluid bed dryer is a continuous drying equipment for non-sticky particles. Its working principle is: cold air is filtered through the filter, and then goes into the heater, and is heated to a certain temperature, then hot air is distributed into the lower bed via multiple inlets and flows up through perforated plate of the bed. Material goes evenly into the bed through screw feeder, under the action of the vibration force, the material moves up forward continuously along the horizontal direction, while undergoes heat exchange with the hot air coming up from bottom, the moisture of material is evaporated rapidly, and the wet air is discharged from the exhaust fan, and the material is fully dried and discharged from the discharge port.

Manufacturing process

Client checking manufacturing

Client checking & acceptance test

Raw material hopper and feeding conveyor

Feeding mouth

Discharging mouth

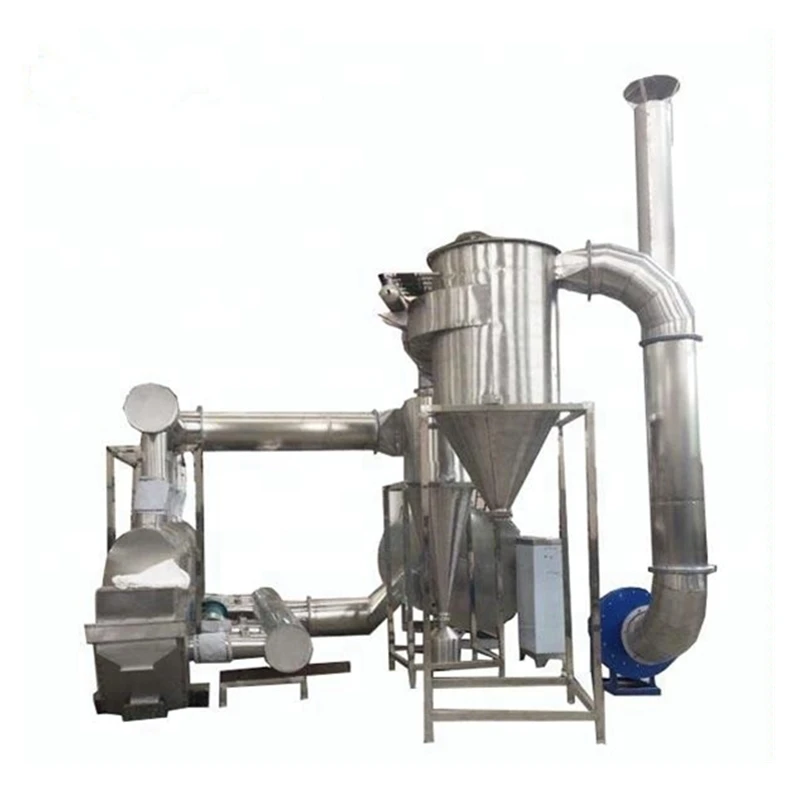

Dust collecting system:Cyclone and bag filter

Gas furnace and burn

Control cabinet

Round vibration screen

Square vibration screen

Technical parameters

Model	Area of fluidi bed(㎡)	Temperature of inlet air(℃)	Temperature of outlet air(℃)	Water evaporation capacity (kg/h)	Motor Power(kW)	Weight (kg)
WKS-FBD-3*0.3	0.9	70-140	40-70	20-35	0.8*2	1250
WKS-FBD-4.5*0.3	1.35	70-140	40-70	35-50	0.8*2	1250
WKS-FBD-4.5*0.45	2.025	70-140	40-70	50-70	1.1*2	1670
WKS-FBD-4.5*0.6	2.7	70-140	40-70	70-90	1.1*2	1670
WKS-FBD-6*0.45	2.7	70-140	40-70	80-100	1.5*2	2100
WKS-FBD-6*0.6	3.6	70-140	40-70	100-130	1.5*2	2400
WKS-FBD-6*0.75	4.5	70-140	40-70	120-140	2.2*2	2840
WKS-FBD-6*0.9	5.4	70-140	40-70	140-170	2.2*2	3160
WKS-FBD-7.5*0.75	5.625	70-140	40-70	150-180	2.2*2	3200
WKS-FBD-7.5*0.9	6.75	70-140	40-70	160-210	3*2	3600

Company Profile

Henan Workers Machinery Co., Ltd. (hereinafter referred to as WKS), established for more than 10 years, is committed to the research, manufacturing, and sales of various industrial drying machines, fruits & vegetables, and food processing machines.
We have a modern standard workshop, covering over 2,000 square meters; WKS has more than 50 professional engineers from a different technical background with many years of rich research and manufacturing experiences. All of our products are made of high-quality stainless steel with mature product design and sophisticated production technology.
Therefore, high-quality products have much easier access to a good market reputation and share. Our products are exported to dozens of countries such as the United States, Canada, Britain, France, Australia, South Korea, India, Singapore, Thailand, Malaysia, Sri Lanka, Brazil, Russia, Uzbekistan, Romania, Croatia, Latvia, Sweden, Nigeria, and South Africa, etc.
WKS believes in customer-oriented business and "quality first" philosophy, so WKS focuses on providing customers with high quality, competitive prices, and wholehearted services.
Welcome to visit us to start the cooperation!

Specification

Name	Vibration Fluid Bed Dryer
Type	Fluid Bed Drying Equipment
Application	Medicine Processing, Chemicals Processing, Food Processing
Condition	New
Place of Origin	China
	Henan
Brand Name	WKS
Voltage	380V or customized
Power	10kW
Dimension(LWH)	60006002000mm
Certification	CE
Key Selling Points	Energy saving
Warranty	1 Year
	Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
After Warranty Service	Video technical support, Online support, Spare parts, Field maintenance and repair service
Applicable Industries	Food & Beverage Factory, Farms, Food Shop, Food & Beverage Shops
Local Service Location	none
Showroom Location	none
Marketing Type	New Product 2020
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Warranty of core components	1 Year
Core Components	Bearing, Pump, Gear, Motor, Gearbox, PLC, Engine
Evaporation Capacity(kg/h)	20-500
Heating Method	Gas Electricity Steam Biomass
Material	SUS304, SUS304L, SUS316, SUS316L, Ti
Application	Salt Vinasse Breadcrumbs etc
After-sales Service Provided	Online Service
Product name	Fluid Bed Dryer
Name	Vibrating Fluid Bed Dryer
Voltage	Customizable
Material	304 Stainless Steel or Customized
Heating source	Gas Electricity Steam Biomass

Packing & Delivery

wooden case

FAQ

1. who are we?
We are based in Henan, China, start from 2017,sell to Western Europe(20.00%),North America(20.00%),Domestic Market(8.00%),South Asia(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Central America(5.00%),South America(5.00%),Eastern Asia(5.00%),Mid East(5.00%),Oceania(5.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),Africa(2.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Dehydrator/dryer,Pulverizer/Grinder/Mill,Mixer/Blender,Pelletizing machine/Granulator,Packaging machine

4. why should you buy from us not from other suppliers?
Over ten years extensive experience in design and production;
Innovative engineers, well trained technicians;
A full-time after-sales service team;
Guaranteed quality with competitive prices.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
