Характеристики
DC Sprag Freewheel One Way Clutch Bearing
Product Description
Detailed Info.
| Item | DC |
| Material | GCr15 |
| Bore dia. | 22.225-123.881 mm |
| Outer dia. | 38.885-142.880 mm |
| Width | 10-25.4 mm |
| Torque capacity | 63-4875 N.m |
| Overrunning speeds (imax) | 1500-8600 r/min |
| Overrunning speeds (amax) | 750-4300 r/min |
| Weight | 0.03-0.4 kg |
| Package | Carton box or as your requirements |
Brief Introduction
Type DC is a sprag type freewheel cage without inner or outer races. It must be installed in a design providing races, bearing support for axial and radial loads, lubrication and sealing. The DC type version-N accepts all types of lubricants currently used in the power transmission equipement.
The sprag space tolerance must not be exceeded. Inner and outer races must both have a minimum plain width “e”, without any recess, to ensure the freewheel functions correctly as shown on following pages.
The sprag space tolerance must not be exceeded. Inner and outer races must both have a minimum plain width “e”, without any recess, to ensure the freewheel functions correctly as shown on following pages.
Alternatively, races can be made in case hardened steel shafts, or housings, to the specification below. Surface hardness of the finished part should be HRC 60 to 62, for a depth of 0,6 mm minimum.
Core hardness to be HRC35 to 45. Surface roughness not to exceed 22CLA. Maximum taper between races: 0,007 mm for 25 mm width.
Dimensions and Capacities
Mounting Example

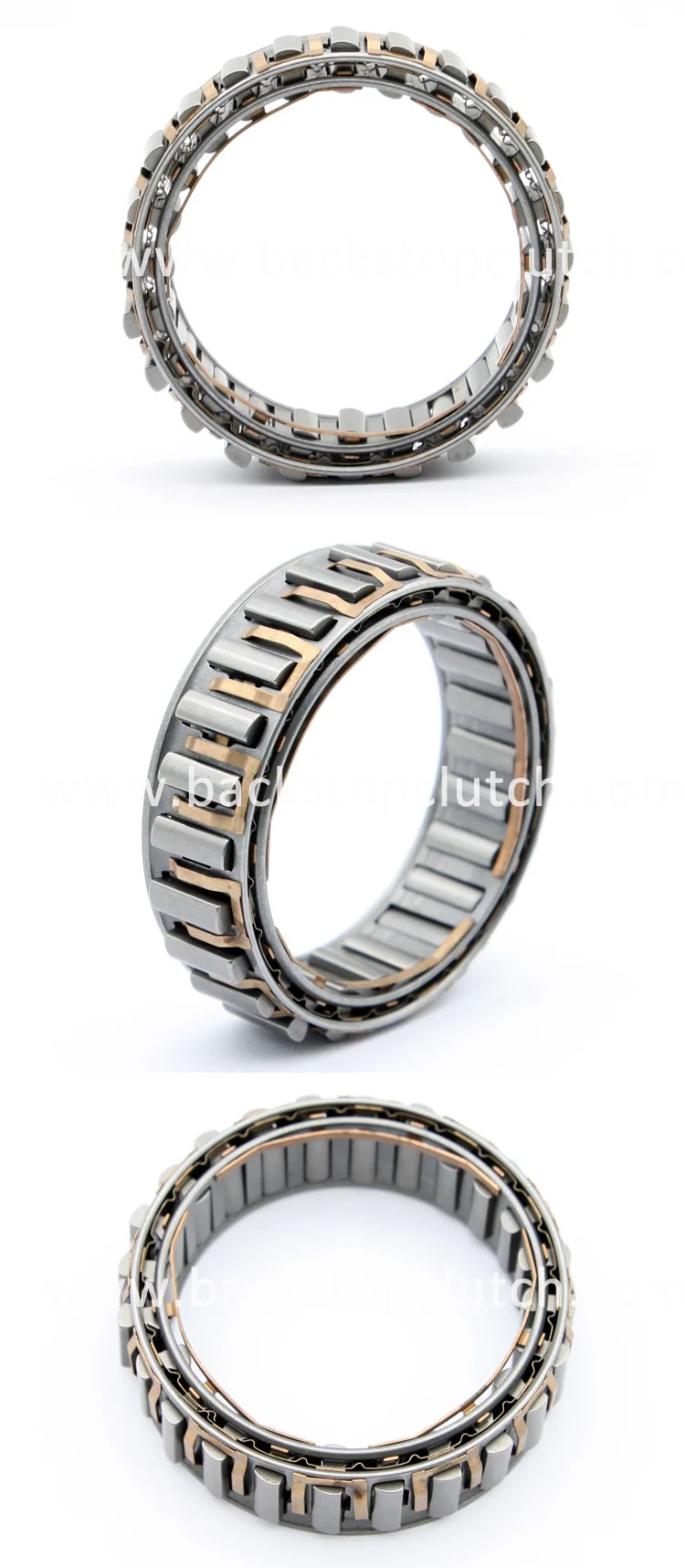

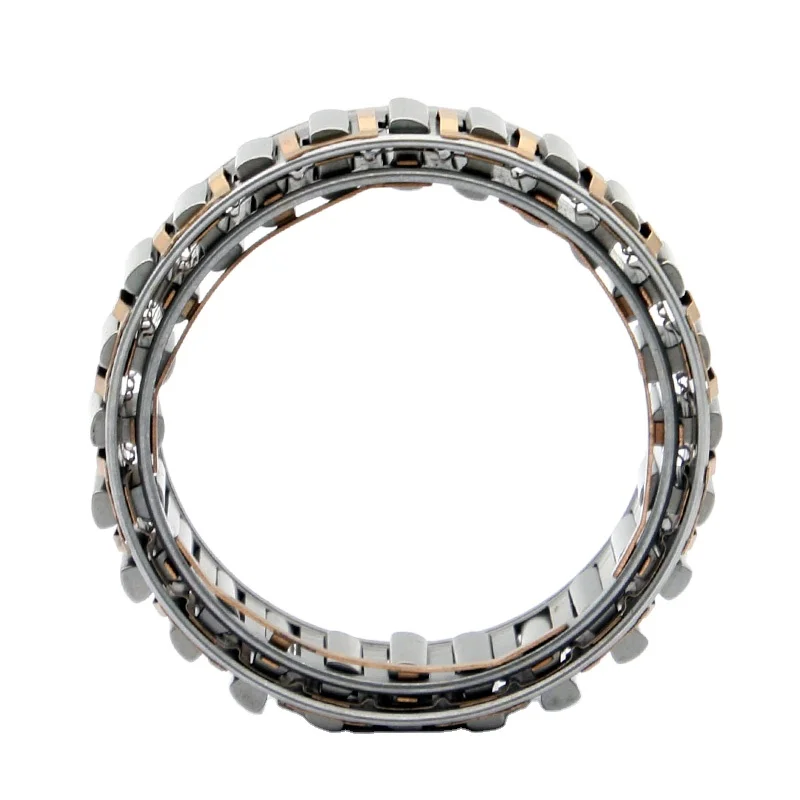

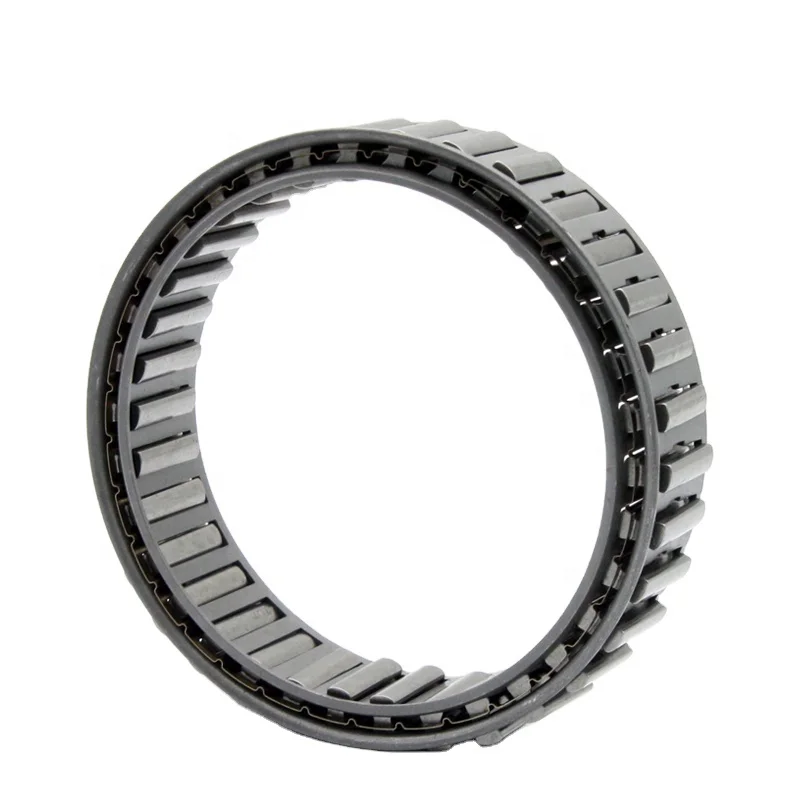

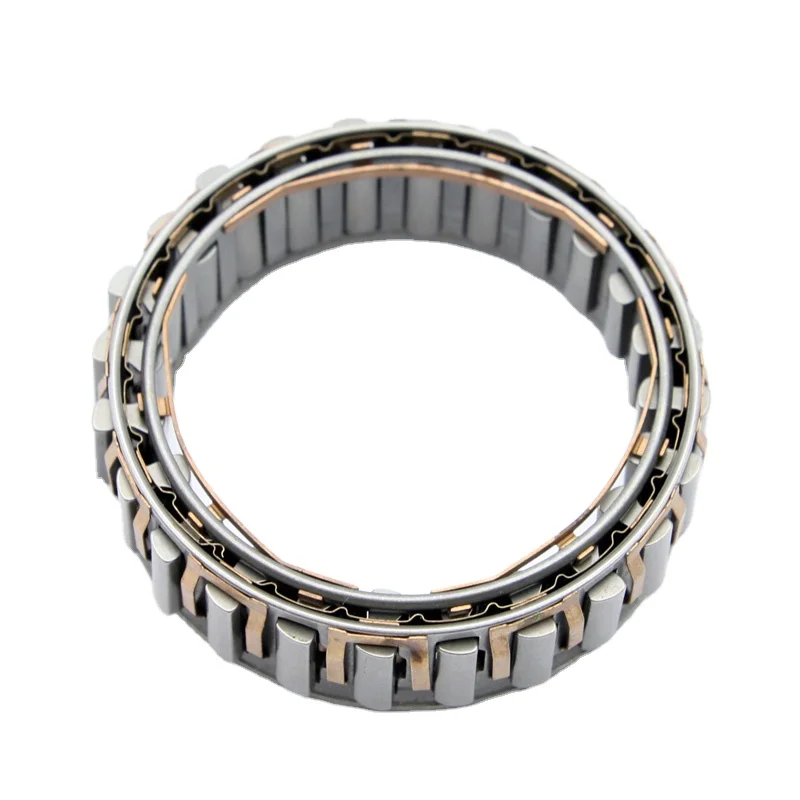

Product Display
Packaging & Shipping
Production Flow
Certifications
Company Information
FAQ
Q: Why do we choose your company?
A: Quality is the soul of an enterprise. We can provide you with good-quality one way clutches also with good price.
Q: What is the delivery time?
A: For small quality or samll size of clutches, we can deliver upon receiving advance.
For large quantity or large size, we have to produce 10-15 working days.
Q: Can you supply with sample clutch?
Of course! We can provide with a sample to your checking quality.
Q: What is the warranty period of the clutches?
One-year Guarantee.
