63 летний завод предоставляет сварочный флюс SJ501 AWS

Описание и отзывы

Трекер стоимости

Характеристики

PRODUCT DISPLAY

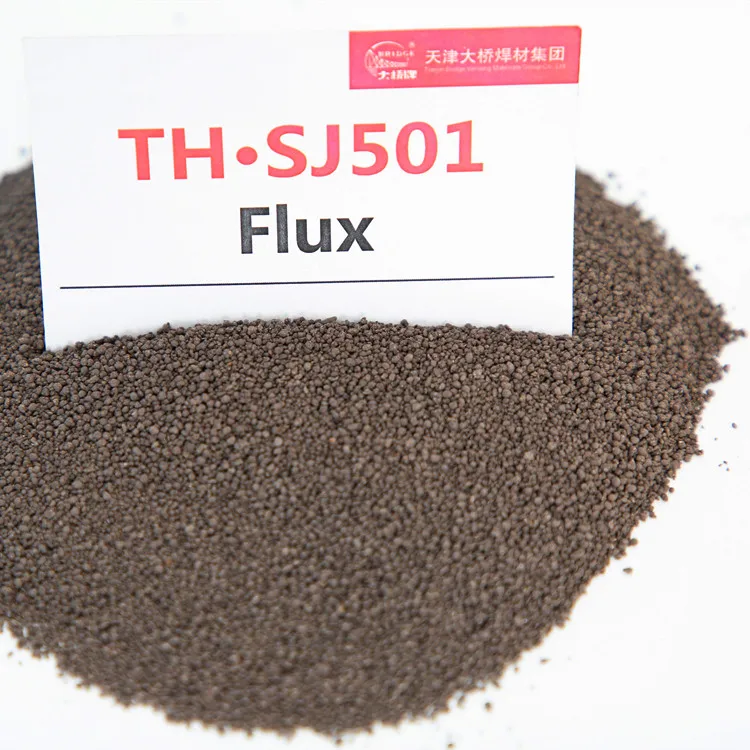

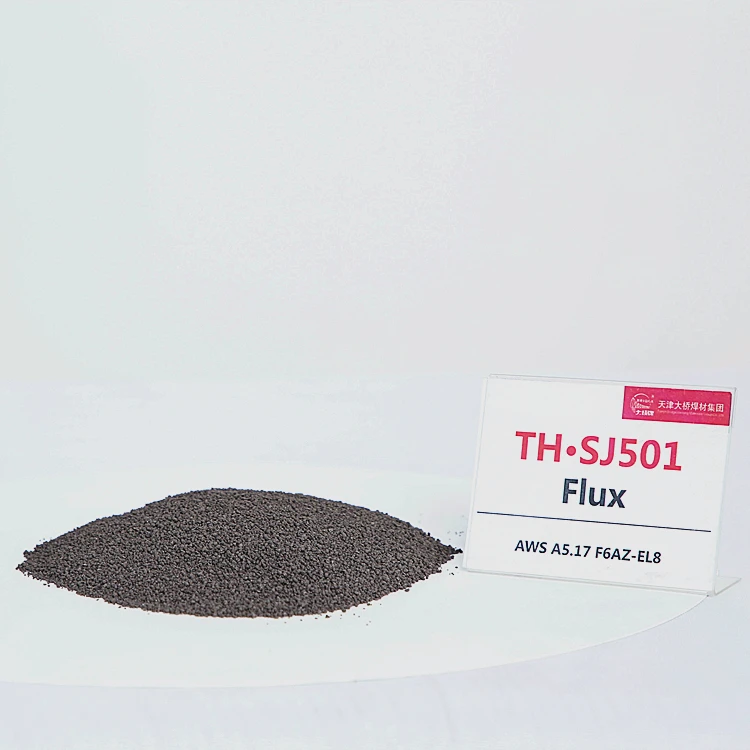

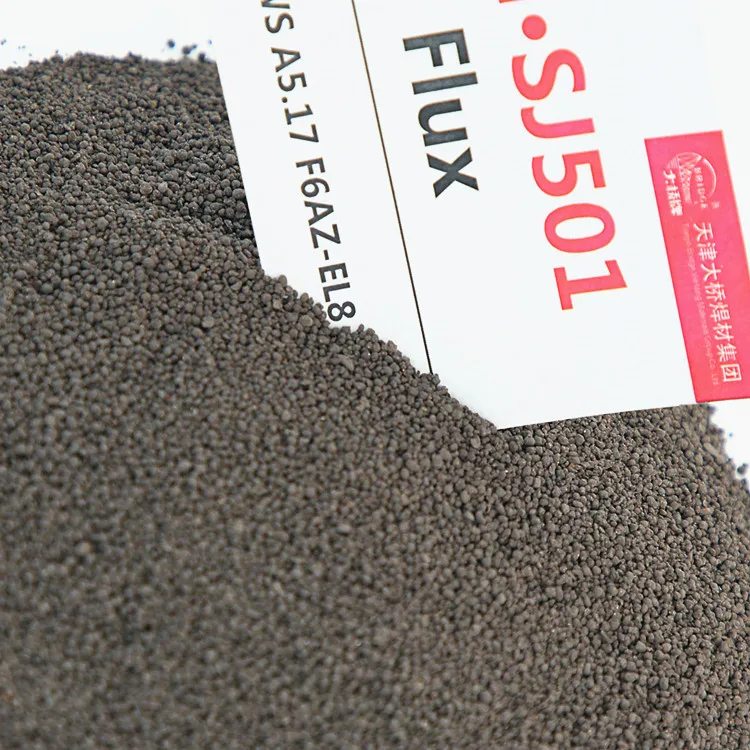

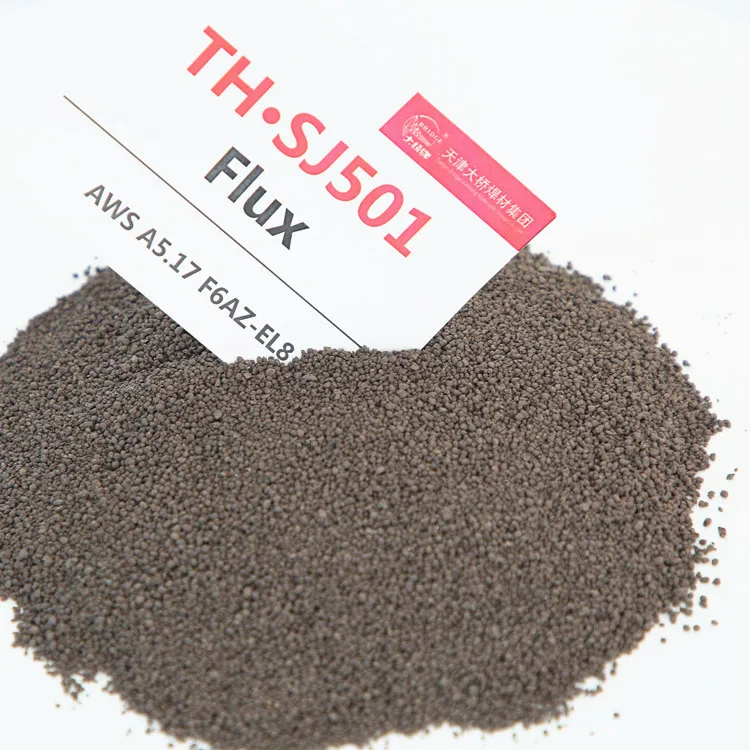

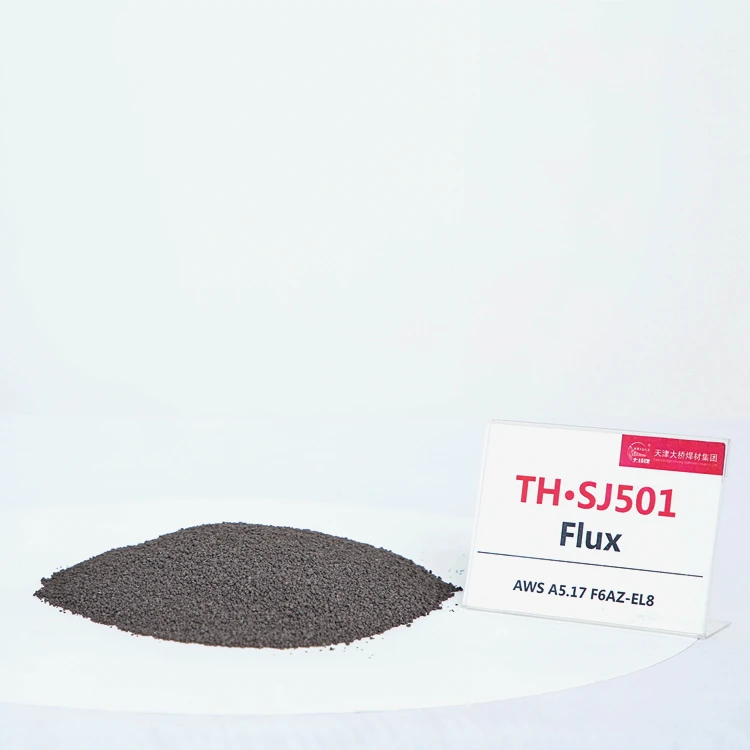

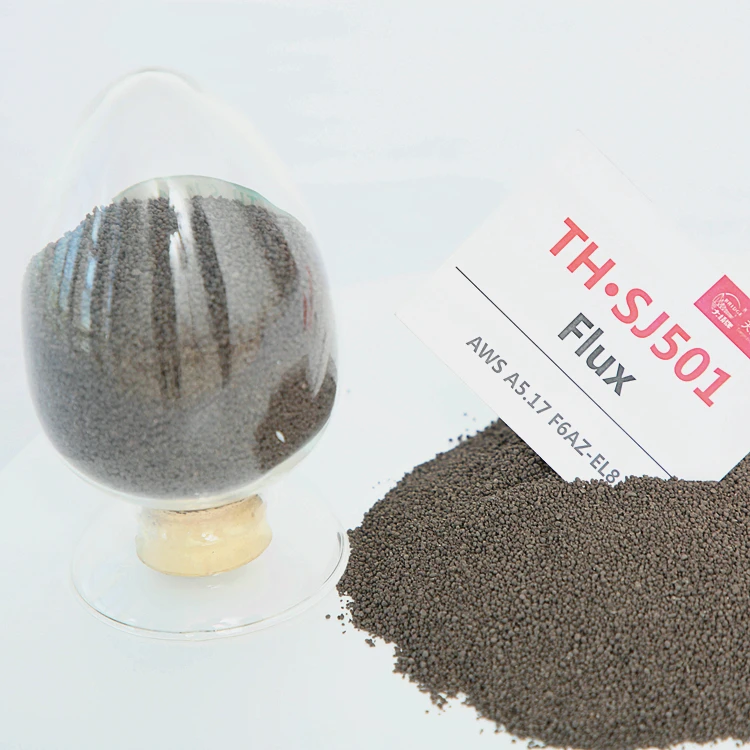

TH-SJ501

Sintered flux GB/T 5293 F4A0-H08A                                           AWS A5.17 F6AZ-EL8



APPLICATIONS:

it can be used in high speed submerged arc welding of thin plate for ordinary structure steels, boiler and pressure vessel and pipeline steels with appropriate wires (such as H08MnA,H08A).

CHARACTERISTICS:

TH·SJ301 is a Aluminum and titanium alloy type sintered flux with particle size of 2.0mm to 0.28mm(10-60 mesh ). The alkalinity is about 0.5 to 0.7. It can be used in AC and DC dual purpose. The arc combustion is stable, the slag is easy to be removed, and the welding seam is formed beautifully. The fiux is not sensitive to a small amount of rust and other impurities.

ATTENTION:

1. Before using, the flux shall be baked for 2 hours at 300-350 ℃.

2.Do remove rust, oil, water and other impurities in the weld zone before welding.

Mechanical properties of deposited metal: (TH·SJ501/THM-43 combination)

Physical and chemical properties of flux:

Items	S(%)	P (%)	Moisture content(%)	Mechanical inclusion(%)	Mesh
Standard value	≤0.060	≤0.080	≤0.10	≤0.30	10-60
Typical value	0.018	0.030	0.02	0.13

PRODUCT APPLICATION



Some of our products have been applied to overseas key projects.

Electrode, SAW wire and flux of 600MPa Grade & 800MPa Grade

applied to hydro steel at Laos pumped storage power station

E6010 cellulose electrode Applied to the Ghana TEMA pipeline project in Africa successfully. It breaks the monopoly of Bohler cellulose electrode and won the bidding of oil pipeline Ghana tank project



ABOUT US



Tianjin Bridge Welding Materials Group Co., Ltd., founded in 1957, is one of the largest welding consumables manufacturing enterprises in China. In the past half century, "BRIDGE " welding consumables sell well in more than 60 countries and regions. "BRIDGE”welding consumables has 4 categories, 500 types more,including covered electrodes (SMAW), solid wire/Rod (GMAW & GTAW), flux-cored wire/Rod (FCAW) and sub arc wire/strip & flux (SAW/ESW). They are for welding steel of non-alloy & fine grain steel, creep resistant & weatherproof steel, stainless steel, surfacing welding, cast iron, Ni & Ni-alloy steel, AI & Al-alloy steel, Cu & Cu-alloy steel and other special welding & cutting. Our products are widely used in construction, shipbuilding and offshore, land traffic and aerospace, boiler and pressure vessel, energy, household appliance, machinery manufacturing,military industries and many other fields.

Keeping improvement and development for product technology and quality continually, which always make us the leader in welding consumables industry. Tianjin Bridge Welding Materials Group Co., Ltd. Passed ISO9001, ISO14001, OHSAS18001 and ISO5001 approvals. Our products of shipbuilding & offshore are approved by ABS, BV, CCS, DNV.GL, LR, NK, KR, RINA, RS, BKI and CWB. Main products are approved by CPD-CE, DB-AG and VD-TUV.

Our: Guiding Ideology- "People-oriented, pursuing sustainable development" Quality policy- "pursuing perfect quality, establishing a good corporation reputation, with excellent quality and service" Principle- "Customers' satisfaction is the first"



We are the professional and perfect partner

of yoursin welding consumables.





F A Q



Q: what is delivery time / lead time ?

A: 30 days

Q: what is your minimum order ?

A: 5000kgs

Q: what is your payment term ?

A: 1- 30% down payment for order confirmation, 70% before shipment.

    2- 100% at sight LC

Q: can we visit your factory ?

A: yes you can at your free time.
