Abc кабель 2x16 400 В acsr
- Категория: Power Cables >>>
- Поставщик: Henan,Ali-Cable,Group,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.23 $* | 0.57 $* |
| Aug-19-2025 | 0.95 $* | 0.53 $* |
| Jul-19-2025 | 0.23 $* | 0.46 $* |
| Jun-19-2025 | 0.2 $* | 0.86 $* |
| May-19-2025 | 0.75 $* | 0.33 $* |
| Apr-19-2025 | 0.14 $* | 0.94 $* |
| Mar-19-2025 | 0.1 $* | 0.14 $* |
| Feb-19-2025 | 0.80 $* | 0.23 $* |
| Jan-19-2025 | 0.62 $* | 0.5 $* |
Характеристики
We are the top one in the circle of overhead conductor, abc cable and concentric cable

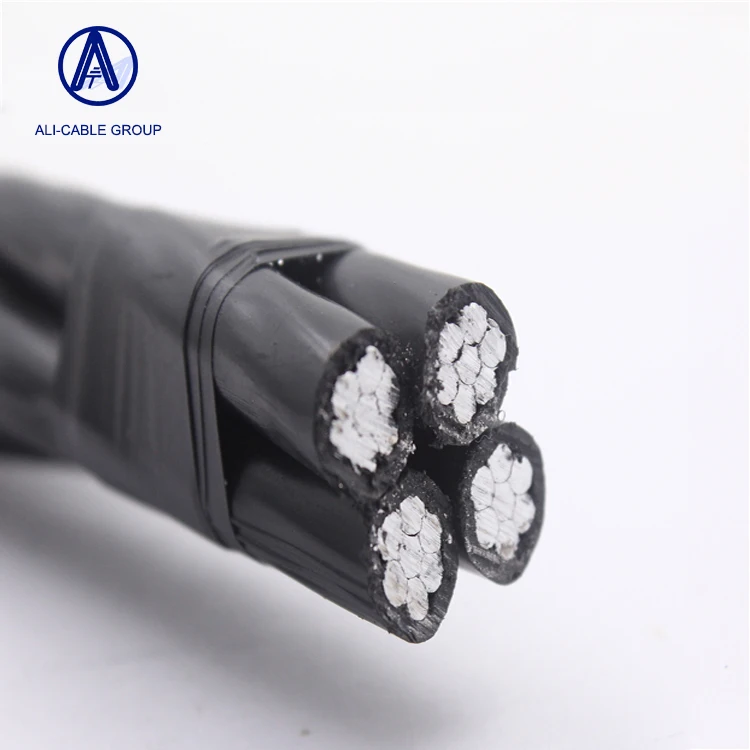

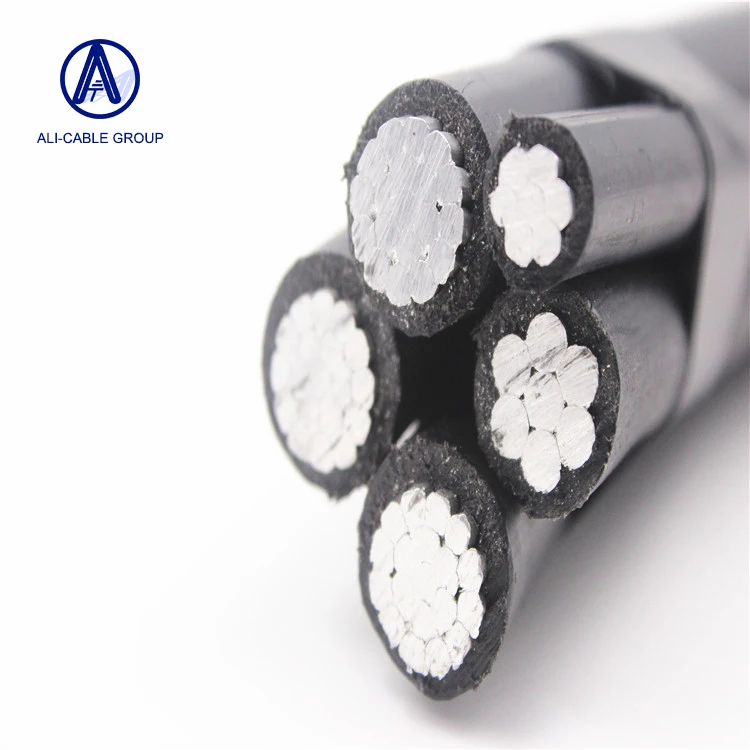

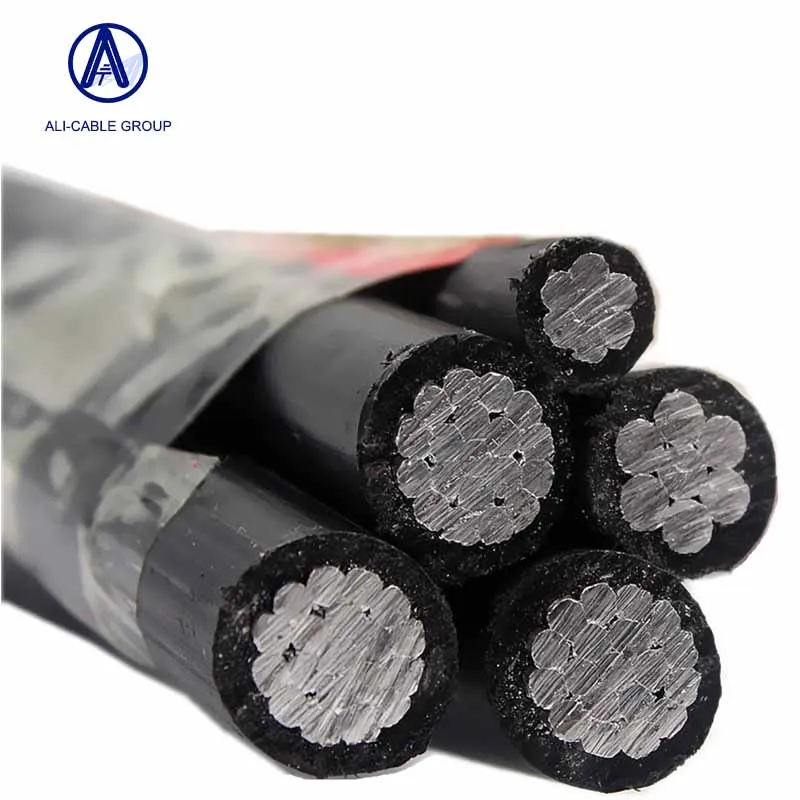

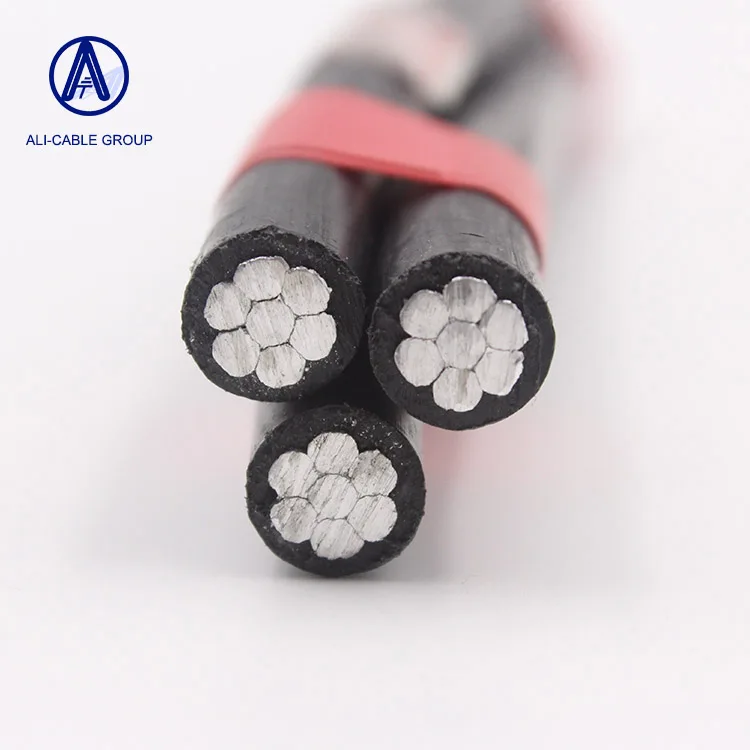

Factory direct sales abc cable acsr conductor stranded twisted aerial bundled cable
Overhead abc cables are mainly used for 600V overhead auxiliary power distribution lines. It is not an electrically insulated conductor and is usually regarded as a bare conductor during installation. The conductor is 1350-H19 aluminum wire, 6201-T81 aluminum alloy or ACSR conductor, concentric stranded wire and polyethylene, high density polyethylene (HDPE) or cross-linked Covered with polyethylene (XLPE) to protect against wind and rain.
Product Description
Rated voltage | 0.6/1kv | 0.6/1kv | Specification | ABC | ||||||||||||||
Structure | ||||||||||||||||||
AWG or kcmi | Carrying wire core(acsr) | Phase conductor | insulation | |||||||||||||||
Stell | Aluminium | Aluminium | xlpe | |||||||||||||||
No. | Dia. | No. | Dia | Dia | No. | Dia | Dia | |||||||||||
3*6AWG+1*6AWG | 1 | 1.68 | 6 | 1.68 | 5.04 | 1 | 4.11 | 4.11 | 1.14 | |||||||||
3*6AWG+1*6AWG | 1 | 1.68 | 6 | 1.68 | 5.04 | 7 | 1.55 | 1.55 | 1.14 | |||||||||
3*4AWG+1*4AWG | 1 | 2.12 | 6 | 2.12 | 6.36 | 1 | 5.19 | 5.19 | 1.14 | |||||||||
3*4AWG+1*4AWG | 1 | 2.12 | 6 | 2.12 | 6.36 | 7 | 1.96 | 5.88 | 1.14 | |||||||||
3*2AWG+1*2AWG | 1 | 2.67 | 6 | 2.67 | 8.02 | 7 | 2.47 | 7.42 | 1.14 | |||||||||
3*1/0AWG+1*1/0AWG | 1 | 3.37 | 6 | 3.37 | 10.11 | 19 | 1.89 | 9.47 | 1.52 | |||||||||
3*2/0AWG+1*2/0AWG | 1 | 3.78 | 6 | 3.78 | 11.35 | 19 | 2.13 | 10.63 | 1.52 | |||||||||
3*3/0AWG+1*3/0AWG | 1 | 4.25 | 6 | 4.25 | 12.74 | 19 | 2.39 | 11.94 | 1.52 | |||||||||
3*4/0AWG+1*4/0AWG | 1 | 4.77 | 6 | 4.77 | 14.31 | 19 | 2.68 | 13.4 | 1.52 | |||||||||
3*336.4+1*336.4 | 1 | 3.47 | 18 | 3.47 | 17.36 | 19 | 3.38 | 16.9 | 2.03 | |||||||||
3*336.4+1*4/0AWG | 1 | 4.77 | 6 | 4.77 | 14.31 | 19 | 3.38 | 16.9 | 2.03 | |||||||||
Recommend Products
Company Profile

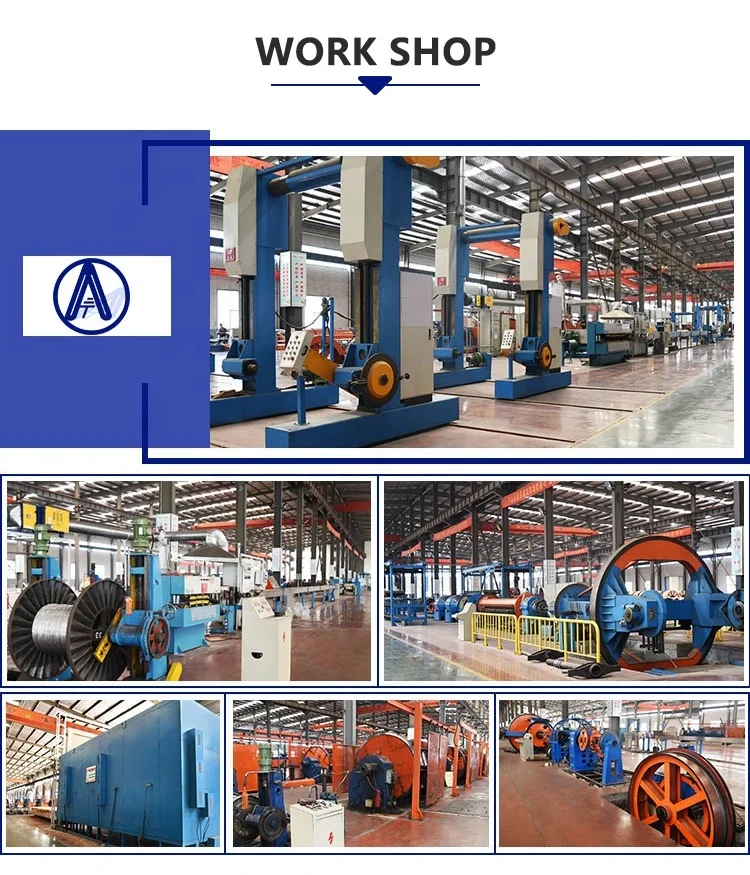

Our factory
Packing shipping
FAQ
1. Q: Are you a factory or trading company?
A: We’re a factory locates in Henan Province, which integrates R&D, manufacture and sales of various wires and cables
2. Q: What are your main products?
A: AAC/AAAC/ACSR/ACAR/AACSR/ACSR-AS/ACSS/ACSS-AW/ACS/GSW conductor, ABC cable, power cable, control cable, concentric cable,commonelectric wire, etc
3. Q: Can we have our logo or company name to be printed on your products or the package?
A: Yes, OEM and ODM are both acceptable for us.
4. Q: Do you provide samples? Free or not?
A: Yes, we’d like to provide free samples for your reference, but won’t bear the express fees.
5. Q: How long is your warranty period?
A: 1 year, and we promise to return or replace the cables within one year if any quality problem is found.
A: We’re a factory locates in Henan Province, which integrates R&D, manufacture and sales of various wires and cables
2. Q: What are your main products?
A: AAC/AAAC/ACSR/ACAR/AACSR/ACSR-AS/ACSS/ACSS-AW/ACS/GSW conductor, ABC cable, power cable, control cable, concentric cable,commonelectric wire, etc
3. Q: Can we have our logo or company name to be printed on your products or the package?
A: Yes, OEM and ODM are both acceptable for us.
4. Q: Do you provide samples? Free or not?
A: Yes, we’d like to provide free samples for your reference, but won’t bear the express fees.
5. Q: How long is your warranty period?
A: 1 year, and we promise to return or replace the cables within one year if any quality problem is found.
