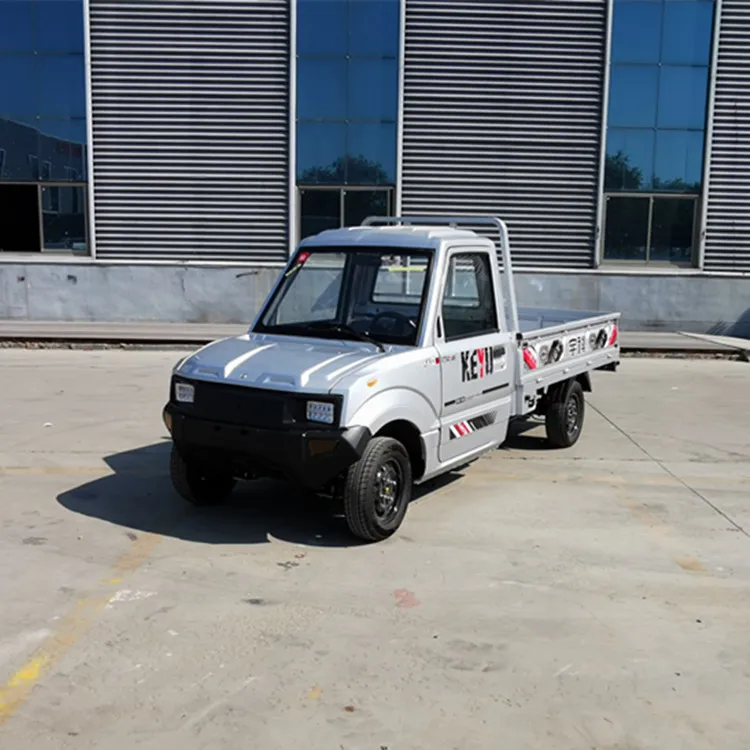

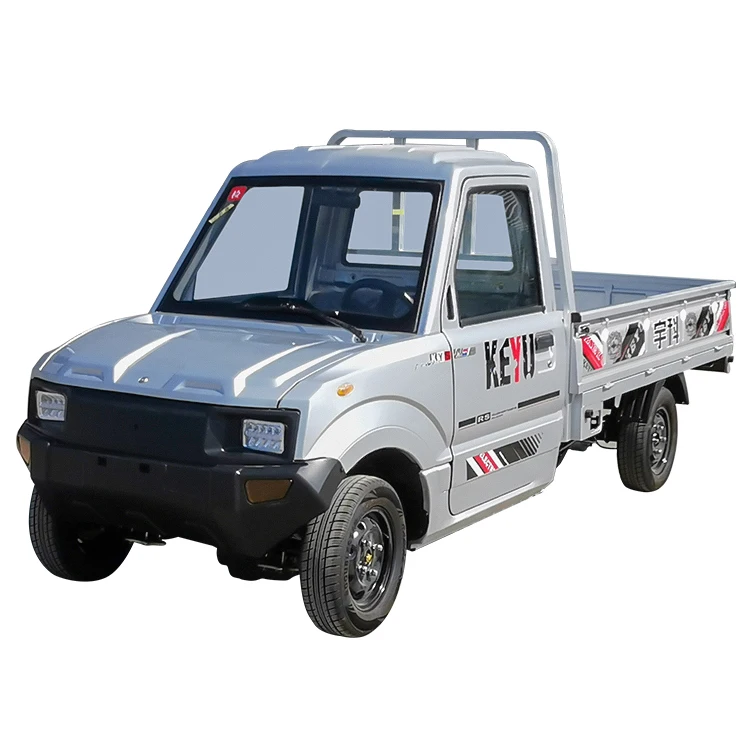

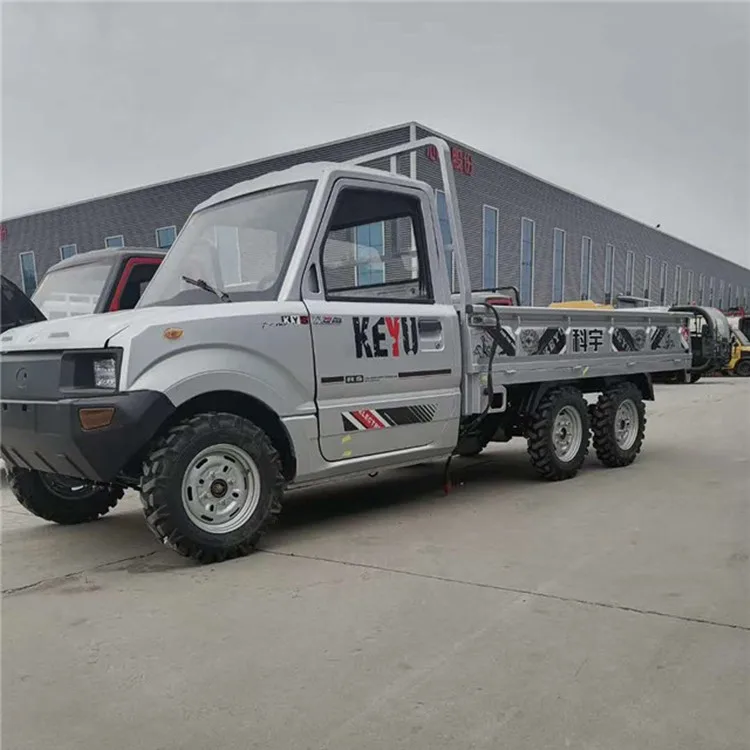

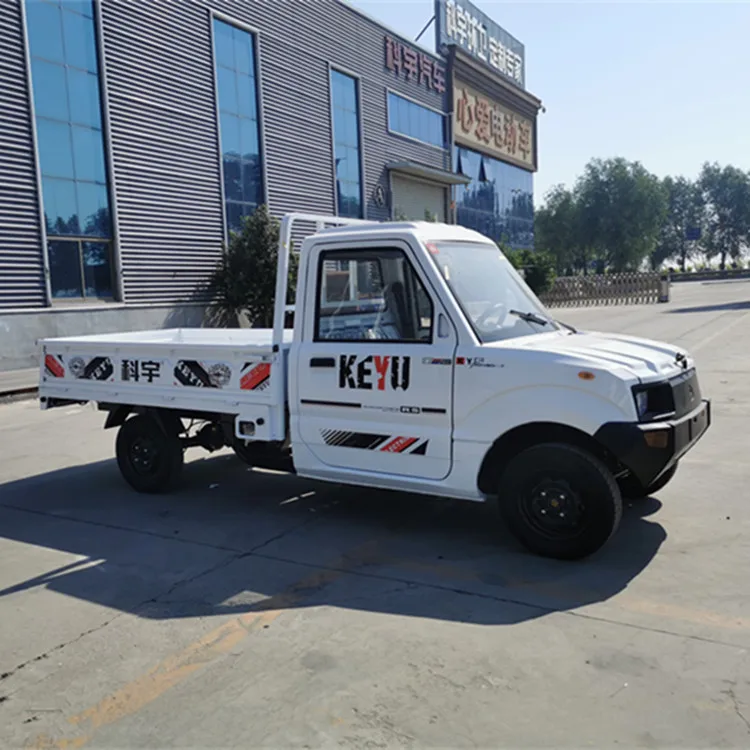

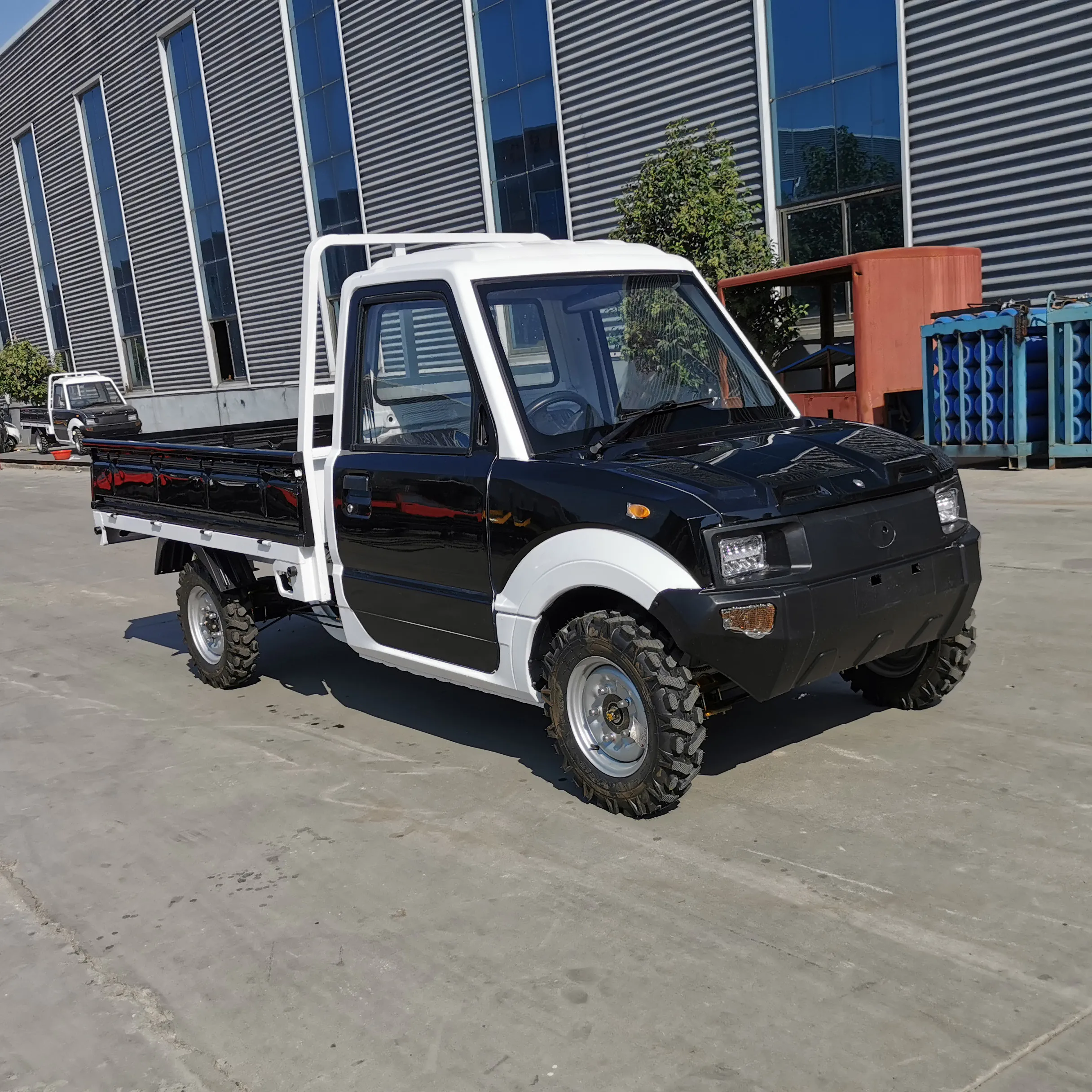

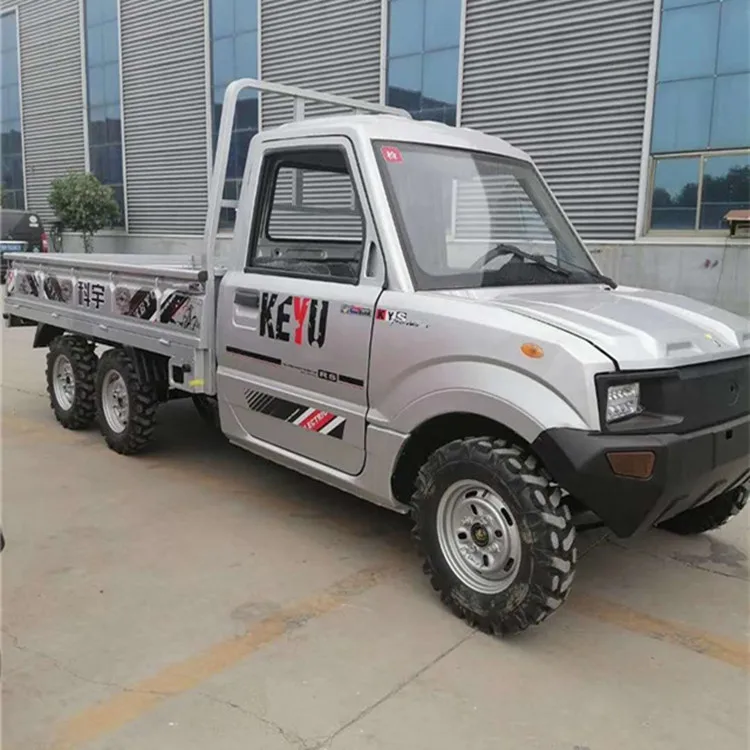

Китайская Фабрика безопасных подъемных электрических легких

Цена:3 133,00 $ - 3 648,00 $*

Количество:

Products Description

D A T A	Items	TK2600
		Size	450014001700mm
		Carriage size	26001400350mm
		Max speed	45km/h
		Min steering radius	≤5m
		Max climbing ability（full）	20%
		Braking Distance	≤7m
		Working Range	80-200m
		Motor	72V 4KW AC Motor, 3-5KW 6 Phase Permanent Magnet motor is optional
		Min Ground Clearance	≥160mm
		Loading Capacity（kg）	800-1200kg
		Tread	2680mm
		Wheel base	1200/1250mm
E L E C T	Battery	72V lead acid battery or lithium battery
	L	Charger	Build-in smart car charger
	E	Controller	Imported in-power controller
	C	Driven Method	RR
	T	Braking Method	Front Disc Rear Drum
		Body Structure	Intelligent loading body
P O W E R	Front Axle loading Cap.	800kg
		Rear axle loading capacity	1200kg
		Climbing Ability	20-30%
		Tyre	155/70R12 Pneumatic tyres
		Steering system	Gear chain
		Lights and signal	LED front lamp, turning light, rear lights, braking light,horn
		Seat	leather+PU
		instrument	Instrument panel,RDP button
