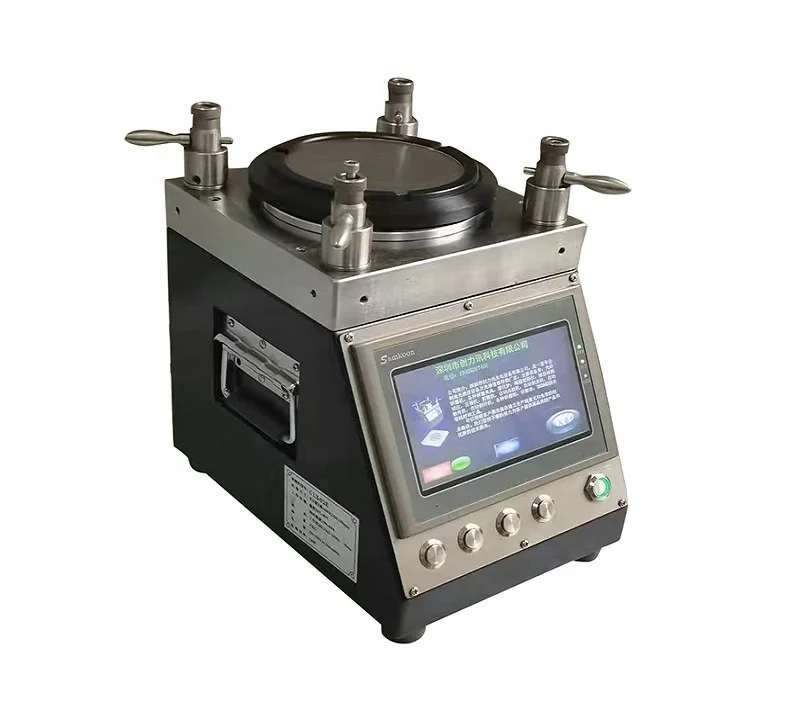

Four Corner Optic Cable Connector Polisher Optical Fiber Polishing Machine For Patch Cord Making
Product Description
Feature
1.Double motors with sufficient power
2.High accuraty Machinary size, minimal plane tolerance
3.High accuraty Machinary size, minimal plane tolerance
4.Excellent stability, five or ten years lifetime
2.High accuraty Machinary size, minimal plane tolerance
3.High accuraty Machinary size, minimal plane tolerance
4.Excellent stability, five or ten years lifetime
Applications
1.ZrO2 Ceramic Ferrules
2.Quartz capillary
3.Glass materials
4.Stainless steel and titanium alloy
5.Colophony material
2.Quartz capillary
3.Glass materials
4.Stainless steel and titanium alloy
5.Colophony material
Description
1.Fiber optic polishing machine
2.Designed for high volume manufacturing
3.Quick change tooling
4.APC back reflection as low as -70 dB
5.UPC back reflection as low as -60 dB
6.Insertion loss 0.2 dB typical
7.Super centering accuracy
8.Low undercut
9.Excellent connector endface polishing quality
2.Designed for high volume manufacturing
3.Quick change tooling
4.APC back reflection as low as -70 dB
5.UPC back reflection as low as -60 dB
6.Insertion loss 0.2 dB typical
7.Super centering accuracy
8.Low undercut
9.Excellent connector endface polishing quality
Product Paramenters
1. Certificate | CE |
2. APC return loss | -60 dB |
3. UPC return loss | -50 dB |
4. Insertion loss | 0.3 dB (SM), 0.2 dB (MM) |
5. Under cut | 50nm |
6. 3D pass | PC>95%, APC>90% |
7. Polishing capacity | SC 36 Max, LC 42 Max |
8. Pressure source | Coil Spring |
9. Motor speeed | 135-140 rpm rotation |
10 .Polish plate size | 127 mm(5 inch) |
11. Time settings | 99 min 99 sec (Max) |
12. Plate jumpiness height | <10 um |
13. Pressure configuration | 21 ~ 36 N/cm2 |
14. Pressure range | 0~5kg |
15. Noice | unloading <50 dB |
16. Work Temperature | 10℃~40℃ |
17. Relative Humidity | 15%~85% |
18. Libration | Working Status 0.25g 5~100Hz 10min |
19. Stopping Status | 0.50g 5~100Hz 10min |
20. Power Input | 220~230 VAC 50Hz/60Hz |
21. Electric Power | 120W |
22. Machine Size | L 240(mm) × W 240(mm) × H 260(mm) |
23. Net Weight | 28kg |
24. Warranty | Two-year warranty |
Recommend Products
Company Profile
Delivery&Packing
FAQ
1.Are you a factory or a trader？
-we are factory.
2.What is your MOQ?
-MOQ 1 piece.
3.Do you provide sample services？
-Yes, we will provide samples.
4.How will you ship to me?
- We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity.
5.How do we pay?
-Book in advance or multiple payment methods such as T / T and T / L.
6.How long is your product warranty?
-The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
7.Do you provide customized services？
-Yes, we provide customized services, According to customer requirements and description.
-we are factory.
2.What is your MOQ?
-MOQ 1 piece.
3.Do you provide sample services？
-Yes, we will provide samples.
4.How will you ship to me?
- We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity.
5.How do we pay?
-Book in advance or multiple payment methods such as T / T and T / L.
6.How long is your product warranty?
-The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
7.Do you provide customized services？
-Yes, we provide customized services, According to customer requirements and description.
