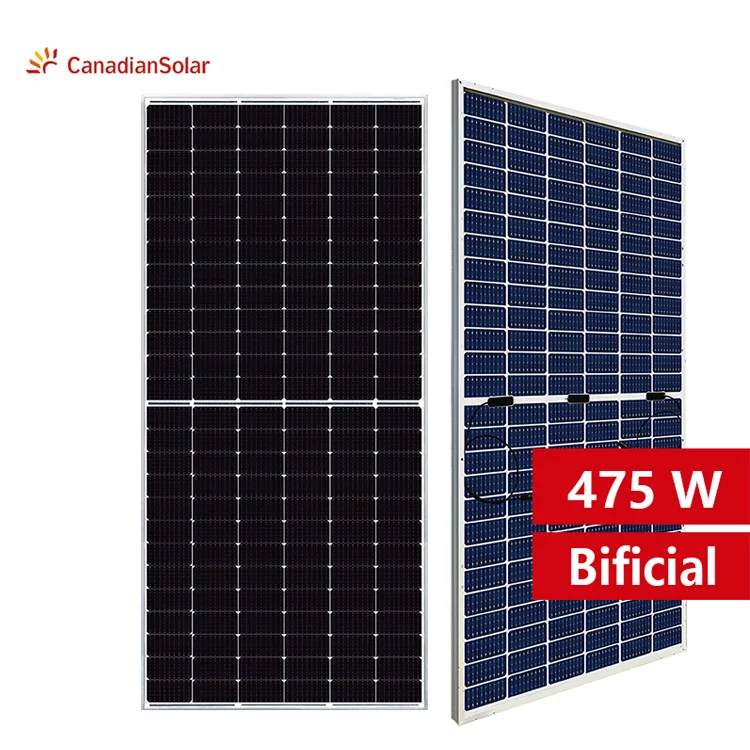

Канадская Солнечная билицевая наружная монокристаллическая Кремниевая солнечная панель
- Категория: Solar Panels >>>
- Поставщик: Csi,Solartronics,(suzhou),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.68 $* | 0.16 $* |
| Aug-15-2025 | 0.72 $* | 0.42 $* |
| Jul-15-2025 | 0.73 $* | 0.99 $* |
| Jun-15-2025 | 0.71 $* | 0.38 $* |
| May-15-2025 | 0.10 $* | 0.64 $* |
| Apr-15-2025 | 0.31 $* | 0.86 $* |
| Mar-15-2025 | 0.19 $* | 0.39 $* |
| Feb-15-2025 | 0.54 $* | 0.26 $* |
| Jan-15-2025 | 0.39 $* | 0.70 $* |
Характеристики
FEATURES AT A GLANCE
Module
* Higher module wattage
· 166 mm wafer + 156 dual cell + PERC technology
· 166 mm wafer + 156 dual cell + PERC technology
· Module front side power up to 490W · 29.6% more energy yield in the lifetime
* Lower BOS cost and LCOE
· 11.5% LCOE reduction because of higher energy yield and lower system cost
* Lower BOS cost and LCOE
· 11.5% LCOE reduction because of higher energy yield and lower system cost
· Compatible with mainstream trackers
* Enhanced reliability
· Up to 50% lower degradation LID / LeTID mitigation
* Enhanced reliability
· Up to 50% lower degradation LID / LeTID mitigation
· Lower hot spot temperature
· Better shading tolerance
MORE RELIABLE
· Heavy snow load up to 5400 Pa,
wind load up to 2400 Pa
JUNCTION BOX
· IP68 split junction boxes:
Better heat dissipation & higher safety
· Smaller size:
No shading on cells & greater energy yield
CABLE
· Optimised cable length: Simplified wire fix, reduced energy loss in cable
· IP68 split junction boxes:
Better heat dissipation & higher safety
· Smaller size:
No shading on cells & greater energy yield
CABLE
· Optimised cable length: Simplified wire fix, reduced energy loss in cable
PRODUCT SPECIFICATIONS
MECHANICAL DATA | ELECTRICAL DATA | |||||
Cell Type | Mono-crystalline | Operating Temperature | -40°C ~ +85°C | |||
Cell Arrangement | 156 [2 X (13 X 6) ] | Max. System Voltage | 1500 V (IEC/UL) or 1000 V (IEC/UL) | |||
Dimensions | 2260 ˣ 1048 ˣ 32 mm (89.0 ˣ 41.3 ˣ 1.26 in) | Module Fire Performance | TYPE 29 (UL 61730) or CLASS C (IEC61730) | |||
Weight | 29.9 kg (65.9 lbs) | Max. Series Fuse Rating | 25 A | |||
Front / Back Glass | 2.0 mm heat strengthened glass | Application Classification | Class A | |||
Frame | Anodized aluminium alloy | Power Tolerance | 0 ~ + 10 W | |||
J-Box | IP68, 3 diodes | Power Bifaciality | 70% | |||
Cable | 4.0 mm² (IEC), 12 AWG (UL) | TEMPERATURE CHARACTERISTICS | ||||
Cable Length (Including Connector) | 410 mm (16.1 in) (+) / 290 mm (11.4 in) (-) or customized length | Temperature Coefficient (Pmax) | -0.35 % / °C | |||
Connector | T4 series or H4 UTX or MC4-EVO2 | Temperature Coefficient (Voc) | -0.27 % / °C | |||
Per Pallet | 33 pieces | Temperature Coefficient (Isc) | 0.05 % / °C | |||
Per Container | (40' HQ) 660 pieces or 528 pieces (only for US) | Nominal Module Operating Temperature | 41 ± 3°C | |||
Company Profile
OUR HISTORY
Dr. Shawn Qu, Chairman, President and Chief Executive Officer founded Canadian Solar (NASDAQ: CSIQ) in 2001 in Canada, with a bold mission: to foster sustainable development and to create a better and cleaner earth for future generations by bringing electricity powered by the sun to millions of people worldwide. Under Dr. Qu’s leadership, we have grown into one of the world’s largest solar photovoltaic products and energy solutions providers, as well as one of the largest solar power plant developers globally.
OUR ACHIEVEMENTS
* More than 46 GW solar modules shipped
* 14 GW module capacity and 10 GW cell capacity
* 17 manufacturing facilities in Asia & Americas
* Active buying customers in more than 150 countries
* Subsidiaries in 20 countries & regions on 6 continents
* 14 GW module capacity and 10 GW cell capacity
* 17 manufacturing facilities in Asia & Americas
* Active buying customers in more than 150 countries
* Subsidiaries in 20 countries & regions on 6 continents
Team & Exhibition
Successful Project
Garland Solar Plant Project in
CA, USA
CA, USA
NC 102 Solar Plant Project in
NC, USA
NC, USA
Commercial Solar Rooftop Project in
Aliso Viejo, CA, USA
Aliso Viejo, CA, USA
Awards
· No. 1 Top Bankable Manufacturer Rated by BloombergNEF in 2020*
· Tier 1 Solar Company by BloombergNEF 2017-2020
· Leading company in PHOTON PV TRIATHALON 2017
· No. 1 Module Supplier for Quality and Performance/Price Ratio in IHS Module Customer Insight Survey in 2016
· The Best PV Module Manufacturer Award in Brazil by Smart Energy 2016
· No. 1 Silicon module solar plant developer by Greentech Media Research in 2017
· Best Structured Project Bond Award by Environmental Finance
· 2017 TWO DEAL OF THE YEAR AWARDS FROM POWER FINANCE & RISK in 2018
· Intersolar North America 2012 Solar Project Award Finalist
*100% of respondents surveyed by BloombergNEF considered Canadian Solar's modules bankable. Note that it is the respondents considering this, not BNEF.
Certifications
FAQ
Q1: Can the product be shipped to my area？
A1: We export to most countries/regions (Centre/South America, EMEA, SEA, SSA, AU). We will check and confirm for you after you provide the region.
Q3: What about the lead time?
A3: 10 days for＜200kW requirements, we need to negotiate if your needs ≥200kW.
Q2: How can I make payment?
A2:100% TT or maximum we can accept 30% TT in advance and 70% TT upon goods ready before shipment
Q4: What is the mode of transport？
A4: International section is generally sea transport, after entry we will use multimodal transport of rail, barge.
Q5: what’s the warranty?
A5:12 years enhanced product warranty on materials and workmanship, 25 years linear power output warranty. More detail please refer to our limited warranty statement
A1: We export to most countries/regions (Centre/South America, EMEA, SEA, SSA, AU). We will check and confirm for you after you provide the region.
Q3: What about the lead time?
A3: 10 days for＜200kW requirements, we need to negotiate if your needs ≥200kW.
Q2: How can I make payment?
A2:100% TT or maximum we can accept 30% TT in advance and 70% TT upon goods ready before shipment
Q4: What is the mode of transport？
A4: International section is generally sea transport, after entry we will use multimodal transport of rail, barge.
Q5: what’s the warranty?
A5:12 years enhanced product warranty on materials and workmanship, 25 years linear power output warranty. More detail please refer to our limited warranty statement
