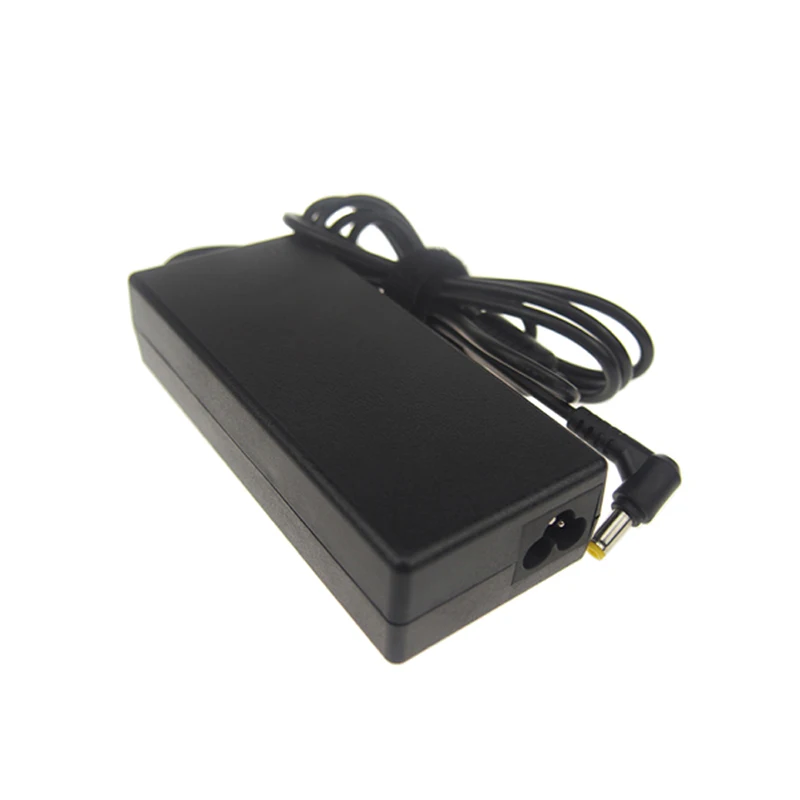

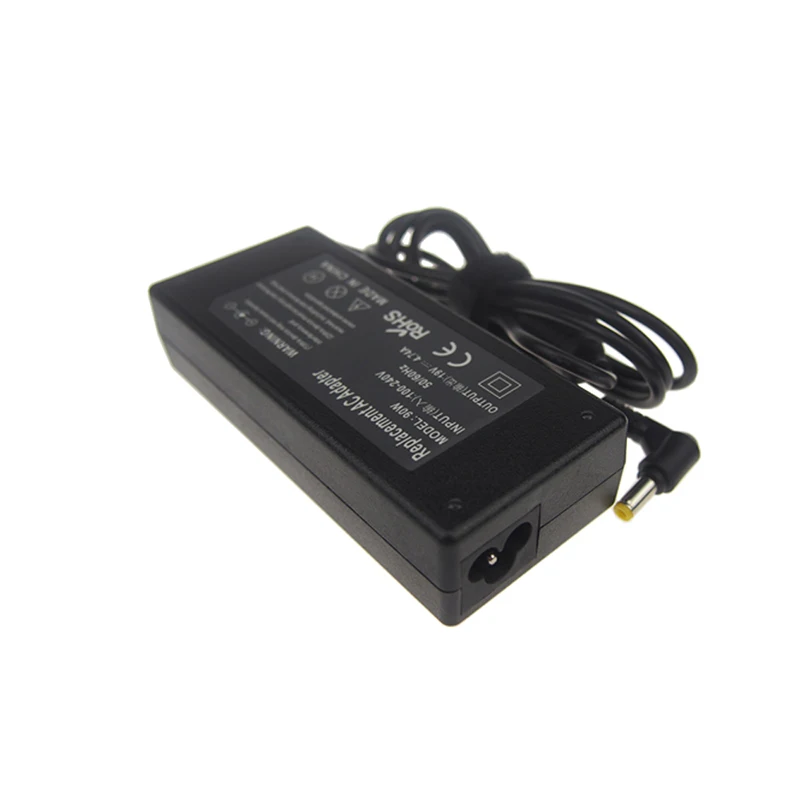

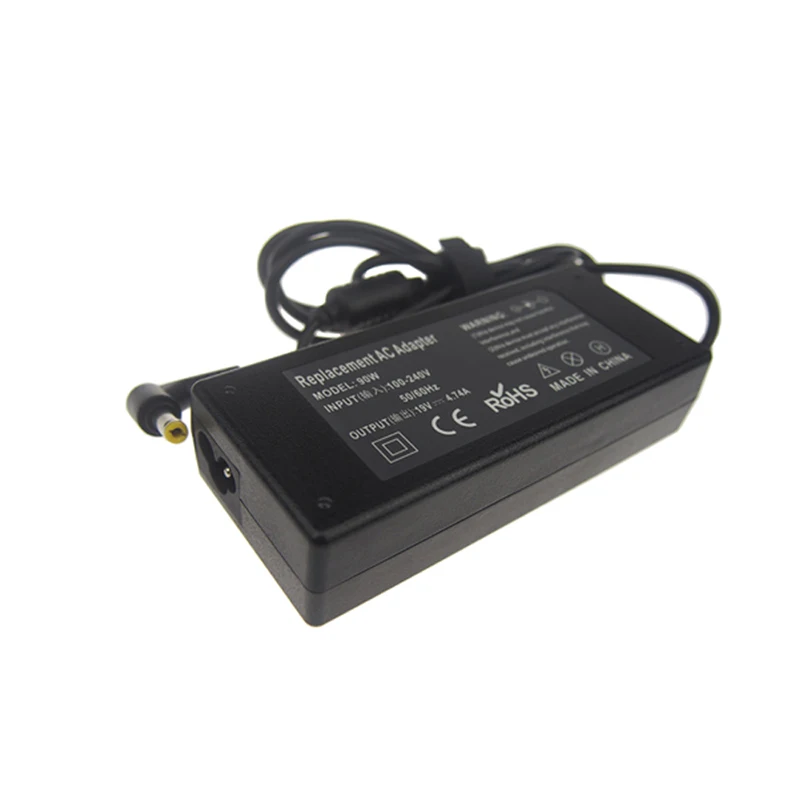

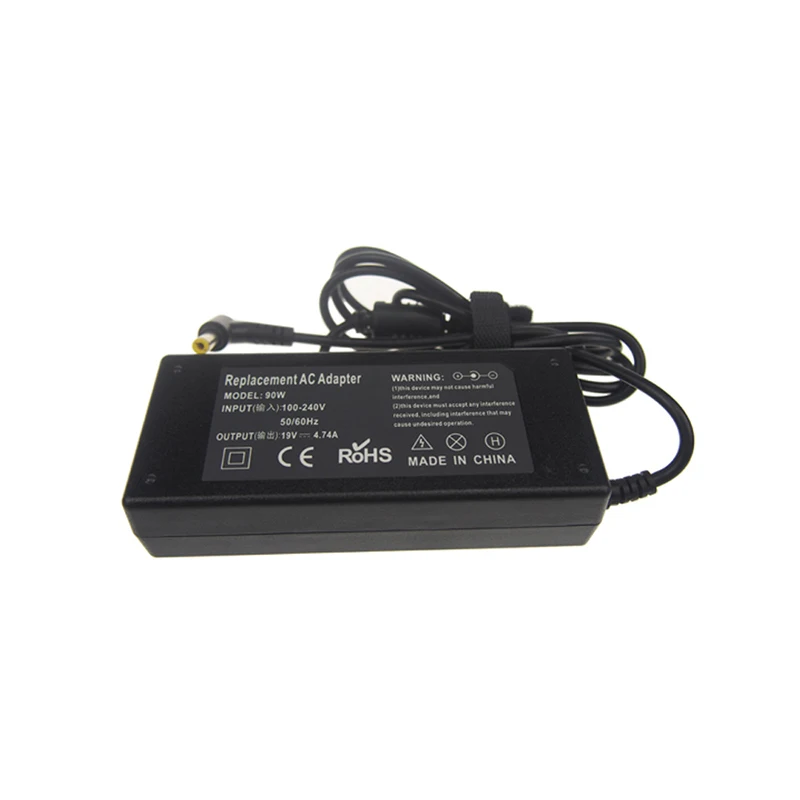

Зарядное устройство для ноутбука Asus N550JV N53S K501LX K501UX X551MAV D550CA D550M 90 Вт 19 в 4 74

Specifications

Model No.

YASH312

AC Input

Nominal Input Voltage

AC 100V~240V

Input Voltage Range

AC 95V~265V

Input Frequency

50/60Hz

DC Output

Output Voltage

19V

Output Current

4.74A

Output Power

90W

DC Connector Size

5.5*2.5mm

Line Regulation

2%

Load Regulation

5%

Ripple Noise

180 Mvp-p

Efficiency

>85%

Output Cable Standard

0.5mm2 Pure Copper

Output Cable Length

1.5m normally or customized requirement

Environment

Operating Temperature

0°C ~40°C

Operating Humidity

5%~95%RH

Storage Temperature

-20°C ~85°C

Storage Humidity

5%~95%RH

Protection

Over Load Protection

Short Circuit Protection

Over Current Protection

Over Temperature Protection

Certificates

CE, ROHS, REACH, FCC, ERP, CB, GS, TUV, UL, CUL, CCC,PSE

Dimensions

Adapter Size

13*5.7*2.9CM

Adapter Weight

263G

Inner Box Size

19*13*4.7CM

Inner Box Weight

40G

PCS/CTN

50PCS

Outer Carton Size

48.5*32*40CM

Outer Carton Weight

860G

GW/CTN

16010G

Package

Inner Box

Normally neutral brown box or customized requirement

Outer Carton

Normally neutral standard carton or customized requirement

Warranty

Guarantee

30 days

Warranty

2 years

Terms and Conditions

MOQ

100PCS for mixed order

Payment Terms

T/T, L/C, PayPal, western union

Delivery Time

3-5 days

Manufacturing Process

1. Set-Up→2. Hand Insertion→3. Wave Soldering→4. Touch-Up→5. V/I→6. ICT→7. INT→8. Apply Glue→9. Q/A→10. Entering Stock→11. Assembly→12. Power On Test→13. Hi-Pot Test→14. Burn-In→15. Hi-Pot Test→16. All Fun Test→17. Packing→18. OQC→19. Shipping

Test Procedures

1.No-load output voltage test→2.input power load test→3.No-load output ripple test→4.Full load open test→5.Full load output voltage test→6.Full load output ripple test→7.Full load input power test→8.Half load output voltage test→9.Half load output ripple test→10.Over load test→11.Over current protection test →12.Short circuit protection test (above test is under both 110V and 230V.)→13.High voltage test→14. burn-in test→15.Turn on delay time test→16.Rise time test→17.Hold time test→18.Overshoot test
