Переносной кондиционер Airco для дома и помещений 9000btu, 220 В, 60 Гц
US $160.00-$168.00
Система VRV VRF центральный кондиционер комбинированные
- Категория: Other Air Conditioners >>>
- Поставщик: Zero,Technologies,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.63 $* | 0.95 $* |
| Aug-16-2025 | 0.10 $* | 0.72 $* |
| Jul-16-2025 | 0.72 $* | 0.34 $* |
| Jun-16-2025 | 0.21 $* | 0.76 $* |
| May-16-2025 | 0.49 $* | 0.72 $* |
| Apr-16-2025 | 0.32 $* | 0.54 $* |
| Mar-16-2025 | 0.69 $* | 0.38 $* |
| Feb-16-2025 | 0.41 $* | 0.44 $* |
| Jan-16-2025 | 0.97 $* | 0.66 $* |
Характеристики
Company Profile
JAPANESE R&D AND MANAGEMENTJAPANESE STANDARD PRODUCTION LINE
TICA production process, procedure and testing are controlled according to the Japanese assembly linelevel to ensure "zero defect"of units after leaving the production line.
TICA inverter VRF unit production line is a modern automatic production line constructed according to Japan technical requirements and configuration. The production line adopts a power line body and implements intermittent control according to the process cycle requirement. All the products are confirmed through 8 detection procedures, and the quality is controlled by 21 posts.
TICA R&D INSTITUTE JAPAN
9th Oct. 2015, Official signing of the legal JV Agreements:
1.UTC will provide TICA with advanced global leading core technologies, as cryogenic power system (ORC), centrifugal and screw chiller;
2.Both parties will integrate the global networks to come up with a new market strength.
1.UTC will provide TICA with advanced global leading core technologies, as cryogenic power system (ORC), centrifugal and screw chiller;
2.Both parties will integrate the global networks to come up with a new market strength.

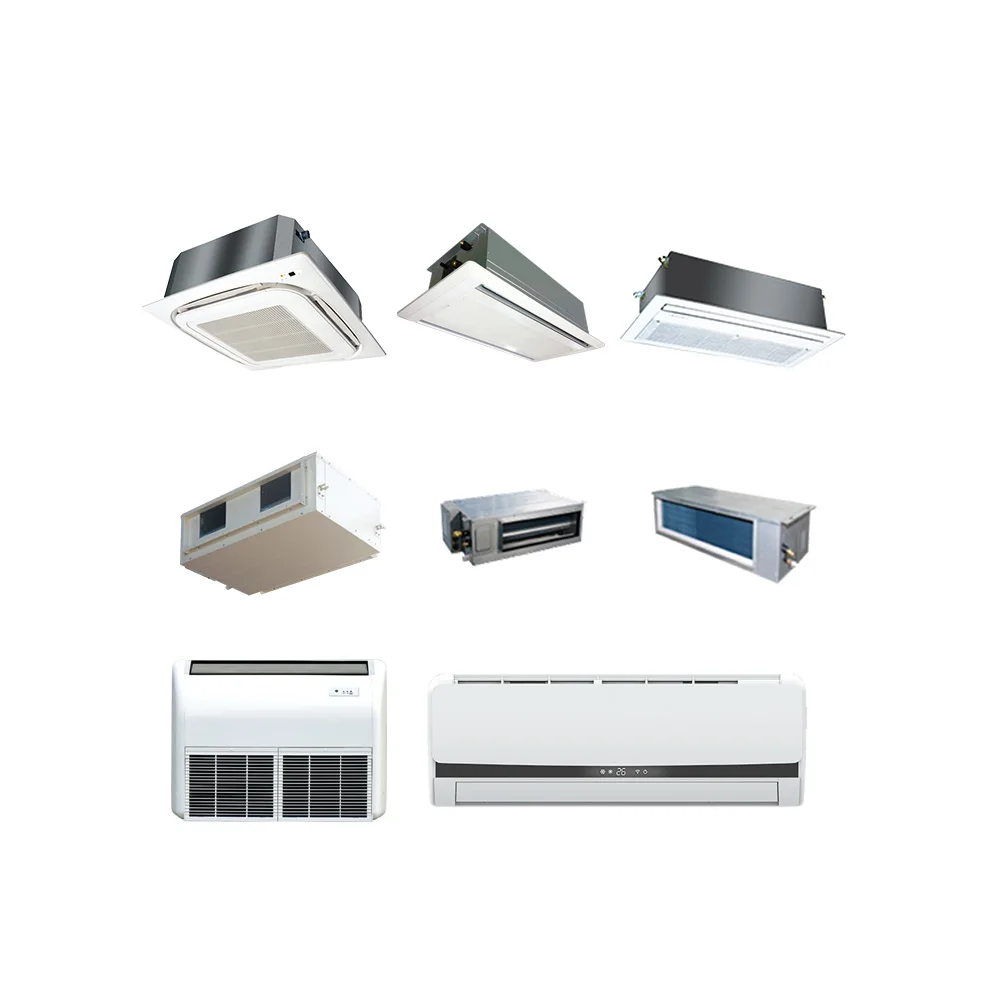

Product Line

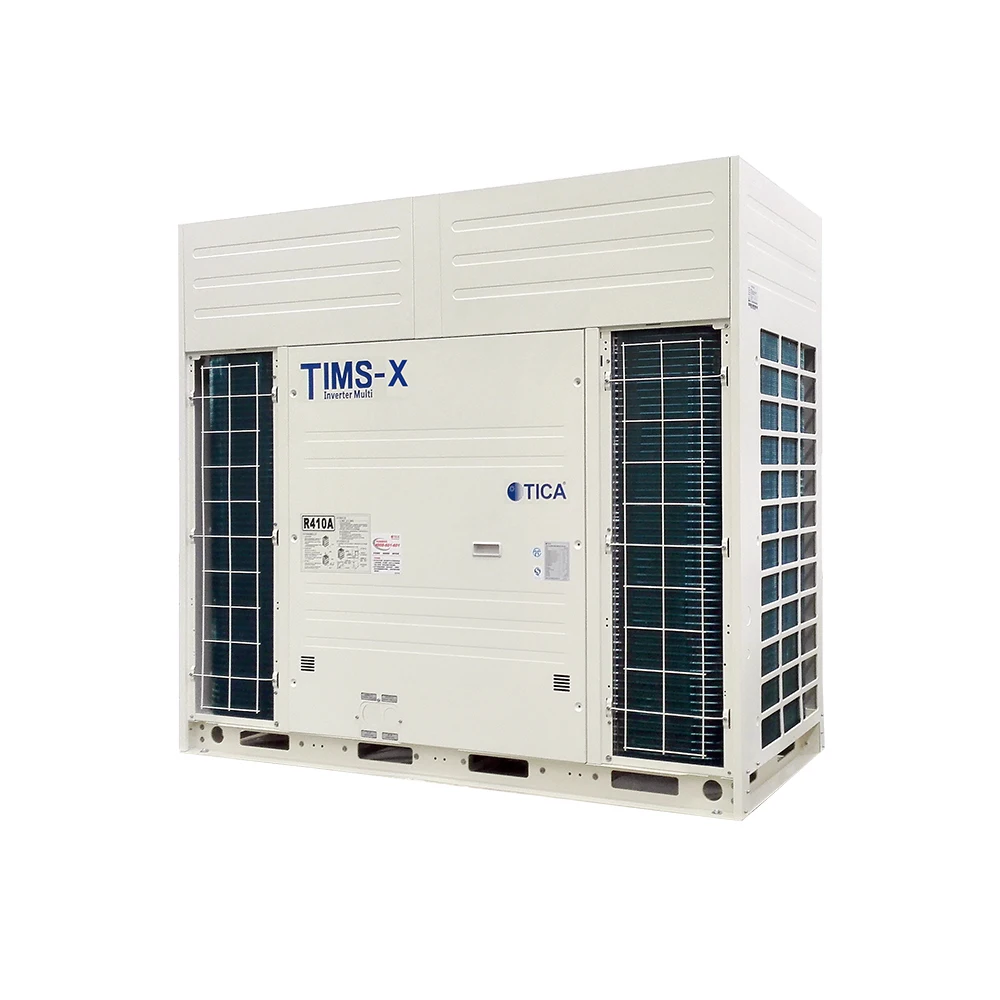

TIMS-AXA Combination Modules TIMS-AHT/AHTA EVI Comperssor
4-way cassette 2-way cassette 1-way cassette
Standard ducted unit Ultra-thin ducted unit High ESP ducted unit
Floor Ceiling Wall-mounted High capacity ducted unit
Specification

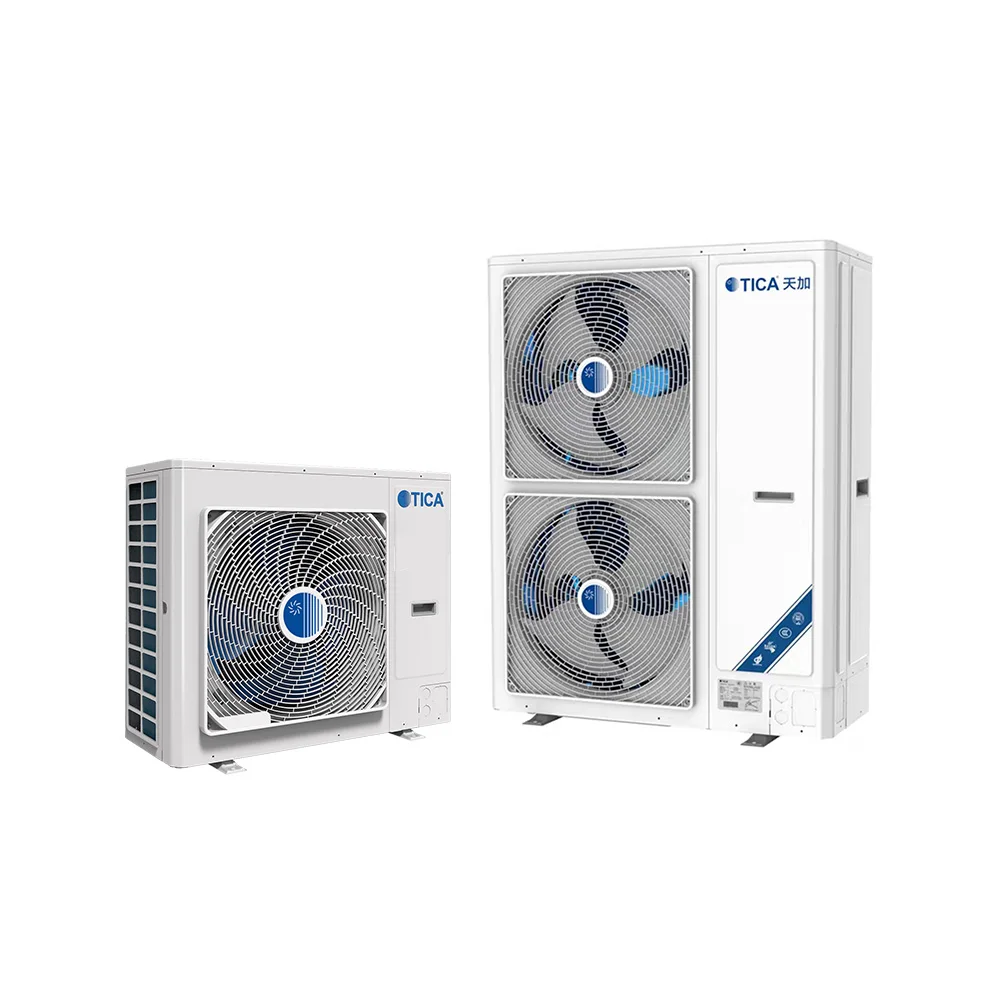

Type | Type | Mini VRF | VRF | |||
Capacity | HP | 3HP-8HP | 8HP-32HP | |||
Power supply | V/Ph/Hz | 220V~50Hz & 60Hz 380V~50Hz & 60Hz | 380-415V/3N/50Hz 380-415V/3N/60Hz | |||
Cooling | Capacity | kW | 8KW~22.4KW | 25KW-90KW | ||
Cooling | kBtu/h | 85.5-170.5kBtu/h | 191-307kBtu/h | |||
Power input | kW | 5.78-14.4KW | 17-27.65KW | |||
EER | kW/kW | 3.03-3.47 | 3.19-4.35 | |||
Heating | Capacity | kW | 12.5KW-25KW | 27KW-100KW | ||
kBtu/h | 92-191kBtu/h | 215-341kBtu/h | ||||
Power input | kW | 5.41-14KW | 15.8-26.08KW | |||
COP | kW/kW | 3.47-4.38 | 3.75-4.99 | |||
Comperssors | Type | - | DC inverter | |||
Fan motors | Type | - | DC inverter | |||
Max.ESP | Pa | 80 | 80 | |||
Refrigerant | Type | R410A | ||||
Aiflrow rate | m³/h | 12000-13980 | 25800-27000 | |||
dB(A) | 45-64 | 48-64 | ||||
Ambient temp | Cooling | ℃ | -5-54℃ | -5-54℃ | ||
Heating | ℃ | -25-24℃ | -25-26℃ | |||
Our Advantages
Brand | TICA |
Compressor | Mitsubishi |
Motor | Shibaura |
Air/Liquid separator | Chiyoda |
Check valve/Stop valve | Chiyoda |
Throttle components/4 way valve | Saginomiya |
Economizer | SWEP |
Pressure Sensor | Sensata |
Variable frequency controller | Sanhua |
Condensate water lift pump | Fujikoki |
BIG CAPACITY DUCT TYPE IDU
.ESP 300Pa
.Air Flow 9000m³/h
Flexible ESP Option
Operation cost reduction by 20%，
Optional Purification Section.
9 Core Advantages
Strive to provide reliable and different TICA Purifying Full Inverter VRF.
Full Inverter | 22HP Single Comp | 64HP Two Module |
EVl Technology | Dual IPM Cooling | Purifying |
10 Year Database | IAQ Detection | Non-Stop Defrosting |
"BLACK BOX"
Analysis of Operation Data
Update of Software
Max. Storage Space
Max. Ten Year Operation Data
Update of Software
Max. Storage Space
Max. Ten Year Operation Data
Quiet-extra Silent Technologies
1.CFD analogue simulation, together with the new fan blade, and the 4-blade axial flow design ensuring lower noise;
2.The macromolecule acupuncture cotton, which is the kind of cotton specially used by high-speed railway to isolate noise, perfectly
absorbs noises of all frequency bands.,
3.The brushless DC motor features stepless speed adjustment and more stable operation, achieving higher energy efficiency and
reducing noises.
4.The brushless DC motor features stepless speed adjustment and more stable operation, achieving higher energy efficiency and
reducing noises.
2.The macromolecule acupuncture cotton, which is the kind of cotton specially used by high-speed railway to isolate noise, perfectly
absorbs noises of all frequency bands.,
3.The brushless DC motor features stepless speed adjustment and more stable operation, achieving higher energy efficiency and
reducing noises.
4.The brushless DC motor features stepless speed adjustment and more stable operation, achieving higher energy efficiency and
reducing noises.
Efficient purification
A high-efficiency filter is integrated to realize chemical aldehyde removal without risk of secondary omission PM2.5 filtration
efficiency reaches 96% (120 min) Formaldehyde filtration efficiency up to 90% (60 min)
A high-efficiency filter is integrated to realize chemical aldehyde removal without risk of secondary omission PM2.5 filtration
efficiency reaches 96% (120 min) Formaldehyde filtration efficiency up to 90% (60 min)
High-frequency circulation
A35m2 living room can be purified 10 times an hour
A35m2 living room can be purified 10 times an hour
1.Experience
More than 15 years of overseas HVAC project experience，with deep understanding of global markets.
2.Professional Design
Our professional design team are ready to provide you a AC plan drawing based on your architecture blueprint, we will advise the
most suitable solution.
most suitable solution.
3.Professional selection
We can select the most suitable model for your project according to the drawings.
4.One-stop solution
The necessary installation material and other parts can be collected and loaded them all together directly ship to your job site,
which is truly one-stop solution.
which is truly one-stop solution.
5.Technical Support
Professional technical support, worry-free after sales.
1.Project Drawing, building layout, equipment BOQ.
2.Project name: building name or building type, such as xxx office project, residential house project etc.
3.Expected shipping date of this project.
4.Project type: tender or self-owned.
Certifications and Authorization
CE Certifications
Authorization
Product packaging
Package:Pallet + PE Bag + Carton + Corner Protector
Recommend shipping: LCL, Full container
PRESTIGIOUS PROJECTS IN OVERSEAS MARKET
Sold to more than 50 countries and regions, including Russia,Peru, Argentina,Chile, Singapore, Georgia, Malaysia, Philippines, Turkey, UAE,
etc
etc
FAQ
1.Can you provide drawing design service?
Yes, we have professional HVAC engineering team to design your project and optimize solutions, we can also provide professional HVAC drawings.
2.Can you provide installation accessories along with equipment?
Yes, of course. This is one of our standard services, we can calculate and quote you needed VRF installation kit which includecopper pipe, insulation pipe, air diffuser & grill, ball valve, etc.
Note: most of our customer prefer to ship units and installation materials together as one shipment, we are professional to do that with good package method.
3.What is your delivery time?
For the standard unit, about 35-40days.
4.What is your VRF guarantee?
Our products has strict quality control, lifespan for proper use can be 5-10 years.
Also we provide 1% free spare parts for your maintenance and aftersales services.
5.Do you have technical support?
We have professional technical team to answer technical question at 24x7.
When the goods arrived, we can also guide the installation and commissioning by online video or phone call.
If needed we can also send out a project engineer to your country at a fair cost.
6.Would you help me to manage the transportation to my country?
Yes, our professional logistic team will help you to arrange cost effective shipping service to get you fast shipment with less cost.Usually we recommend full container shipment 20GP, 40GP, 40HQ.
7.How can I trust your company?
We are one of the best professional HVAC solution suppliers in China with more than 10 years experience, also we are authorized agent for some reputed brands such as Dunham-Bush(a USA brand with 126 years) and TICA Climate (a Carrier holding company), you can verify us by any means, if needed we can also provide business references around your region as credibility testimonial materials.
Yes, we have professional HVAC engineering team to design your project and optimize solutions, we can also provide professional HVAC drawings.
2.Can you provide installation accessories along with equipment?
Yes, of course. This is one of our standard services, we can calculate and quote you needed VRF installation kit which includecopper pipe, insulation pipe, air diffuser & grill, ball valve, etc.
Note: most of our customer prefer to ship units and installation materials together as one shipment, we are professional to do that with good package method.
3.What is your delivery time?
For the standard unit, about 35-40days.
4.What is your VRF guarantee?
Our products has strict quality control, lifespan for proper use can be 5-10 years.
Also we provide 1% free spare parts for your maintenance and aftersales services.
5.Do you have technical support?
We have professional technical team to answer technical question at 24x7.
When the goods arrived, we can also guide the installation and commissioning by online video or phone call.
If needed we can also send out a project engineer to your country at a fair cost.
6.Would you help me to manage the transportation to my country?
Yes, our professional logistic team will help you to arrange cost effective shipping service to get you fast shipment with less cost.Usually we recommend full container shipment 20GP, 40GP, 40HQ.
7.How can I trust your company?
We are one of the best professional HVAC solution suppliers in China with more than 10 years experience, also we are authorized agent for some reputed brands such as Dunham-Bush(a USA brand with 126 years) and TICA Climate (a Carrier holding company), you can verify us by any means, if needed we can also provide business references around your region as credibility testimonial materials.
