Характеристики
External Power Adapter 10/100/1000M Switch POE Fiber Network Switch 8 Port with Stock
Products Description
Technology Specification
Model | EW-S1910CFF-DP |
Fixed Port | 8*10/100Base-TX PoE ports (Data/Power) 2*10/100/1000Base-T Uplink SFP slot (Data) |
POE Port | Port 1-8 support PoE @ IEEE802.3af/at |
Network Protocol | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T;IEEE802.3x; |
PoE Standard | IEEE802.3af/at |
Ethernet Port Feature | 10/100Base-T(X) 10/100 Base-T automatic detection, full/half Duplex MDI/MDI-X adaptive |
Fiber Port Feature | Store and Forward (Full Wire Speed) |
Switching Capacity | 20Gbps |
Forwarding Mode | 14.88Mpps |
MAC | 8K |
Buffer Memory | 4M |
Twisted Pair Transmission | 10BASE-T: Cat5 UTP (≤250 meter); 100BASE-TX: Cat5 or later UTP (≤100 meter) |
Power Supply Pin | Default 1/2(+), 3/6(-); Optional 4/5(+), 7/8(-) |
MAX / AVERAGE Power Per Port | 30W/15.4W |
Total PWR / Input Voltage | 120W (52VDC) |
Power Consumption | Standby:<6W; Full load:<120W |
LED Indicator | Power indicator: PWR (green); Network indicator: 1-16/G1-2 (green); POE indicator: PoE (green) |
Power Supply | External power adapter |
Operation TEMP / Humidity | -20~+55°C:5%~90% RH non condensing |
Storage TEMP / Humidity | -40~+75°C;5%~95% RH non condensing |

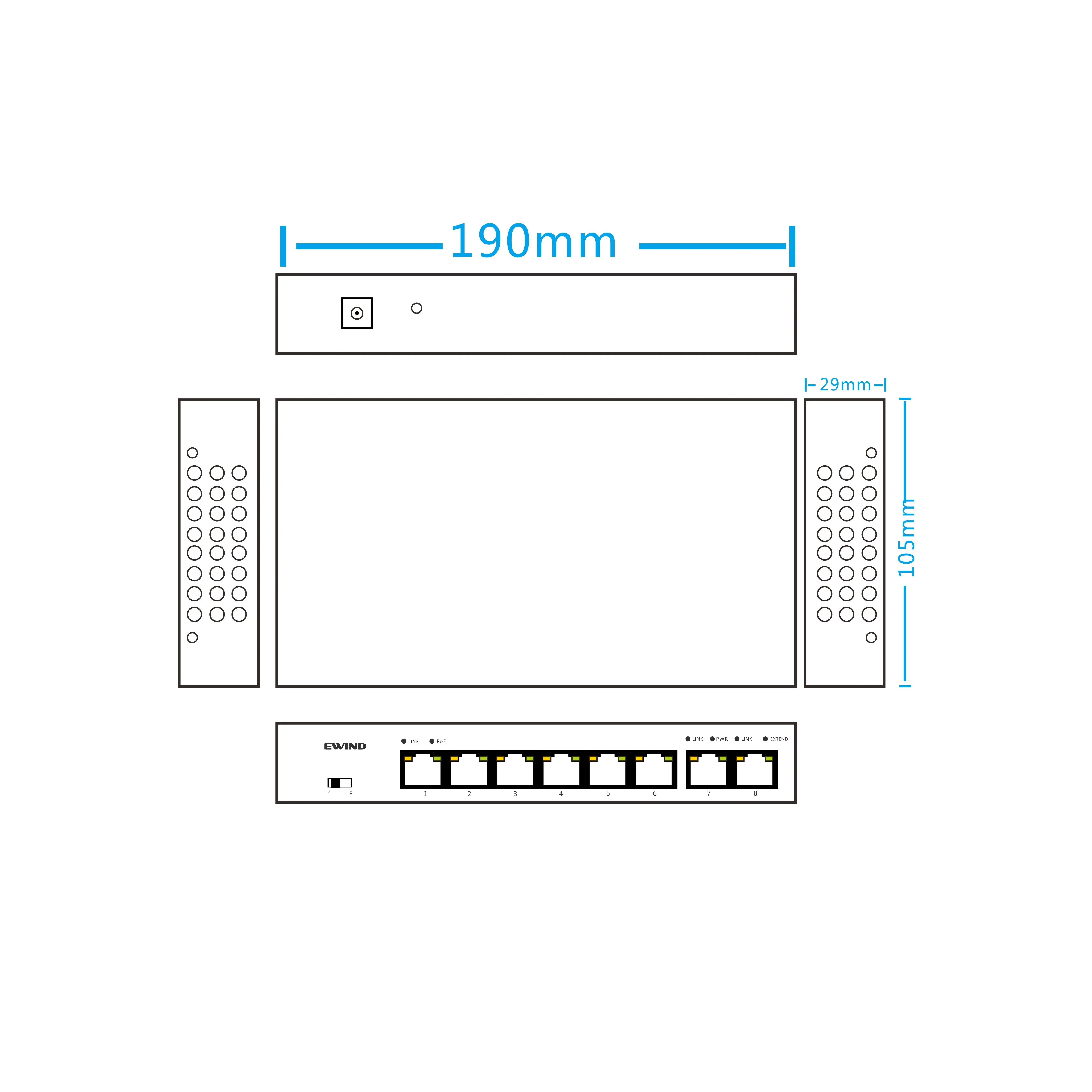

Dimension | 200*105*29mm |
Net /Gross Weight | <0.8kg / <1.2kg |
Installation Method | desktop type, wall mounted |
Port lightning protection / protection level | Port lightning protection: 4KV 8/20us; Protection level: IP30 |
Certification | CCC; CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS |
Warranty | 3 years, lifetime maintenance. |
CONTENT | QTY | UNIT |
10 Ports 100M PoE Switch with 2*Giga SFP (EW-S1910CFF-DP) | 1 | SET |
User Guide | 1 | PC |
Warranty Card | 1 | PC |
Related Products

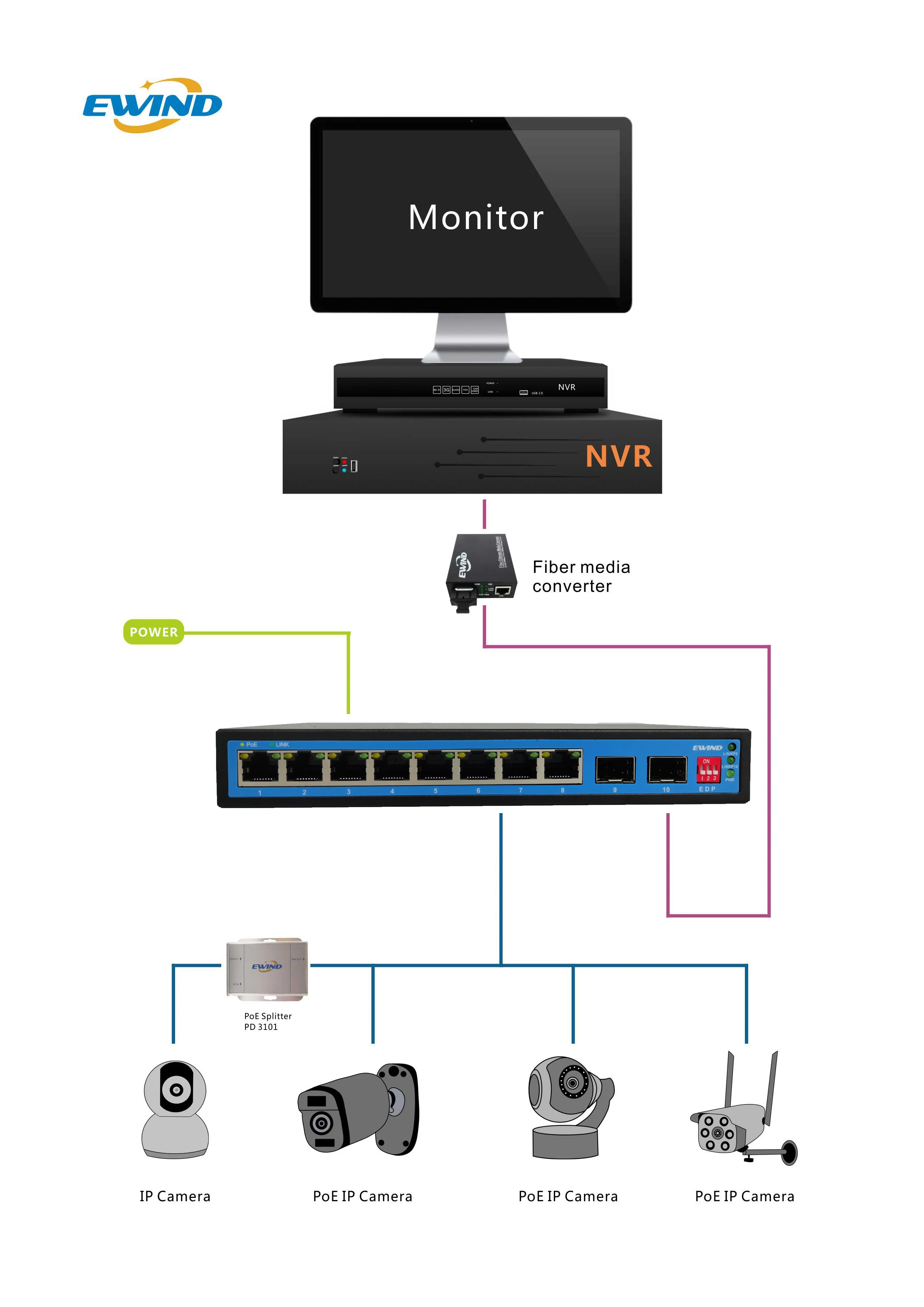

With the Dial code switch,support watch dog function,Priority port, Port self-healing, Vlan & 250M long distance,video monitoring and isolation mode.
