120 светодиодов на метр IP20 IP65 IP67 водонепроницаемая светодиодная лента SMD5050 24 в
- Категория: >>>
- Поставщик: Shenzhen,Magic,Led,Lighting,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.78 $* | 0.8 $* |
| Aug-16-2025 | 0.17 $* | 0.46 $* |
| Jul-16-2025 | 0.61 $* | 0.4 $* |
| Jun-16-2025 | 0.38 $* | 0.10 $* |
| May-16-2025 | 0.22 $* | 0.17 $* |
| Apr-16-2025 | 0.68 $* | 0.11 $* |
| Mar-16-2025 | 0.21 $* | 0.90 $* |
| Feb-16-2025 | 0.69 $* | 0.79 $* |
| Jan-16-2025 | 0.17 $* | 0.24 $* |
Характеристики
Product Description

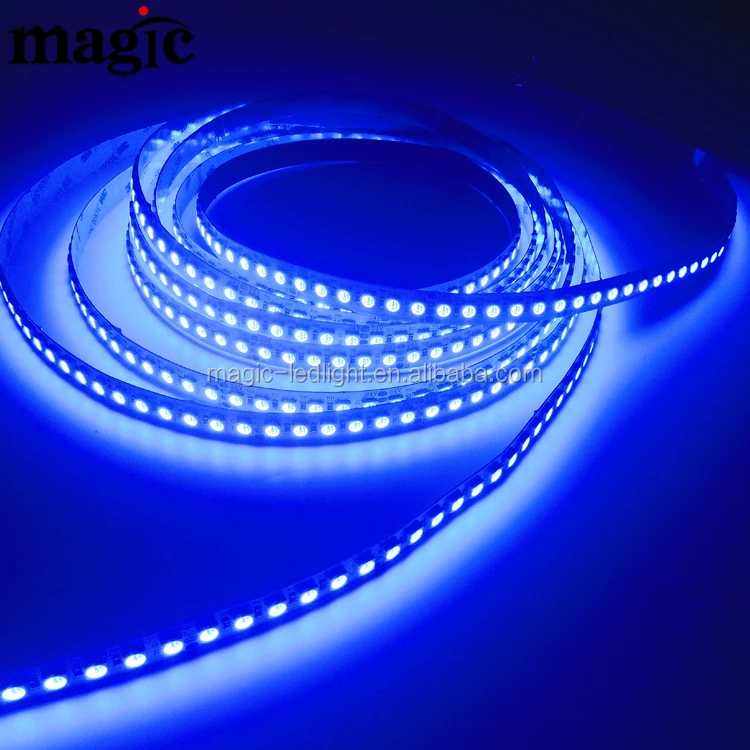

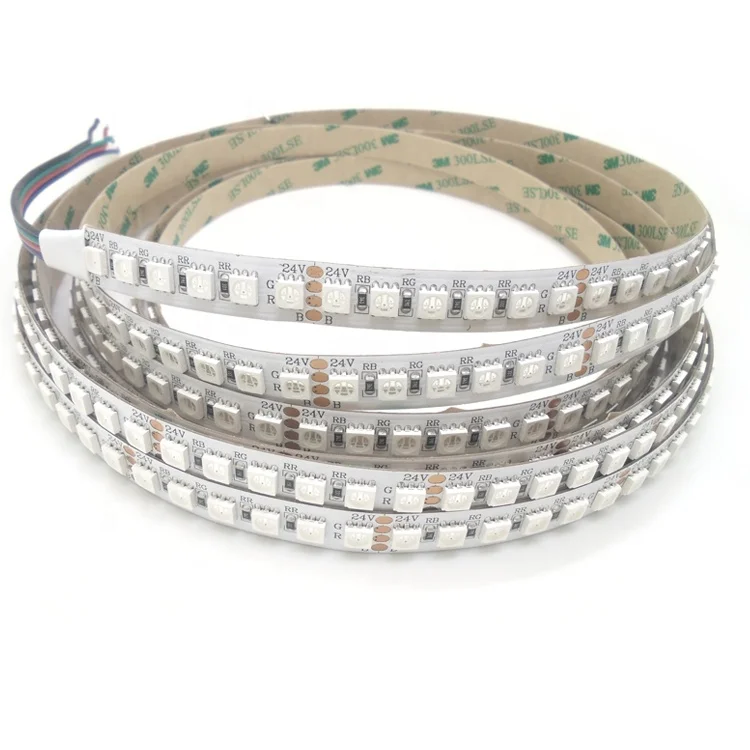

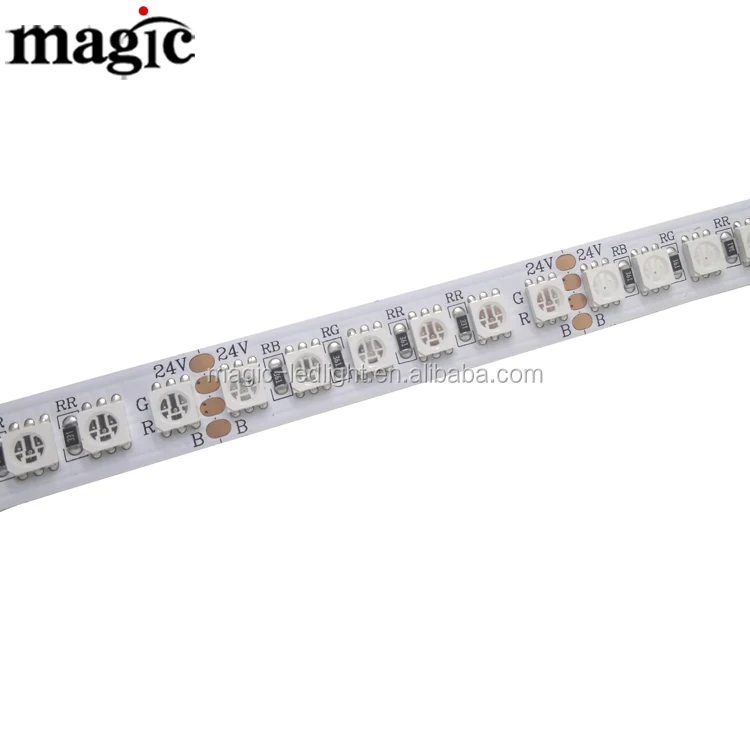

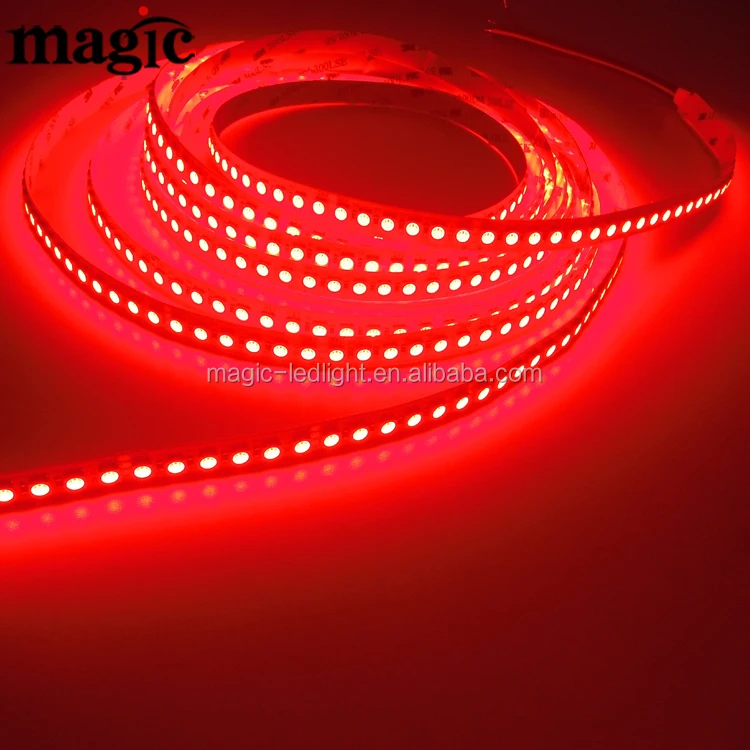

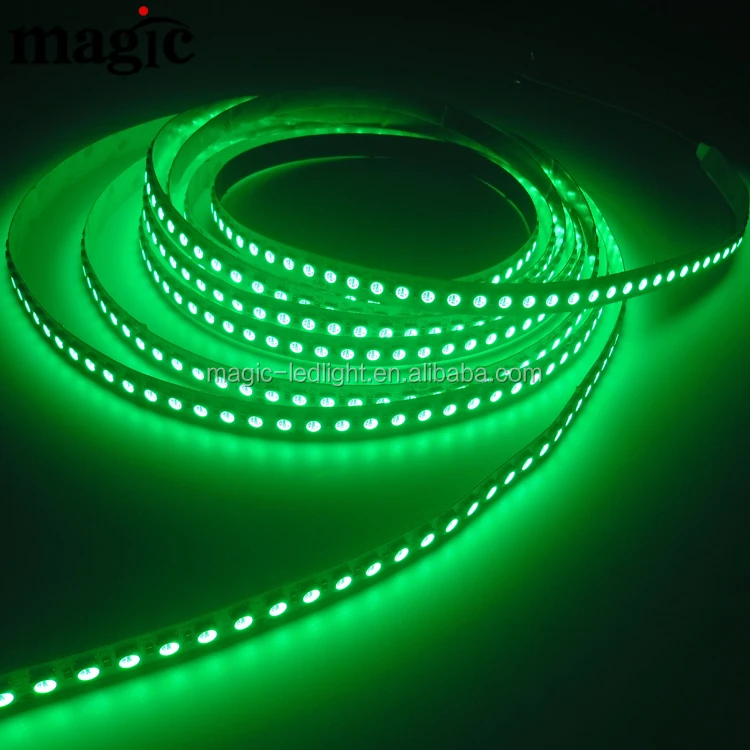

120 LEDS per meter, 24V SMD5050 RGB LED Flex Strip
any question, please do not hesitate to contact us . We will gladly help you!

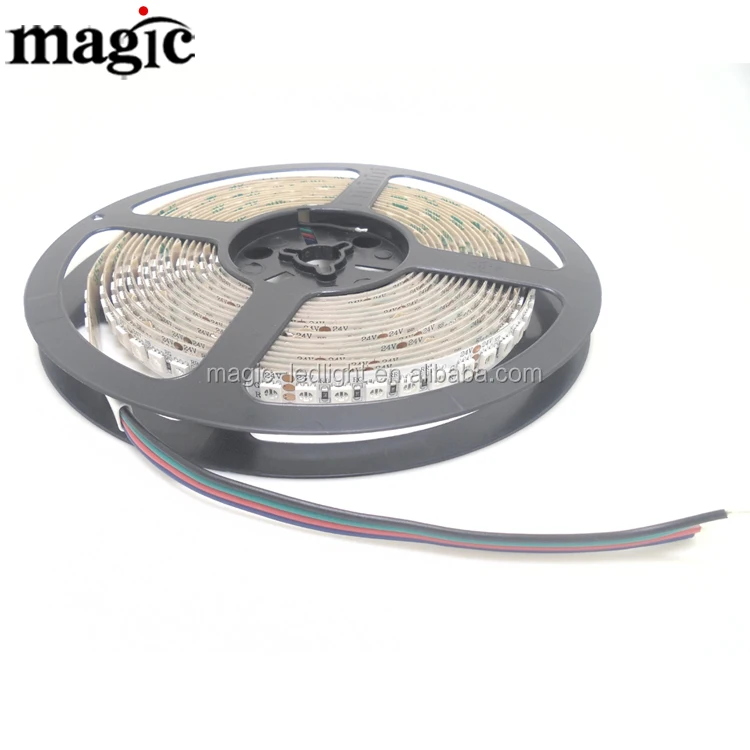

The LED Strip is delivered in one reel of 5 meters
This LED Strip requires the use of an RGB Controller to control the color and color patterns ,Some examples of color patterns are gradually changing colors, strobe, single color flash, multi color flash.
It works on 24 Volts, so to connect it to a 110-230V power outlet (power suppy) ,you will also need an Amplifier to achieve one RGB controller control many Strips.
any question, please do not hesitate to contact us . We will gladly help you!
LED Strip's Data sheet
Item Model | HY-5050-120 | HY-5050-120 | HY-5050-120 | ||
Light Color | RGB | RGB | RGB | ||
LED Type | SMD5050 | SMD5050 | SMD5050 | ||
LED Quantity | 120 LEDs/m | 120 LEDs/m | 120 LEDs/m | ||
Power | 21.6 W/M | 14.4W/M | 14.4W/M | ||
Working Voltage | DC24V | DC24V | DC24V | ||
Strip Width | 12mm Width, Two Layer PCB, 3OZ Thickness | 12MM Wide, Two Layer PCB 2OZ thickness | 10MM Wide, Two Layer PCB 2OZ thickness | ||
Strip Length | 5M/Reel,Both end of strip with 15cm Power Lead wires | ||||
PCB Color | White | White | White | ||
Warranty | 3 Years | 2 Years | 1 Years | ||
Waterproof Grade | IP20:Non- waterproof ,Double side Adhesive 3M tape on the back | ||||
Waterproof Grade | IP65: Glue cover waterproof ,,Double side Adhesive 3M tape on the back | ||||
IP66: Strip inside silicone tube waterproof | |||||
IP68: Strip inside silicone tube + glue filled in waterproof | |||||
Application | IP20, IP65 For indoor use IP66 , IP68 for outdoor use | ||||
Details Images
Wiring Diagram
Waterproof Grade
IP20 Non-waterproof
IP20 Non-waterproof , Adhesive 3M Tape on backside
IP68 /IP67 Waterproof
IP68 Waterproof , Highest waterproof Grade
IP67 Waterproof, againest rain drop
Company Profile
Shenzhen Magic LED Lighting Co.,Ltd. was founded in 2014 ,it is an excellent Enterprise and Specialize in High Quality Led Strip
lighting products with more than 7 years experience and holds strong R&D and Manufacturing Capacity
Our company has 1,000sqm plant and with strong engineering capability,high quality management and advanced productions equipment,
such as 4pcs High Speed SMT Machine, 4PCS Reflow oven and others test machine.
Our products win great success throughout the world, mainly in Europe, South Africa, North America and Australia. We guarantee our
products comply with international quality standards with CE ROHS approved.
Except manufacturer high quality LED Strip,we also provide high quality accessories for LED Strips
We have following LED Strips :
LED Chip Brand: Epistar,Sanan,Samsung,Cree,Nichia
Working voltage: 3V, 5V, 12V, 24V ,AC220V ,AC110V
LED Diode :SMD3528 SMD5050 SMD2835 SMD5630 SMD2210 SMD2216 SMD3030 SMD3014 SMD335 ...etc.
LED Strip types: Normal led strip with PWM Signal:
Digital LED Strip with SPI(TTL) signal have: WS2811 WS2813 SK6812 APA102 UCS1903 SM16703 Digital LED Strip with Sraight DMX Signal
have : UCS512 and SM512 Series
LED Quantity:30 LEDs/m, 60 LEDs/m,72 LEDs/m, 84 LEDs/m,96 LEDs/m, 144 LEDs/m,
180 LEDs/m,210LEDS/M, ,240Leds/m,280Leds/M,700Leds/M,480Leds/M
PCB Width: 3mm,4mm,5mm, 8mm,10mm,12mm,15mm,20mm,
Light colors:UV black-light,Blue white,white,red,green,cyan,purple,purple pink,pink,amber,rgb,rgbw,rgb+cct,ww+cw...etc.
Waterproof Grade: IP20/IP33/IP44,IP65,IP66/IP67,IP68
3M Tape:VHB Orignal,LS300 Orignal
We provide following Accessories:
LED Connector,LED Power supply (Meanwell and normal Brand)
LED Controller:LED Dimmer,RGB Controller,RGBW Controller,RGBWC controller...etc.
Aluminum profiles at length,0.5m, 1m.2m,2.5m and have IP20, IP65 ..Etc
We accept :Custom design,Custom size, OEM and ODM
lighting products with more than 7 years experience and holds strong R&D and Manufacturing Capacity
Our company has 1,000sqm plant and with strong engineering capability,high quality management and advanced productions equipment,
such as 4pcs High Speed SMT Machine, 4PCS Reflow oven and others test machine.
Our products win great success throughout the world, mainly in Europe, South Africa, North America and Australia. We guarantee our
products comply with international quality standards with CE ROHS approved.
Except manufacturer high quality LED Strip,we also provide high quality accessories for LED Strips
We have following LED Strips :
LED Chip Brand: Epistar,Sanan,Samsung,Cree,Nichia
Working voltage: 3V, 5V, 12V, 24V ,AC220V ,AC110V
LED Diode :SMD3528 SMD5050 SMD2835 SMD5630 SMD2210 SMD2216 SMD3030 SMD3014 SMD335 ...etc.
LED Strip types: Normal led strip with PWM Signal:
Digital LED Strip with SPI(TTL) signal have: WS2811 WS2813 SK6812 APA102 UCS1903 SM16703 Digital LED Strip with Sraight DMX Signal
have : UCS512 and SM512 Series
LED Quantity:30 LEDs/m, 60 LEDs/m,72 LEDs/m, 84 LEDs/m,96 LEDs/m, 144 LEDs/m,
180 LEDs/m,210LEDS/M, ,240Leds/m,280Leds/M,700Leds/M,480Leds/M
PCB Width: 3mm,4mm,5mm, 8mm,10mm,12mm,15mm,20mm,
Light colors:UV black-light,Blue white,white,red,green,cyan,purple,purple pink,pink,amber,rgb,rgbw,rgb+cct,ww+cw...etc.
Waterproof Grade: IP20/IP33/IP44,IP65,IP66/IP67,IP68
3M Tape:VHB Orignal,LS300 Orignal
We provide following Accessories:
LED Connector,LED Power supply (Meanwell and normal Brand)
LED Controller:LED Dimmer,RGB Controller,RGBW Controller,RGBWC controller...etc.
Aluminum profiles at length,0.5m, 1m.2m,2.5m and have IP20, IP65 ..Etc
We accept :Custom design,Custom size, OEM and ODM
Certifications
Customer Reviews
Our Services
1.Your inquiry related to our products or prices will be replied within 24 hours.
2.Well-trained and experienced staffs to answer all your enquires in fluent English.
3.OEM & ODM welcomed, our professional R&D dept. will realize your customized lighting.
4.Distributorship is offered for your unique design and some of our current models.
5.Protection of your sales area, ideas of design and all your private information.
Why Choose Us
1. Advanced machinery, well trained workers.
2.5years experience in LED lighting industry.
3.Unique designed, good quality, competitive price.
4.Full range of indoor and outdoor LED lighting solution.Zero improper after sales service if any quality issue happened.
1.Your inquiry related to our products or prices will be replied within 24 hours.
2.Well-trained and experienced staffs to answer all your enquires in fluent English.
3.OEM & ODM welcomed, our professional R&D dept. will realize your customized lighting.
4.Distributorship is offered for your unique design and some of our current models.
5.Protection of your sales area, ideas of design and all your private information.
Why Choose Us
1. Advanced machinery, well trained workers.
2.5years experience in LED lighting industry.
3.Unique designed, good quality, competitive price.
4.Full range of indoor and outdoor LED lighting solution.Zero improper after sales service if any quality issue happened.
Packaging & Shipping
Package:
1, 5 meters per reel in one spool,packaged with Anti-static Bag
2. Customized packing
1, 5 meters per reel in one spool,packaged with Anti-static Bag
2. Customized packing
Shipping Method:
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
Destination | Express/ DHL/TNT/UPS/FedEx | Ship by Air | Ship by EMS | Ship by Sea |
North Amercia | 3-7 days | 5-7 days | 10-15 days | 15-24 days |
South Amercia | 3-7 days | 5-7 days | 10-15 days | 15-24 days |
European Countries | 3-7 days | 5-7 days | 10-15 days | 15-24 days |
Africa Countries | 3-7 days | 5-7 days | 10-15 days | 15-24 days |
The Middle East | 3-7 days | 5-7 days | 10-15 days | 15-24 days |
Australia | 3-7 days | 5-7 days | 10-15 days | 15-24 days |
