Характеристики
18Gbps 4K 4 Input 1 Output KVM Switch HDMI 2.0 Screen Switcher Mouse USB Sharer
Product Description
1. Introduction
This video switcher can switch 4 HDMI input device signals (such as PC,
laptop, Mac) to 1 HDMI display device (such as TV, projector, LED display),
and realize 4 signal source devices to share 1 display device. It supports
video resolution up to 4K2K@60Hz 4:4:4. The product is designed with 4
USB2.0 input ports and 4 USB (2xUSB2.0, 2xUSB1.1) output ports, so that
you can not only operate 4 source devices with keyboard and mouse, but also
can share U disk and printer, which is widely used in various offices.
2. Features
1)HDMI 2.0, HDCP 2.2 / 1.x and DVI 1.0 compliant
2)Video resolution up to 4K2K@60Hz 4:4:4
3)Support 18Gbps video bandwidth
4)Support HDR, HDR10, HDR10+, Dolby Vision HLG pass-through
5)Support HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD, and DTS-HD Master Audio)
6)Support 4 *(HDMI +USB2.0) inputs and 1*HDMI+ 4*USB (2* USB2.0+2*USB1.1) outputs
7) Support input auto switching
8)Adaptive EDID, able to adapt to a variety of complex application environment
9)Support one-to-one control of input source through the front panel button
10)Both HDMI and USB input and output support hot swap
11)Control via front panel button/hot-key/mouse
12)Simple to install, plug and play
3. Package Contents
1 × 18Gbps HDMI 4 by 1 KVM Switcher
1 × 5V/2A Power Adapter
4 × USB Cable (1.5 meters)
1 × User Manual
4. Specifications
Technical | |
HDMI Compliance | HDMI2.0 |
HDCP Compliance | HDCP2.2 |
Video Bandwidth | 18Gbps |
Video Resolution | 4Kx2K@24/30Hz, 4K2K@60Hz |
Color Space | RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
Color Depth | 8-bit, 10-bit, 12-bit (1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) 8-bit, 10-bit, 12-bit (4K2K@60Hz YCbCr 4:2:2 / 4:2:0) |
HDMI Audio Formats | PCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio |
HDR | HDR, HDR 10, HDR 10+ and Dolby vision |
USB Version | USB2.0 (Data transfer rate up to 480MB/S) |
ESD Protection | Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge) |
Connection | |
Input | 4 x HDMI [Type A, 19-pin female] 4 x USB [Type B] |
Output | 1 x HDMI [Type A, 19-pin female] 4 x USB [Type A] |
Mechanical | |
Housing | Metal Enclosure |
Color | Black |
Dimensions | 212mm(W) × 82mm(D) × 21mm(H) |
| Weight | 441g |
| Power supply | Input: DC 5V/2A. Support DC5-12V wide voltage power supply; Output with overcurrent protection function |
Power Consumption | 1.5W |
Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
Relative Humidity | 20~90% RH (non-condensing) |
5. Operation Controls and Functions

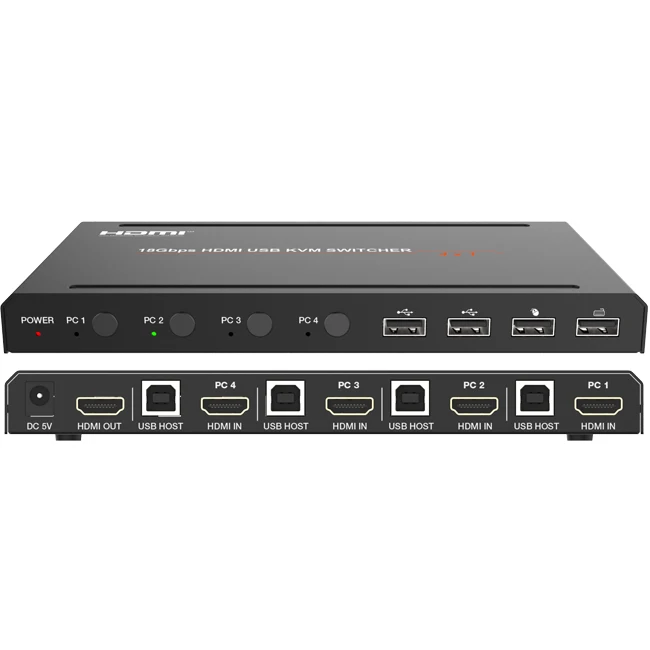

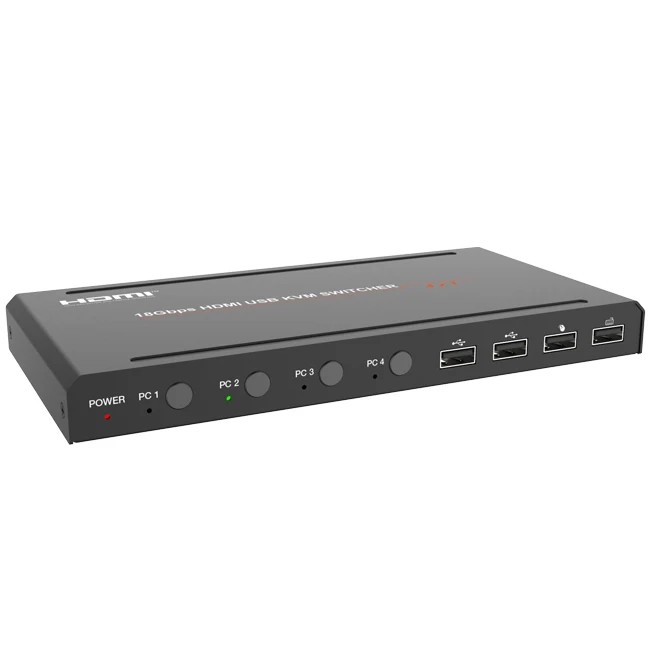

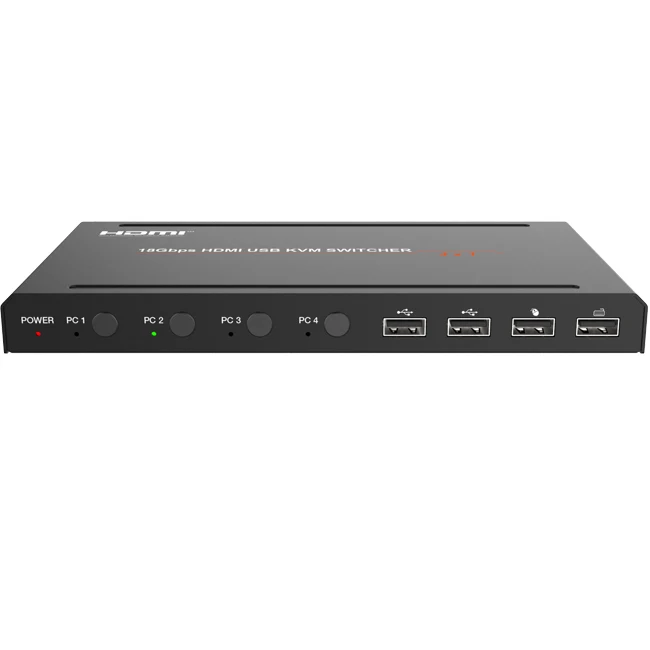

5.1 Front Panel
| NO. | Name | Function Description |
| 1 | Power LED | When the product is powered on, red LED will be on. |
| 2 | PC 1/2/3/4 LED | Input status indicators. When input source is selected, the corresponding PC 1/2/3/4 LED will be on. |
| Signal source selection buttons | Press these buttons to select the input signal source, and the corresponding PC 1/2/3/4 LED will be on. Note: 1. HDMI and USB ports are binding, so only one input source can be selected. 2. The default setting is auto switch, for example, when you unplug the current selected PC1, it will switch to PC2 automatically, if PC2 doesn’t connect surce device, it will switch to PC3 automatically, and so on in a similar fashion. | |
| 3 | USB2.0 ports | Connect to U disk or other standard USB2.0 devices. |
| 4 | USB1.1 ports | Connect to mouse or keyboard for KVM control. A)Mouse operation: 1. Slide the mouse beyond the upper and left interface of the screen to select the previous input port. 2. Slide the mouse beyond the bottom and right interface of the screen to select the next input port. Note: The mouse operation function is turned off by default. Pressing “*+s” on the keyboard can turn on edge detection (mouse sliding switch function); Pressing “*+1/ 2/3/4” can turn off edge detection. B)The keyboard hotkeys are as follows: 1. Scroll Lock+ Scroll Lock + 1/2/3/4: switch ports. Ctrl + Ctrl + 1/2/3/4: switch ports. Two switching hotkey methods can coexist. 2. Scroll Lock + Scroll Lock + i + 5~999 seconds + enter: Scanning time setting. 3. Scroll Lock + Scroll Lock + s: start auto scanning; Pressing any key on the keyboard will cancel the auto scanning function. |

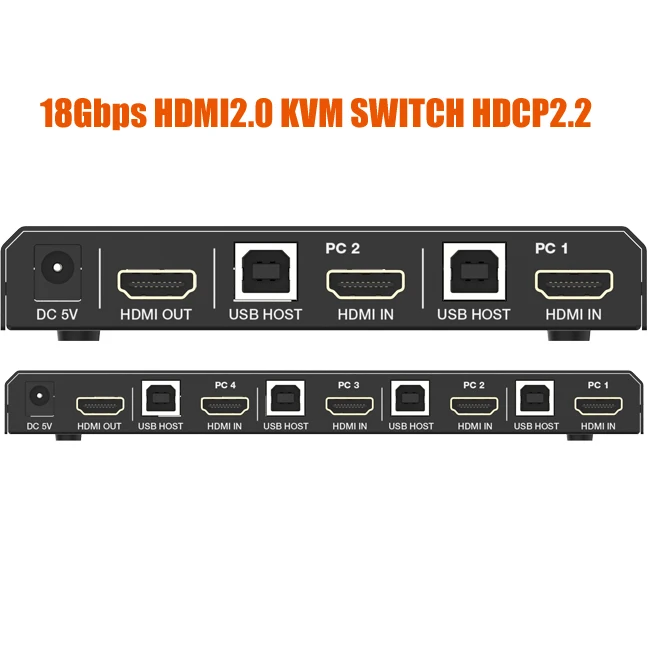

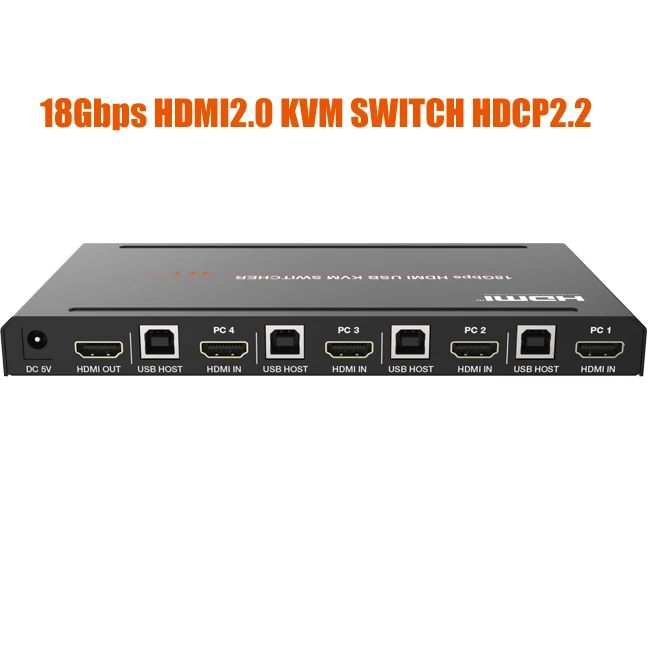

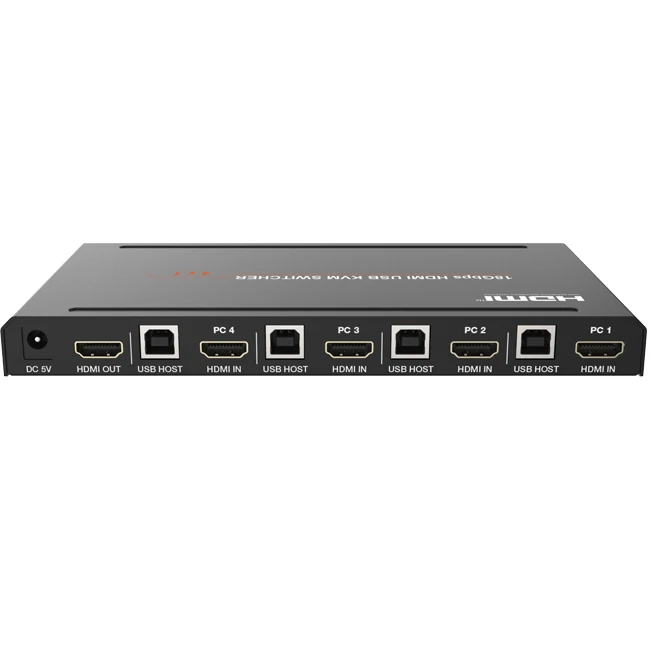

5.2 Rear Panel
| No. | Name | Function Description |
| 1 | DC 5V | DC 5-12V power input port. |
| 2 | HDMI out | HDMI signal output port. Connect to HDMI display device with HDMI cable. |
| 3 | USB host | USB signal input port. Connect to PC with USB cable. |
| 4 | HDMI IN | HDMI signal input port. Connect to HDMI source device with HDMI cable |
6. Application Example
