Умный счетчик энергии трехфазный зажим измерительное оборудование монитор Zigbee измеритель
- Категория: Счетчики электроэнергии >>>
- Поставщик: Xiamen,Pawmate,Smartek,Co.,ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 81.19 $* | 85.51 $* |
| Aug-16-2025 | 80.28 $* | 84.1 $* |
| Jul-16-2025 | 67.45 $* | 70.50 $* |
| Jun-16-2025 | 79.98 $* | 83.91 $* |
| May-16-2025 | 69.8 $* | 72.61 $* |
| Apr-16-2025 | 78.57 $* | 82.80 $* |
| Mar-16-2025 | 77.23 $* | 81.43 $* |
| Feb-16-2025 | 76.86 $* | 80.55 $* |
| Jan-16-2025 | 75.33 $* | 79.63 $* |
Характеристики
Product Description
Product Name | Energy Power Clamp |
Material | Plastic |
Function | Measures real-time and total energy consumption |
Dimension | 86(L)*86(W) *37(H) mm |
Weight | 415g |
Operating Frequency | 50/60HZ |
Operating Voltage | 100-240 Vac |
Mounting Type | Wall Mounting |
Operating Environment | Temperature: -20° C to 50° C Relative Humidity: 10% to 90% RH |
Range outdoor/indoor | 100m/30m |
Output Power | Up to +20dBm |
Ranges Of Measured Marameters | l Voltage: 0 to 240 Vac between phase and Neutral l Current: up to 250 Amps |
Product performance description
ZigBee HA 1.2 compliant
Single/3 - phase electricity compatible
Three current transformers for Single phase application
Measures real-time and total energy consumption
Suitable for both residential and commercial application

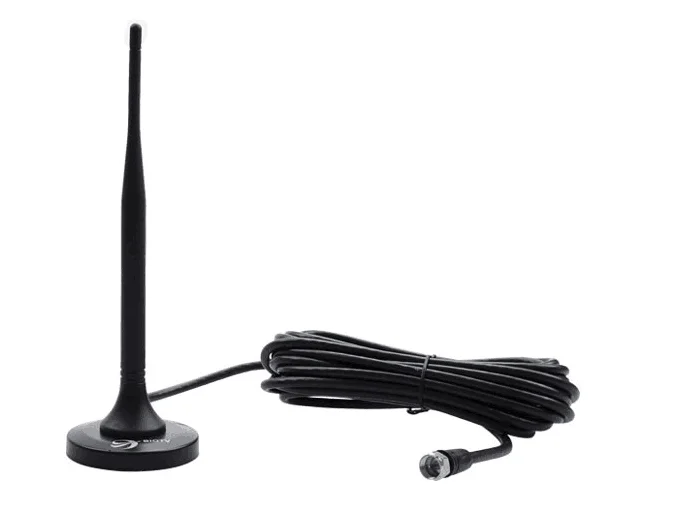

Optional antenna to enhance the signal strength
Lightweight and easy to install
Details Images

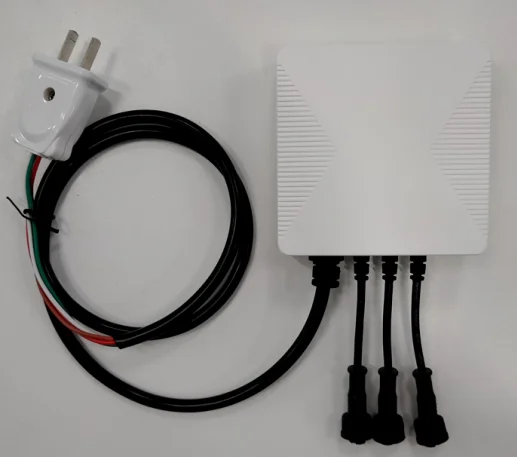

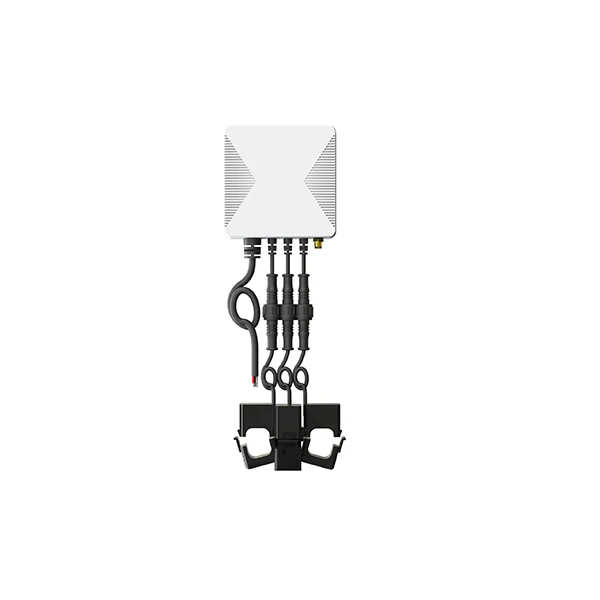

PC321 ZigBee Power Clamp helps you monitor the amount of electricity usage in your facility by connecting the clamp onto the power cable.
Product Usage
Product usage introduction
Please make sure the main power in your facility is off before installing. Follow the steps below:
1.Connect AC input cable to a socket near the Electrical Box to power on the Power Clamp.

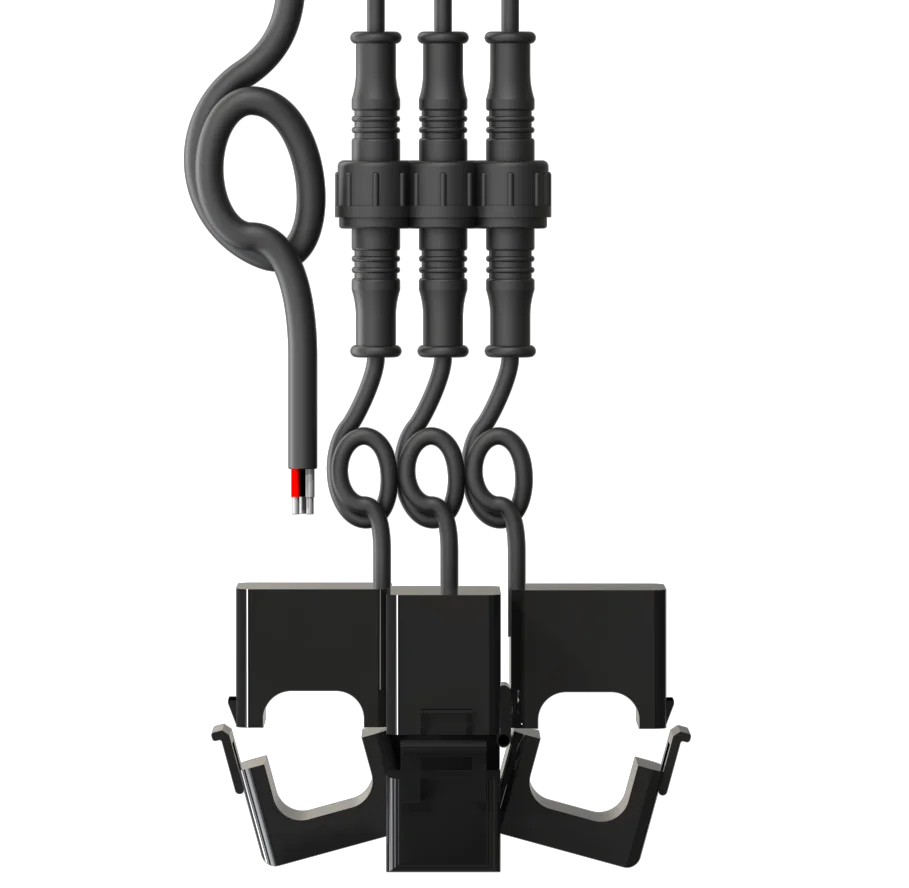

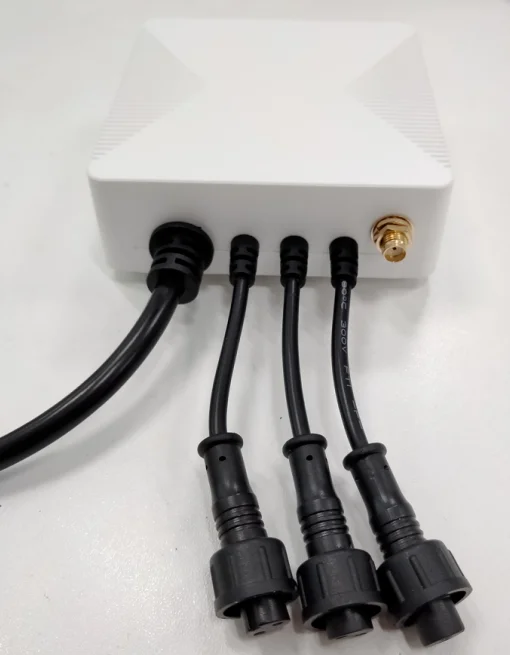

2.Attach both ends of the Current Transtomer Cables first as picture shown below Once you have attached the Current Transformer Cable,start spinning the wateproof latch clock-wise until you have tighten and secure both ends of the Current Transformer Cable
product usage introduction
3.Open the clamp as indicated by below picture.Then apply it to the electricity cable of the Electricity Meter.The arrow on the clamp need to face to the correct direction of the electricity current flows(K-L).If arrow is faced in revwerse direction,the reading meter will display 0.
4.Follow the schematics below as an example to wire the Power Clamp according to the desired installation.
