Бетононасос с бетононасосом бетономешалка цена Бангладеш бетононасос дизельным

Бетононасос с бетононасосом бетономешалка цена Бангладеш бетононасос дизельным

Категория: Concrete Pumps >>>
Поставщик: Zhengzhou,Zhenheng,Construction,Equipment,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	0.85 $*	0.15 $*
Aug-17-2025	0.37 $*	0.75 $*
Jul-17-2025	0.35 $*	0.77 $*
Jun-17-2025	0.60 $*	0.87 $*
May-17-2025	0.45 $*	0.26 $*
Apr-17-2025	0.12 $*	0.56 $*
Mar-17-2025	0.14 $*	0.75 $*
Feb-17-2025	0.37 $*	0.87 $*
Jan-17-2025	0.74 $*	0.82 $*

Характеристики

Product Description

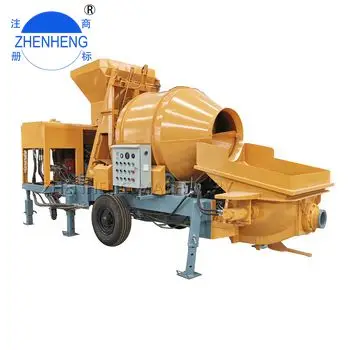

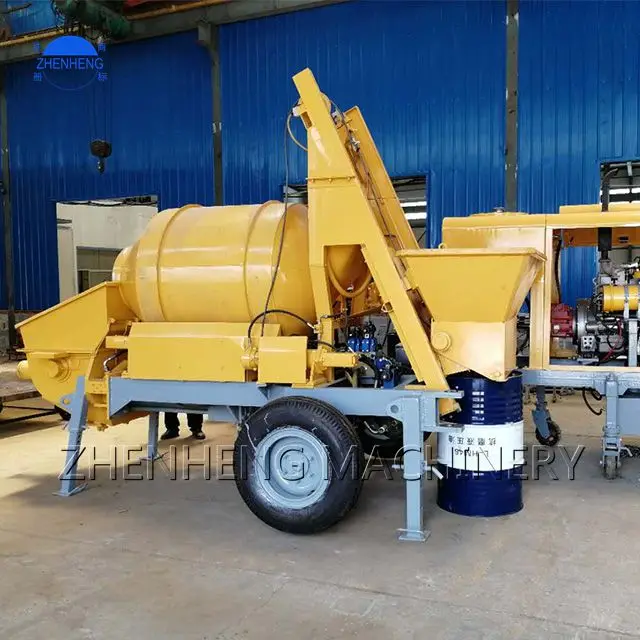

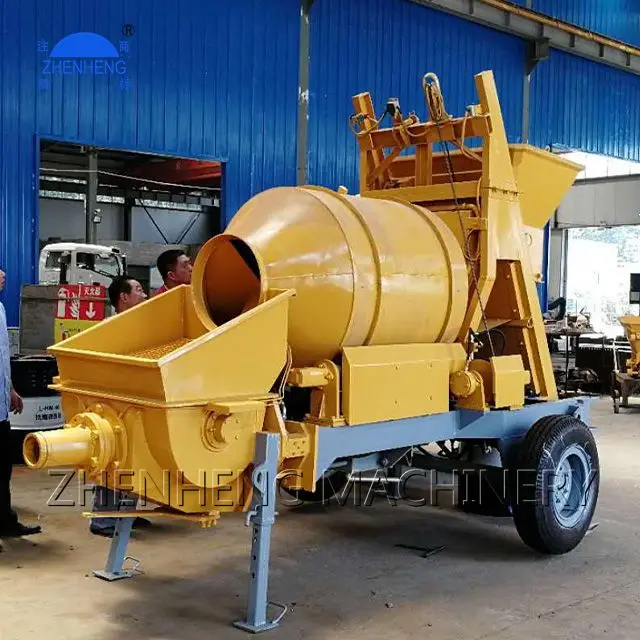

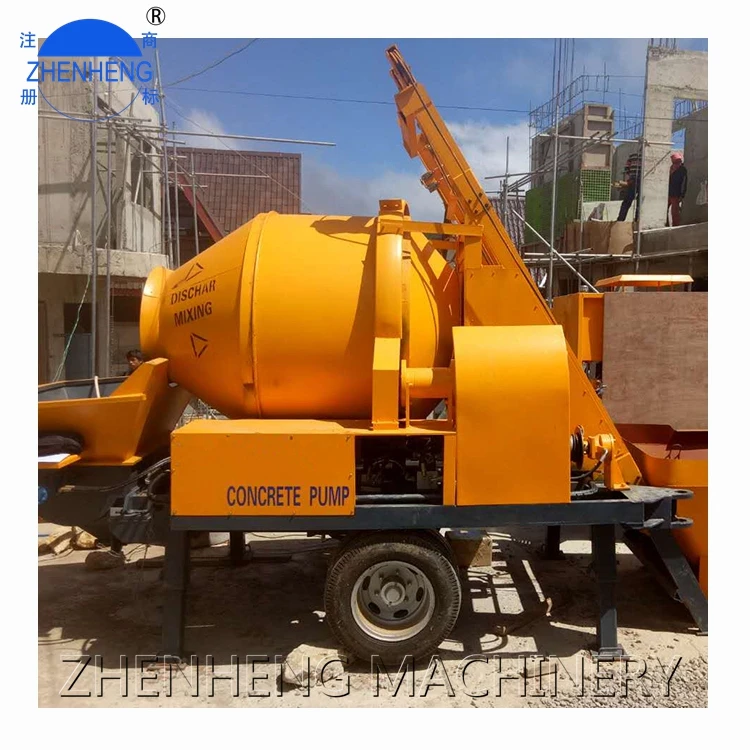

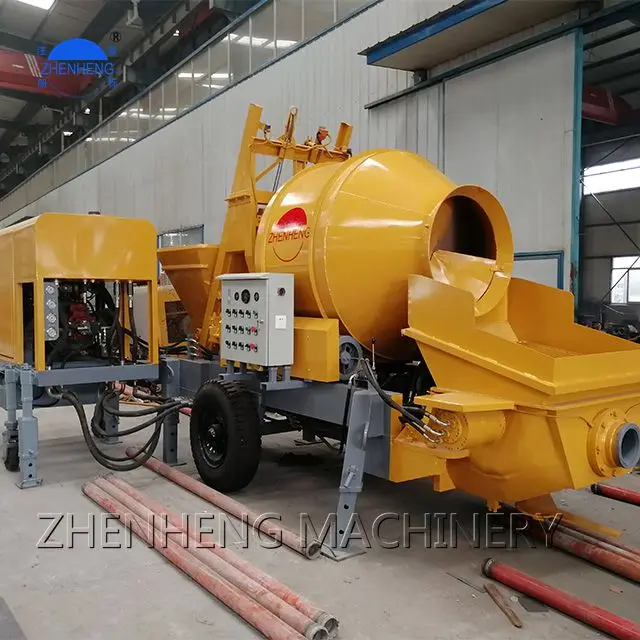

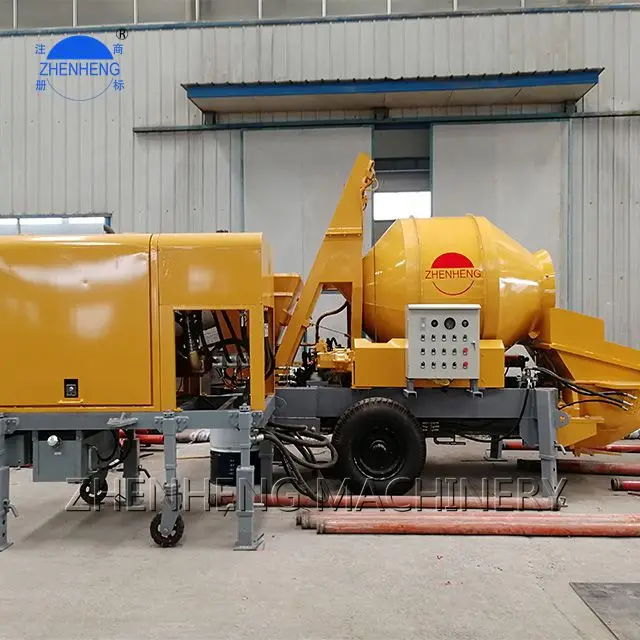

mixer with concrete pump concrete pump machine diesel concrete pumps

Brief Introduction of Concrete pump:

Concrete mixer pump is a new kind of engineering equipment of the combination of concrete mixer and concrete pump. It uses dual-cylinder hydraulic pumping system, small size and operating space and large concrete pouring and excellent characteristics of the mature and stable performance. The product is suitable for small building construction, and a variety of cave, roads, railway tunnels, water conservancy and hydropower engineering, geological hazards slope treatment works.

Specification

Items	JBS40-10-84R	JBS40-10-82R	LHB40-10-82R
Max. theo. pumping capacity	40 m³/h	40 m³/h	40 m³/h
Max. concrete pumping pressure	10 Mpa	10 Mpa	10 Mpa
Distribution valve type	S Valve	S Valve	S Valve
*Concrete cylinder (diameterstroke)**	Ф180*1,000 mm	Ф180*1,000 mm	Ф180*1,000 mm
Hopper capacity	400 L	400 L	600 L
Outlet diameter	Ф150 mm	Ф150 mm	Ф150 mm
Diesel engine power	84 kw	82 kw	82 kw
Circuit type	Open circuit	Open circuit	Open circuit
Oil tank capacity	370 L	370 L	370 L
Max. aggregate diameter	40 mm	40 mm	40 mm
Inside diameter of delivering pipe	Ф125 mm	Ф125 mm	Ф125 mm
Pipe	100 m	100 m	100 m
*Overall dimensions (LWH)*	6,0002,3003,150 mm	6,00023003150 mm	3,8002,2002,100 mm
Total weight	6,700 kg	6,800 kg	5,600 kg

Details Images

Packing & Delivery

Product Recommend

Company Profile

The factory video

our team

Exhibitions&Projects

FAQ

Q: What is the use range of 40M3/H diesel agitator pumps?
A:Suitable for 6-8 story building construction, road, bridge and small hydropower station projects.
Q: What is the operating voltage of the control system in V?
A: 24 v
Q: What number of lubricating oil is required? Get quote now
A: 00# or 000#
Q: How to add material to concrete mixer pump?
A: Load materials by manual or by wheel loader. By wheel loader to improve working efficiency. Both is ok, it is no problem.
Q: How much diesel need to use per hour for concrete mixer pump?
A: Diesel consumption is about 15 liter per hour.
