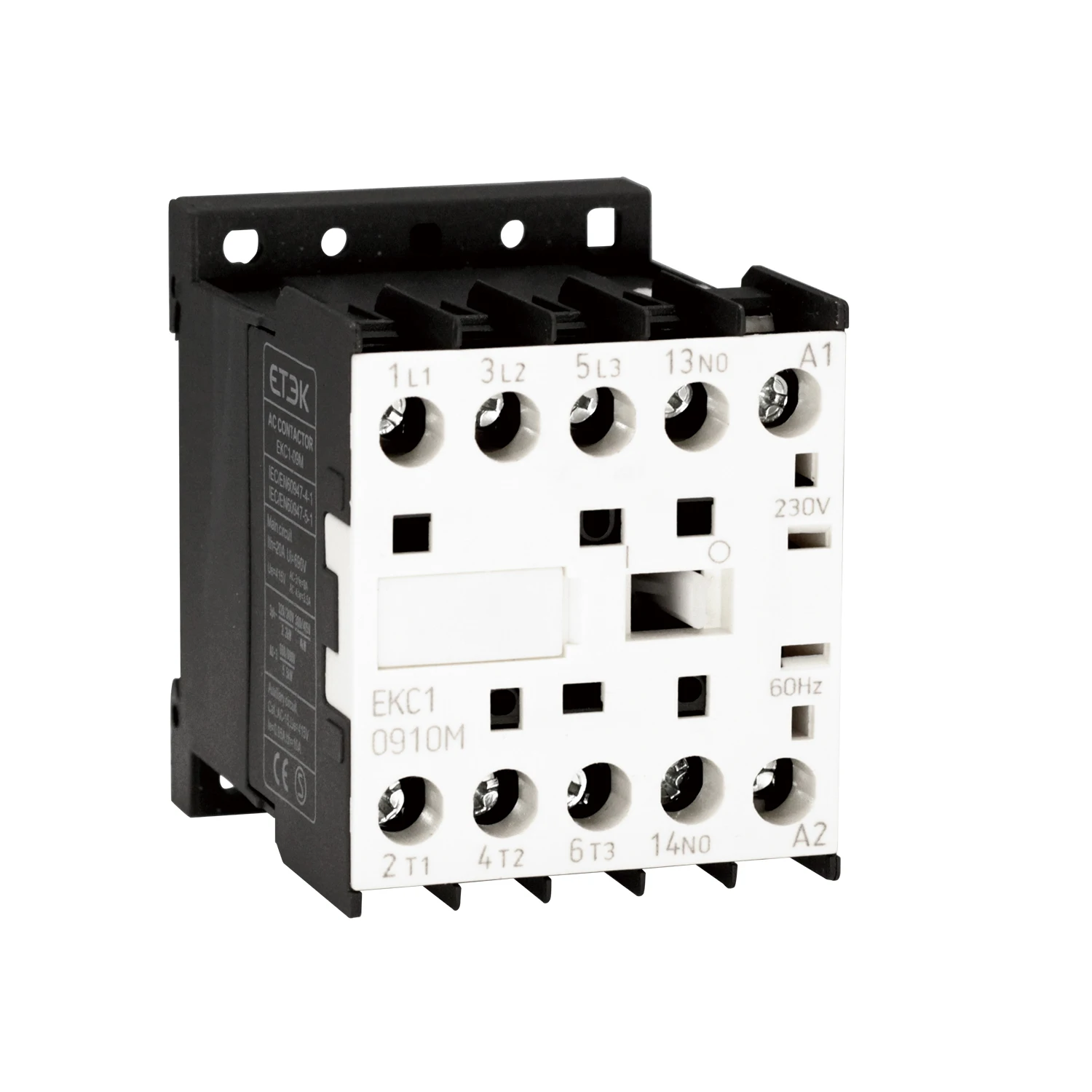

EKC1-0910 09A~95A 85% silver contact contactor





EKC1-0910 09A~95A 85% silver contact contactor



1.Description

 Application: remote making & breaking circuits; protect circuit
      from over-load when assembling with thermal over-load relay;
      frequent start-up and control of AC contactor;
Electric ratings: AC50/60Hz, 690V, up to 95A;
Utilization category: AC-3, AC-4;
Altitude: ≤2000m;
Ambient temperature: -5℃~+40℃;

Mounting category: Ⅲ;
Mounting conditions: inclination between the mounting plane
and the vertical plane should not exceed ±5°;
Standard: IEC/EN 60947-4-1.  IEC/EN 60947-5-1.



2.Type Designation



3.Technical  Data



Model	Rated insulation voltage(V)	Rated heat current Ith(A)	Rated Operation Current Ue=380/415V		Control Power AC-3 (kw)			Number of the contacts
			AC-3 le(A)	AC-4 le(A)	220/240V	380/415V	660/690V	3P or 4P
EKC1-09	690V	20	9	3.5	2.2	4	5.5	1NO or 1NC
EKC1-12		20	12	5	3	5.5	7.5	1NO or 1NC
EKC1-18		32	16	7.7	4	7.5	10	1NO or 1NC
EKC1-25		40	25	8.5	5.5	11	15	1NO or 1NC
EKC1-32		50	32	12	7.5	15	18.5	1NO or 1NC
EKC1-40		60	40	18.5	11	18.5	30	1NO+1NC
EKC1-50		80	50	24	15	22	33	1NO+1NC
EKC1-65		80	63	28	18.5	30	37	1NO+1NC
EKC1-80		100	80	37	22	37	45	1NO+1NC
EKC1-95		125	95	44	25	45	45	1NO+1NC



4.Overall and Mounting Dimensions (mm)
