Машина для окрашивания

Категория: Машина для текстильного окрашивания >>>
Поставщик: Buentex,Machinery,Trading,Co.,Ltd.

Цена:58 800,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	69972.87 $*	73471.74 $*
Aug-18-2025	69384.53 $*	72853.93 $*
Jul-18-2025	58212.24 $*	61123.82 $*
Jun-18-2025	68208.40 $*	71618.67 $*
May-18-2025	59388.93 $*	62357.25 $*
Apr-18-2025	67032.50 $*	70384.30 $*
Mar-18-2025	66444.14 $*	69766.96 $*
Feb-18-2025	65856.81 $*	69149.15 $*
Jan-18-2025	65268.69 $*	68531.39 $*

Характеристики

Product Description

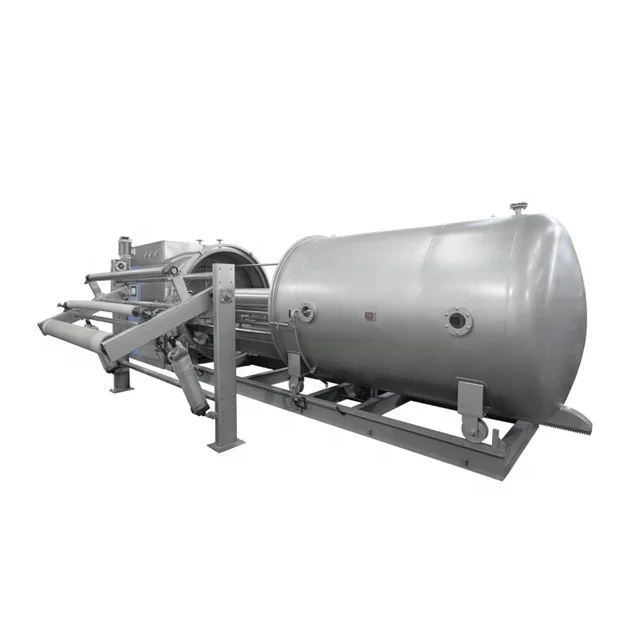

This high temperature jigger dyeing machine is mainly for ope width nylon, spandex, silk, cotton, polyester, flax and bended fabrics in desizing, bleaching, scouring, dyeing, etc.

Automatic function

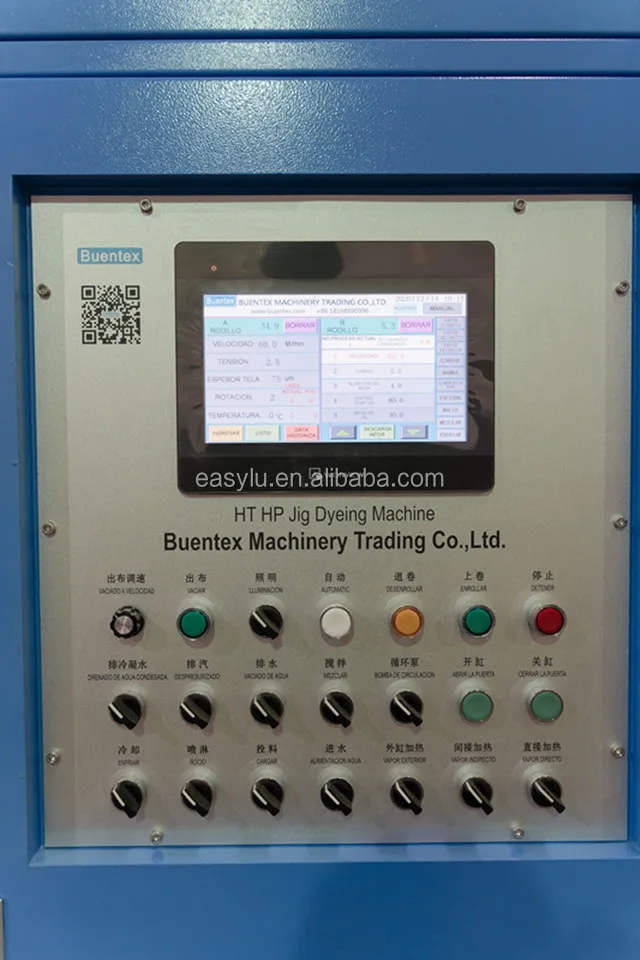

The whole machine is human-computer interface intelligent production automatic control system, PLC logical program control, AC variable frequency drive, process parameter setting and displaying on the touch screen, with the operation of buttons on control panel to finish the requested process operation, use the PLC for program control frequency converting control, motor drives two cloth rollers, PLC connected with frequency inverter to get constant line speed and tension control during fabric running process.
This system will overall manage and supervise the size supply, dye tank temperature, fabric surface tension, whole machine speed, line qty, cycles each roller.

Specification

Boundary Dimension L * Q * H	Max. cloth roll: 800	(3400 + mechanical width 2) 2100 * 2200
		Max. cloth roll: 1000	(3450 + mechanical width * 2) * 2400 * 2500
		Max. cloth roll: 1200	(3500 + mechanical width * 2) * 2700 * 2800

HT-HP Tank body

Made of SUS304, hoop construction design, designed pressure 0.35Mpa, designed temperature: 140℃.

Heat exchanger

External tabulation heat exchanger

Doffing frame

Made of stainless steel, the variable frequency motor for doffing.

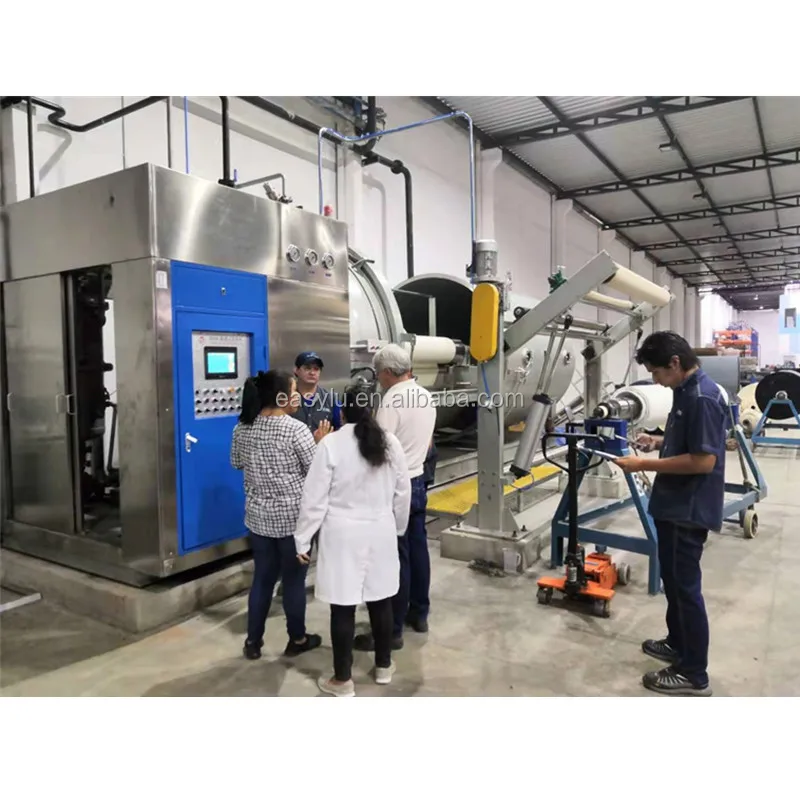

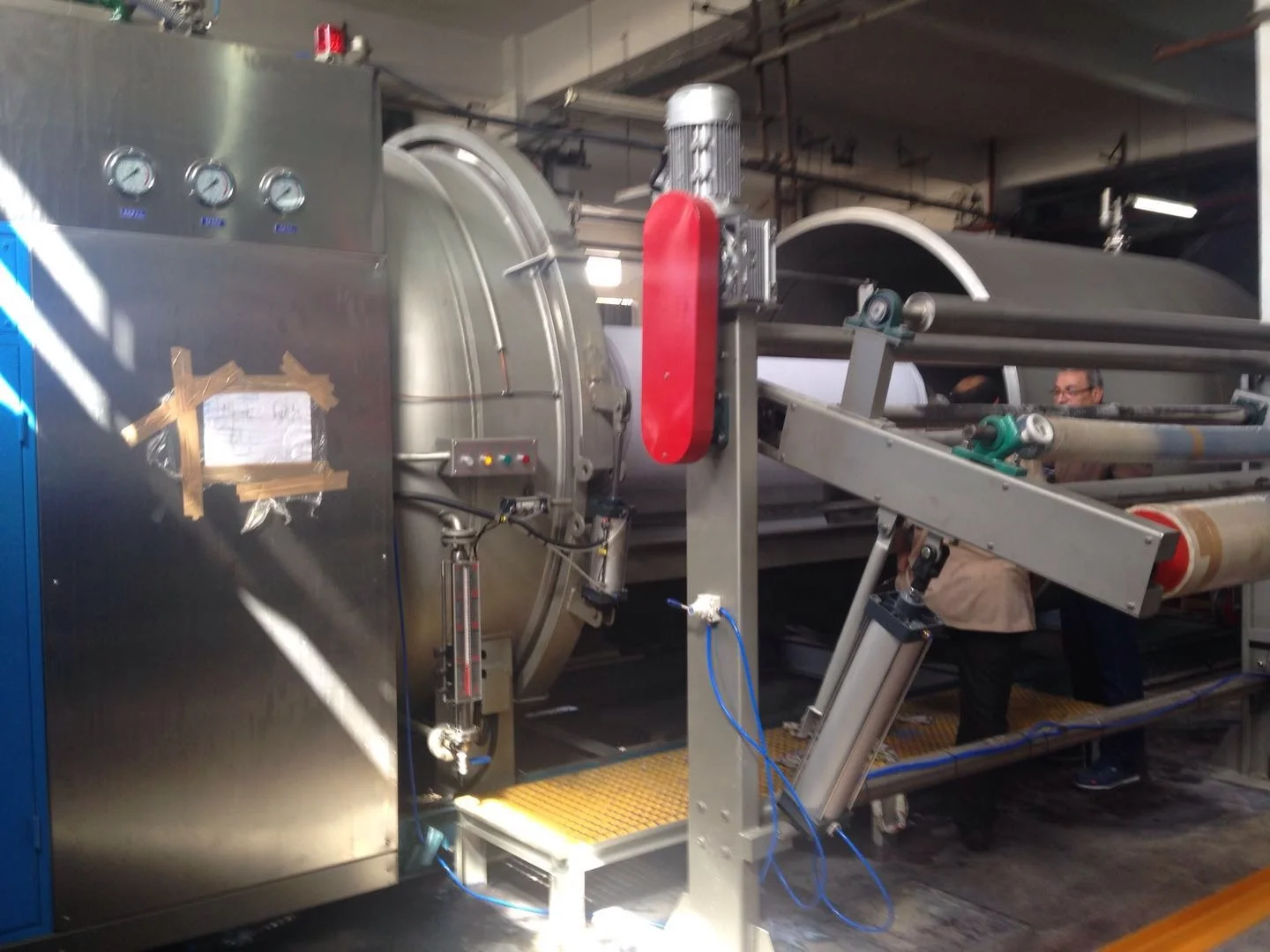

HT Jigger in Mexico

HT jigger in Spain

HT Jigger in Morocco

Packing & Delivery

40HQ

Company Profile

Buentex Machinery Trading Co.,Ltd is a specialized trading company, which has rich experience in international trade.
Our company is mainly engaged in import and export business of textile dyeing and finishing equipments: different kinds of dyeing machines, washing machines, dryers, stenter frames, related machinery and their spare parts; cable tray series, busway series, switchgear series; other products and technology permitted to import and export etc.
For many years we maintain close contact with multiple domestic manufactures of dyeing and finishing equipments, know well about the dyeing and finishing industry trends; and we can provide one-stop service: provide solutions, look for supply of goods with high quality and attractive price, assist business negotiation, on-site interpretation, documents translation such as technical documents , specifications etc, make contracts, collect and send the payment, inspect goods, supply export customs declaration, transport goods, after-sales service .
BuenTex takes the " Cooperation, sharing, integrity, win-win" purpose for the services tenet; puts the efficient resource into one, optimizes good products for customers. We sincerely hope to cooperate with more customers, together develop on the principle of equality and mutual benefit, and create a better future.
