DM-16RP050 Высокая эффективность 3v 6v 12v 24v маленький планетарный редуктор металлический постоянного тока для бытовой
- Категория: Редукторы скорости >>>
- Поставщик: Shenzhen,Dongming,Motor,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.24 $* | 0.56 $* |
| Aug-19-2025 | 0.14 $* | 0.44 $* |
| Jul-19-2025 | 0.57 $* | 0.98 $* |
| Jun-19-2025 | 0.26 $* | 0.30 $* |
| May-19-2025 | 0.71 $* | 0.65 $* |
| Apr-19-2025 | 0.78 $* | 0.23 $* |
| Mar-19-2025 | 0.22 $* | 0.89 $* |
| Feb-19-2025 | 0.46 $* | 0.91 $* |
| Jan-19-2025 | 0.28 $* | 0.46 $* |
Характеристики
Products Description

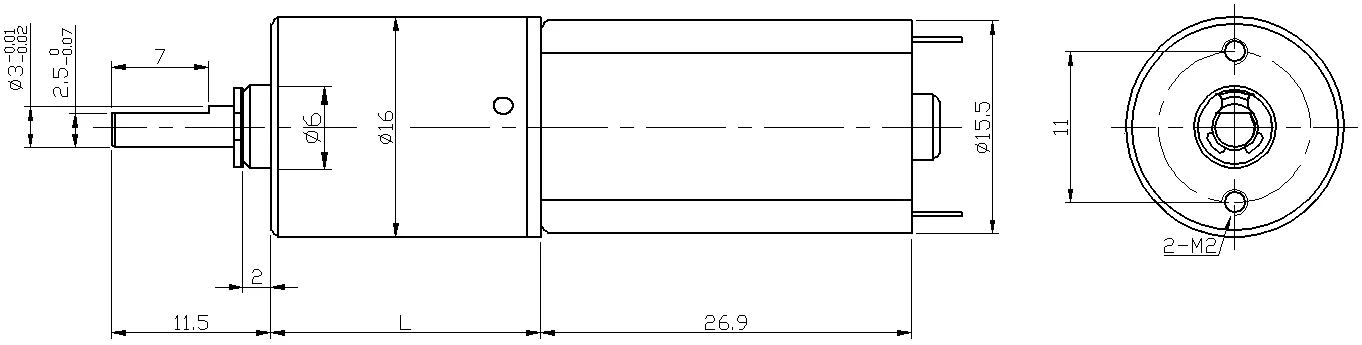

Appearance size:
Products Specification
Gearbox Data:
Number of stages | 1 | 2 | 3 | 4 | 5 |
Reduction ratio | 4,4.75 | 16,19,22.5 | 64,76,90,107 | 256,304,361 428,509 | 1024,1216,1444 1714,2036,2418 |
Gearbox length “L”mm | 12.2 | 15.8 | 19.4 | 23 | 26.6 |
Breaking torque(kgf.cm) | 2 | 3 | 4 | 5 | 5 |
Gearbox efficiency | 90% | 81% | 73% | 65% | 59% |
Driving Motor Data:
Motor model | Rated Volt. | No load | Load | Stall | ||||||||||
Current | Speed | Current | Speed | Torque | Output power | Torque | Current | |||||||
V | mA | r/min | mA | r/min | gf.cm | W | gf.cm | mA | ||||||
DM-050-006-9000 | 6 | ≤60 | 9000 | ≤260 | 7500 | 8 | 0.6 | ≥30 | ≥550 | |||||
DM-050-006-12000 | 6 | ≤70 | 12000 | ≤300 | 9300 | 10 | 1.0 | ≥40 | ≥1000 | |||||
DM-050-012-9000 | 12 | ≤30 | 9000 | ≤130 | 7500 | 8 | 0.6 | ≥30 | ≥300 | |||||
DM-050-012-12000 | 12 | ≤50 | 12000 | ≤200 | 10000 | 10 | 1.0 | ≥40 | ≥600 | |||||
Gear Motor Data:
Motor model | Rated Volt. | No load | Load | Stall | ||||||||||
Current | Speed | Current | Speed | Torque | Output power | Torque | Current | |||||||
V | A | r/min | A | r/min | kgf.cm | W | kgf.cm | A | ||||||
DM-16RP05000313000-22.5K | 3.0 | 0.24 | 543.5 | 0.73 | 393.6 | 0.20 | 0.86 | 0.77 | 2.01 | |||||
DM-16RP0500069000-107K | 6.0 | 0.11 | 76.3 | 0.29 | 56.6 | 0.90 | 0.52 | 3.50 | 0.82 | |||||
DM-16RP05000611400-361K | 6.0 | 0.12 | 29.3 | 0.34 | 20.8 | 2.58 | 0.55 | 8.93 | 0.86 | |||||
DM-16RP05001216000-16K | 12.0 | 0.18 | 1037.2 | 0.51 | 765.8 | 0.31 | 2.53 | 1.23 | 1.47 | |||||
DM-16RP05001216000-107K | 12.0 | 0.12 | 160.5 | 0.41 | 127.6 | 1.44 | 1.89 | 7.04 | 1.53 | |||||
DM-16RP05001216000-256K | 12.0 | 0.12 | 65.7 | 0.45 | 52.3 | 3.36 | 1.80 | 16.46 | 1.75 | |||||
DM-16RP05001216000-304K | 12.0 | 0.12 | 56.0 | 0.44 | 44.6 | 4.00 | 1.83 | 19.70 | 1.71 | |||||
DM-16RP05001216000-361K | 12.0 | 0.15 | 46.6 | 0.45 | 34.6 | 4.68 | 1.66 | 18.22 | 1.32 | |||||
DM-16RP05001216000-428K | 12.0 | 0.12 | 40.6 | 0.40 | 32.0 | 4.40 | 1.45 | 20.70 | 1.44 | |||||
DM-16RP05001216000-509K | 12.0 | 0.11 | 34.3 | 0.38 | 26.3 | 5.09 | 1.37 | 21.76 | 1.28 | |||||
DM-16RP0500128000-2418K | 12.0 | 0.07 | 3.3 | 0.12 | 1.9 | 3.5 | 1.44 | 7.0 | 0.45 | |||||
Shenzhen Dongming Motor Co., Ltd. is specialized in designing, manufacturing and selling micro DC motors, especially gear motors.
We have successfully worked out over 100 series of micro DC motors. Our products are widely applied in household appliances,
audio/video products, office equipment, health-care and beauty-care facilities, medical appliances, high-class toys, electronic
tools, electronic commodity, automotive parts and automatic systems.We have a team of professional staff who are working on R&D
and QC. They ensure our good quality managing system and advance technology.
We have successfully worked out over 100 series of micro DC motors. Our products are widely applied in household appliances,
audio/video products, office equipment, health-care and beauty-care facilities, medical appliances, high-class toys, electronic
tools, electronic commodity, automotive parts and automatic systems.We have a team of professional staff who are working on R&D
and QC. They ensure our good quality managing system and advance technology.
