Вращающаяся головка швейная прозрачная нить для компьютеризированной многоигловой стеганой машины 64 дюйма новая модель цена в
- Категория: Станки для производства домашнего текстиля >>>
- Поставщик: Henan,Gondor,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 34243.36 $* | 35955.34 $* |
| Aug-19-2025 | 33956.36 $* | 35654.22 $* |
| Jul-19-2025 | 28488.36 $* | 29912.44 $* |
| Jun-19-2025 | 33380.42 $* | 35049.37 $* |
| May-19-2025 | 29064.63 $* | 30517.66 $* |
| Apr-19-2025 | 32805.46 $* | 34445.80 $* |
| Mar-19-2025 | 32517.46 $* | 34143.74 $* |
| Feb-19-2025 | 32229.55 $* | 33840.78 $* |
| Jan-19-2025 | 31941.38 $* | 33538.80 $* |
Характеристики
Product Overview

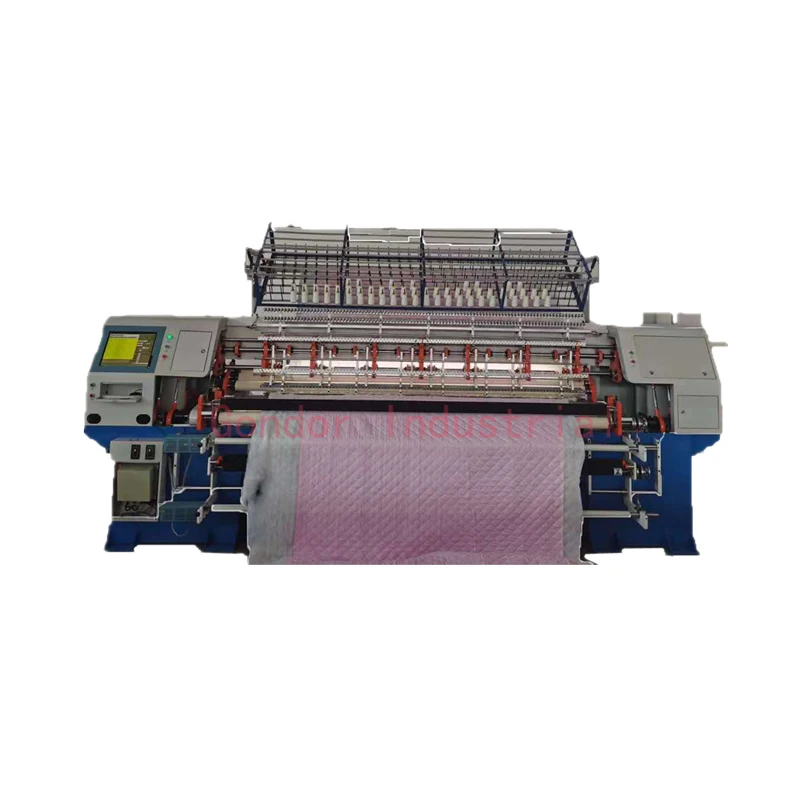

Quilting Machine
It is widely used for quilting high-quality garments, bedding covers, textile, leather, shoes, cap, bags, vanity, gloves, sleeping bag, seat cover and Wall decoration etc.
FEATURES AT A GLANCE
1. Adjusted speed by computer and the speed can reach 800r/min.

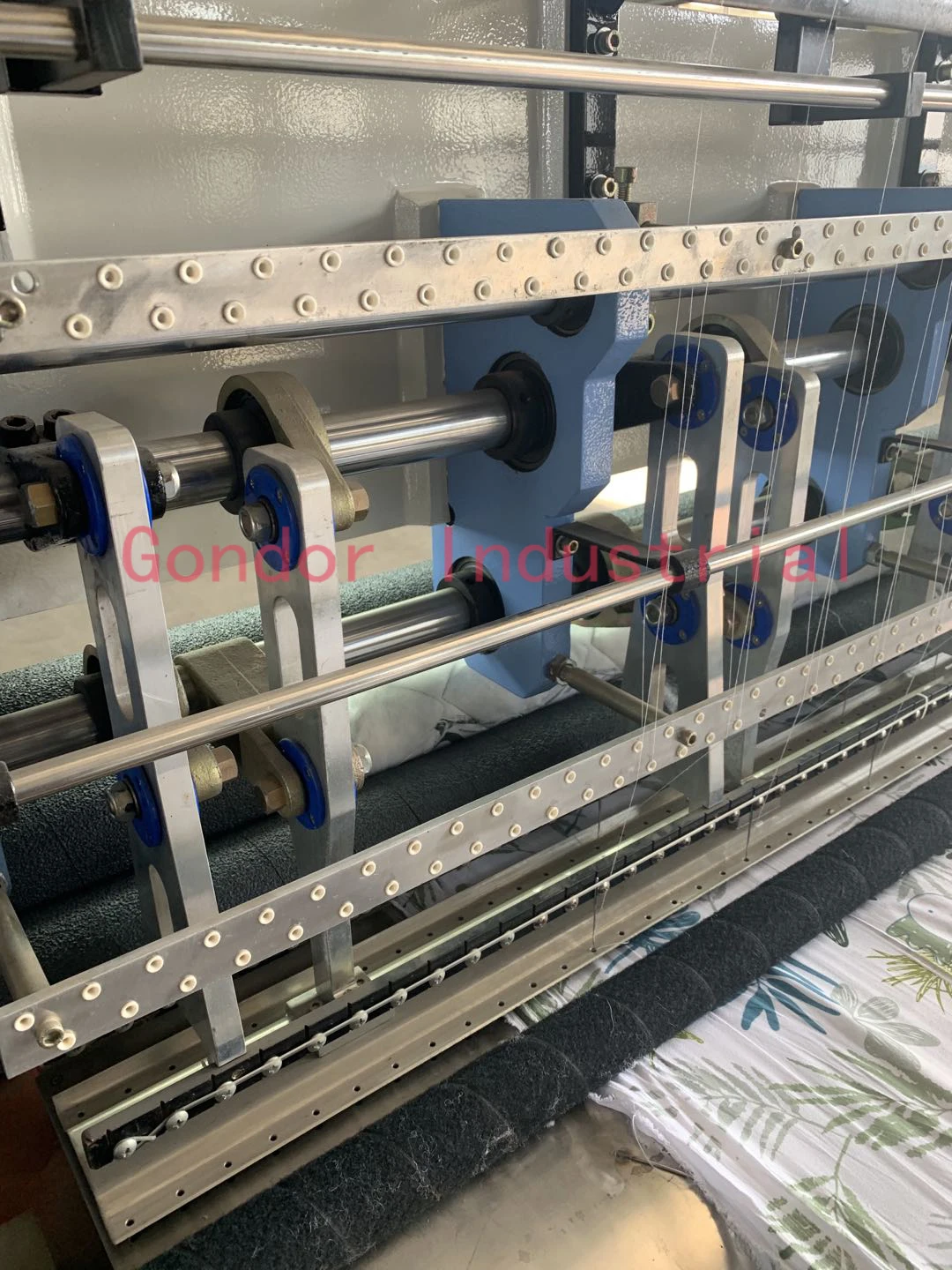

2. The needle bar running adopt aluminum alloy needle bar frame structure, don’t need to add extra lube, strong and durable.

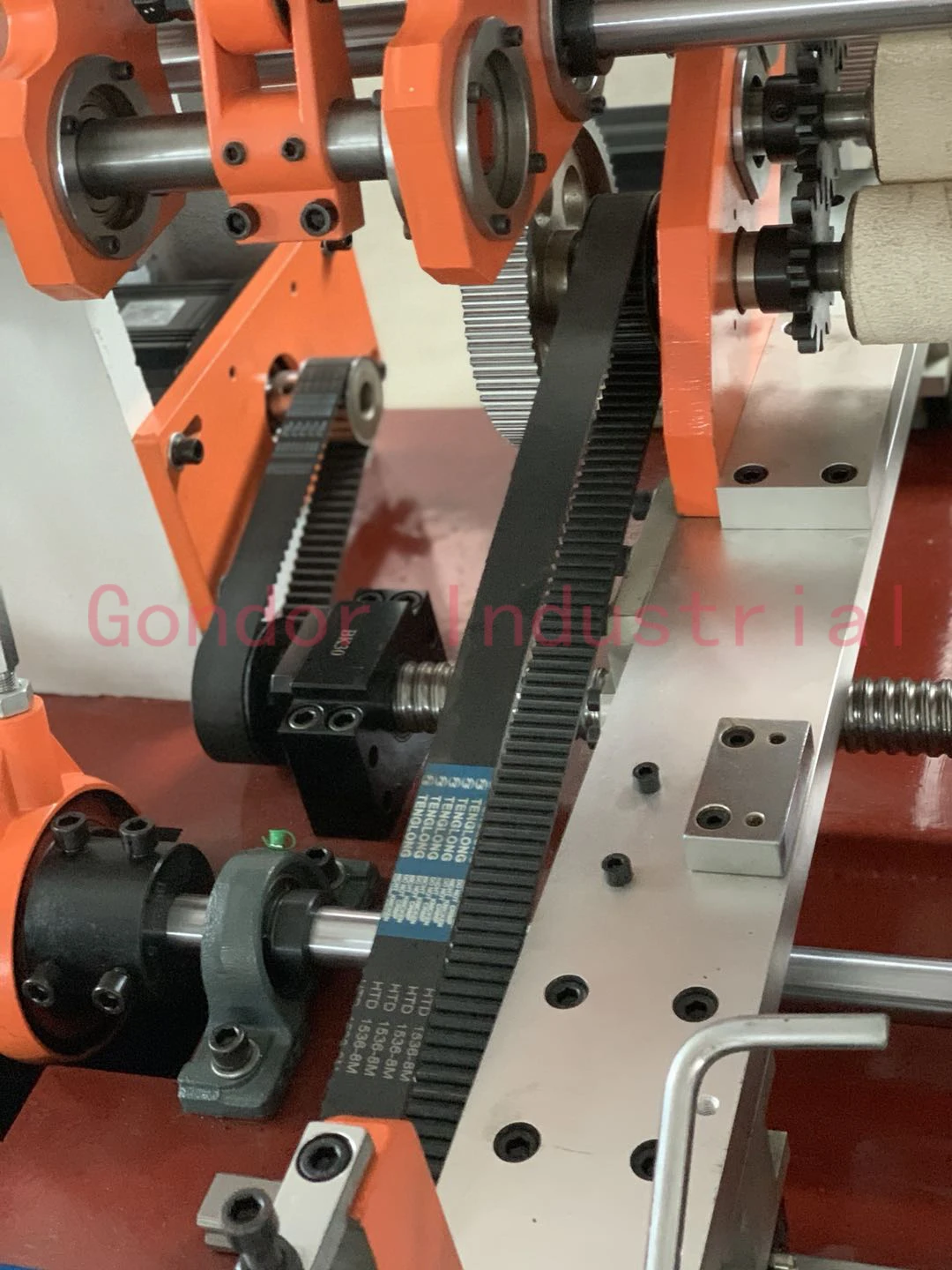

3. Saddling rack and roller are driven by servo equipment, Principal axis adopt the frequency conversion device.
4.Saddling rack adopt high rigid design of sewing embroidering machine ,Adopt separation structure of convey cloth rack and moving saddling rack, effectively reduce the load and jitter of saddling rack.
5. Adopt double clutch device, effectively solve the synchronization problems of (Front and back) rollers.
2. The needle bar running adopt aluminum alloy needle bar frame structure, don’t need to add extra lube, strong and durable.
3. Saddling rack and roller are driven by servo equipment, Principal axis adopt the frequency conversion device.
4.Saddling rack adopt high rigid design of sewing embroidering machine ,Adopt separation structure of convey cloth rack and moving saddling rack, effectively reduce the load and jitter of saddling rack.
5. Adopt double clutch device, effectively solve the synchronization problems of (Front and back) rollers.

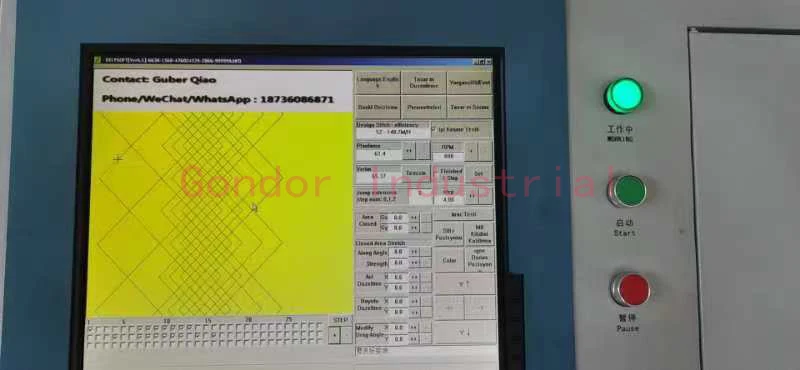

Control Panel
Electric part
Back elevation
PRODUCT CONFIGURATION
Product Paramenters
Model | GD-HFJ64-2 | GD-HFJ76-2 | GD-HFJ94-2 | GD-HFJ128-2 |
Size(L*W*H)(mm) | 3800*1100*1800 | 4000*1100*1800 | 3800*1100*1800 | 3800*1100*1800 |
Quilting width | 1700mm | 1900mm | 2450mm | 3300mm |
Quantity of needle bar | 2 | 2 | 2 | 2 |
Needle row spacing | 3inch | 3inch | 3inch | 3inch |
Space between needle | 25.4mm | 25.4/19.05mm | 25.4mm | 25.4mm |
X-axis movement | 254mm | 254mm | 304mm | 304mm |
Thickness of quilting | ≤25mm | ≤25mm | ≤25mm | ≤25mm |
Speed of operation(m/hour) | 20-120 | 20-120 | 20-120 | 20-120 |
Model of needle | 16 #, 19 # | 16 #, 19 # | 16 #, 19 # | 16 #, 19 # |
Stitch length | 2-6mm | 2-6mm | 2-6mm | 2-6mm |
Quilting speed(r/min) | 300-800 | 300-800 | 300-800 | 300-800 |
Voltage | 380V/220V/50HZ | 380V/220V/50HZ | 380V/220V/50HZ | 380V/220V/50HZ |
Total power | 3.5Kw | 3.5Kw | 3.5Kw | 3.5Kw |
Gross weight | 3300Kg | 3800Kg | 4000Kg | 5300Kg |
Certificates
Successful Project
Project in Thailand
Project in India
Project in Russia
Packing ＆ Delivery
