Gps-антенна 1575,42 МГц для автомобиля
US $2.30-$2.70
GNSS дифференциальная RTK антенна Beidou GPS Glonass Galileo полная базовая станция высокая
- Категория: GNSS и GPS антенна >>>
- Поставщик: Shenzhen,Bainianxing,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 1190.52 $* | 1250.8 $* |
| Aug-19-2025 | 1180.16 $* | 1239.26 $* |
| Jul-19-2025 | 990.79 $* | 1040.25 $* |
| Jun-19-2025 | 1160.43 $* | 1218.58 $* |
| May-19-2025 | 1010.93 $* | 1061.48 $* |
| Apr-19-2025 | 1140.23 $* | 1197.99 $* |
| Mar-19-2025 | 1130.81 $* | 1187.85 $* |
| Feb-19-2025 | 1120.54 $* | 1176.33 $* |
| Jan-19-2025 | 1110.59 $* | 1166.70 $* |
Характеристики
Products Description
The antenna part adopts a multi-feed point design and a completely symmetrical antenna structure, with a relatively stable
phase center, reducing the influence of the antenna on measurement errors
phase center, reducing the influence of the antenna on measurement errors
Adopting choke coil design to achieve excellent multipath suppression effect and high
phase center stability and good repeatability
phase center stability and good repeatability
The unique waterproof and dustproof design ensures that the core unit and components are completely sealed to meet the complex outdoor environment and can work normally outdoors for many years
Application
This antenna is a full-band measurement choke antenna that covers GPS L1/L2, GLONASS L1/L2, BDS B1/B2/B3, GalileoE5a/E5b/E2/E1, which meets the current multi-system compatibility and high Demand for precision micro-deformation measurement;
Mainly used in some occasions that have extremely high requirements for measurement accuracy, such as earthquake prediction, high-precision differential reference stations, and other demanding applications
Mainly used in some occasions that have extremely high requirements for measurement accuracy, such as earthquake prediction, high-precision differential reference stations, and other demanding applications
Specification
Electrical Parameters
Freq. Range | GPS L1/L2/L5，BDS B1/B2/B3 GLONASS L1/L2，GALILEO E1/E2/E5a/E5b/E6 |
Polarization | Right-handed circular polarization |
Gain | Elevation 90°≥5.5dBi |
Axle Ratio | Elevation 90°≤3dB |
Cross polarization ratio | ±60°≥25 |
Phase center error | ±1mm |
LNA Gain | 45±2dB |
VSWR | ＜2.0 |
Noise Coefficient | ＜2.0 |
Operating Voltage | 3.3～18VDC |
Operating Current | ＜65mA |
Input Resistance | 50ohm |
Mechanical Features
Antenna Size | 322 * 265mm |
Output Connector | TNC-K |
Weight | ≤8.5Kg |
Environmental Characteristics
Working Relative Humidity | 95% |
Working Temp | -40°C～+75°C |
Storage Temp | -55°C～+85°C |
Application
Related Products
B37B1GGB
Freq. Range : GPS L1/L2
BDS B1/B2/B3，GLONASS L1/L2
Connector : SMA-J
Size : 28 * 58.5mm
B37A1GGB
Freq. Range : GPS L1/L2
BDS B1/B2/B3，GLONASS L1/L2
Connector : TNC-K
Size : 147.3 * 67.8mm
B37A3GGB
Freq. Range : GPS L1/L2
BDS B1/B2/B3，GLONASS L1/L2
Connector : TNC-K
Size : 90 * 35.1mm
B4QA2GGGB
Freq. Range : GPS L1/L2/L5
BDS B1/B2/B3，GLONASS L1/L2
GALILEO E1/E2/E5a/E5b/E6
Connector : TNC-K
Size : 322 * 265mm
B4QA1GGGB
Freq. Range : GPS L1/L2
BDS B1/B2/B3，GLONASS L1/L2
Connector : TNC-K
Size : 147.3 * 67.8mm
B4QA3GGGB
Freq. Range : GPS L1/L2/L5
BDS B1/B2/B3，GLONASS L1/L2
GALILEO E1/E2/E5a/E5b/E6
Connector : TNC-K
Size : 380 * 310mm
B23C1GB
Freq. Range : GPS L1，BDS B1/B3
Connector : TNC-K
Size : Φ119.4 * 76.2 * 36.5mm
B33A4GGB
Freq. Range : GPS L1
BDS B1，GLONASS L1
Connector : N-F
Size : 77 * 69mm
B37A2GGB
Freq. Range : GPS L1/L2
BDS B1/B2/B3，GLONASS L1/L2
Connector : TNC-K
Size : 90 * 28.9mm
Certifications
Company Profile

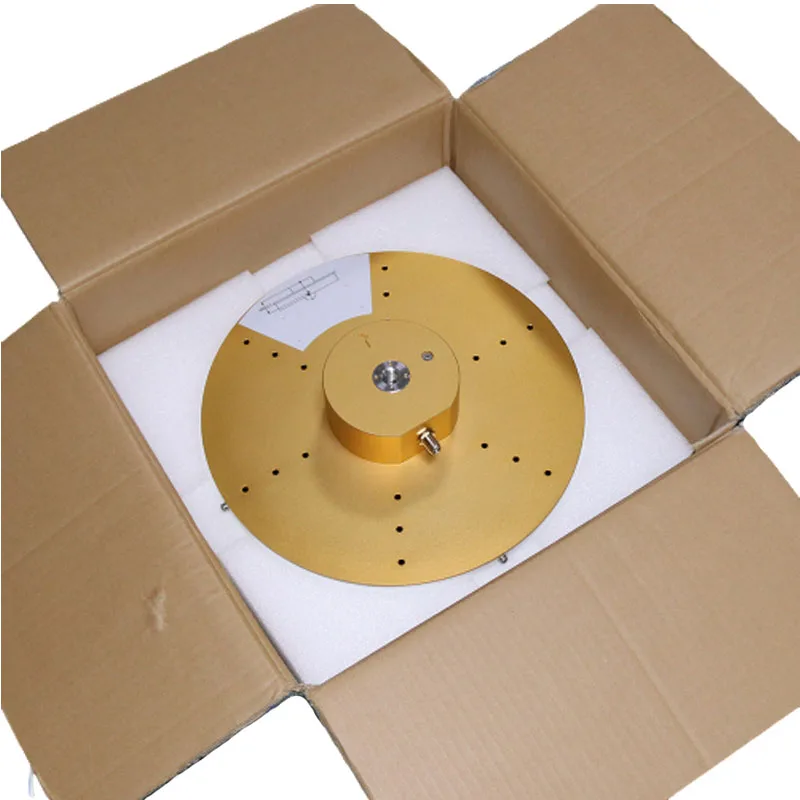

Product packaging
