Предварительно сформированный кабельный зажим Adss
US $1.00-$10.00
Sentuo PA2000 воздушных линий утепленная тупик
- Категория: Power Accessories >>>
- Поставщик: Zhejiang,Sentuo,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.71 $* | 0.2 $* |
| Aug-20-2025 | 0.54 $* | 0.7 $* |
| Jul-20-2025 | 0.18 $* | 0.78 $* |
| Jun-20-2025 | 0.46 $* | 0.37 $* |
| May-20-2025 | 0.6 $* | 0.33 $* |
| Apr-20-2025 | 0.30 $* | 0.92 $* |
| Mar-20-2025 | 0.33 $* | 0.8 $* |
| Feb-20-2025 | 0.31 $* | 0.58 $* |
| Jan-20-2025 | 0.2 $* | 0.61 $* |
Характеристики
GENERAL:

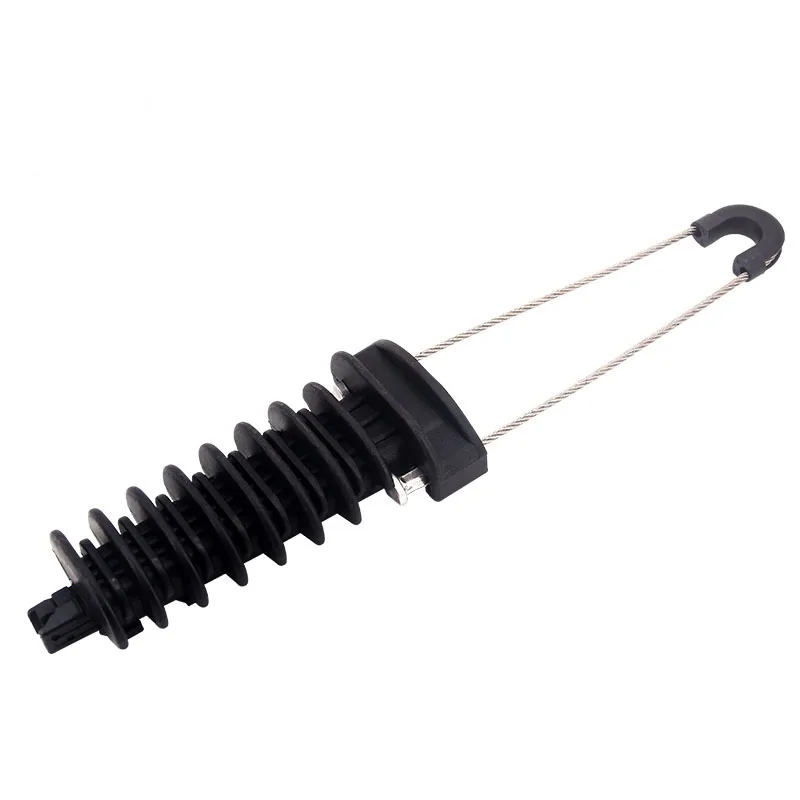

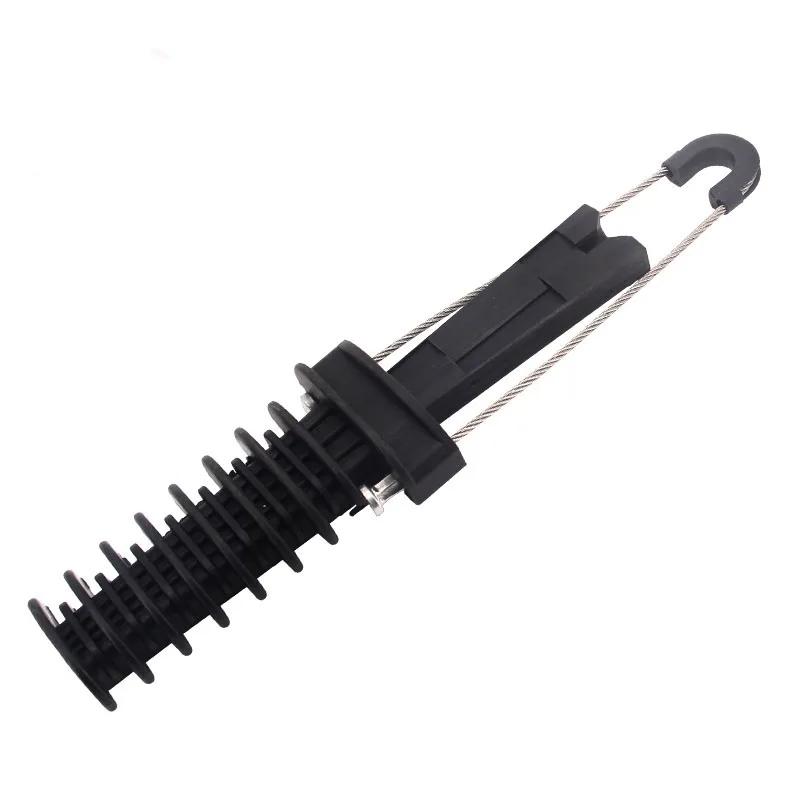

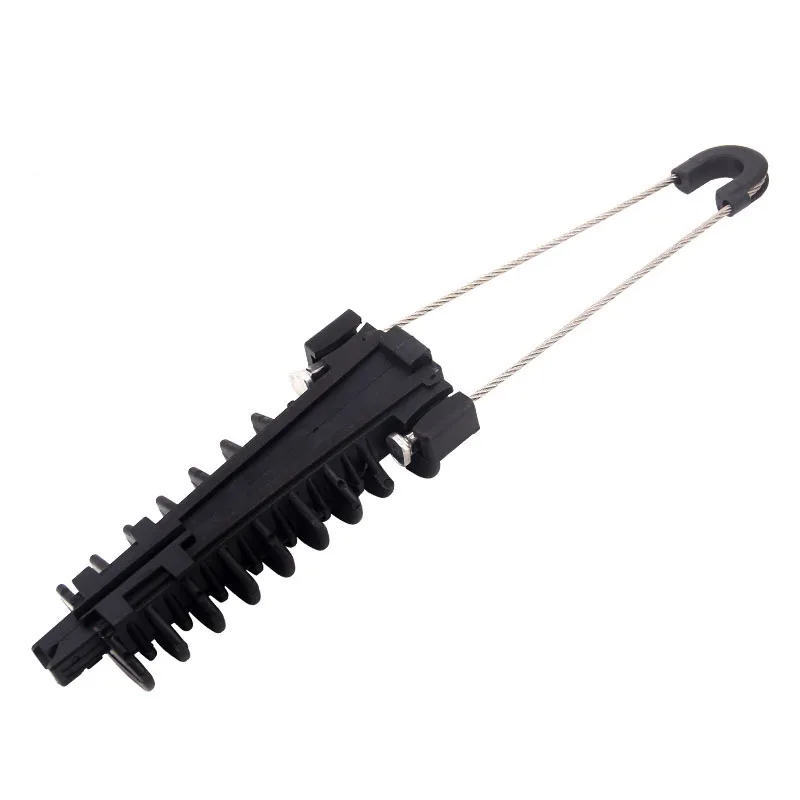

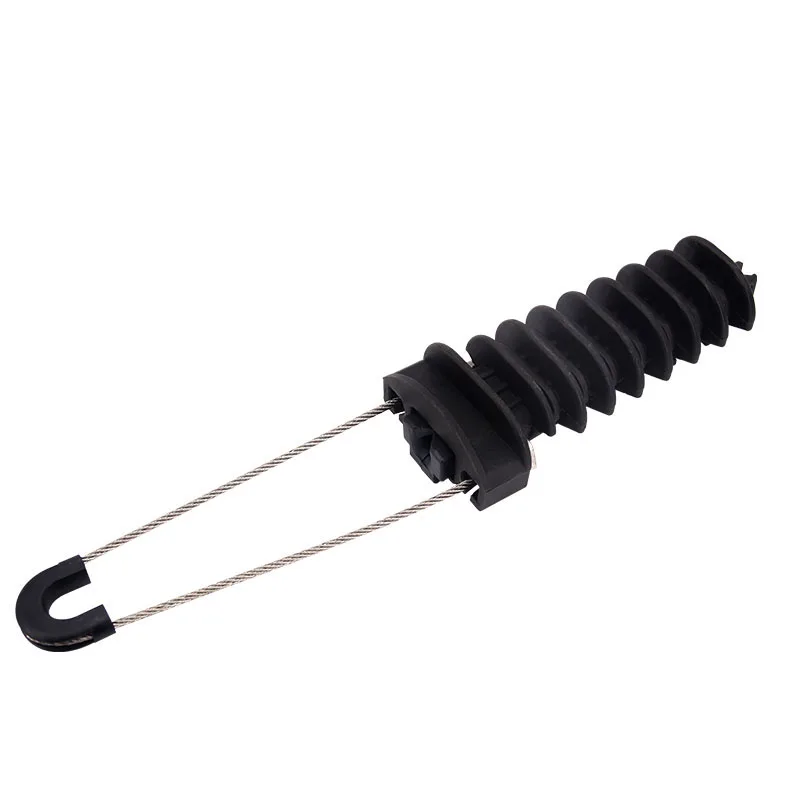

Anchoring clamps(Anchor dead-end clamp) for ADSS cables ACADSS round fibre optic cables installed on short spans (100 m max) are made of one opened conical fibre glass reinforced body, a pair of plastic wedges and a flexible bail, fire-resistant plastic and fire-resistant spray coating used to support and secure thinner liners. The ACADSS series is composed of different models of clamps offering a wide range of gripping capacities and mechanical resistance. This flexibility enables us to propose optimized and tailor made clamp designs depending on the ADSS cable constructions.
Anchoring clamps(Anchor dead-end clamp) for ADSS cables ACADSS round fibre optic cables installed on short spans (100 m max) are made of one opened conical fibre glass reinforced body, a pair of plastic wedges and a flexible bail, fire-resistant plastic and fire-resistant spray coating used to support and secure thinner liners. The ACADSS series is composed of different models of clamps offering a wide range of gripping capacities and mechanical resistance. This flexibility enables us to propose optimized and tailor made clamp designs depending on the ADSS cable constructions.
PRODUCT OVERVIEW:
FEATURES AND BENEFITS:
Body: Made of UV resistant glass fiber reinforced synthetic material
Thermoplastic Body: High mechanical and climatic resistance
Reduced dimensions: For easier hanging
High strength: Grip not below 95% CUTS
Service life: Does not damage the strand wire, could improves the vibration resistance
Simple install: Fast installation requiring no tools
Body: Made of UV resistant glass fiber reinforced synthetic material
Thermoplastic Body: High mechanical and climatic resistance
Reduced dimensions: For easier hanging
High strength: Grip not below 95% CUTS
Service life: Does not damage the strand wire, could improves the vibration resistance
Simple install: Fast installation requiring no tools
TECHNICAL DATA:
Model | Cable Cross-section(mm²) | Min.Breaking Load(KN) |
PA2000 | 70-120 | 5 |
