Прямая поставка с завода низкая цена поршневой цилиндр диаметром 125 портативный 3 5/5 мини-воздушный
- Категория: Воздушный компрессор >>>
- Поставщик: Quzhou,Zhongdu,Machinery,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.29 $* | 0.84 $* |
| Aug-20-2025 | 0.89 $* | 0.98 $* |
| Jul-20-2025 | 0.62 $* | 0.31 $* |
| Jun-20-2025 | 0.46 $* | 0.61 $* |
| May-20-2025 | 0.52 $* | 0.58 $* |
| Apr-20-2025 | 0.64 $* | 0.85 $* |
| Mar-20-2025 | 0.7 $* | 0.52 $* |
| Feb-20-2025 | 0.24 $* | 0.90 $* |
| Jan-20-2025 | 0.57 $* | 0.43 $* |
Характеристики
Product Description
Product Application
Portable W-3.2/7 mining used air compressor with jack hammer price
Double Air Tank Diesel Portable Best-Selling Engine Oil Piston Air Compressor are mainly used to supply stable and clean compressed air to the pneumatic tools and keep them working smoothly and efficiently.
Description:
1.Valve plate and spring strip:made of special steel from Sweden and after special treatment;high efficient and reliable
2.Piston ring:special design;integral casting;excellent flexibility;lowest lubricating oil consumption
3.Cylinder:made of boron cast iron;wear resistant;special suitable for dusty condition
4.Cylinder cover:extrusion process adopted;streamlined external appearance;good heat emission performance
5. Simple structure light weight easy to move
6. Energy saving Low cost
7.Easy operating and maintenance

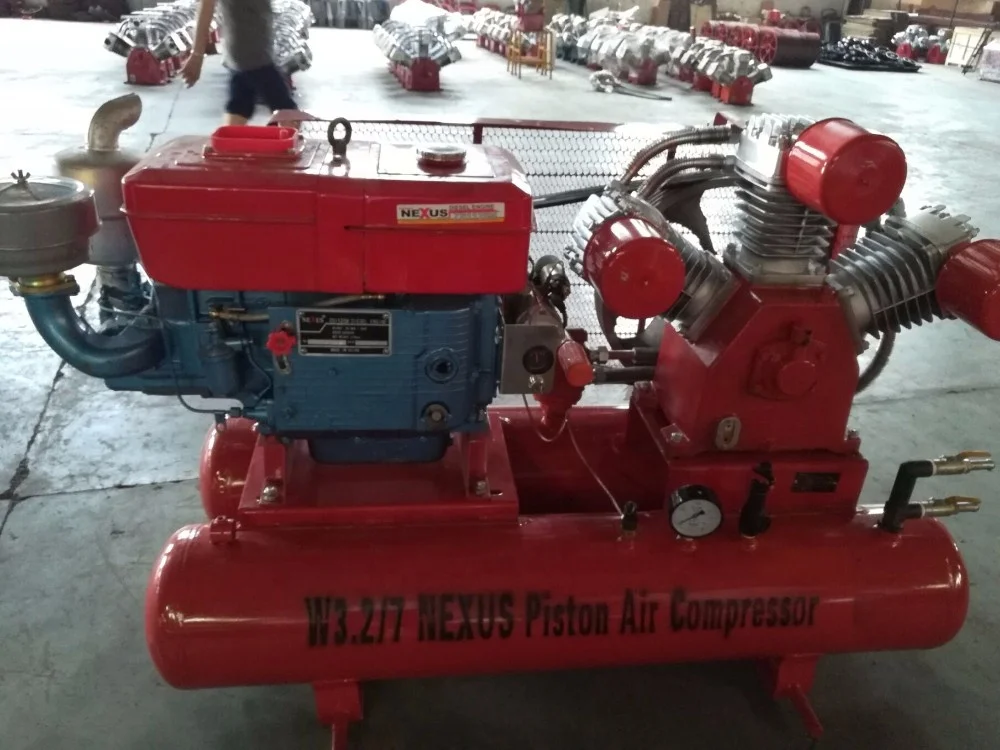

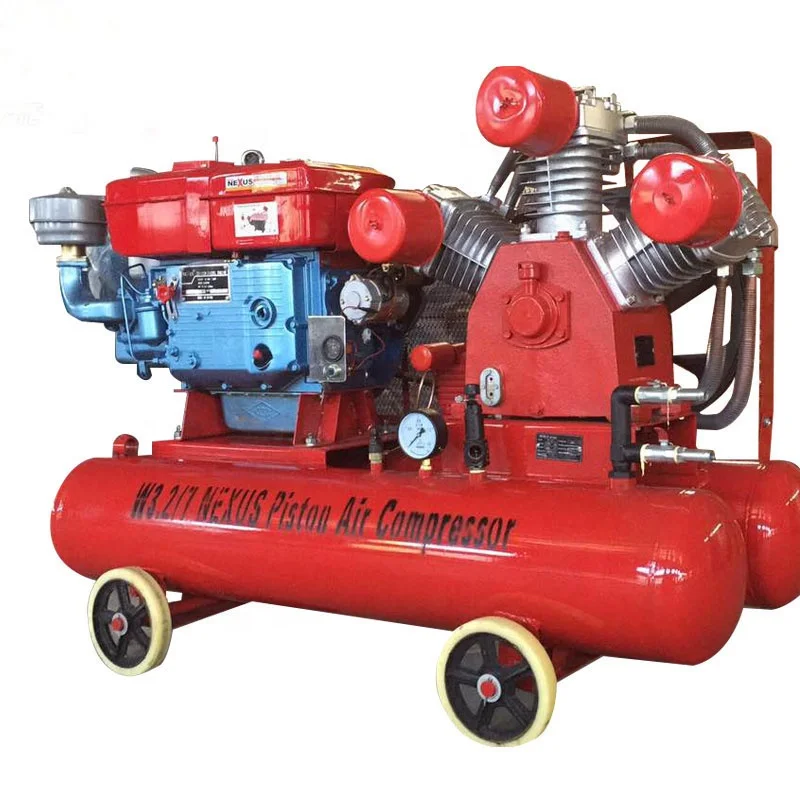

Portable W3.2/7 mining used air compressor with jack hammer price | ||||||
Model Number | W-3.2/7 | Rated speed | 970rpm | |||
Exhaust Volume | 3.2m3/min | Motor | diesel engine | |||
Exhaust Pressure | 0.7 Mpa | Volume of gas storage tank | 200L | |||
Cylinder (Dia×Qty) | 125*3 | Dimension (L*W*H) mm | 1920*960*1350 | |||
Weight | 580kg | |||||
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

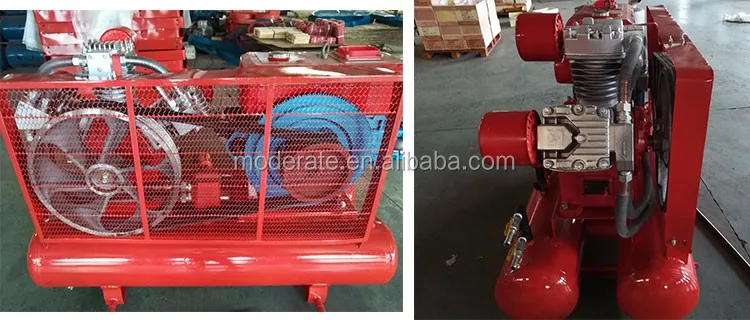

Detailed Images
Cylinder:Made of boron cast iron; wear resistant; special suitable for dust condition.
Cylinder cover: Extrution process adopted; streamlined external appearance; good heat emission performance
Thickening of high qualified steell plate , the latest sheet metal welding technology , high stength , beautiful and durable.

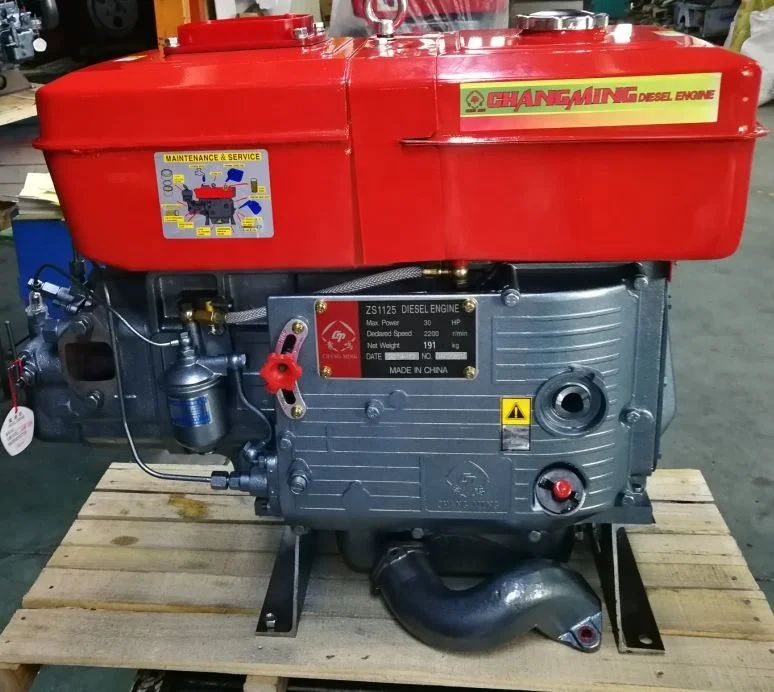

The motor provides reliable power, low voltage startup and running performance strong fan cooled motor and body; special shock proof design.
Piston ring:Special design, integral casting; excellent flexibility, lowest lubricating oil consumption.
Company Profile
Packaging | ||
Size | 1920(L) * 960 (W) *1350 (D) MM | |
Weight | 580KG | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
FAQ
Q1: Are you factory or trade company?
A1: We are factory. And we have our own trading company.
Q2: What the exactly address of your factory?
A2: Our company is located in Zhenxing East Road, Qujiang District, Quzhou, Zhejiang, China
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your equipment.
Q6: Which payment term can you accept?
A6: 30% T/T in advance, 70% T/T against the B/L copy.
Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery the goods within 7-15 days. Other electricity or other color we will delivery within 25-30 days.
Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
