Высококачественная производственная линия по переработке лома/Экологически чистая машина для измельчения

Rotor crushing and sorting production line using physical methods harmless disposal of resource recovery equipment, manual pre-sorting of waste motor stator line package materials transported by the conveyor to primary crushing, secondary crushing; then by the magnetic roller sorter sorting out the silicon steel and copper mixture; then copper mixture is transported by conveyor to the air flow sorter for sorting to obtain high purity copper particles and a small amount of debris. Therefore considerable economic benefits. Dust caused due to the work of crushing and sorting system throughout the negative pressure adsorption, and configure the pulse dust removal device, effectively control dust overflow affect the environment, to avoid secondary environmental pollution.

1.Equipment package system is controlled by a PLC control the coordination system equipment, uniform feed.

2.Simple structure, reasonable layout; processing capacity, stable operation; durable, safe and reliable; the vibration tiny, low noise and high efficiency.

Application:

Our rotor production line is suitable for a variety of scrap steel, some of the raw materials and crushing effect are shown in the figure below.

 Production Flow:

Rotor crushing and sorting production line workflow is as follows:

1.The artificially pre-sorted waste rotor, motor stator, wire package and other materials are conveyed to the primary crushing and secondary crushing through the conveyor.

2.Separate the steel sheet and copper mixture by a strong magnetic roller sorter

3.Then, the conveyor is sent to a specific gravity soring machine for sorting to obtain copper particles with high purity and a small amount of impurities.

 Main machine:

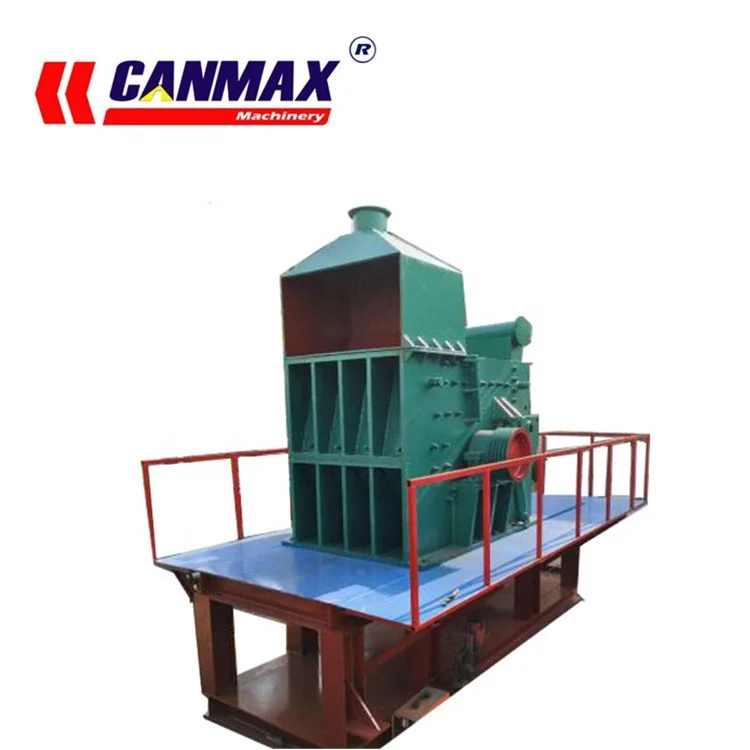

	(1)Primary Crusher The shredder adopts a double-shaft design, which has the advantages of low noise, large torque and large crushing chamber. The shredder tool is made of a special tool steel special processing technology, with a wide range of crushing, and has the functions of breaking, tearing, squeezing, etc., and the crushing granularity is small. It can be easily broken for different specifications.
	(2)Secondary Crusher The grinder adopts a tearing design and adopts a high-hardness spindle to make the crusher load more impacting; the micro-cutter and the cylindrical cutter bar constitute a crushing mechanism; the cutter greatly reduces the input cost of the wearing part.
	(3)Magnetic separation The magnetic separation equipment adopts a strong magnetic double drum sorting machine, it can separate iron from other materials, which makes the sorting rate as high as 95% or more.

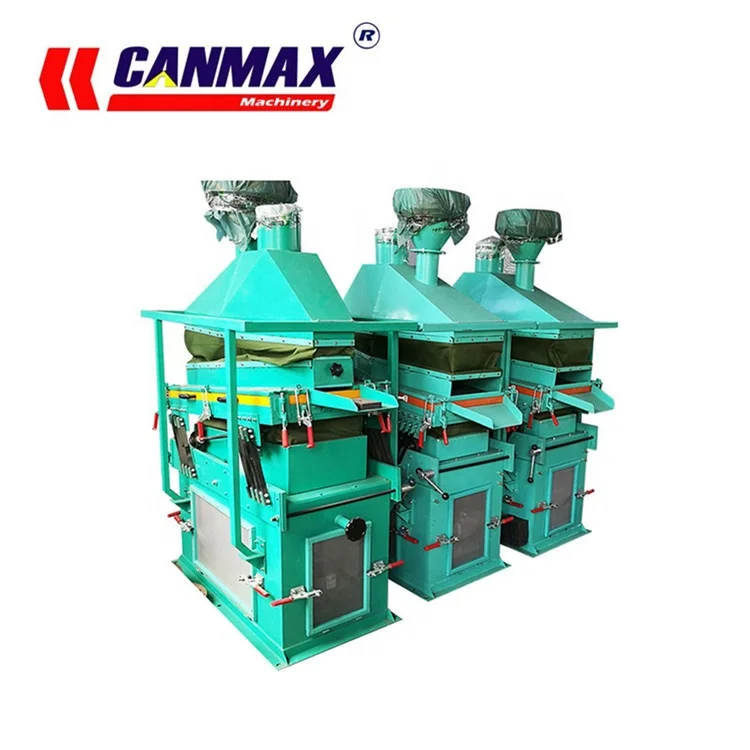

	(4)Specific gravity soring machine The airflow sorter makes the product cleaner and clearer. The materials of similar size and different specific gravity have different weights.Through the joint action of the blower and the induced draft fan and the sieve bed which reciprocates at the bottom.The heavier and lighter materials are respectively selected from the discharge ports at the front and rear ends,Thereby achieving the purpose of sorting.Widely used in copper & plastic,aluminum & plastic,copper &aluminum and other materials with large differences in specific gravity.
	(5)Pulse dust removal system The dust removal rate of the pulse dust removal system is 99.9%, which effectively suppresses the volatilization of dust, fully meets the national environmental protection requirements, and has no secondary pollution.

 Our Rotor crushing and sorting production line is export to  many countries around the world, and the delivery site is well organized.

Pre-sale
*1 Suggest to client suitable models of as customer need.

*2 Introduce machine's structure and features in detail, explain the price component;

*3 answer client concerned questions.

After-sale:

*1. Start production as soon as receiving deposit payment.

*2 Send photos of machine in manufacturing and finished photos to client, for your better learn about the machine's condition.

*3 Delivery machine in time, taking photos during loading, so you can "remote monitoring" your goods.

*4 Documents and certificate available in time.

*5 Manual documents available. Engineer can be sent to client site for installation instruction.

About CANMAX:

We are a professional manufacturer of various machines for 14 years. Our main products includes rotor recovery machine prices, various block machine, concrete mixer, dry mortar mixer, charcoal machine, Coal briquette machine, Wood Crusher, Oil press machine, Biomass briquette machine, food machinery, etc.
With 6 years exporting experience, we are now the leading supplier in middle China now, our products has been exported to more than 55 countries in the world. Clients profits go first is our principle. We have good faith in working with you and we are sure CANMAX team is one of your best Choices in China.
