Бетоносмесительный насос JBS40 дизельный

Категория: Concrete Pumps >>>
Поставщик: Zhengzhou,Zhenheng,Construction,Equipment,Co.,Ltd.

Цена:31 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	36890.73 $*	38735.37 $*
Aug-17-2025	36580.87 $*	38409.59 $*
Jul-17-2025	30690.86 $*	32225.2 $*
Jun-17-2025	35960.55 $*	37758.71 $*
May-17-2025	31310.36 $*	32876.86 $*
Apr-17-2025	35340.50 $*	37107.56 $*
Mar-17-2025	35030.83 $*	36782.74 $*
Feb-17-2025	34720.95 $*	36456.24 $*
Jan-17-2025	34410.32 $*	36131.37 $*

Характеристики

Product Description

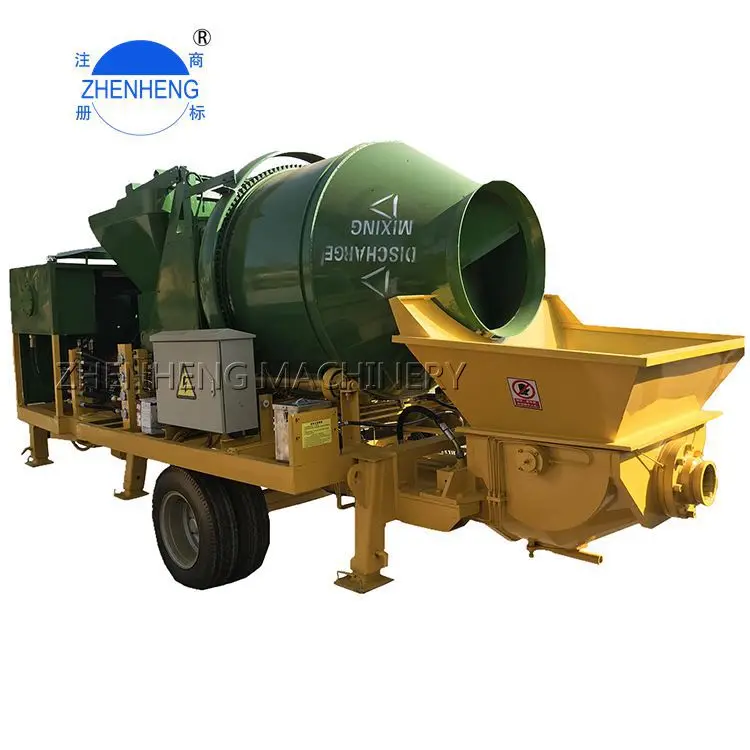

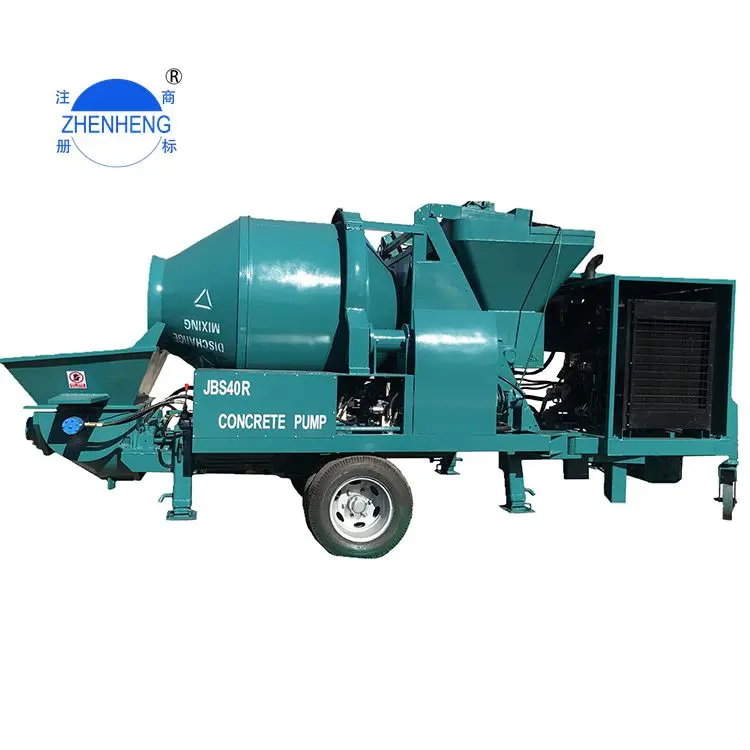

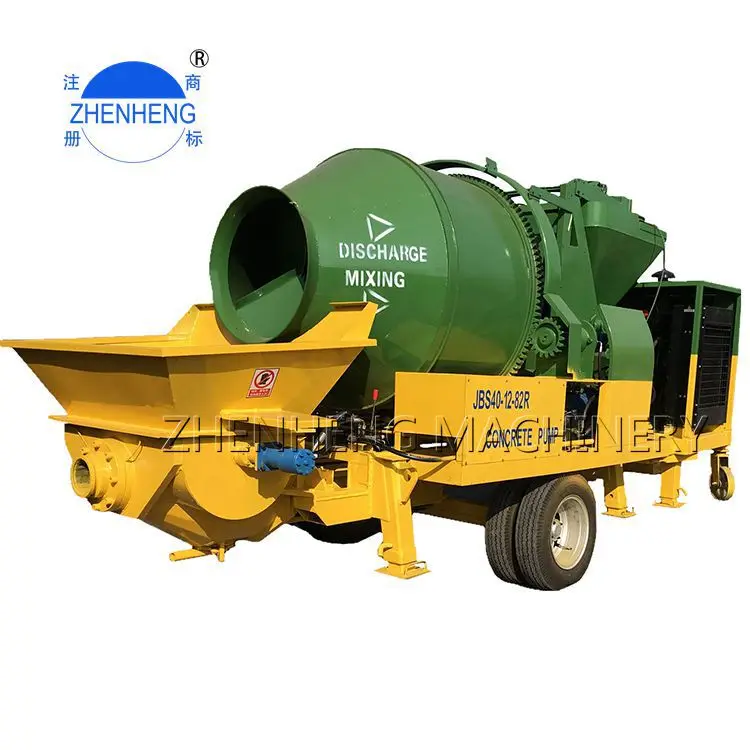

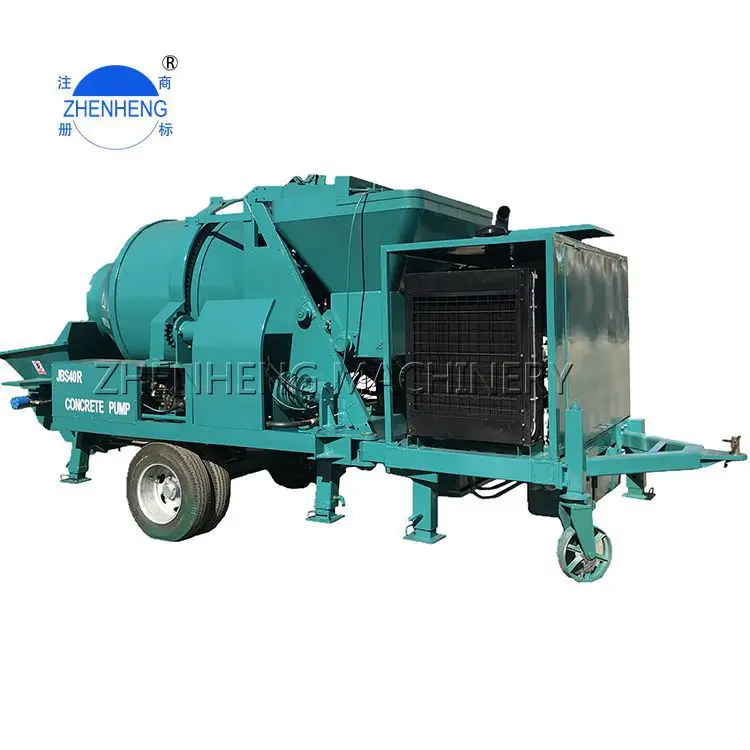

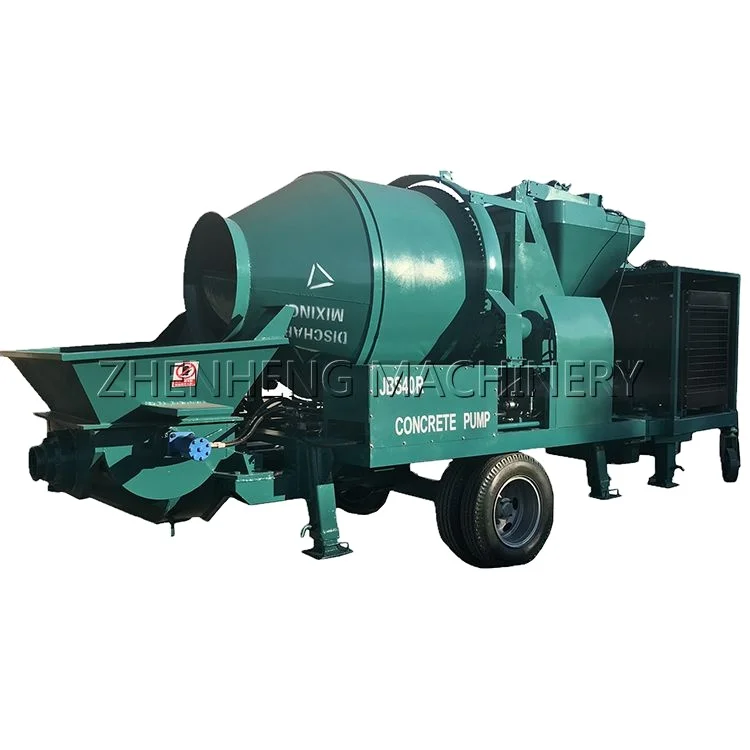

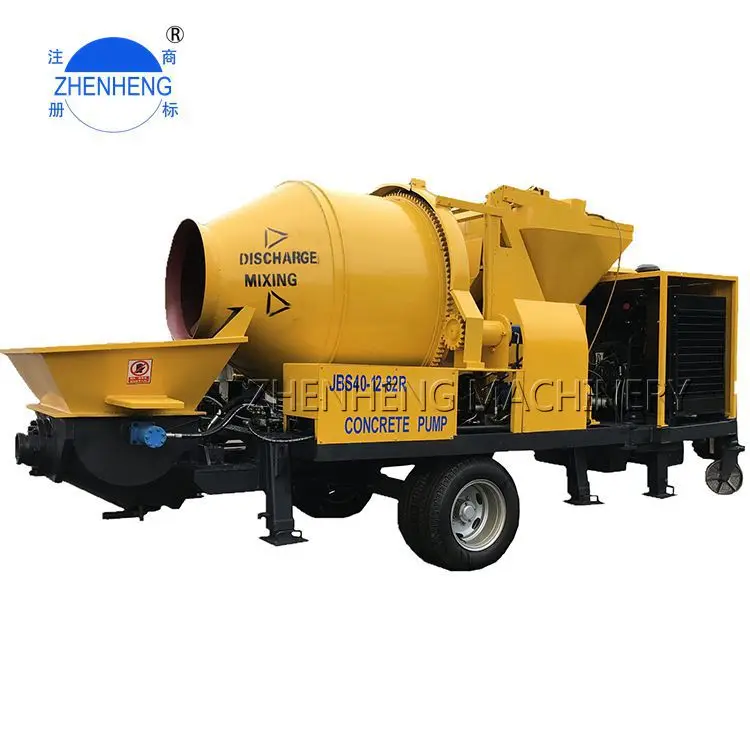

concrete mixing pump JBS40 concrete mixing pump diesel trailer concrete pump

Brief Introduction of Concrete pump:

Concrete mixer pump is a new kind of engineering equipment of the combination of concrete mixer and concrete pump. It uses dual-cylinder hydraulic pumping system, small size and operating space and large concrete pouring and excellent characteristics of the mature and stable performance. The product is suitable for small building construction, and a variety of cave, roads, railway tunnels, water conservancy and hydropower engineering, geological hazards slope treatment works.

concrete mixer pump:

concrete mixer pump combines the concrete mixer and concrete pump together, achieving integration of pump station. It is most suitable for the houses and commercial buildings under 10 floors, small bridges, water conservancy, power and communication for which the sites are scattered and on-site mixing is required.

1. It combines mixer and pump together, easy and flexible to move, high mobility.
2. It can be done by only one operator to complete mixing and pumping, saving labors.

3. The machine has two functions. Mixer and pump can work independently, also can join each other quickly without dismounting the machine.

The characteristic of concrete mixer pump:
1. With the concrete mixer pump two machines combined into a machine to move easily,strong,flexible maneuverability
2. Concrete mixer and pump drive by a worker to make staff and save manual
3. PLC program control in electric control box, stable and reliable, longer life;
4.Feeding, mixing, flip and pumping are all controlled by hydraulic power, automation and saving operation labor
6. The water pump adopts the electromagnetic clutch and a time relay control, automatic adding water according to water timer
7. Manual lubrication systems, fuel efficient and reliable;Independence of the water cooling system, efficient.
8. A 20 feet container can be packing one set, lower shipping costs
10. Fast dual-purpose function of one machine, mixer and pump can be used separately, but also can be quickly used in combination

Specification

Items	JBS40-10-84R	JBS40-10-82R	LHB40-10-82R
Max. theo. pumping capacity	40 m³/h	40 m³/h	40 m³/h
Max. concrete pumping pressure	10 Mpa	10 Mpa	10 Mpa
Distribution valve type	S Valve	S Valve	S Valve
*Concrete cylinder (diameterstroke)**	Ф180*1,000 mm	Ф180*1,000 mm	Ф180*1,000 mm
Hopper capacity	400 L	400 L	600 L
Outlet diameter	Ф150 mm	Ф150 mm	Ф150 mm
Diesel engine power	84 kw	82 kw	82 kw
Circuit type	Open circuit	Open circuit	Open circuit
Oil tank capacity	370 L	370 L	370 L
Max. conveying distance (vertical/level)	70/300 m	70/300 m	70/300 m
Max. aggregate diameter	40 mm	40 mm	40 mm
Inside diameter of delivering pipe	Ф125 mm	Ф125 mm	Ф125 mm
Pipe	100 m	100 m	100 m
*Overall dimensions (LWH)*	6,0002,3003,150 mm	6,00023003150 mm	3,8002,2002,100 mm
Total weight	6,700 kg	6,800 kg	5,600 kg

Details Images

Product Recommend

Company Profile

Zhenheng was established in zhengzhou city in 1982,cover an area of 73370 square meters, have three production bases, have over 300 employees. we produce 3 series of nearly hundreds of varieties construction machines including concrete batching plant, concrete block production line and concrete pump etc. We have attained ISO9001 certificate, CE certificate, and more than 20 patents in the construction machinery line. Zhenheng is well equipped with facilities and strict quality control system. We have a variety of processing lathes and precision machining centers.Advanced laser cutting machines, laser welding machine, Robot welding machines CNC lathing,wire cutting machines and other equipment. leading technology and advanced manufacturing equipment have made zhenheng a leaving level in construction machines industry. The whole production area facilitated with environmental-friendly smoke and dust collection system preventing the production harmful to the environment, bearing society responsibility in heart.With the high quality products and outstanding customer service, we have built a global sales network reaching more than 50 countries and regions such as Poland, The Philippine, Sri Lanka, Pakistan, Thailand, Indonesia, Cambodia, Vietnam, Malaysia, Nepal, Egypt, Algeria, Senegal, South Africa, Ghana, Ethiopia, Haiti, Brazil and Ecuador etc. Tremendous growth in our brand awareness and preference has been achieved by the reasonable price, qualified machines, and effective after sales service at the same time.We impress customers with qualified machines and excellent after-sale service .

our team

Exhibitions&Projects

Packing & Delivery

Export standard container: 20GP or 40GP, 40HQ, FR container in bulk, the spare parts in wooden or iron case according to the size and weight. (Automatic Concrete Batcher Plant)

FAQ

Q1. Why Choose Us?
A:1.For end users, we are the manufacturer; the product quality has strict control, and for the same reason, the price is also competitive.
2.For the dealer, except first one, our company also has more than 30 years of sales & service experience, which can solve a variety of complex technical problems, and provide a full range of pre and after-sales service
3.For different area customers, we have an unique product, installed design accordingly to make sure you have a better using experience; for rainy, sandy areas, we will use a fully enclosed system to protect your equipment normal operation to reduce the impact of the environment; for wet climate areas, we have special processing techniques to reduce the probability of rusting the equipment and so on.
4.Delivery ability We have rich experience engineers and professional team to solve different kinds of questions and promise the goods will be shipped as soon as possible when you confirm the order within 15 days
Q2. Which kind of concrete it can mix?
A:Heavy concrete, common concrete, light concrete. Light concrete we recommend our JSS series, it adds spiral blade and can mix more evenly.
Q3. What is the discharging mode of your concrete mixer?
A:Both hydraulic and pneumatic discharging modes are available. Hydraulic is more advanced and popular than pneumatic type.However we supply as per customer's requirement.
Q4. What is the material do you use for milling blades and lining board?
A:High chromium alloy wear resistant plate and high manganese alloy lining board.
