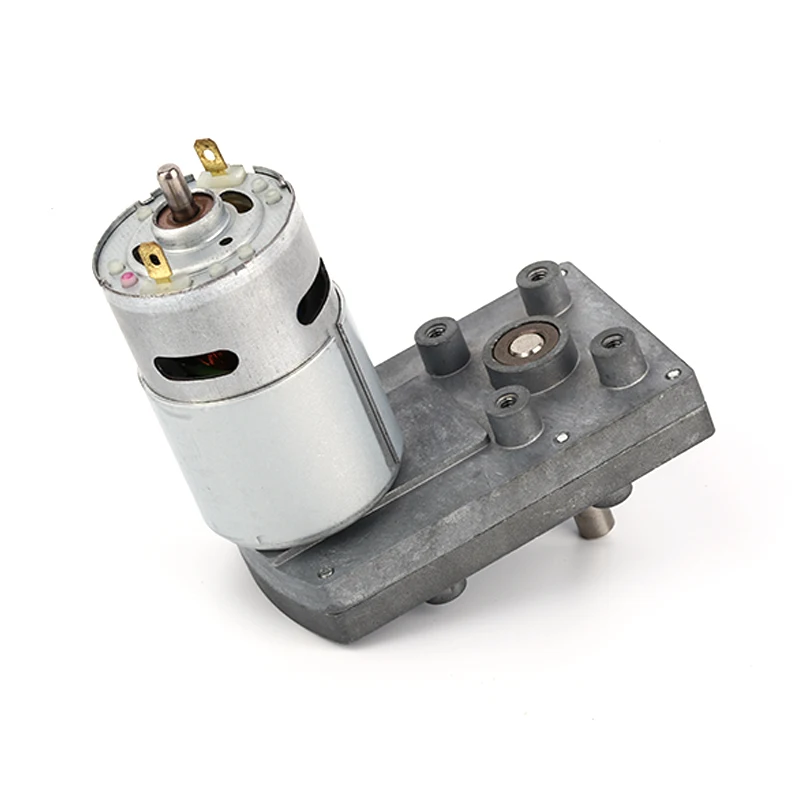

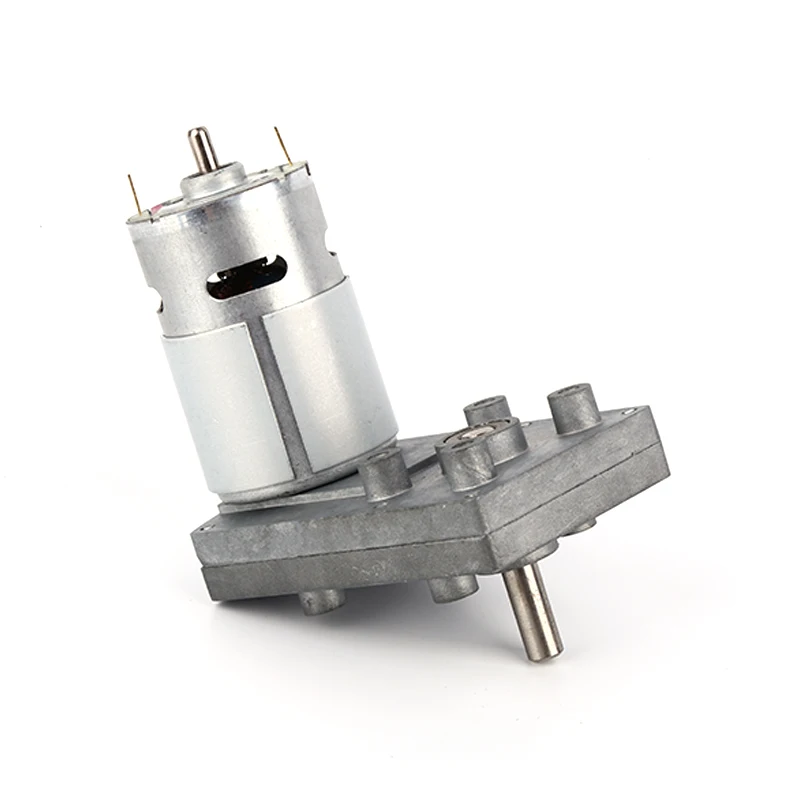

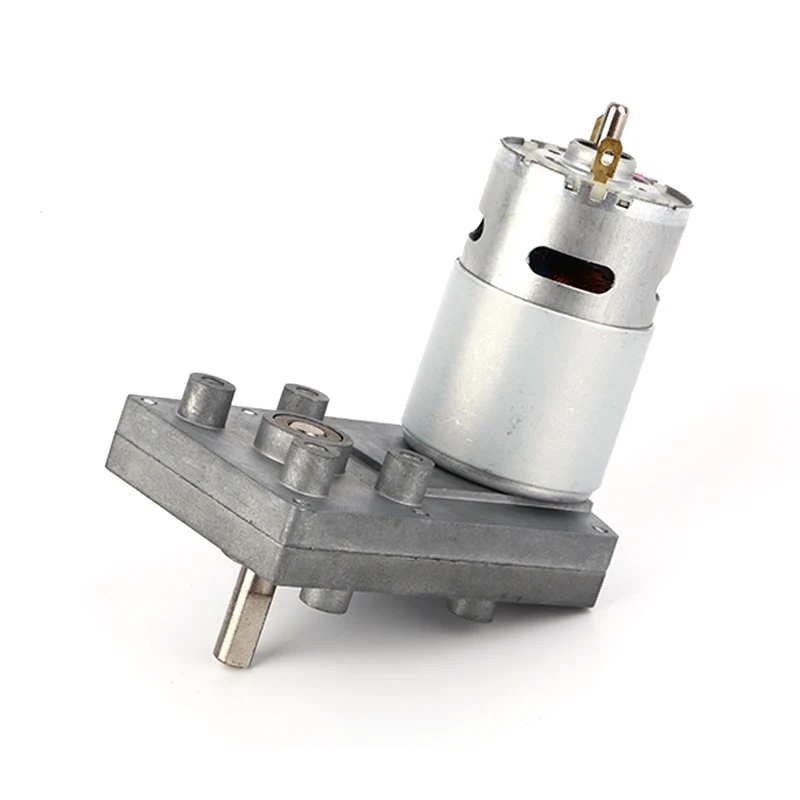

DM-95SS 775 95 мм 12v 24v 45W металлический вал цилиндрическое зубчатое колесо предназначено для уменьшения плоская коробка передач с высоким крутящим моментом 80 кг двигатель постоянного тока
- Категория: Редукторы скорости >>>
- Поставщик: Shenzhen,Dongming,Motor,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.14 $* | 0.15 $* |
| Aug-19-2025 | 0.56 $* | 0.73 $* |
| Jul-19-2025 | 0.88 $* | 0.14 $* |
| Jun-19-2025 | 0.31 $* | 0.66 $* |
| May-19-2025 | 0.75 $* | 0.23 $* |
| Apr-19-2025 | 0.12 $* | 0.95 $* |
| Mar-19-2025 | 0.52 $* | 0.97 $* |
| Feb-19-2025 | 0.94 $* | 0.43 $* |
| Jan-19-2025 | 0.76 $* | 0.69 $* |
Характеристики
Products Description

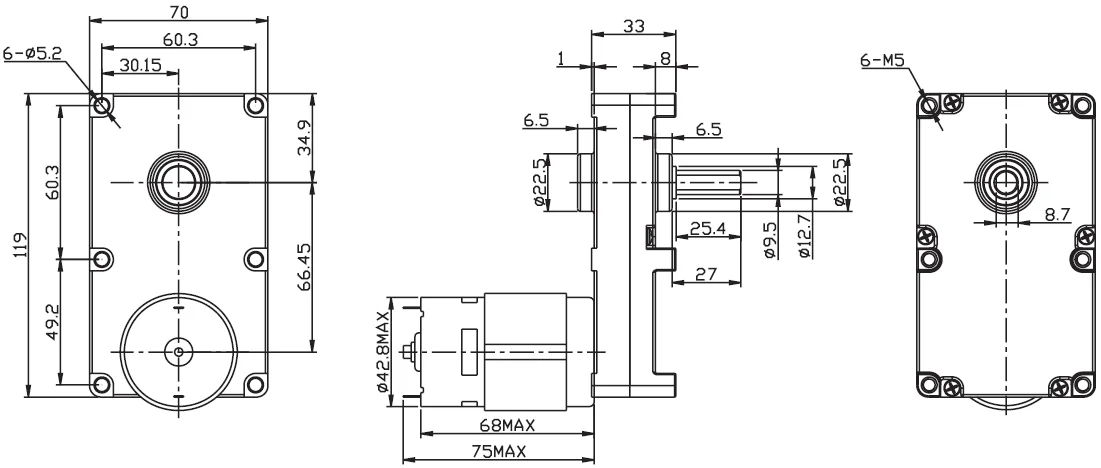

Appearance size:
Products Specification
Gearbox Data:
Number of stages | 3 | 4 | 5 |
Reduction ratio | 36,66,94 | 149,196,211,277,394 | 624,830,1166 |
Gearbox length “L”mm | 16 | 16 | 16 |
Breaking torque(kgf.cm) | 15 | 60 | 120 |
Gearbox efficiency | 73% | 65% | 59% |
Driving Motor Data:
Motor model | Rated Volt. | No load | Load | Stall | ||||||||||
Current | Speed | Current | Speed | Torque | Output power | Torque | Current | |||||||
V | mA | r/min | mA | r/min | gf.cm | W | gf.cm | mA | ||||||
DM-775-012-3000 | 12 | ≤280 | 3000 | ≤1300 | 2600 | 450 | 12.0 | ≥3600 | ≥8600 | |||||
DM-775-012-4500 | 12 | ≤450 | 4500 | ≤2100 | 3800 | 500 | 19.5 | ≥4600 | ≥16200 | |||||
DM-775-012-6000 | 12 | ≤680 | 6000 | ≤3600 | 5200 | 600 | 32.0 | ≥5600 | ≥27200 | |||||
DM-775-024-3000 | 24 | ≤120 | 3000 | ≤920 | 2200 | 500 | 11.3 | ≥2800 | ≥5100 | |||||
DM-775-024-4500 | 24 | ≤230 | 4500 | ≤1400 | 3800 | 500 | 19.5 | ≥4100 | ≥11000 | |||||
DM-775-024-6000 | 24 | ≤350 | 6000 | ≤2300 | 5100 | 600 | 31.4 | ≥5800 | ≥19000 | |||||
Gear Motor Data:
Motor model | Rated Volt. | No load | Load | Stall | ||||||||||
Current | Speed | Current | Speed | Torque | Output power | Torque | Current | |||||||
V | A | r/min | A | r/min | kgf.cm | W | kgf.cm | A | ||||||
DM-95SS7750246000-36K | 24 | 0.281 | 164.7 | 1.968 | 141.5 | 16 | 23.59 | 115 | 12.27 | |||||
DM-95SS7750123200-624K | 12 | 0.421 | 5.3 | 1.367 | 4.3 | 136 | 6.039 | 710 | 5.626 | |||||
