Водяное охлаждение газоэлектрическая гибридная мощность 16 л сельскохозяйственный беспилотный пестицидный Дрон
- Категория: Беспилотный летательный аппарат опрыскиватель >>>
- Поставщик: Shenzhen,TTF,Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.0 $* | 0.65 $* |
| Aug-15-2025 | 0.33 $* | 0.62 $* |
| Jul-15-2025 | 0.31 $* | 0.73 $* |
| Jun-15-2025 | 0.94 $* | 0.98 $* |
| May-15-2025 | 0.29 $* | 0.29 $* |
| Apr-15-2025 | 0.62 $* | 0.84 $* |
| Mar-15-2025 | 0.14 $* | 0.30 $* |
| Feb-15-2025 | 0.25 $* | 0.63 $* |
| Jan-15-2025 | 0.72 $* | 0.22 $* |
Характеристики

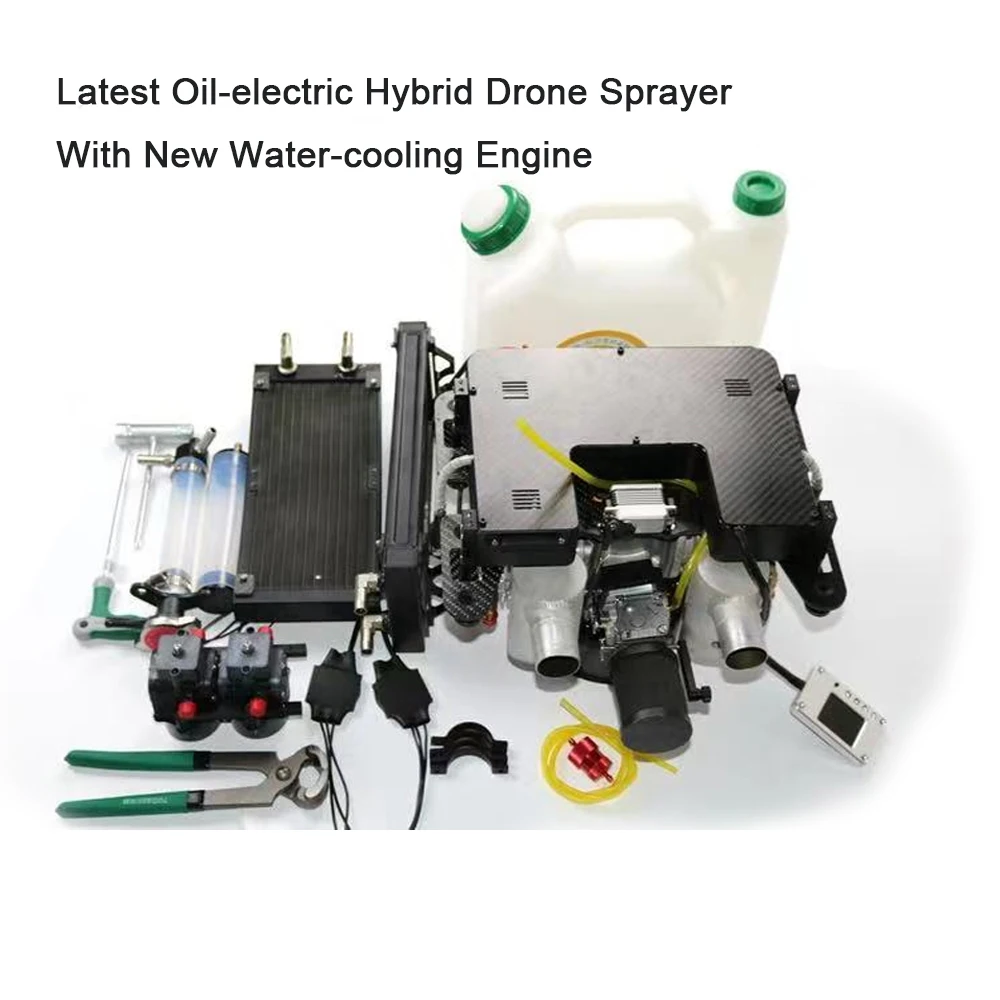

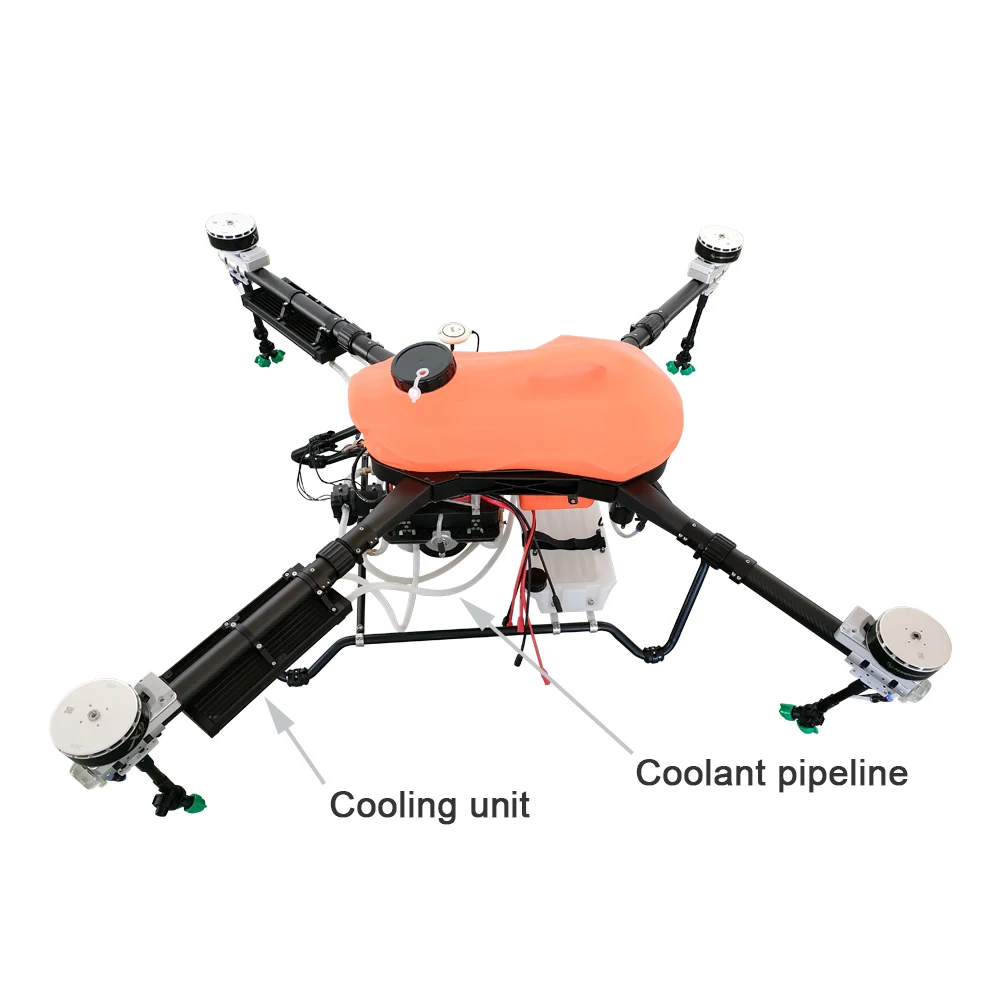

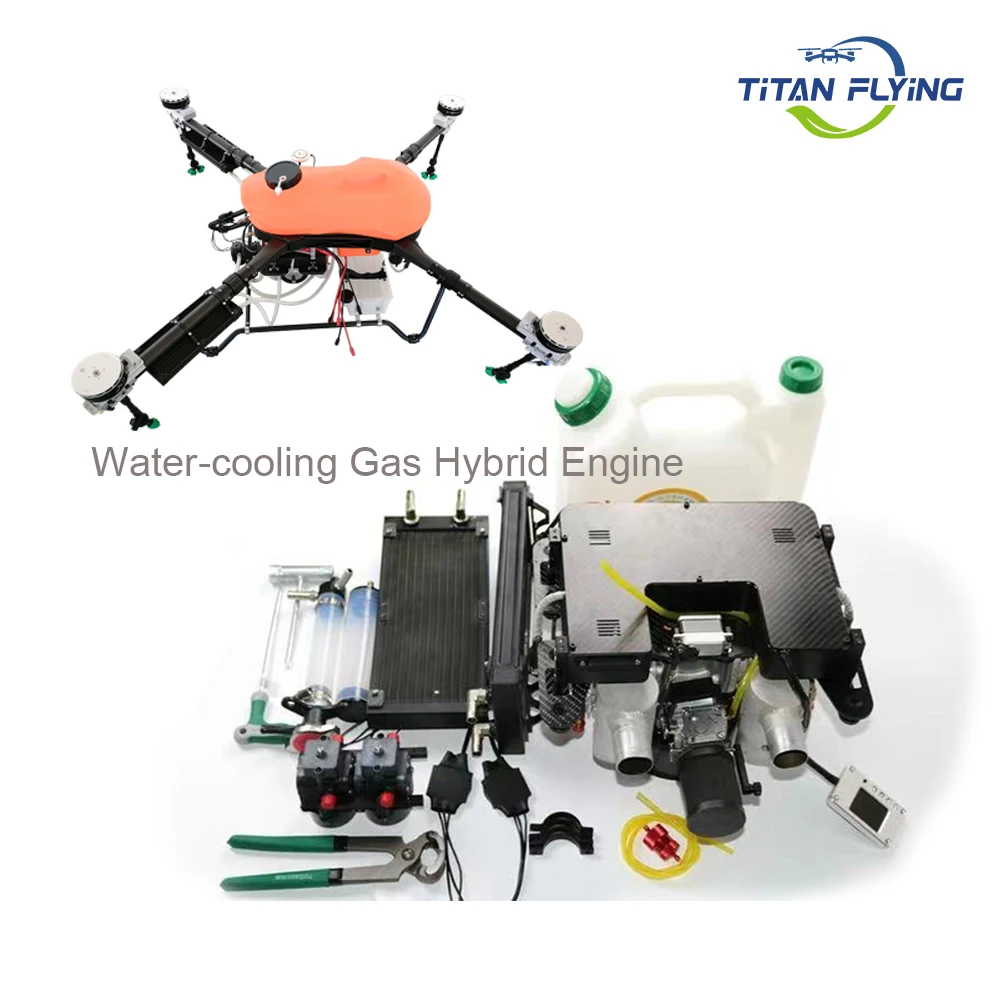

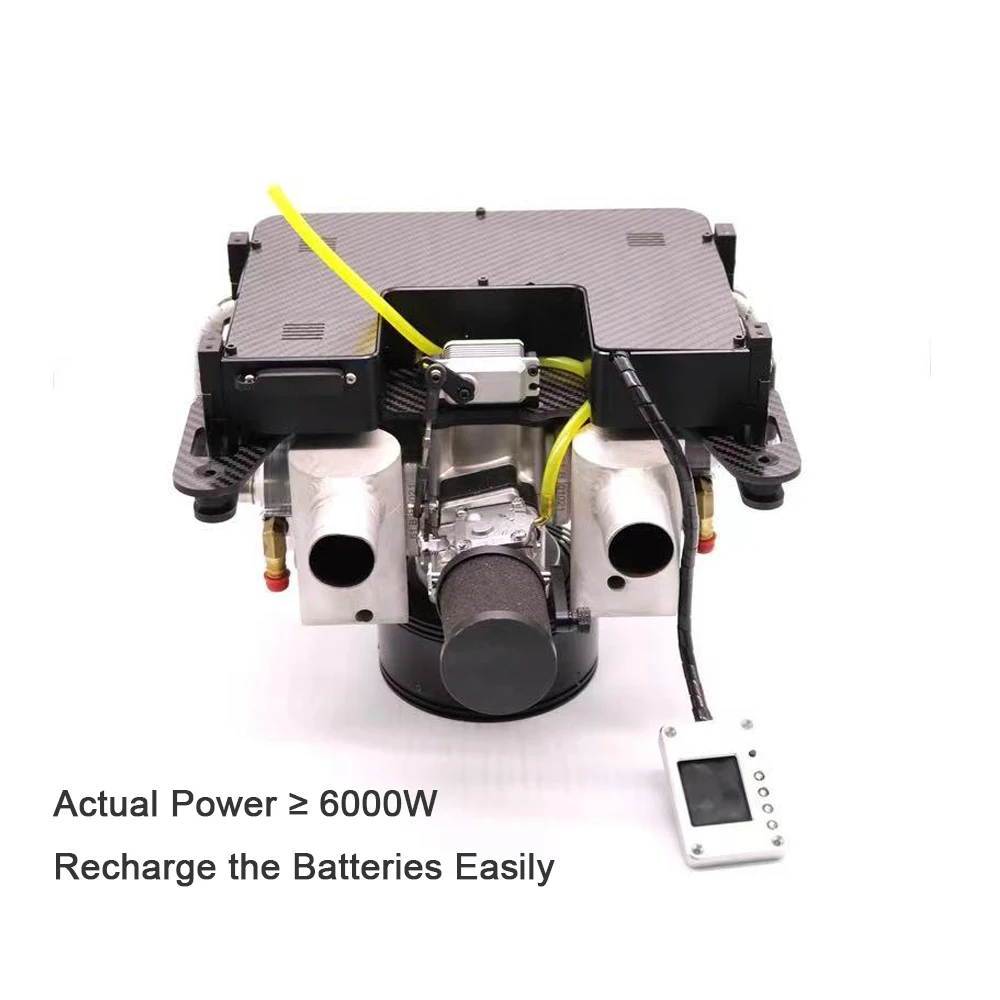

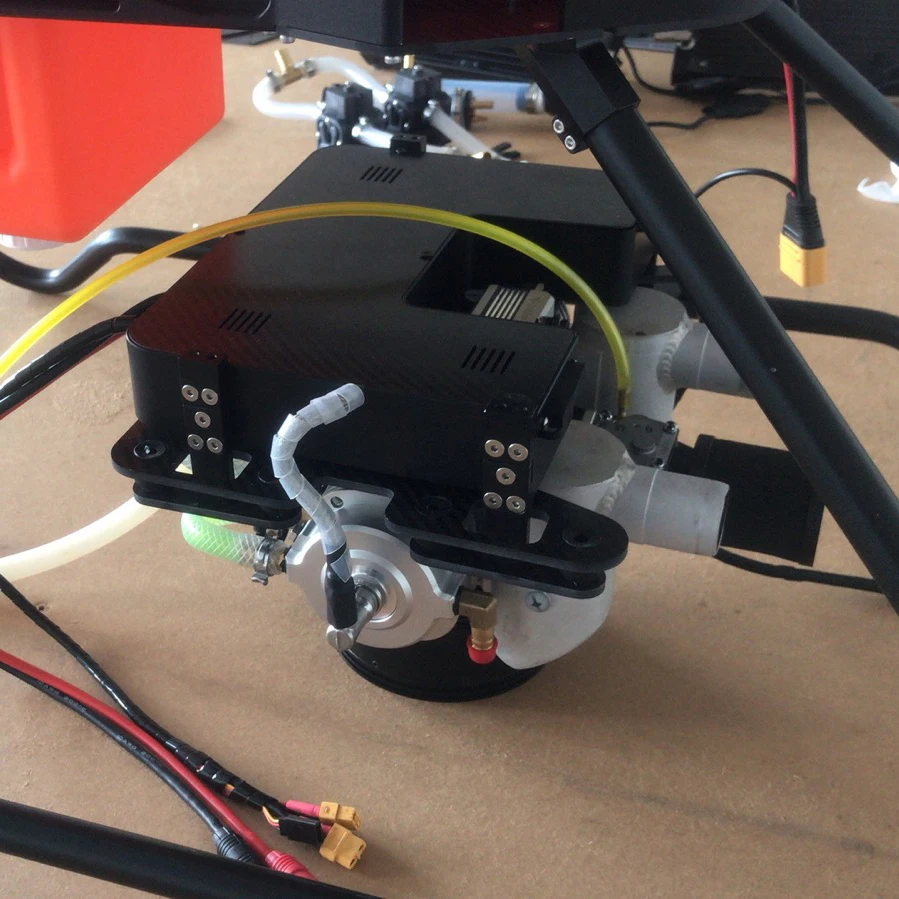

Water-cooling hybrid engine
The latest water cooling system can effectively control the temperature of high-power, high-speed engines.
When the temperature is too low, the cooling water system will automatically close the throttle valve to increase the oil temperature to achieve the best lubrication effect.
When the temperature is too high, the cooling water system will open the throttle valve to cool the engine to the best working temperature.
The latest water-cooling system keeps the engine always working in a suitable temperature range, enabling the UAV to reach higher power and effectively improve the UAV's performance.
Product Specification

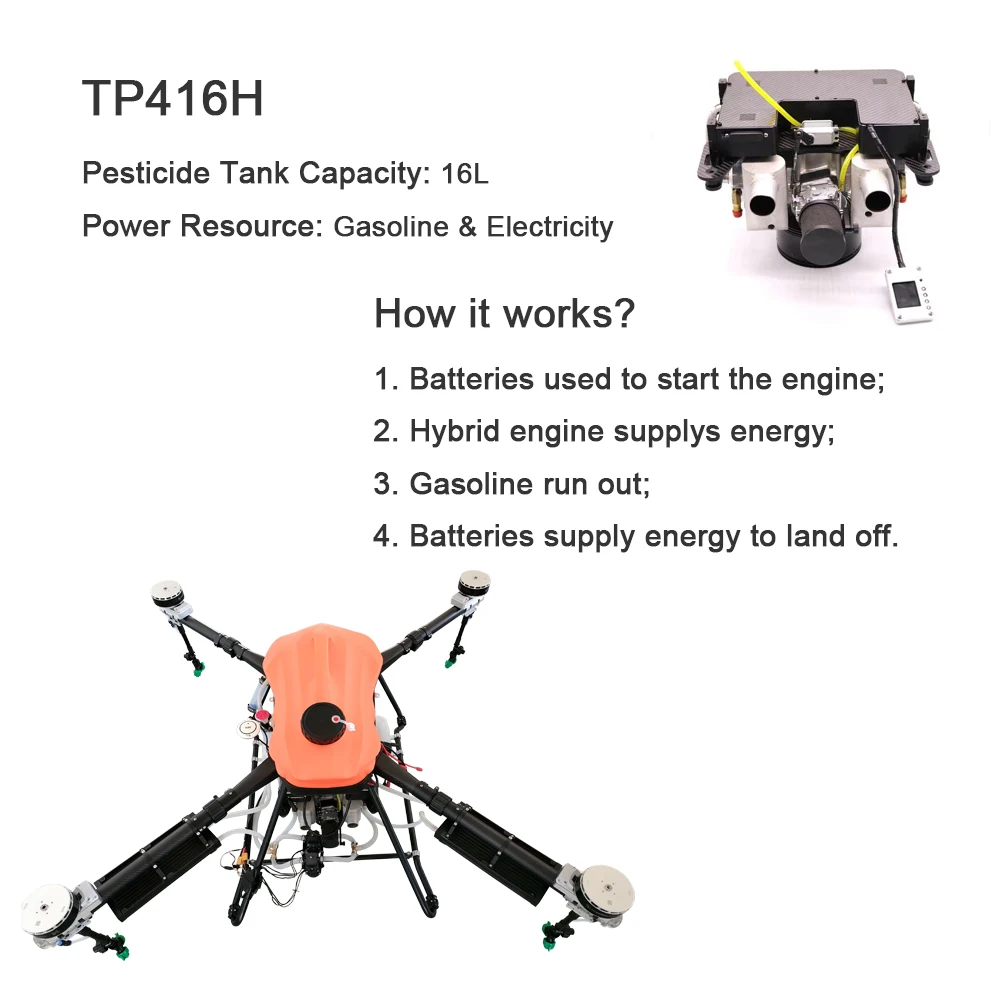

Water Cooling Gas-electric hybrid power 16L agricultural UAV pesticide drone agriculture sprayer | ||||||||
Aircraft | Diagonal wheelbase | 1500mm | ||||||
Dimensions(mm) | Propellers Folded Only: 1150*1150*590(H) Arms and Propellers Folded: 750*860*590(H) | |||||||
Material | Carbon Fiber and Aluminum Alloy | |||||||
Propulsion System | Power Supply | Gas-electric hybrid | ||||||
Motor | 10015-100KV | |||||||
ESC | FOC 120A | |||||||
Max working voltage | 50.4V | |||||||
Propeller size | 36inch | |||||||
Spraying System | Tank capacity | 16L | ||||||
Number of nozzles | 4 | |||||||
Spraying shape | Full Cone | |||||||
Max spray rate | 5L/min | |||||||
Theoretical operating efficiency (acres per hour) | 18 | |||||||
FPV Camera | FOV | 120° | ||||||
Resolution | 720P | |||||||
FPV spotlight | 900Im | |||||||
Flight Parameters | Self weight (excluding battery) | 25kg | ||||||
Standard take-off weight | 44kg | |||||||
Max take-off weight | 45kg | |||||||
Battery / Quantity needed | 6S 10,000mAh*2 | |||||||
Battery weight (each) | 1kg | |||||||
Hovering duration | 60mins (Takeoff weight of 25kg) 20mins (Takeoff weight of 45kg) | |||||||
Max tilt angle | 15° | |||||||
Standard spraying speed (meters per second) | 5m/s | |||||||
Max spraying speed (meters per second) | 7m/s | |||||||
Max flying speed (meters per second) | 10m/s | |||||||
Environment temperature | 0-40℃ (32-104℉) | |||||||
Remote Controller | Model | T12 | ||||||
Voltage | 4.2V | |||||||
Control Distance | 2km | |||||||
Charger | Model | PC1080 | ||||||
Input voltage | AC100-240V | |||||||
Output power | 1080W (540W*2) | |||||||
*Batteries and charger are not included in the bundle.
Our Package
In Tradition
Manual Sprayer
1. Inefficiency
2. High cost on labour
3. Harmful to health
Tractor Sprayer
1. Inflexible
2. Damage to the ground
3. Unsuitable for fields with rugged terrain
4. Unsuitable for rice fields
Aviation
1. Unsuitable for spraying area less than 100 hectares
2. Licenses needed
3. Government's permission needed
4. High cost
Advantages of Agricultural Drone Sprayer
1. High efficiency: the efficiency of spraying is 40-60 times better than other traditional methods.
2. Safe for health: people can control the drone to spray by connecting their phone to the remote control through the app.
3. Zero touch: drone sprayer won’t firm the soil or move over plants.
4. Flexible: applies to all types of field without any restriction.
5. Convenient: able to take-off from everywhere, landing everywhere.
6. Easy to operate: no need for driving licenses.
7. Lowest cost of labour: one person is enough to finish all spraying job.
Why you should choose TTF
We focus on drones
TTF Technology is a high-tech enterprise and professional Aero-Model manufacturer that unifies product design, research development, production, marketing and customer service. Our main products are UAV, including professional drones and consumer drones, as well as DIY components for drones. We has more than 20 years' experience on mechanical processing.
We have our own factory
We have a whole machining industry chain. All our products, from the materials processing to completed products, were manufacture red by ourselves. Thus, the quality and the consistency can be well controlled and always be the top of the industry. Besides the standard edition, we also supply customer-exclusive edition, which has its own SN for each product (Support all your requests).
We have rich overseas sales experience
Established in 2015, our company has been dealing with overseas marketing from the very beginning. Our products are sold into many countries. We are familiar with the customs, laws and agriculture situations of each country. And besides, we have many well-cooperated shipping agencies, who can arrange delivery to all over the world, without any issues.
Titan Flying in exhibitions
The Saigon Exhibition & Convention Center-SECC (2019)
The 15th China Asean Expo
Our Customers came to visit the factory
FAQ
Q1. Can I make a sample order for agriculture drone?
A: Yes, we welcome sample order to test and check out quality. Different samples in an order are acceptable.
Q2. What about the lead time?
A:Sample needs 7-10 days.
Q3. Do you have any MOQ limit for drone?
A: We don't have any MOQ, 1piece is acceptable.
Q4. How do you ship the order and how long does it take to arrive?
A: We usually ship by air transportation. It takes around 7-12 days to arrive in most situations. Sea transportation is also available.
Q5. How to make an order for drone?
Step1: Let us know your requirements.
Step2: We quote according to your requirements or our suggestions.
Step3: Customer confirms the order and places deposit for formal order.
Step4: We arrange the production.
Q6. Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
If you have any issues, please do not hesitate to contact our sales team.
We are more than willing to serve you.
