Уровень 1 Sola Risen Energy подойдет как для повседневной носки так PERC 400 W панели солнечных батарей Ватт высокопроизводительная ES Solares
- Категория: Solar Panels >>>
- Поставщик: S,K,Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.60 $* | 0.54 $* |
| Aug-16-2025 | 0.54 $* | 0.98 $* |
| Jul-16-2025 | 0.50 $* | 0.47 $* |
| Jun-16-2025 | 0.69 $* | 0.46 $* |
| May-16-2025 | 0.50 $* | 0.67 $* |
| Apr-16-2025 | 0.62 $* | 0.50 $* |
| Mar-16-2025 | 0.70 $* | 0.30 $* |
| Feb-16-2025 | 0.66 $* | 0.11 $* |
| Jan-16-2025 | 0.43 $* | 0.74 $* |
Характеристики
Products Description
ELECTRICAL DATA(STC) RSM144-395M-420M | ||||||||||||
Model Number | RSM144-6-395M | RSM144-6-400M | RSM144-6-405M | RSM144-6-410M | RSM144-6-415M | RSM144-6-420M | ||||||
Rated Power in Watts-Pmax(Wp) | 395 | 400 | 405 | 410 | 415 | 420 | ||||||
Open Circuit Voltage-Voc(V) | 48.45 | 48.6 | 48.75 | 48.9 | 49 | 49.1 | ||||||
Short Circuit Current-lsc(A) | 10.4 | 10.5 | 10.6 | 10.7 | 10.8 | 10.9 | ||||||
Maximum Power Voltage-Vmpp(V) | 40.35 | 40.45 | 40.55 | 40.65 | 40.7 | 40.8 | ||||||
Maximum Power Current-lmpp(A) | 9.8 | 9.9 | 10 | 10.1 | 10.2 | 10.3 | ||||||
Module Efficiency (%) | 19.7 | 19.9 | 20.2 | 20.4 | 20.7 | 20.9 | ||||||
Temperature Coefficient of Voc | -0.29%/°C | |||||||||||
Temperature Coefficient of Isc | 0.05%/°C | |||||||||||
Temperature Coefficient of Pmax | -0.37%/°C | |||||||||||
Operational Temperature | -40°C~+85°C | |||||||||||
Maximum System Voltage | 1500VDC | |||||||||||
Max Series Fuse Rating | 20A | |||||||||||
Limiting Reverse Current | 20A | |||||||||||
STC: Irradiance 1000 W/m2, Cell Temperature 25°C, Air Mass AM 1.5 according to EN 60904-3. ★ Module Efficiency (%): Round-off to the nearest number | ||||||||||||
Product Details
*Anti-reflective glass
*High-transmittance and low reflection Increase model efficiency *High mechanical strength
Solar Cell
*High model efficiency up to 20%
*High shunt-resistance: adapt the several environmental conditions
*High PID resistant
* Low breakage rate
*Uniform color
*High PID resistant
* Low breakage rate
*Uniform color
*Optional silvery or black frame
* Tensile Strength Frame
*Boost bearing capability and prolong service life
* Tensile Strength Frame
*Boost bearing capability and prolong service life
Junction Box
*Waterproofness Junction Box
*Innovative Full-Glue-Filled Combination of series circuit and parallel circuit, reduced internal power loss Quality diode ensures module running safety
*Heat dissipation
*Long service life
*Innovative Full-Glue-Filled Combination of series circuit and parallel circuit, reduced internal power loss Quality diode ensures module running safety
*Heat dissipation
*Long service life
Production & QC
After setting up the program according to the requirements of the process drawings, the typesetting machine will automatically
typeset the battery string. High precision, high efficiency, low defect rate
typeset the battery string. High precision, high efficiency, low defect rate
Use automatic welding machine to connect solar cells in series
All the solar cells are made by top class brand, like TW Solar, Longi Solar
Automatic laying of EVA, backing, automatic cutting of excess backing material 100% automation of the entire production process
Ensure Colour and Power Difference.
Ensure high yields,consistent performance and durability,
First of 52 steps strict quality control and inspection process.
Ensure high yields,consistent performance and durability,
First of 52 steps strict quality control and inspection process.
Through the turning machine, completely inspect the solar panel after lamination, and record the defects and feedback to the
previous process
previous process
Ensure 3% Positive Power Tolerance
Comprehensive QC information management system with barcode ID.Quality traceable system in place to allow quality data flow constantly.
Comprehensive QC information management system with barcode ID.Quality traceable system in place to allow quality data flow constantly.

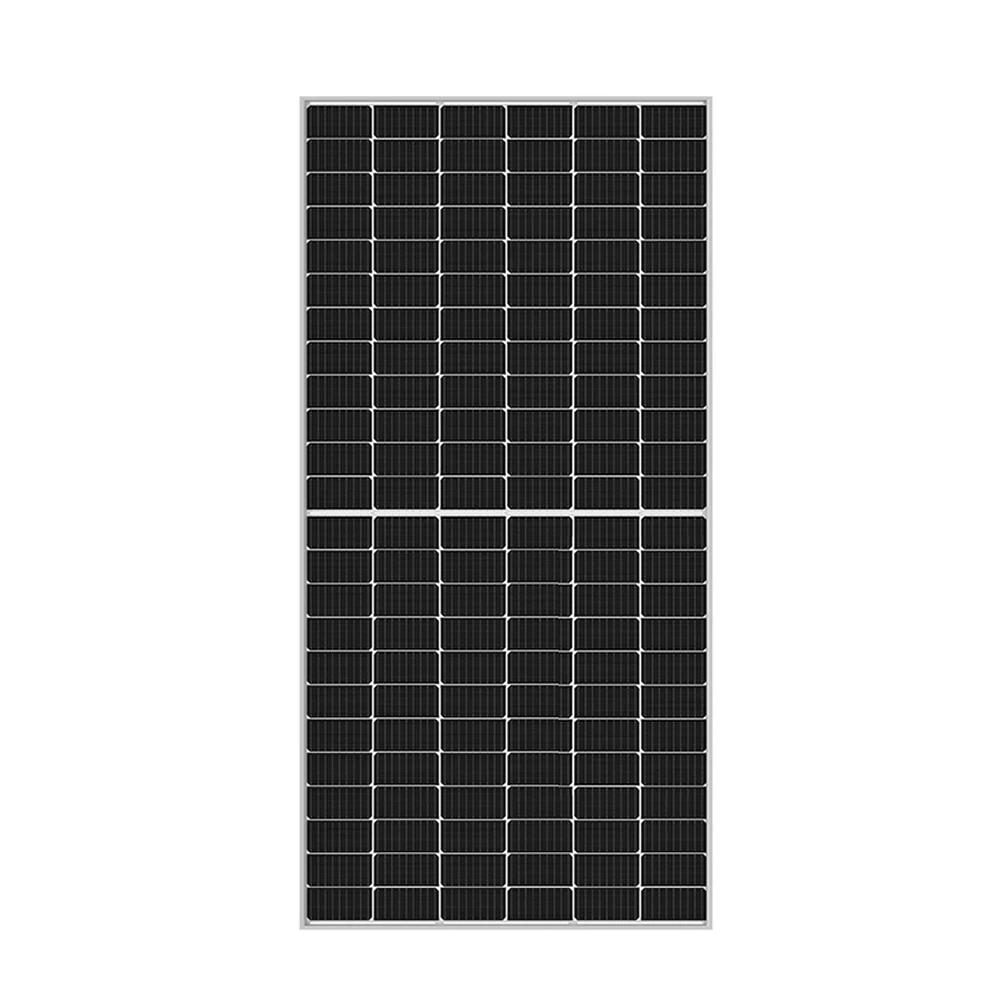

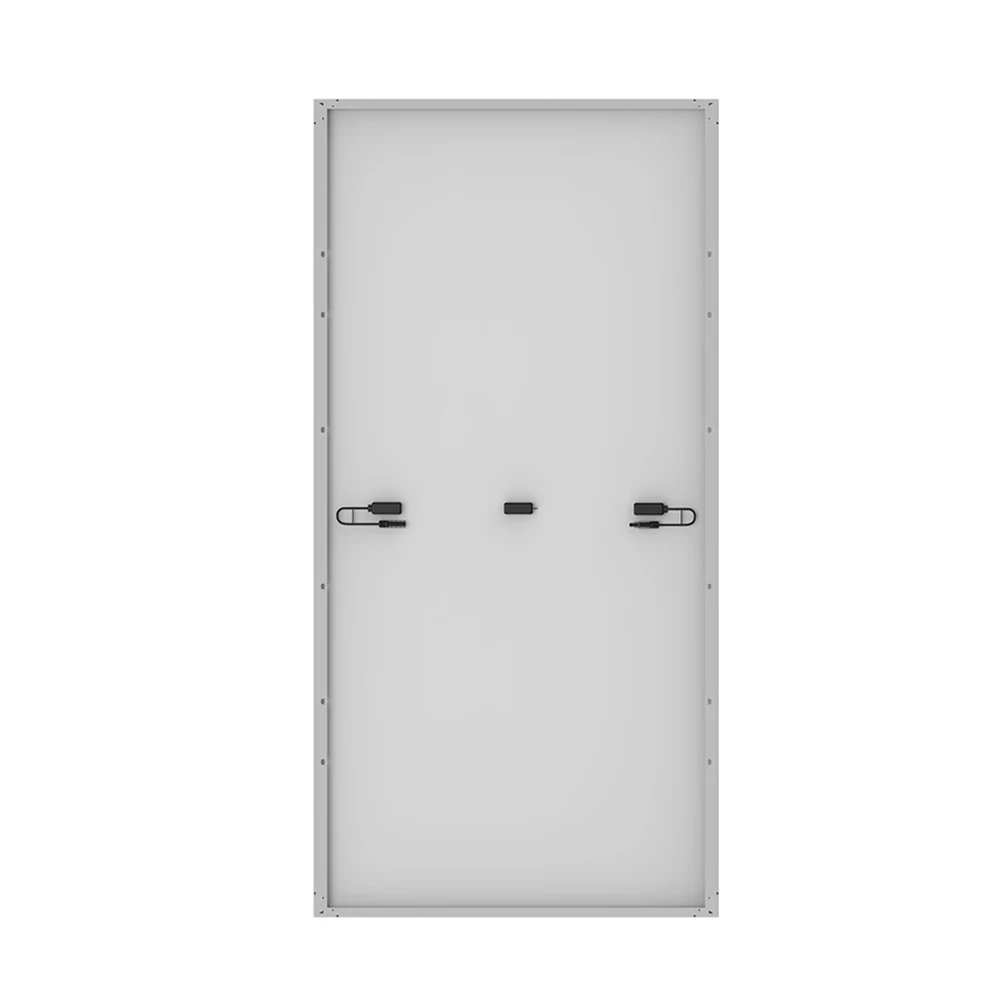

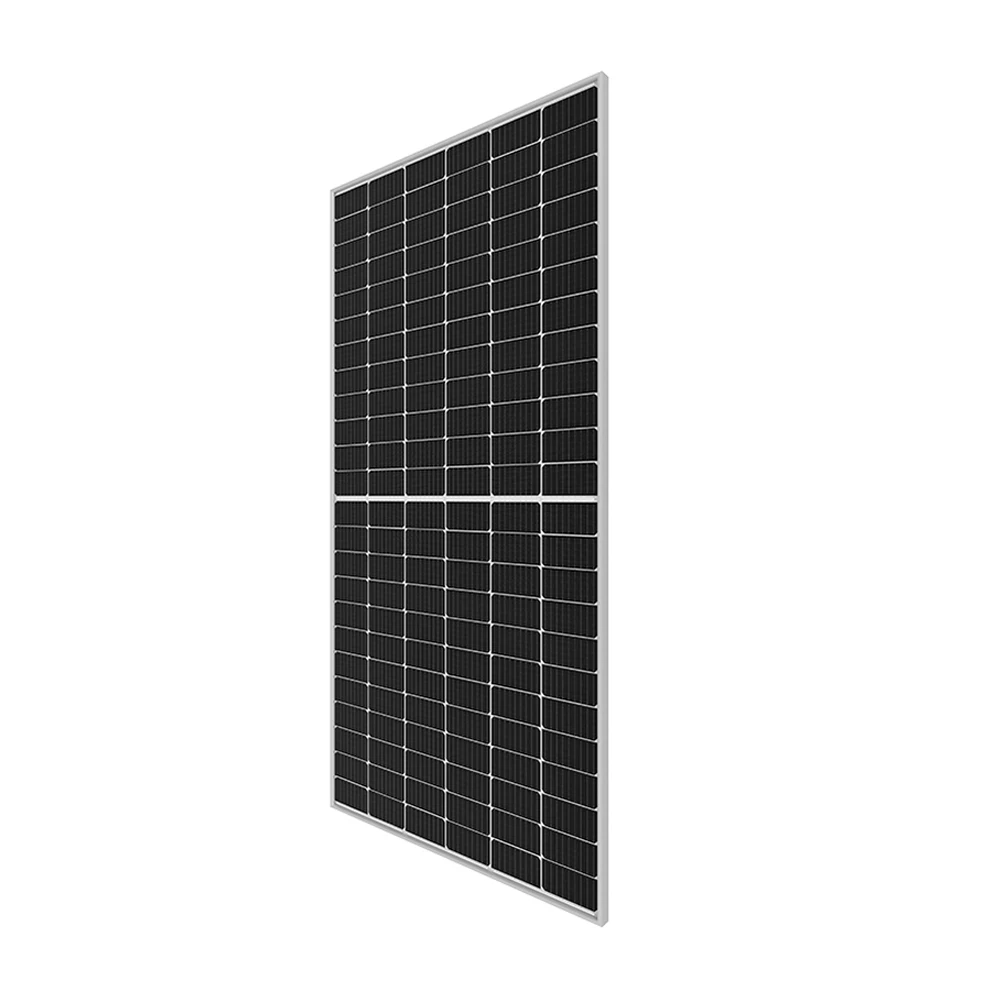

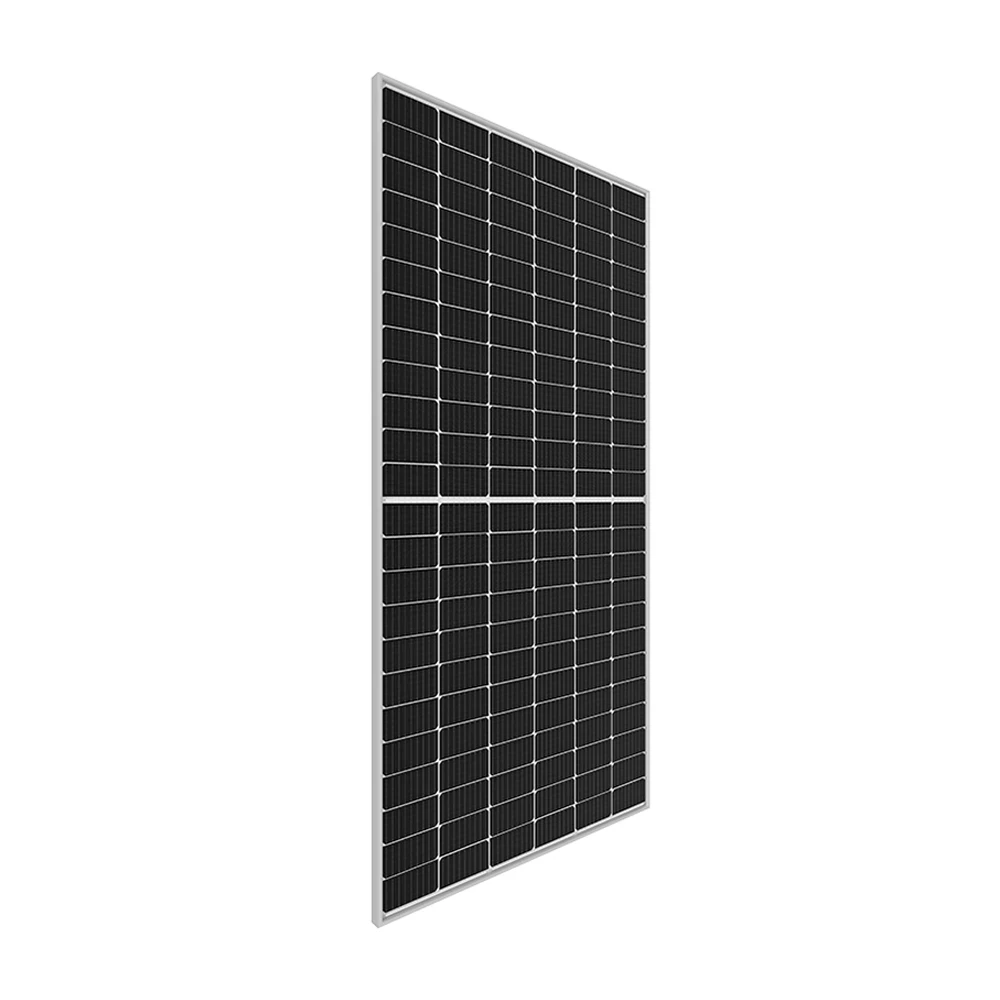

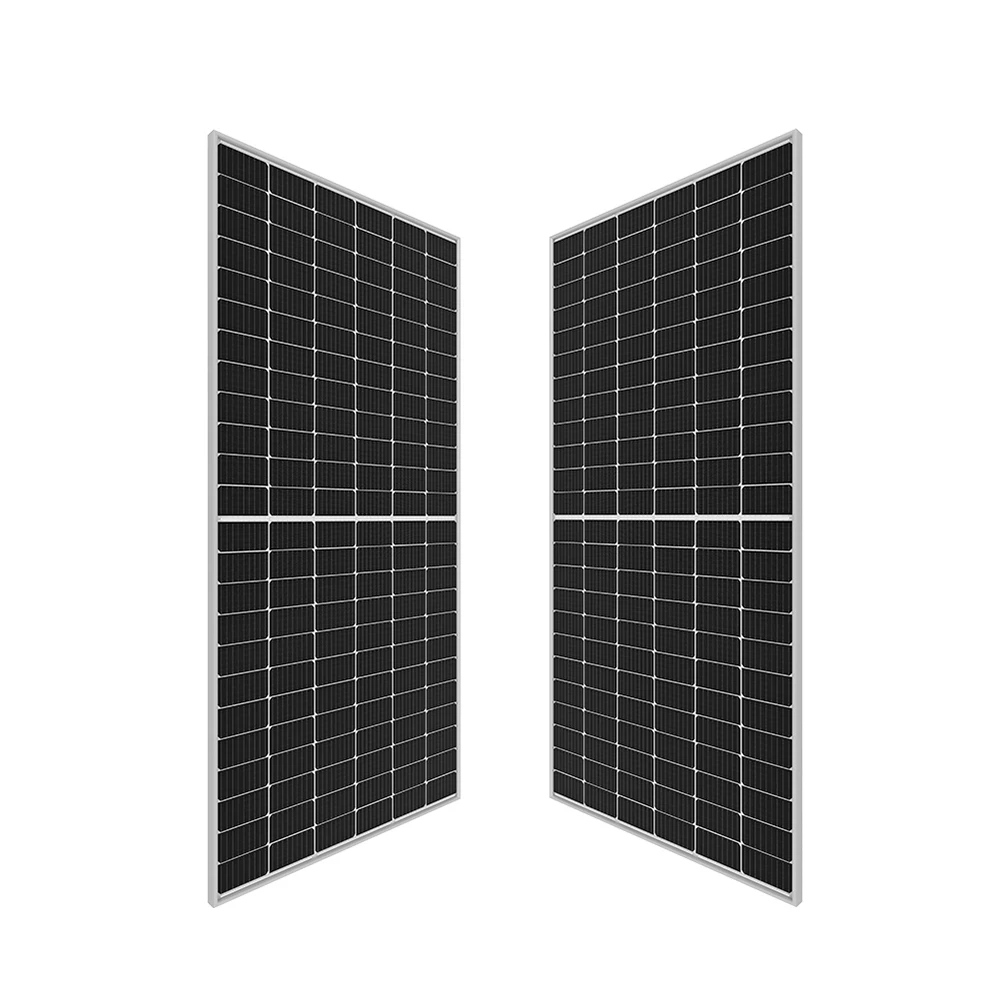

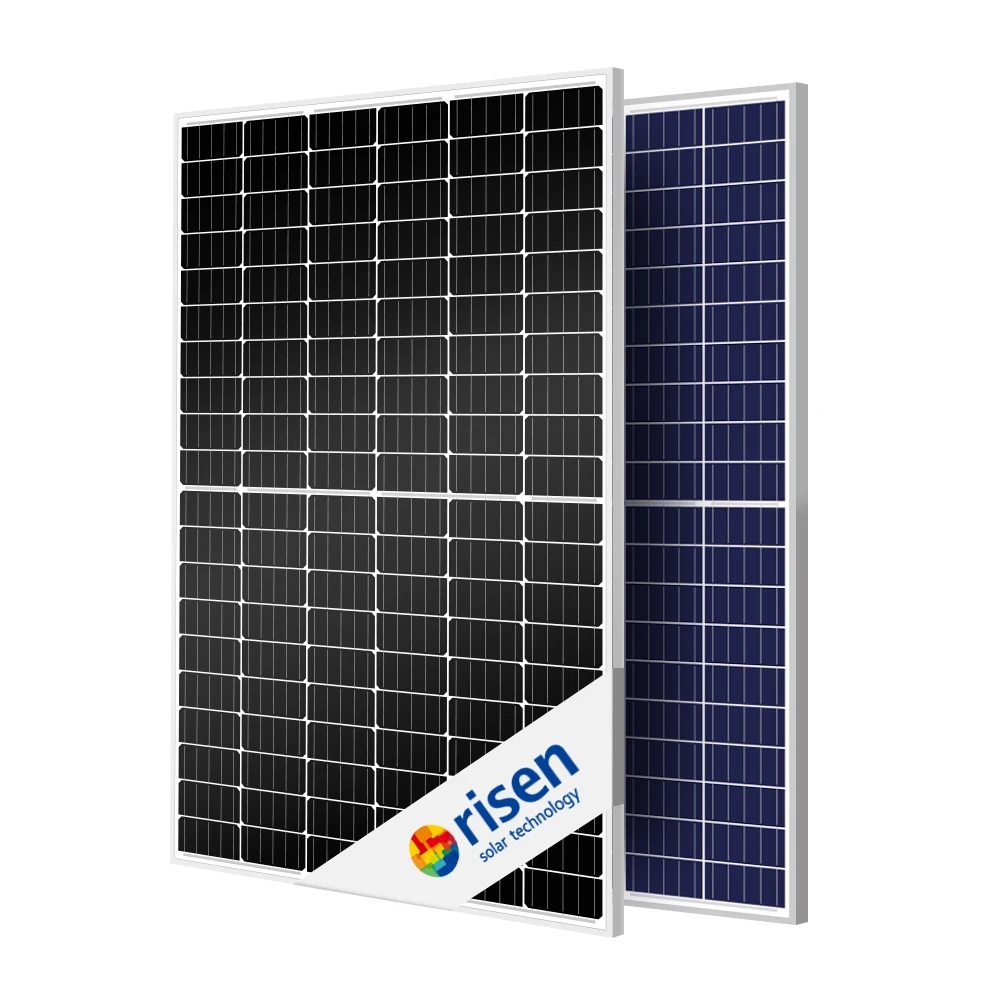

Product Display
Product packaging
Certifications
