Трубогиб для труб EMT 20 25 32 мм
US $150.00-$220.00
38CNC тележка колесо barrow стул оправка круглый квадратный Автоматический трубогибочный
- Категория: Pipe and Tube Bending Machines >>>
- Поставщик: Anhui,Sanxin,Heavy,Industry,Machinery,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 5058.61 $* | 5311.68 $* |
| Aug-19-2025 | 5015.5 $* | 5266.18 $* |
| Jul-19-2025 | 4208.67 $* | 4418.54 $* |
| Jun-19-2025 | 4930.23 $* | 5177.22 $* |
| May-19-2025 | 4293.79 $* | 4508.23 $* |
| Apr-19-2025 | 4845.83 $* | 5087.3 $* |
| Mar-19-2025 | 4803.14 $* | 5043.57 $* |
| Feb-19-2025 | 4760.32 $* | 4998.19 $* |
| Jan-19-2025 | 4718.40 $* | 4954.54 $* |
Характеристики

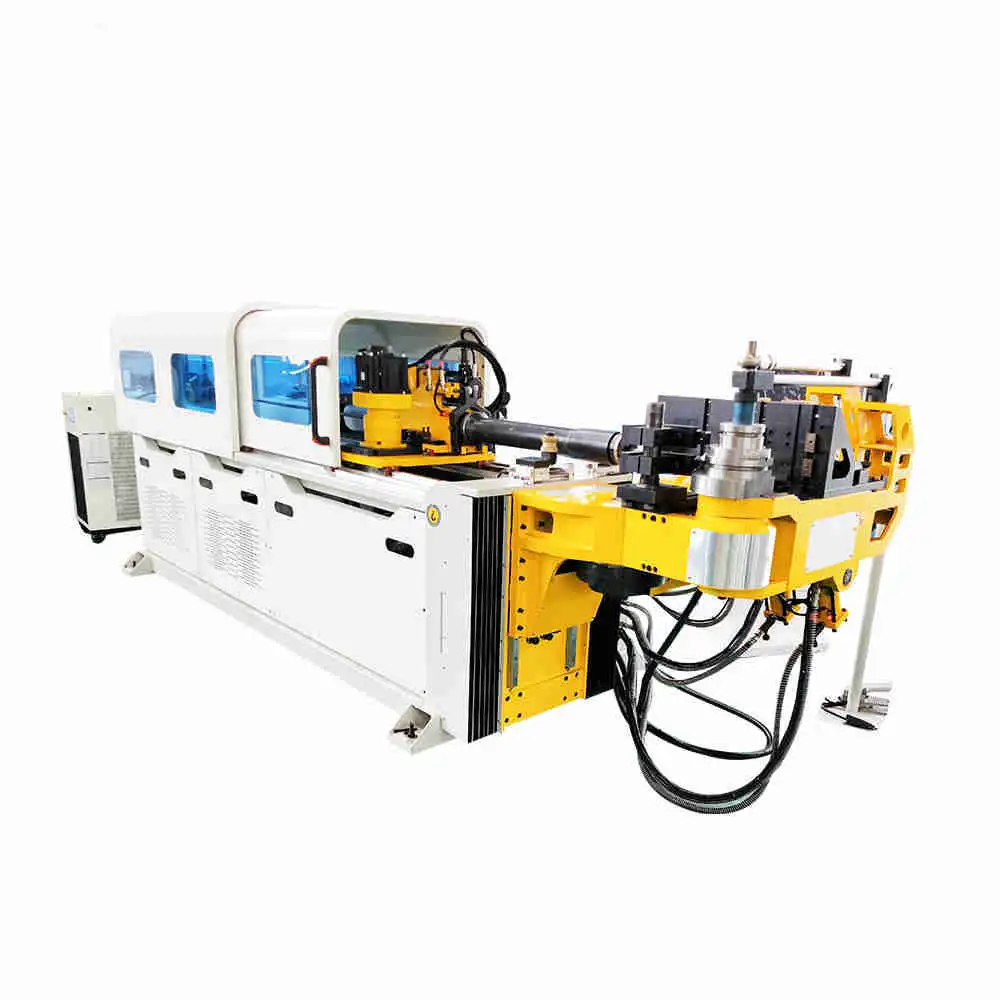

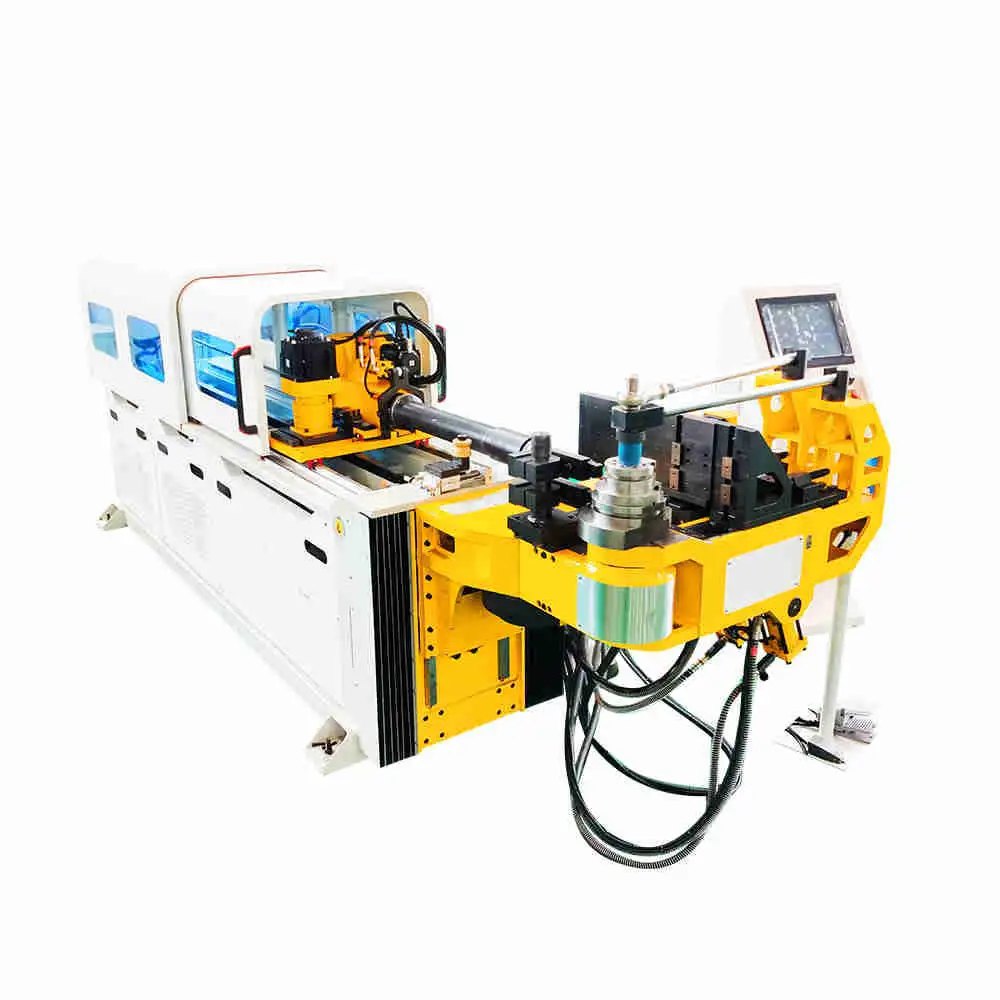

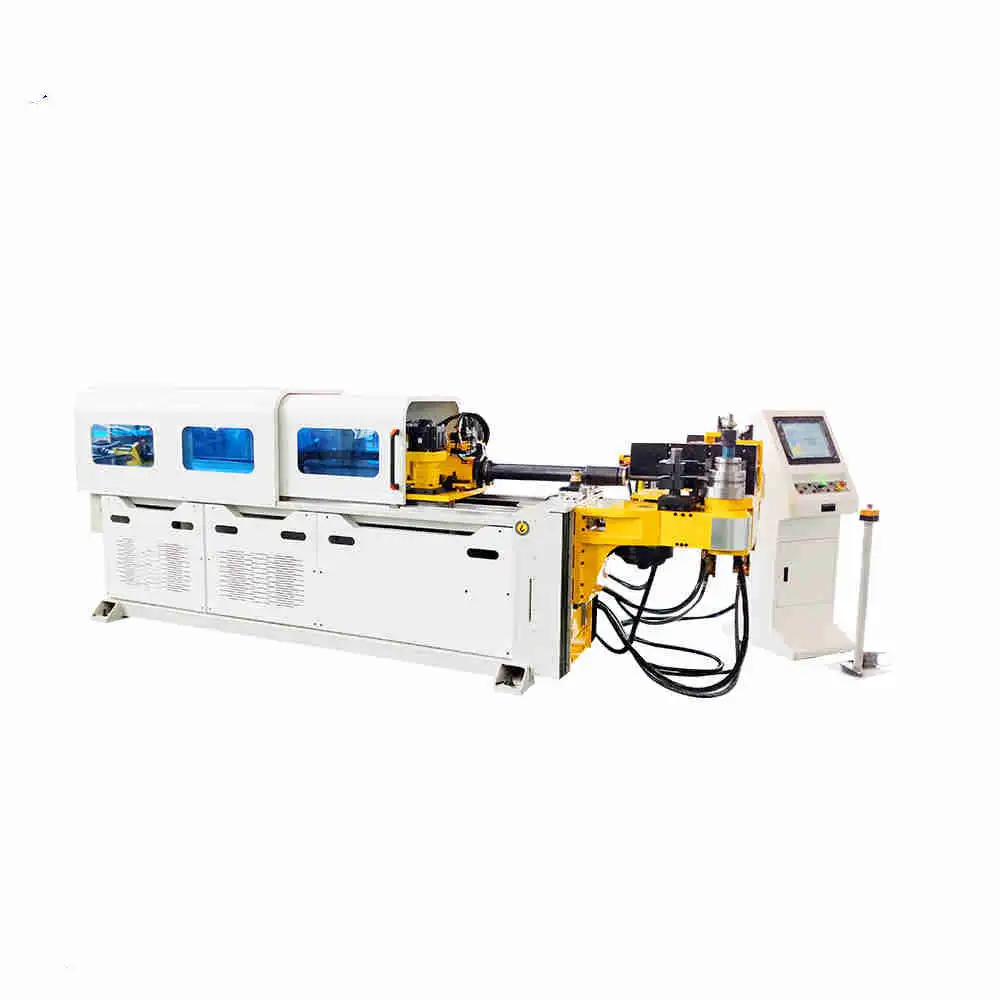

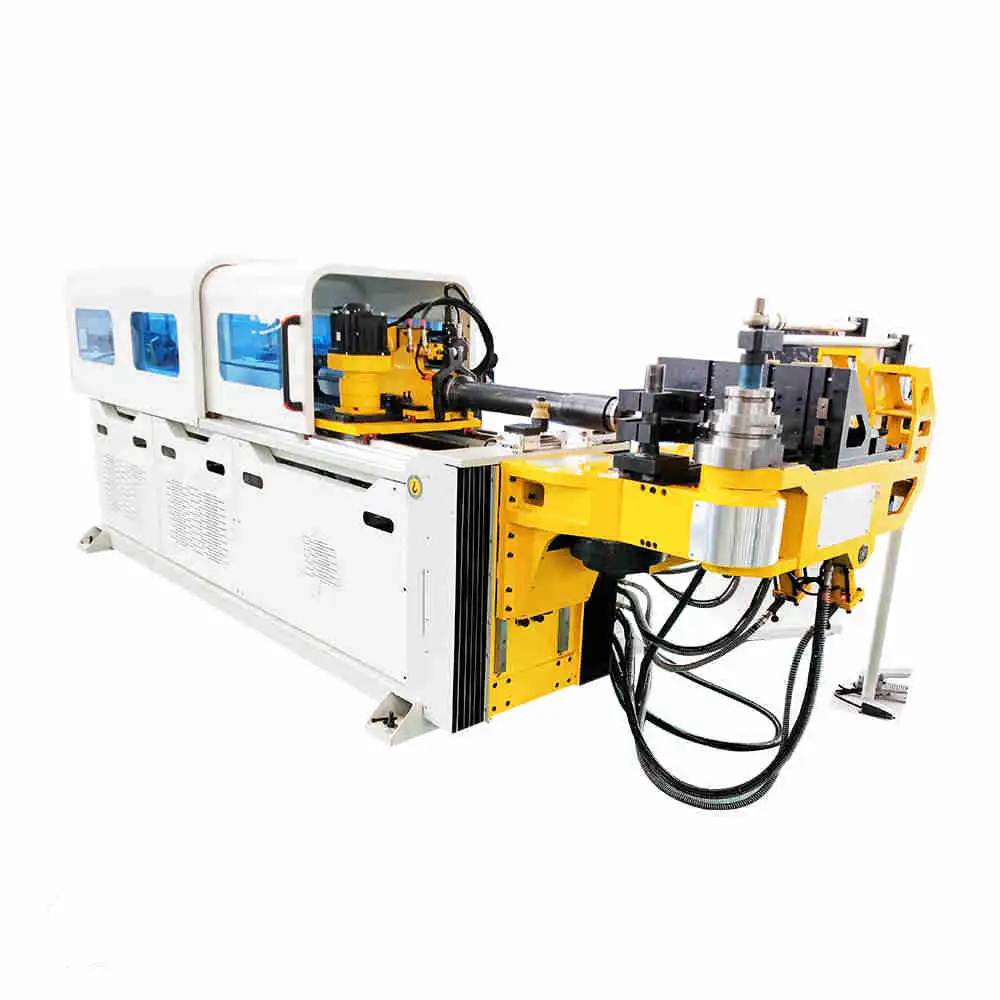

38CNC trolley wheel barrow chair mandrel round square automatic pipe bending machine
trolley wheelbarrow CNC pipe bending machine
Performance Of CNC Tube Bending Machine
1-1 Bending pipe with servo motor drive, high precise bending angle and compensation value.
1-2 Corner and feeding is drived by servo motor, high efficiency, accurate bending angle and feeding.
1-3 It is very suitable for many spatial angles and high-requirement of precision, E.G. processing for oil tube of car, air conditional tube, frame of bicycle and motorcycle etc.
1-4 With automatic detection error and fault function, and in the screen display, so that the operator can be easy to removeobstacles.
1-5 Each bending pipe can set the compensation value, speed, release gap according to different materials
Product Overview
CNC Pipe Bending Machine
Bending pipe by electric, feeding pipe by electric, rotating pipe by electric, clamping pipe by hydraulic, mandrel shift by hydraulic. Touch screen with English or any other language, PLC controller (Windows XP Industry PC as optional). Fan / water / oil cooling for your choice. With auto lubrication function. Electric and hydraulic parts from Japan, France and GermanyFEATURES AT A GLANCE
1.The computer system for forestry industry has the function of 3D interference inspection.
2.The machine can be connected to a robot and a three-dimensional measuring instrument.
3.The input pipe fittings data can be directly used to generate 3D stereo images, and can simulate the forming process of the pipes, previewing the pipes forming graphics.
DW38CNC DW50CNC big pipe bending machine for trolley ，wheelbarrow， Baby carriage
Size information
Model | 38CNC-2A-1S | 50CNC-2A-1S | 63CNC-2A-1S | 76CNC-2A-1S |
Max Capacity | ￠38.1 (1.5”)×2mm | ￠50.8 (2”)×2mm | ￠63.5 (2.5”)×4mm | ￠76.2 (3”)×5mm |
Bending Degree | 0-190° | 0-190° | 0-190° | 0-190° |
Bending Radius | 10-200mm (for machine) | 15-250mm (for machine) | 20-300mm (for machine) | 25-350mm (for machine) |
Min Bending Radius | R≥1.5D (for pipe) | R≥1.5D (for pipe) | R≥1.5D (for pipe) | R≥1.5D (for pipe) |
Mandrel Length | 2300mm (can be customized) | 2500mm(can be customized) | 3000mm(can be customized) | 3200mm(can be customized) |
Max Bending Speed | 90°/s | 65°/s | 60°/s | 45°/s |
Bending Accuracy | ±0.1° | ±0.1° | ±0.1° | ±0.1° |
Motor Power | 4 Kw | 5.5 Kw | 7.5 Kw | 7.5 Kw |
Model | 89CNC-2A-1S | 114CNC-2A-1S | 129CNC-2A-1S | 168CNC-2A-1S |
Max Capcity | ￠89 (3.5”)×8mm | ￠114 (4.5”)×8mm | ￠129(5”)×12mm | ￠168(6.5”)×16mm |
Bending Degree | 0-190° | 0-190° | 0-190° | 0-190° |
Bending Radius | 30-450mm (for machine) | 40-550mm (for machine) | 50-650mm (for machine) | 60-850mm (for machine) |
Mini Bending Radius | R≥1.5D (for pipe) | R≥1.5D (for pipe) | R≥1.5D (for pipe) | R≥1.5D (for pipe) |
Mandrel Length | 3800mm(can be customized) | 4500mm(can be customized) | 4600mm(can be customized) | 6500mm(can be customized) |
Max Bending Speed | 40°/s | 25°/s | 20°/s | 10°/s |
Bending Accuracy | ±0.1° | ±0.1° | ±0.1° | ±0.1° |
Motor Power | 11 Kw | 15 Kw | 18.5 Kw | 22 Kw |
Products Description
Servo Motor
Corner and feeding is drived by servo motor, high efficiency, accurate bending angle and feeding
Main Components for Cnc tube bender
1.Touch Screen: Taiwan Weiview
2.PLC: Japan
3.Servo motor: Japan
4.Valve: Japan Yuken
Corner and feeding is drived by servo motor, high efficiency, accurate bending angle and feeding
Main Components for Cnc tube bender
1.Touch Screen: Taiwan Weiview
2.PLC: Japan
3.Servo motor: Japan
4.Valve: Japan Yuken
Main Features
Name: ELECTRICS
BRAND: SCHNEIDER
Original: FRANCE
Wordwide famous brand, with high quality, high stability.
Name: ELECTRICS
BRAND: SCHNEIDER
Original: FRANCE
Wordwide famous brand, with high quality, high stability.
Main Features
Name:SERVO MOTOR
Brand: MITSUBISHI
Original: JAPAN
Wordwide famous brand, with high quality, high stability.
Name:SERVO MOTOR
Brand: MITSUBISHI
Original: JAPAN
Wordwide famous brand, with high quality, high stability.
Toolings and samples
Tools can be customized according to customer's products.
The tools has been blackened and heat treated.
