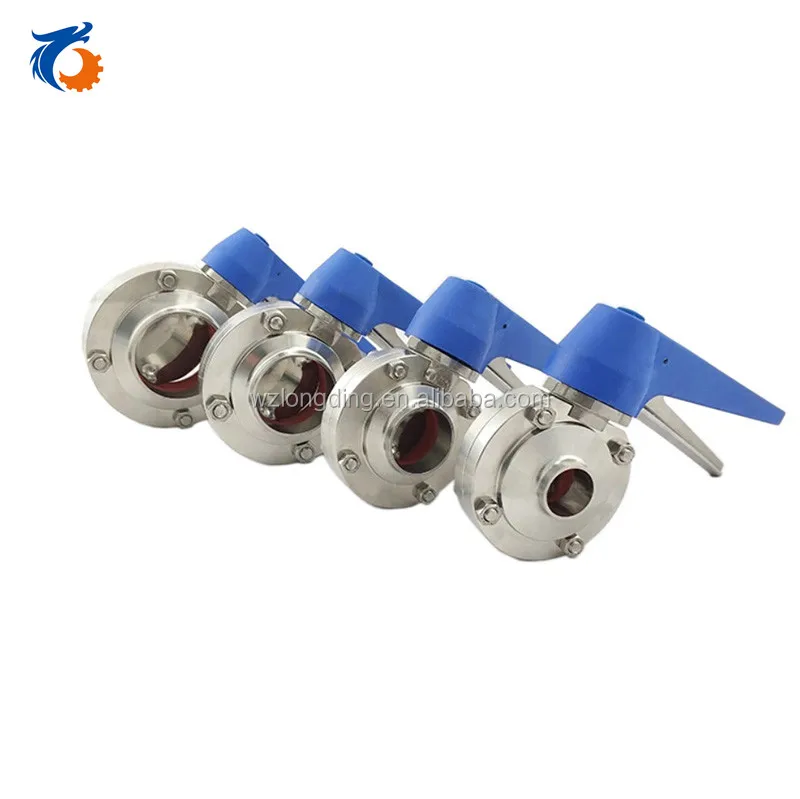

Санитарный тройной зажим из нержавеющей стали клапан-бабочка пищевого класса с различными типами
- Категория: Дроссельные клапаны >>>
- Поставщик: Wenzhou,Longding,Valve,Pipe,Fitting,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.39 $* | 0.93 $* |
| Aug-18-2025 | 0.95 $* | 0.5 $* |
| Jul-18-2025 | 0.37 $* | 0.71 $* |
| Jun-18-2025 | 0.30 $* | 0.44 $* |
| May-18-2025 | 0.29 $* | 0.91 $* |
| Apr-18-2025 | 0.22 $* | 0.72 $* |
| Mar-18-2025 | 0.61 $* | 0.66 $* |
| Feb-18-2025 | 0.12 $* | 0.83 $* |
| Jan-18-2025 | 0.33 $* | 0.75 $* |
Характеристики
Company Profile
Wenzhou Longding Valve Pipe Fitting Co., Ltd., located in Wenzhou, is a reliable and professional factory which mainly involve in producing of steel pipes, valves, pumps, fittings, flanges, and some other steel products. Our products are widely used in chemical, petroleum ,electric power, pharmacy, beer, food, dairy beverage, cosmetic and engineering supporting industrial pipeline fields, which are well exported to Europe, America, Asia.
Product Description
Concept
A butterfly valve is a type of flow control device, used to make a fluid start or stop flowing through a section of pipe.It is well applied to stainless steel pipe systems for food, beverage, dairy, brewing, pharmaceutical, biopharmaceutical and chemical industries.
Working Principle
Butterfly valves are valves with a circular body and a rotary motion disk closure member which is pivotally supported by its stem.
Buterfly valve is either remote-controlled by means of an actuator or manually operated by means of a handle.
The handle for manual operation mechanically locks the valve in its full open, half open and closed position. By rotating the handle, the motion disk either parallel or perpendicular to the flow of water, shutting off the flow.
The actuator is designed so that an axial movement of a piston is transformed into a 90° rotation of a shaft. The torque of the actuator is increased when the valve disc contacts the seal ring of the butterfly valve.
Buterfly valve is either remote-controlled by means of an actuator or manually operated by means of a handle.
The handle for manual operation mechanically locks the valve in its full open, half open and closed position. By rotating the handle, the motion disk either parallel or perpendicular to the flow of water, shutting off the flow.
The actuator is designed so that an axial movement of a piston is transformed into a 90° rotation of a shaft. The torque of the actuator is increased when the valve disc contacts the seal ring of the butterfly valve.
Operation Design
The actuator is made in three standard versions, normally closed (NC), normally open (NO) and air/air activated (A/A).
Manually handle locks the valve in 3 position: Full open, half open and closed. *For different handles type, see Handle Available.
Manually handle locks the valve in 3 position: Full open, half open and closed. *For different handles type, see Handle Available.
Specification

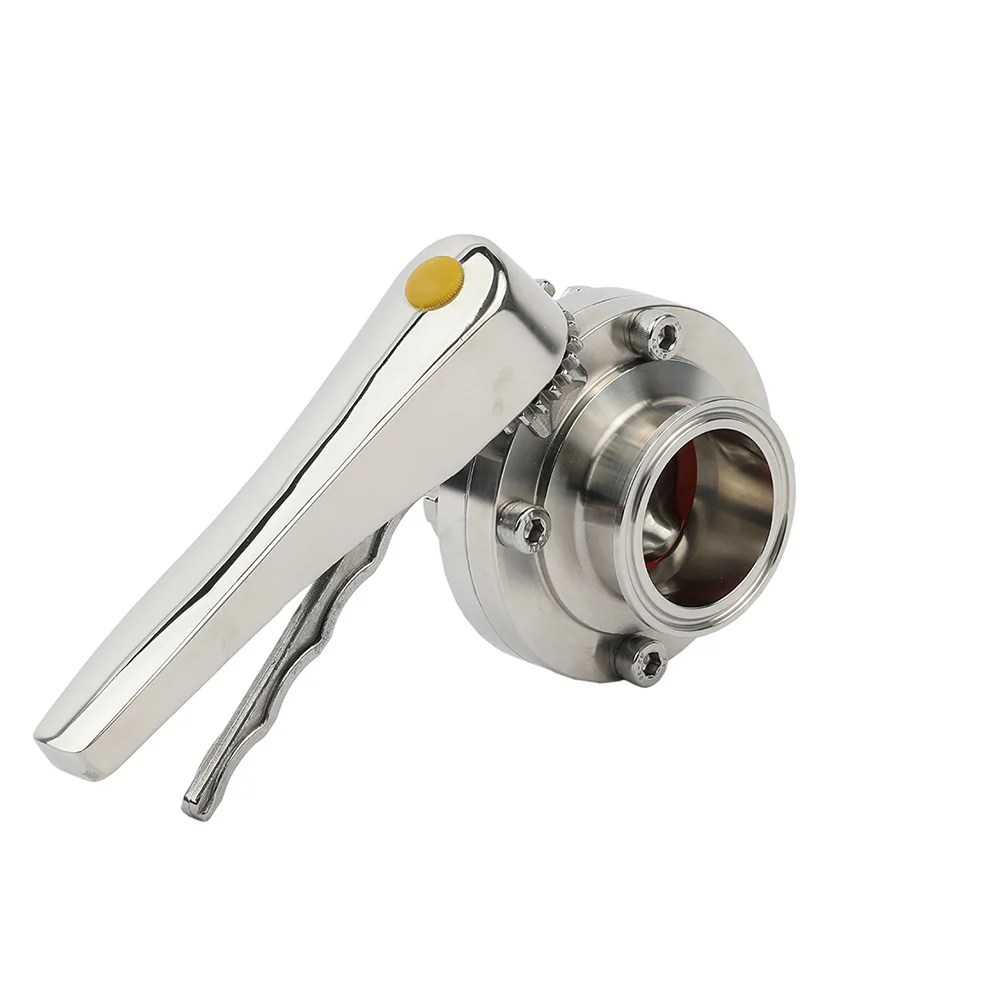

Product Name | Stainless steel Butterfly Valve With Trigger Handle |
Material | stainless steel SS304 SS316L |
Standard | DIN/3A/SMS/IOS/ |
Application | Food, pharmacy, wine, cosmetics, chemical industry |
Seal Material opition | EPDM,Silicon or FPM |
Size | 1/2"-12" or DN15-DN200 |
Actuator Min.air pressure,NC and NO | 400 kPa (4 bar) |
Actuator Temperature range | -25°C to +90°C |
Actuator Max. air pressure | 700 kPa (7 bar) |
Valve Max. product pressure | 1000kPa(10Bar) for DN15-DN100 |
800kPa(8Bar) for DN125-DN150 |

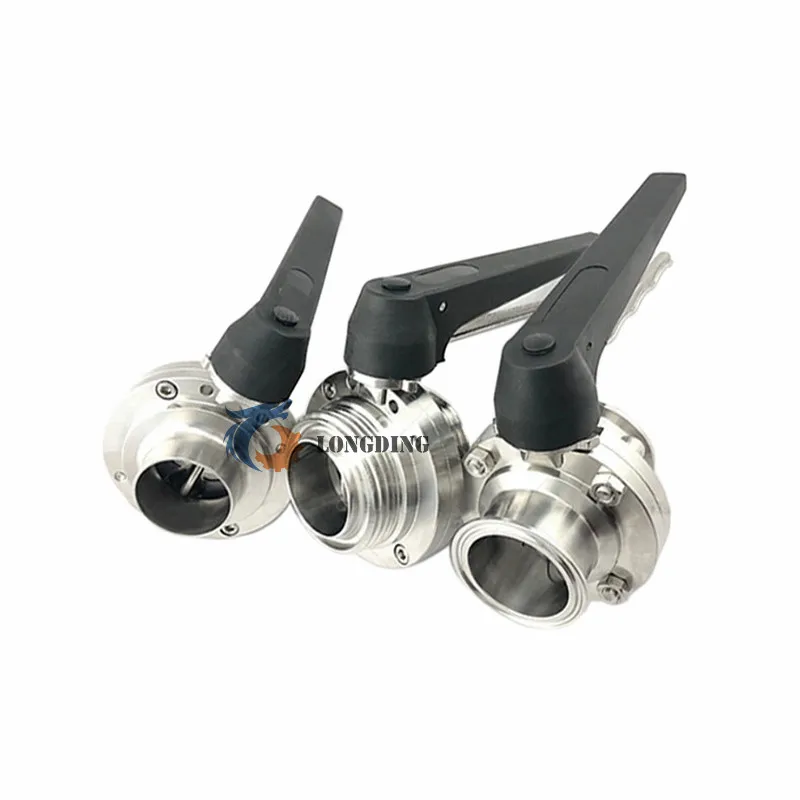

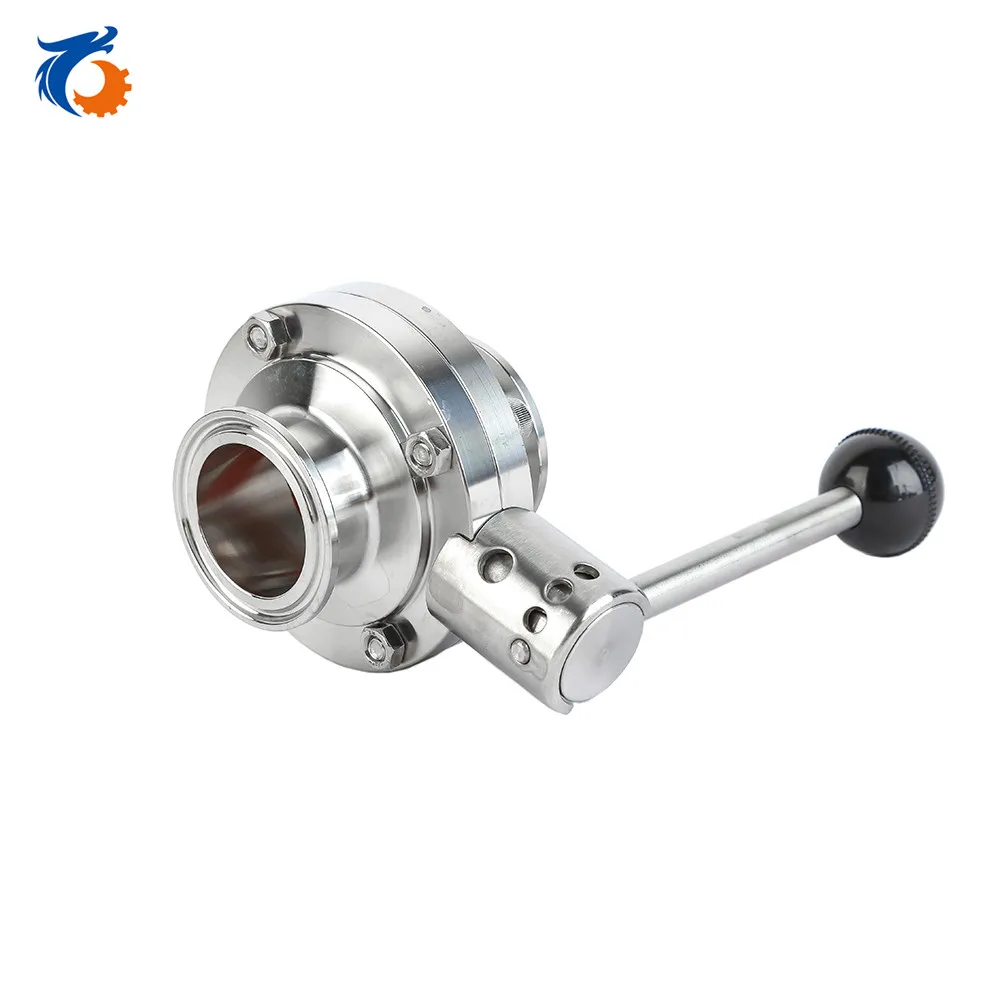

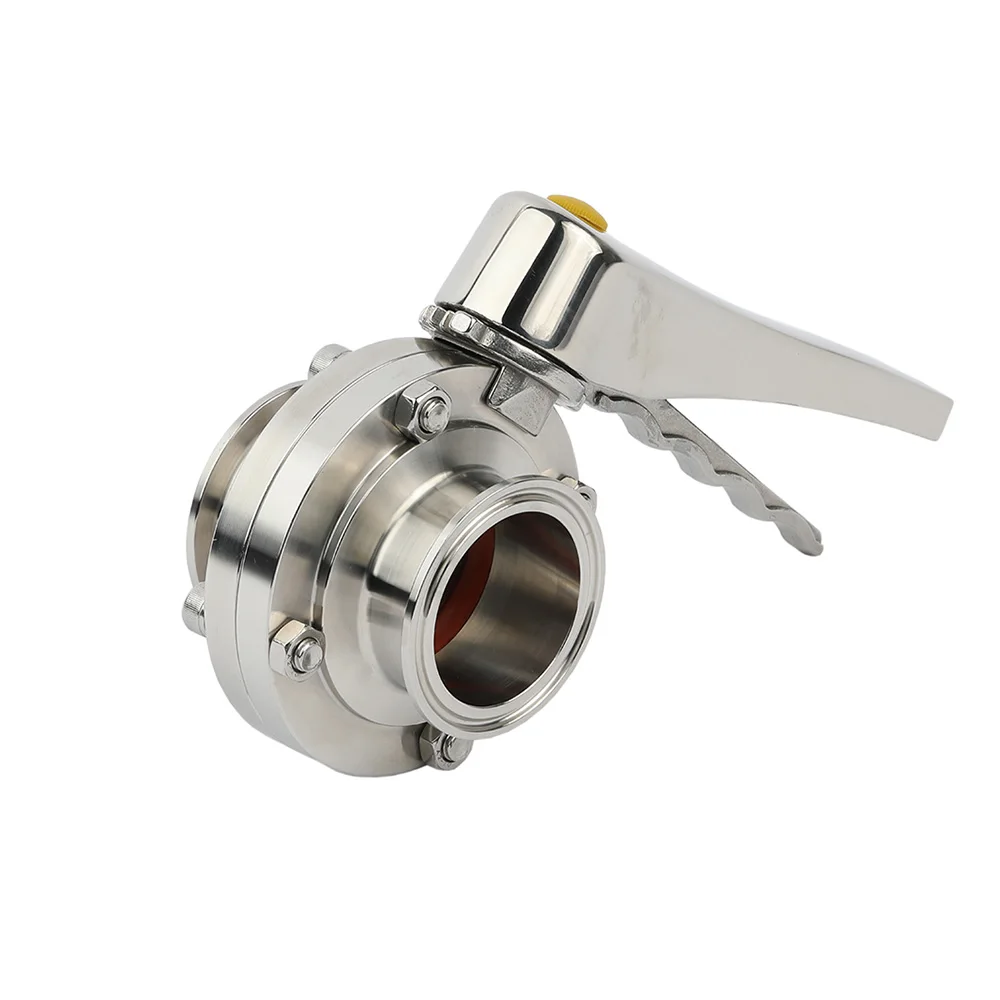

Product Show
Recommend Products
Packing & Delivery
FAQ
Q: Why would I choose you?
A:Wenzhou Longding Pipe Fitting Co., Ltd.can supply and stock wide range of stainless steel products.We have active
managment,experienced
technical people,labor workers.High effective sales team.Mass production capacity ensures on-time delivery and quick response to
any quote and complaint.
Q. how can we guarantee quality?
A:Each of our products will be strictly inspected in accordance with the requirements before shipment to ensure the quality of
your products;
Q: May I have free samples before ordering?
A:Yes, for small amount,free samples can be provided.Freight is collected on customer
Q: What’s the payment term?
A:Paypal, Western Union, T/T and Credit Card.T/T and L/C.
Q: What is the lead time?
A:3-5 days for sample;2-7days for small products,15-30 days for mass products.
Q:Could I use my own logo or design on goods?
A:Yes.Customized logo and design on production are available.
