Лабораторный реакционный стеклянный чайник реактор 10 л 20
- Категория: Reactors >>>
- Поставщик: Guangzhou,Yuhua,Instrument,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.12 $* | 0.74 $* |
| Aug-19-2025 | 0.98 $* | 0.36 $* |
| Jul-19-2025 | 0.65 $* | 0.7 $* |
| Jun-19-2025 | 0.84 $* | 0.65 $* |
| May-19-2025 | 0.38 $* | 0.80 $* |
| Apr-19-2025 | 0.67 $* | 0.72 $* |
| Mar-19-2025 | 0.94 $* | 0.54 $* |
| Feb-19-2025 | 0.47 $* | 0.43 $* |
| Jan-19-2025 | 0.61 $* | 0.2 $* |
Характеристики

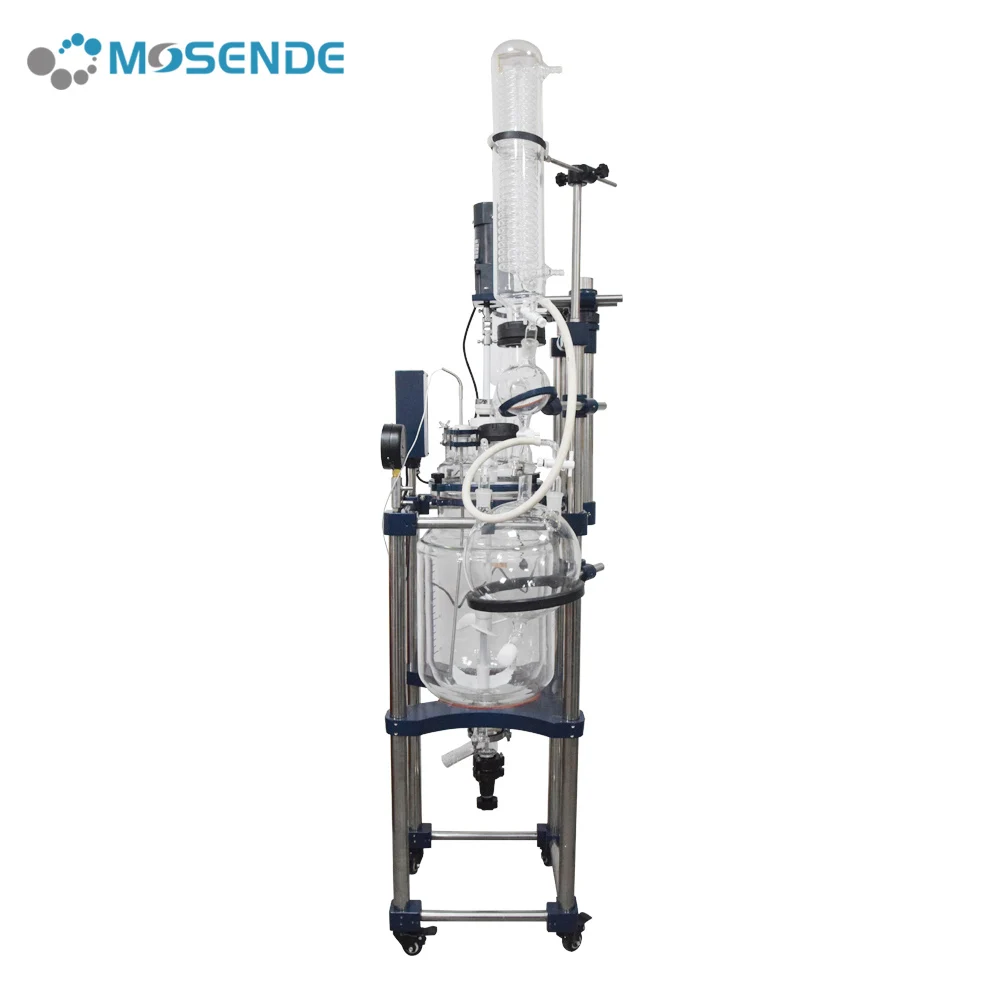

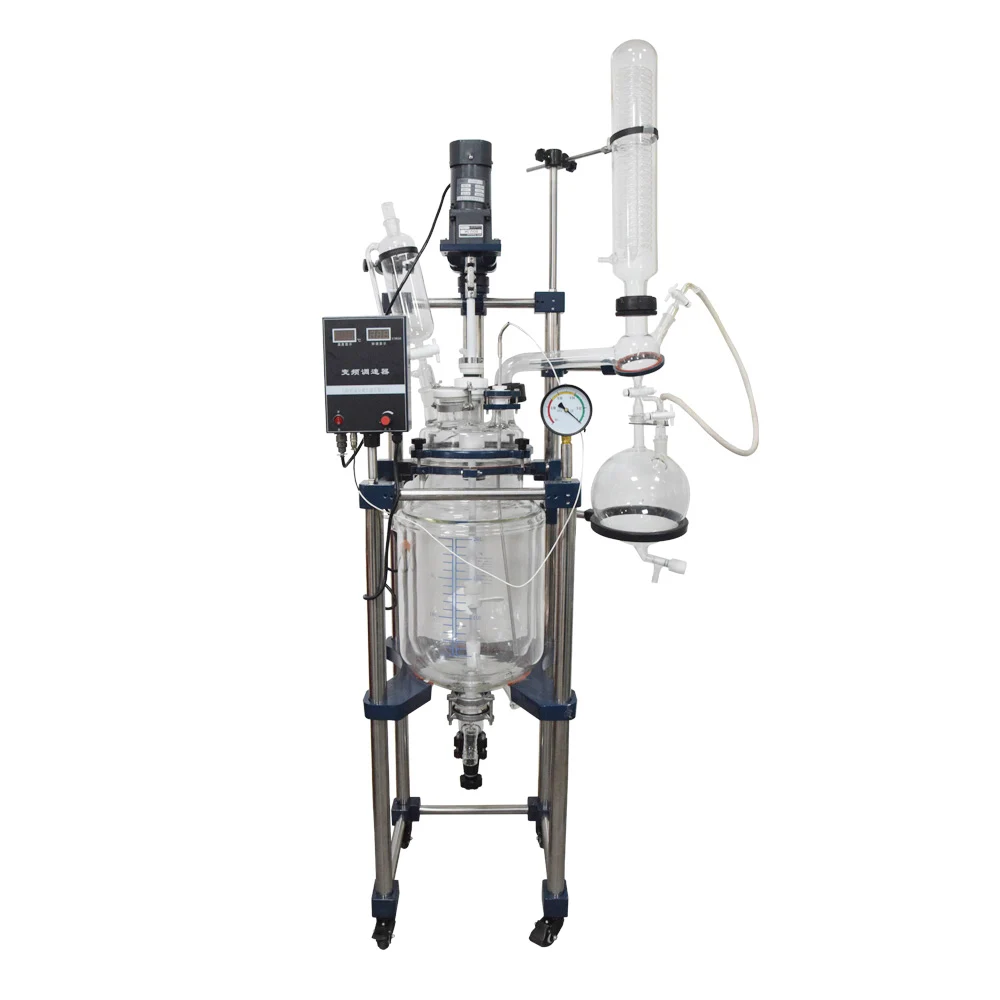

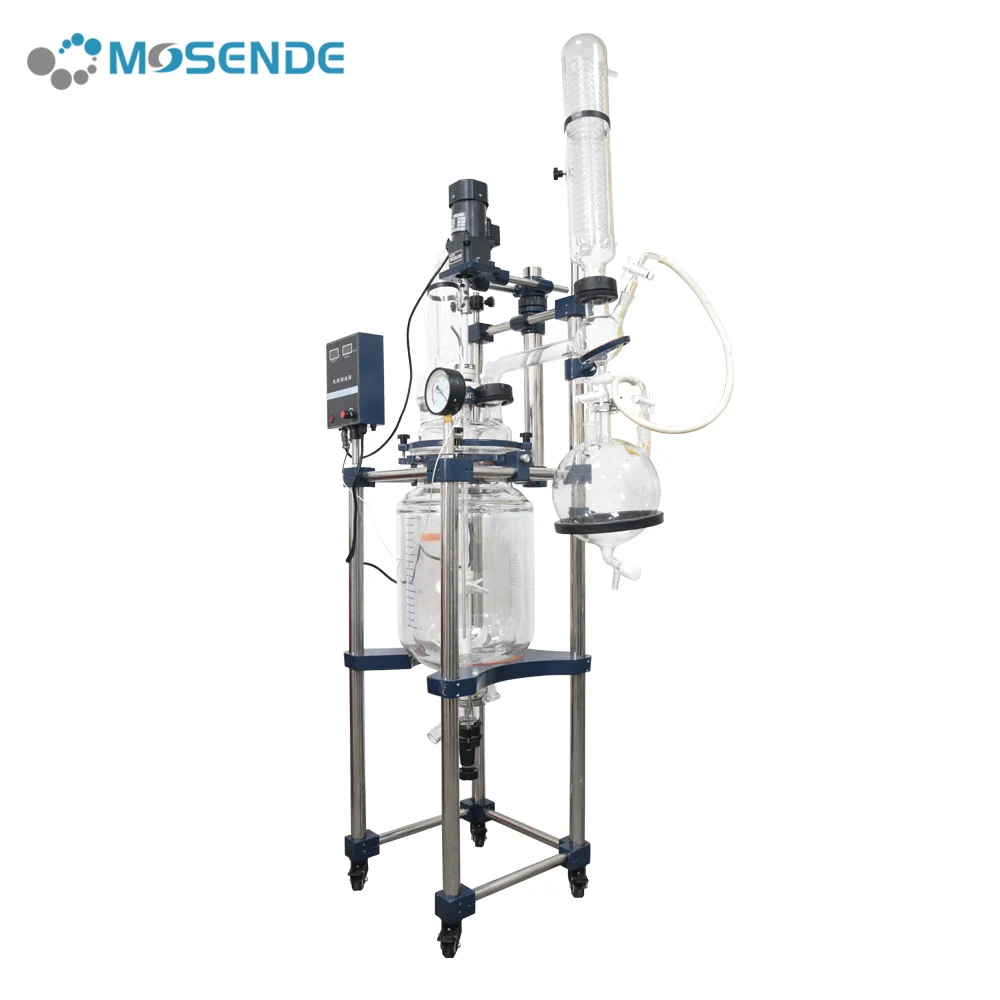

10L 20L 30L Laboratory Glass Reaction Kettle Crystallization Reactor
Product Description
The double-layer glass reactor is designed with interlayer ,high or low temperature reaction can be done to the metal by circulating heat transfer .The reflux of the reaction solvent can be controlled by distillation .The interlayer is circulated through a cold and hot medium(freezing liquid ,water ,heat conducting oil) ,the inner layer can realize constant temperature heating or cooling reaction .
Technical paraneters:
model | XHSF-10L | XHSF-20L | XHSF-30L | XHSF-50L | XHSF-80L | XHSF-100L | XHSF-150L | XHSF-200L | |
Volume | 10 L | 20 L | 30 L | 50 L | 80 L | 100 L | 150 L | 200 L | |
Dimensions | 48×48×192 cm | 55 × 55 × 236 cm | 63 × 63 ×2 60 cm | / | / | ||||
Reaction volume | 10 L | 20 L | 30 L | 50 L | 80 L | 100 L | 150 L | 200 L | |
Glass material | GG17 High borosilicate glass | ||||||||
Mezzanine capacity | 3.5 L | 6.3 L | 9 L | 15 L | 24 L | 33 L | 43 L | 58 L | |
Opening of kettle cover | 1. Mixing port 2. Condensation reflux port 3. Funnel port 4. Thermometer 5. Feeding port 6. Exhaust port | ||||||||
Mixing motor | 120 W | 140 W | 180 W | 180 W | 250 W | 250 W | 550 W | 550 W | |
Optional: explosion proof motor and matching explosion-proof controller can be selected as required | |||||||||
controller | Frequency converter, digital display thermometer speed | ||||||||

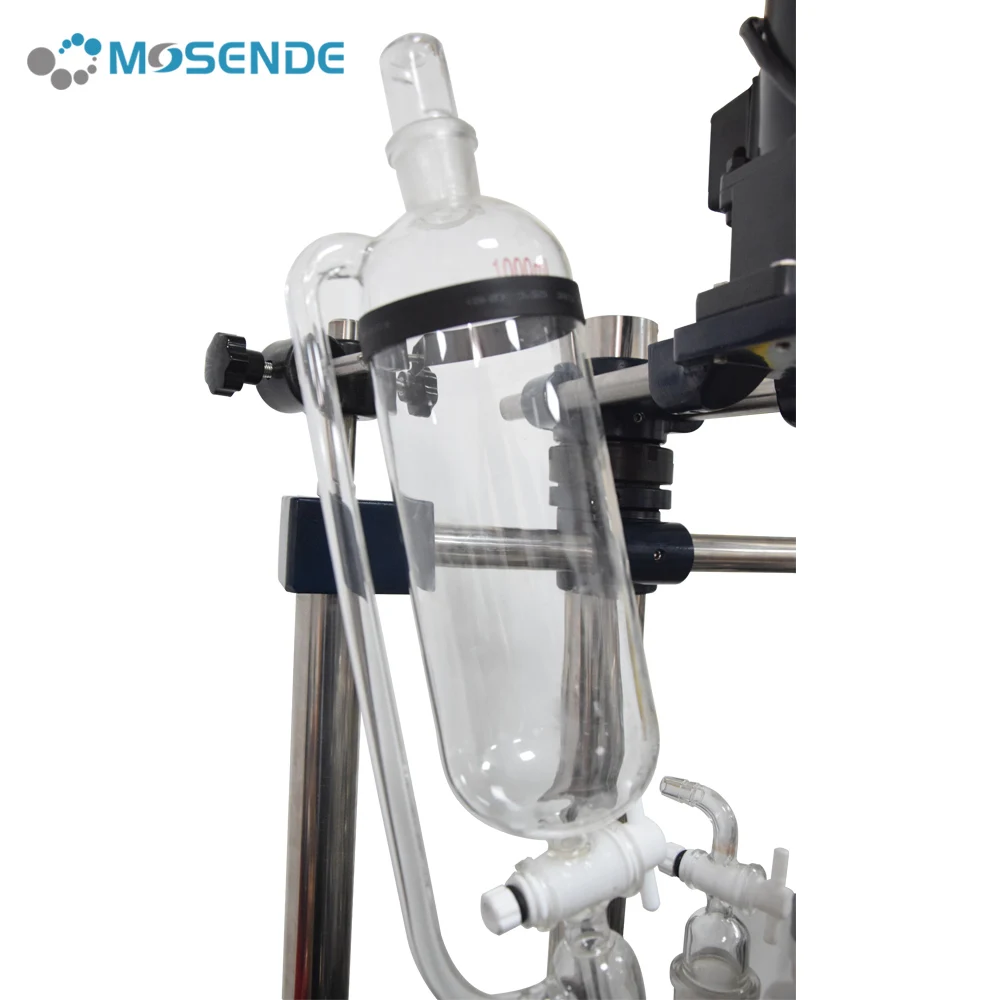

Constant pressure funnel | 1000 ml | 2000 ml | 4000 ml | ||||||
stir | seal up | Ceramic and graphite seal, wear-resistant, corrosion resistant, high temperature resistant. | |||||||
Paddle Blade | The PTFE material mixing paddle is mixed with anchor type + tripod. Different types of agitator can be customized according to the needs | ||||||||
Discharge valve | New glass discharge valve, glass and tetrafluoroethylene seal, no leakage, no dead angle | ||||||||
Condensation and reflux | High efficiency GG17 high borosilicate glass condenser is used with reflux head to realize the switching operation between distillation and reflux | ||||||||

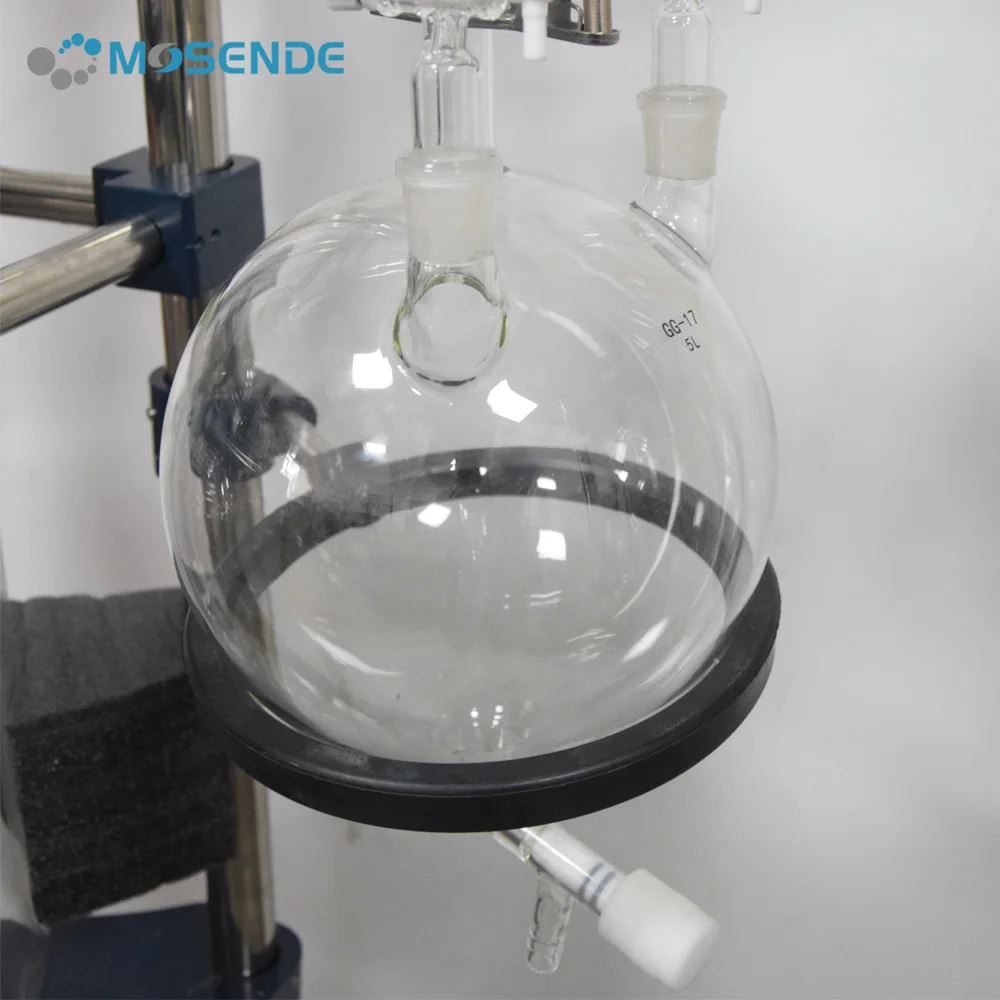

Receiving bottle | Optional collection bottle: 2 - 10 L, as required | ||||||||
Operating temperature range | - 90 ~ 250 ℃ | ||||||||

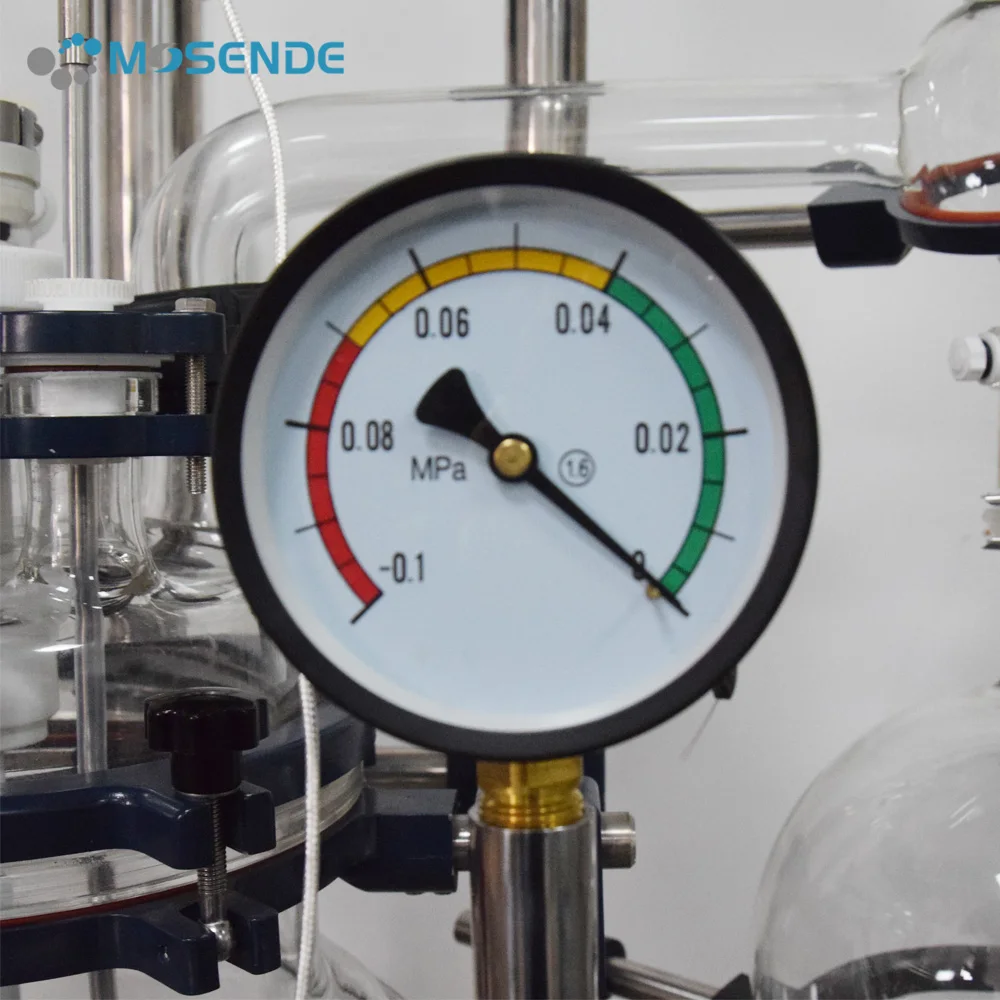

Operating pressure range | Normal pressure or negative pressure, maximum vacuum degree - 0.098 MPa ~ 0 MPa Standard: pointer pressure gauge. Optional: explosion proof digital pressure gauge | ||||||||
The reactor can be customized according to customer requirements. Please contact customer service if necessary. thank you.
