Automotive split corrugated flexible conduit for wiring harness
- Категория: Other NEV Parts & Accessories >>>
- Поставщик: Shenzhen,Jdd,Tech,New,Material,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.67 $* | 0.76 $* |
| Aug-15-2025 | 0.64 $* | 0.53 $* |
| Jul-15-2025 | 0.22 $* | 0.87 $* |
| Jun-15-2025 | 0.17 $* | 0.31 $* |
| May-15-2025 | 0.50 $* | 0.18 $* |
| Apr-15-2025 | 0.17 $* | 0.25 $* |
| Mar-15-2025 | 0.91 $* | 0.23 $* |
| Feb-15-2025 | 0.56 $* | 0.8 $* |
| Jan-15-2025 | 0.3 $* | 0.63 $* |
Характеристики
Corrugated flexible conduit
JDD corrugated flexible conduit offers a wide range technical properties for your cable and wire management applications, against not only mechanical damage but also the influences of UV radiation, weathering and chemicals. The flexible body allows for the cables in the corner and elbow. We also supply the split style for easy installation and removal.
Application:
It is widely used for protecting wires and cables harnesses in automotive, equipment, railway etc. It also can be used for protecting the hydraulic hoses.
Technical Data:
Material :
1)MELG :PE
2)MNLG :PA
3)MDLG :PP
Operating range:
1) MELG: – 40°C -- +90°C
2) MNLG: –40°C -- +130°C
3) MDLG: –30°C -- +110°C
Standard colour : Black .
Certificate: RoHS
Other features: Highly abrasion resistance, resist acids, solvents and fuels resistance.

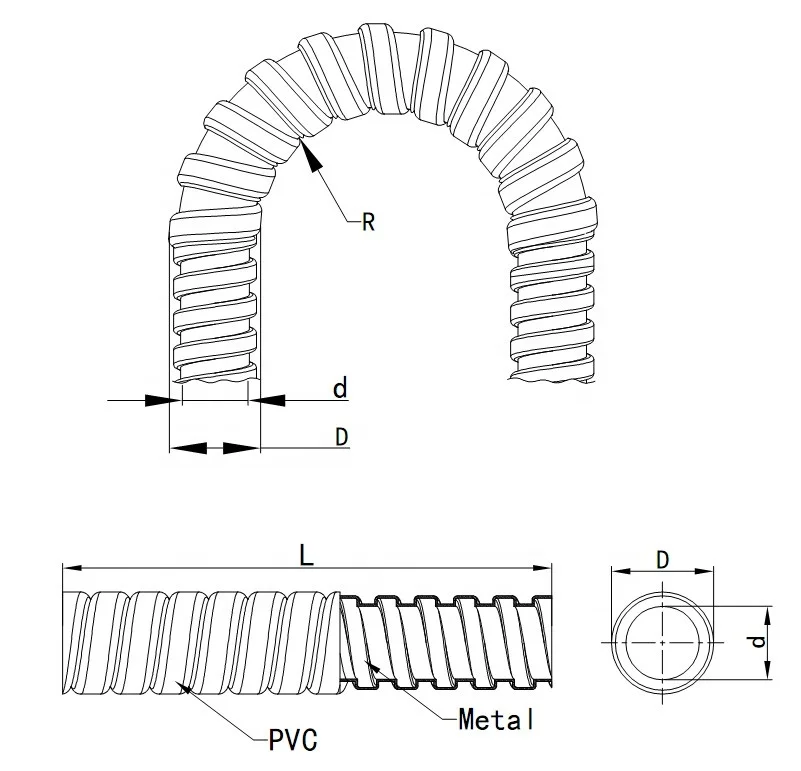

Data sheet:
PE material | PA material | PP material | I.D*O.D | Bending Radius (R±10%) | Packing | |
( d*D ) | ( L ) | |||||
MELG-7 | MNLG-7 | MDLG-7 | 4.5 ×7.0 | 5 | 200 m/roll | |
MELG-8.5 | MNLG-8.5 | MDLG-8.5 | 5.5 ×8.5 | 8 | 100 m/roll | |
MELG-10 | MNLG-10 | MDLG-10 | 7.0 ×10.0 | 10 | 100 m/roll | |
MELG-12 | MNLG-12 | MDLG-12 | 8.5 ×11.5 | 15 | 100 m/roll | |
MELG-13 | MNLG-13 | MDLG-13 | 10.0 ×13.0 | 20 | 100 m/roll | |
MELG-15.8 | MNLG-15.8 | MDLG-15.8 | 12.0 ×15.8 | 30 | 100 m/roll | |
MELG-18.5 | MNLG-18.5 | MDLG-18.5 | 14.3 ×18.5 | 40 | 100 m/roll | |
MELG-21.2 | MNLG-21.2 | MDLG-21.2 | 17.0 ×21.2 | 45 | 100 m/roll | |
MELG-25 | MNLG-25 | MDLG-25 | 21.0 ×25.0 | 50 | 100 m/roll | |
MELG-28.5 | MNLG-28.5 | MDLG-28.5 | 23.0 ×28.5 | 55 | 50 m/roll | |
MELG-34.5 | MNLG-34.5 | MDLG-34.5 | 29.0 ×34.5 | 60 | 50 m/roll | |
MELG-42.5 | MNLG-42.5 | MDLG-42.5 | 36.0 ×42.5 | 70 | 25 m/roll | |
MELG-54.5 | MNLG-54.5 | MDLG-54.5 | 48.0 ×54.5 | 80 | 25 m/roll |
Notes:
1. The part No. will be followed by BK, GR and so on to indicate the color of flexible conduit.
2. Special packages,sizes and colors can be supplied upon request.
3. All numeric data shows average or typical values, not including customized
sizes.
4. Split version is available.
