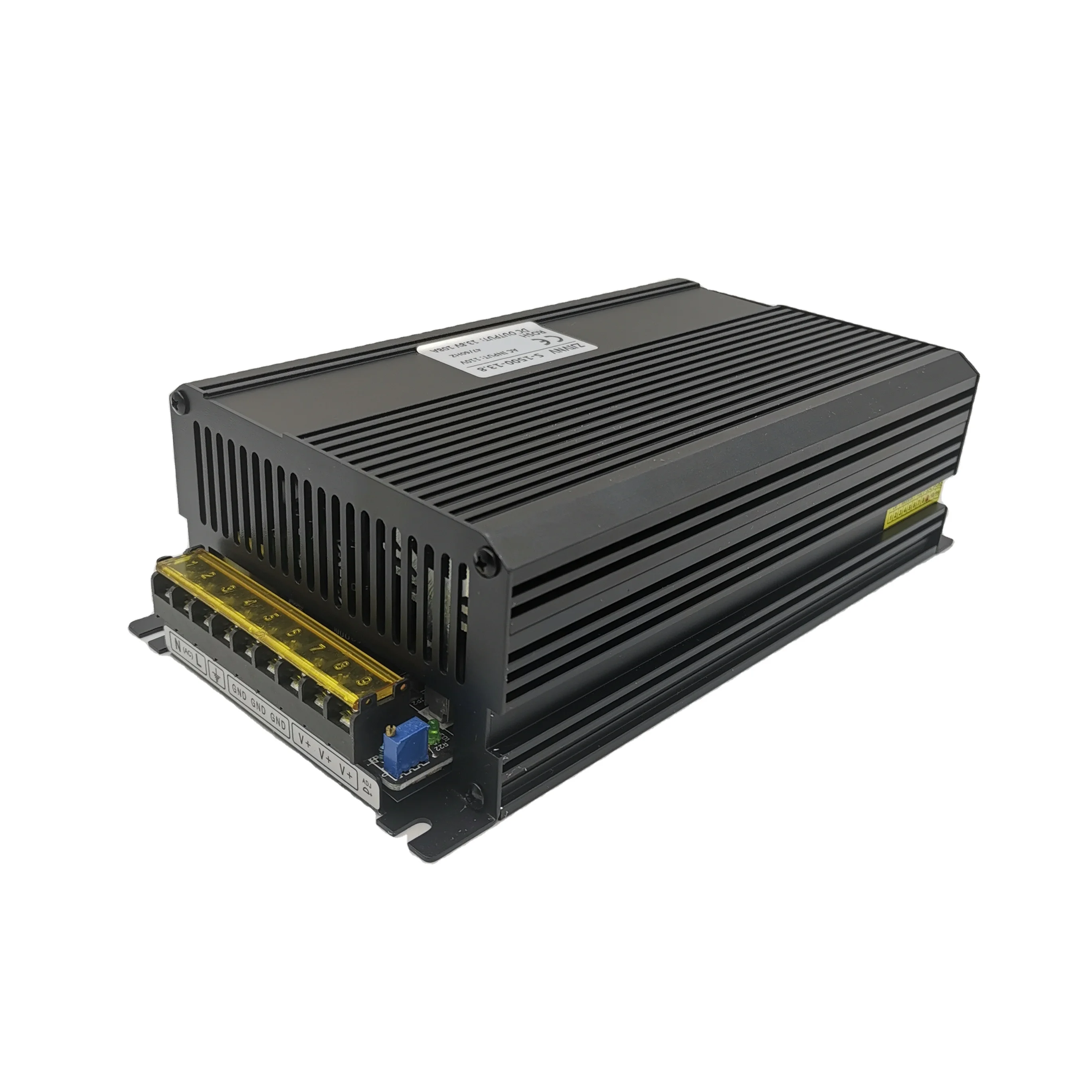

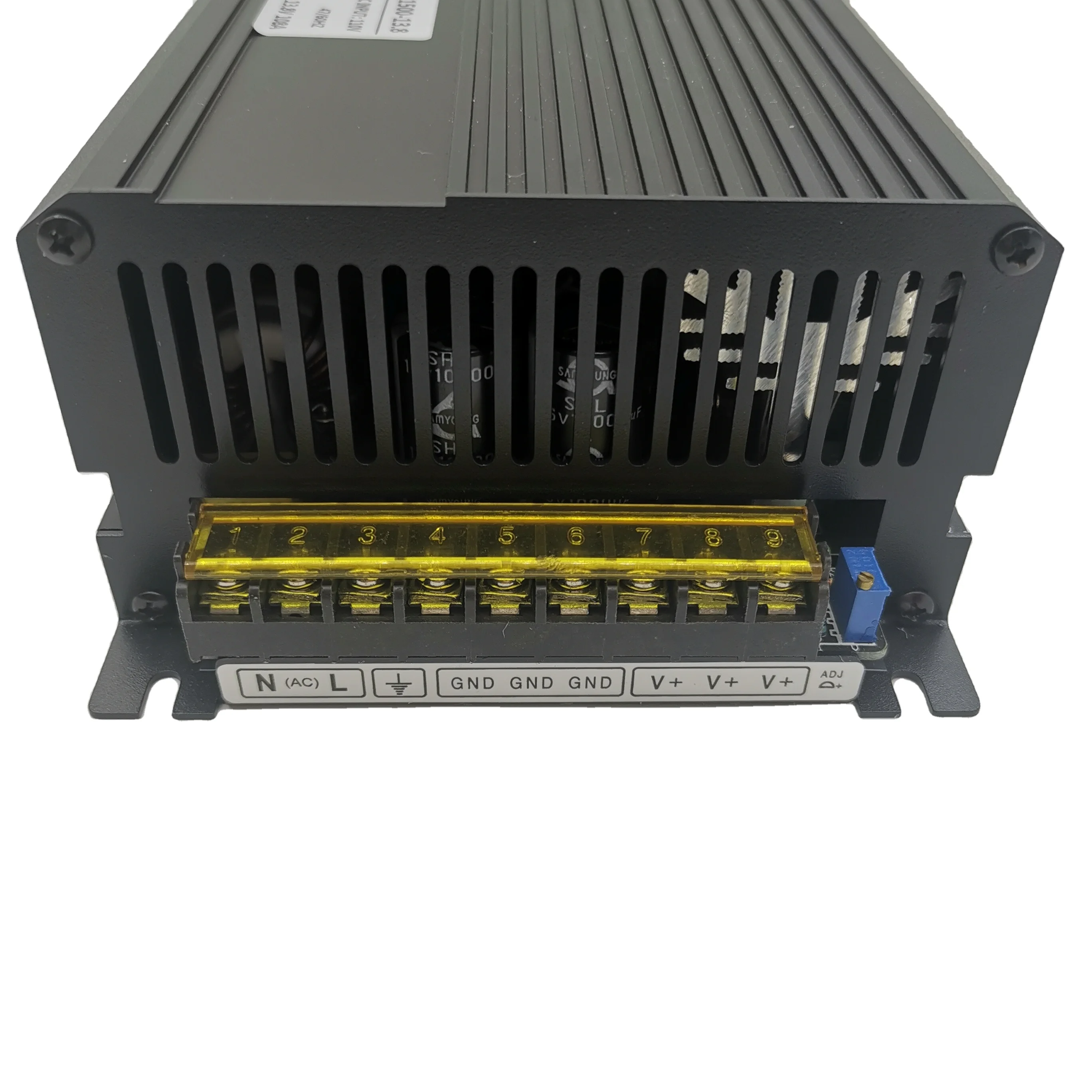

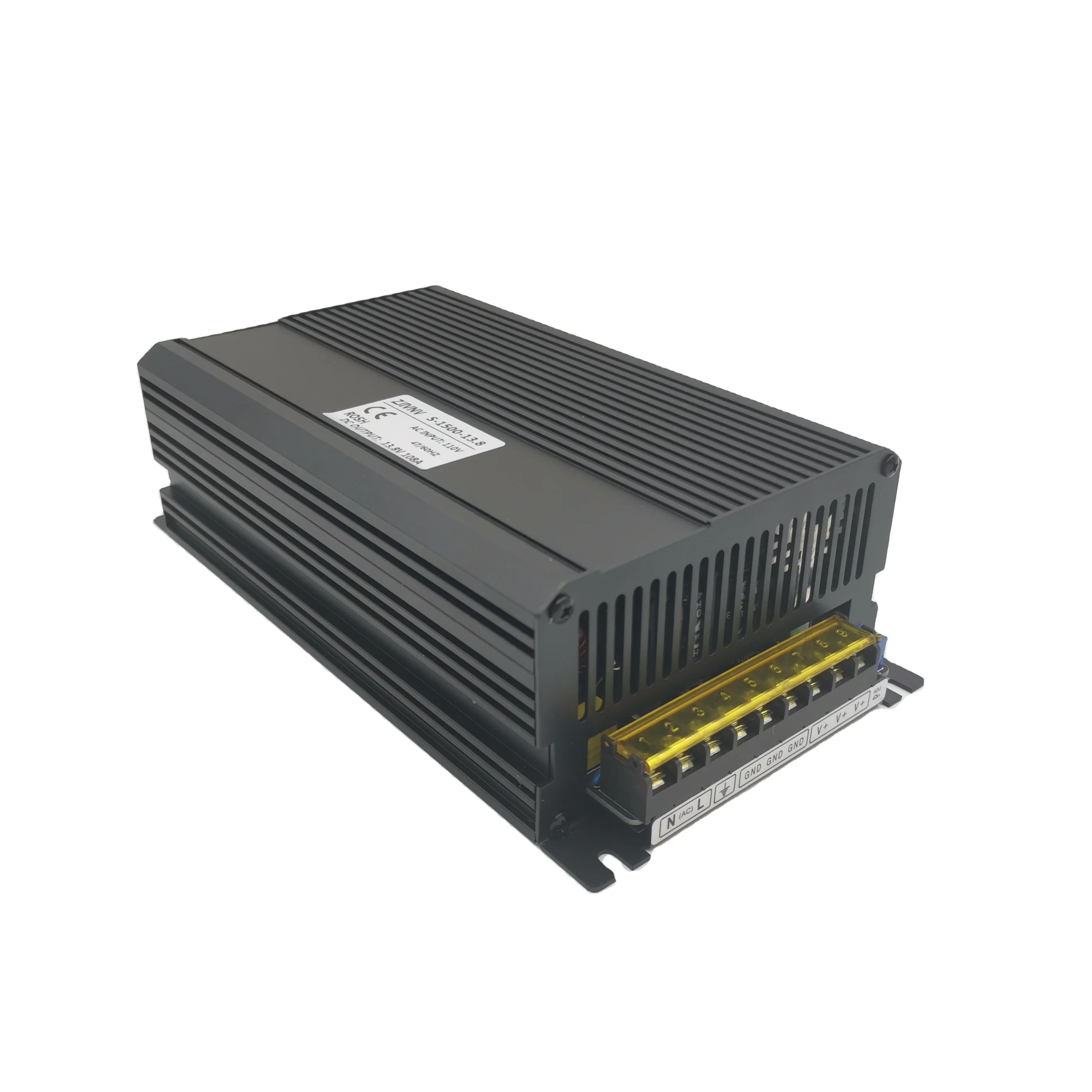

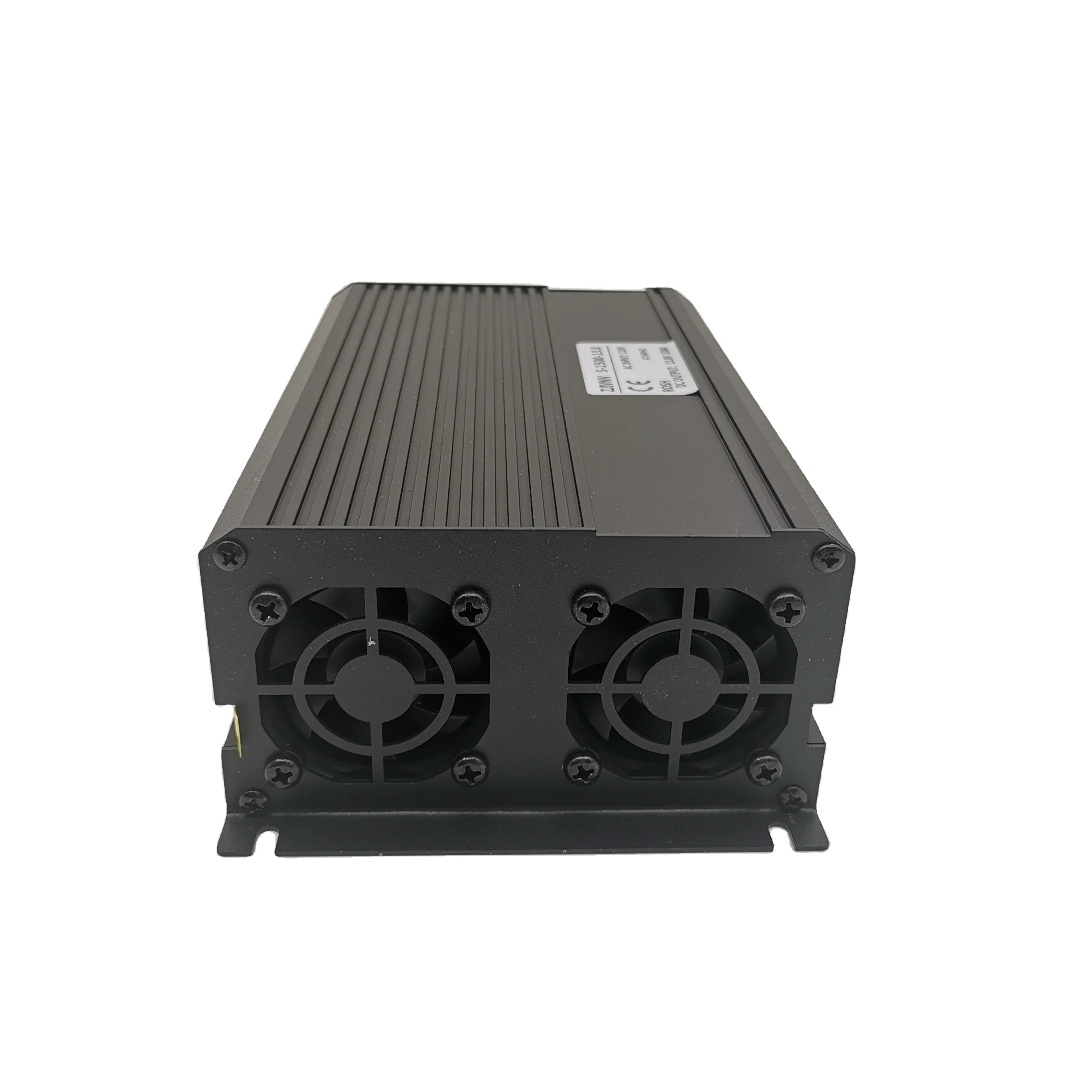

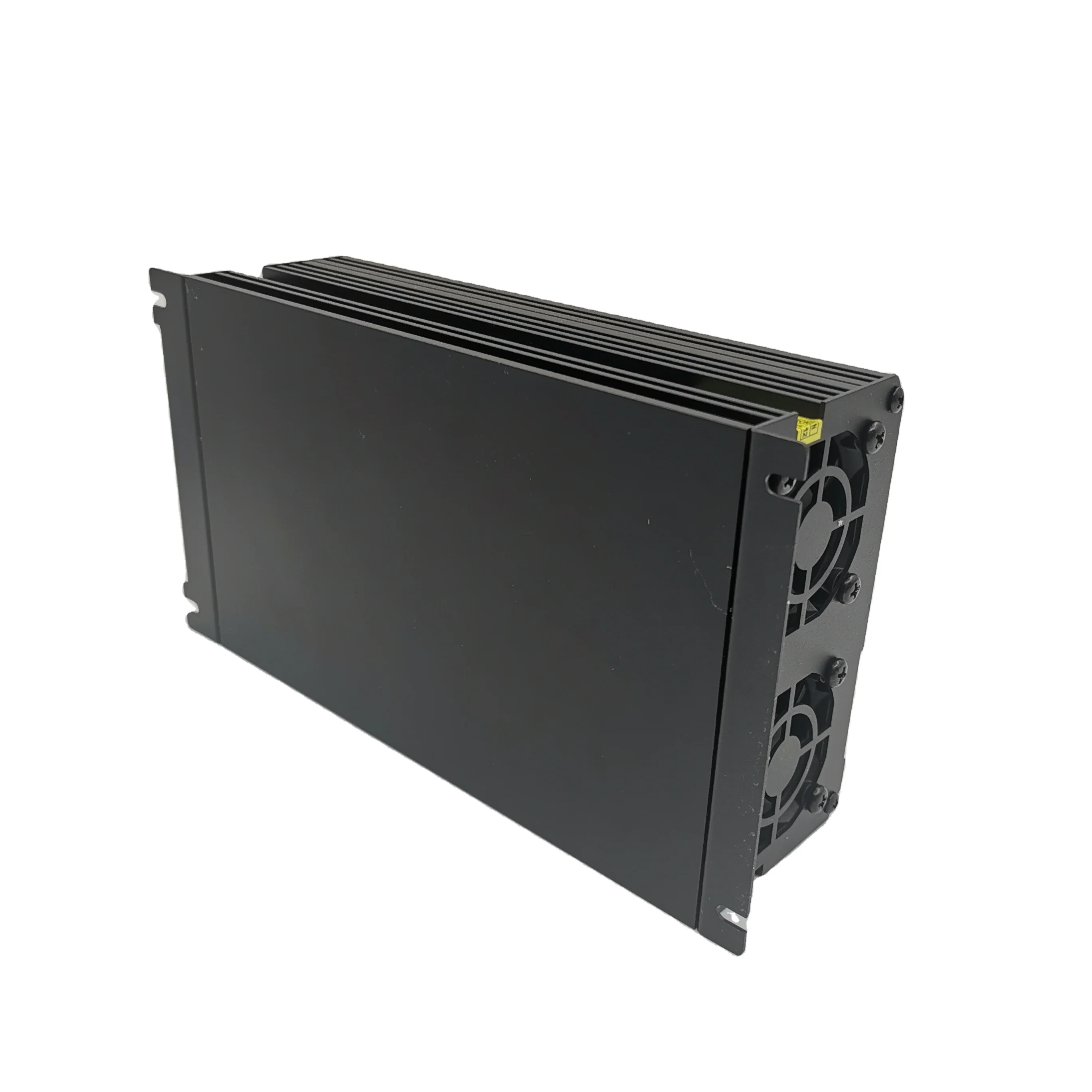

Zjivnv 1500W 48V 31A ac/dc переключательный источник питания переключателя для водителя СИД промышленный силовой трансформатор CCTV LCD
- Категория: >>>
- Поставщик: Yueqing,City,Zhijiu,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 70.52 $* | 71.35 $* |
| Jul-15-2025 | 57.34 $* | 58.15 $* |
| Jun-15-2025 | 69.62 $* | 70.90 $* |
| May-15-2025 | 68.33 $* | 69.21 $* |
| Apr-15-2025 | 54.26 $* | 55.97 $* |
| Mar-15-2025 | 67.86 $* | 68.98 $* |
| Feb-15-2025 | 67.33 $* | 68.7 $* |
| Jan-15-2025 | 66.40 $* | 67.5 $* |
Характеристики
Advantage:
Low price and high reliability
105°C output capaciton
High efficiency and low operation temperature
Soft-start current can reduce the AC input impact effectively
With short-circuit and overload protection
Compact size, light weight
100% full-load burn-in test
Install with EMI filter, minimum wave
105°C output capaciton
High efficiency and low operation temperature
Soft-start current can reduce the AC input impact effectively
With short-circuit and overload protection
Compact size, light weight
100% full-load burn-in test
Install with EMI filter, minimum wave
Model Specification | S-1500-12 | S-1500-13.5 | S-1500-15 | S-1500-24 | S-1500-27 | S-1500-48 | |||||
DC Output voltage(V) | 12 | 13.5 | 15 | 24 | 27 | 48 | |||||
Rated output current(A) | 125 | 110 | 100 | 62.5 | 55.5 | 31.25 | |||||
Output current range(A) | 0~125 | 0~110 | 0~100 | 0~62.5 | 0~55.5 | 0~31.25 | |||||
Wave and noise(mVp-p) | 200 | 200 | 200 | 200 | 200 | 200 | |||||
Inlet stability(%) | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | |||||
Load stability(%) | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | |||||
DC output power(W) | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | |||||
Efficiency(%) | 84 | 84 | 85 | 85.5 | 86.5 | 87 | |||||
AC input voltage range | 200~240VAC 47~63Hz ( 220Vac or 110vac, when you make order please choose it.) | ||||||||||
Input current | 7A/230V | ||||||||||
AC Inrush current | 50A/230V | ||||||||||
Leakage current | <3.5mA/240VAC | ||||||||||
Overload protection | 105%-150% Type:pulsing hiccup shutdown Reset:auto recovery | ||||||||||
Over-voltage protection | 13.8~16.2v | 15.5~18.2v | 18~21v | 27.6~32.4v | 55.2-58.2V | ||||||
Temperature coefficient | ±0.03%/°C(0~50°C) | ||||||||||
Setup, rise, hold up time | 1.5s, 50ms, 20ms | ||||||||||
Vibration | 10~500Hz, 2G 10min,/1 cycle. Period for 60min,Each axes | ||||||||||
Withstand voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | ||||||||||
Isolation resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC | ||||||||||
Working temperature and humidity | -10°C~+60°C,10%~95%RH | ||||||||||
Store temperature and humidity | -20°C~+85°C,10%~95%RH | ||||||||||
1. How we control the quality?
Aging test for 8 hours, after then we put them into the market.
2. Can we accept samples customized?
No problem for samples order, and welcome your testing before your big order.
3. What about the production capacity?
4 days for samples order under 100pcs, 7-15 days for general order under 10000pcs.
4. OEM and ODM are available?
Yes, we accept customized products
5. Will the delivery time be long for a big order?
No, we have two special parts in production line, one for samples orders, another for big orders, so we can control the delivery time as we promise in the contract.
6. What is our warranty service?
For all products we sell have 2 year warranty.
Aging test for 8 hours, after then we put them into the market.
2. Can we accept samples customized?
No problem for samples order, and welcome your testing before your big order.
3. What about the production capacity?
4 days for samples order under 100pcs, 7-15 days for general order under 10000pcs.
4. OEM and ODM are available?
Yes, we accept customized products
5. Will the delivery time be long for a big order?
No, we have two special parts in production line, one for samples orders, another for big orders, so we can control the delivery time as we promise in the contract.
6. What is our warranty service?
For all products we sell have 2 year warranty.
