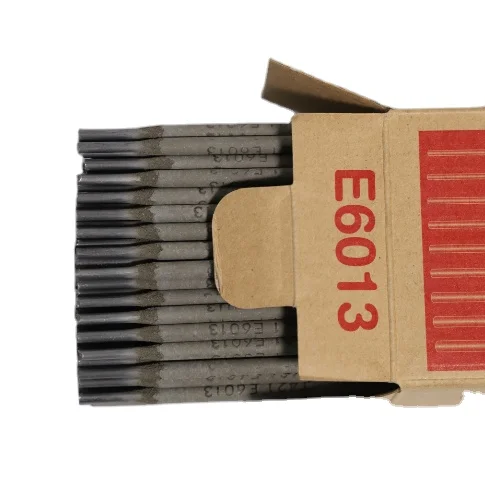

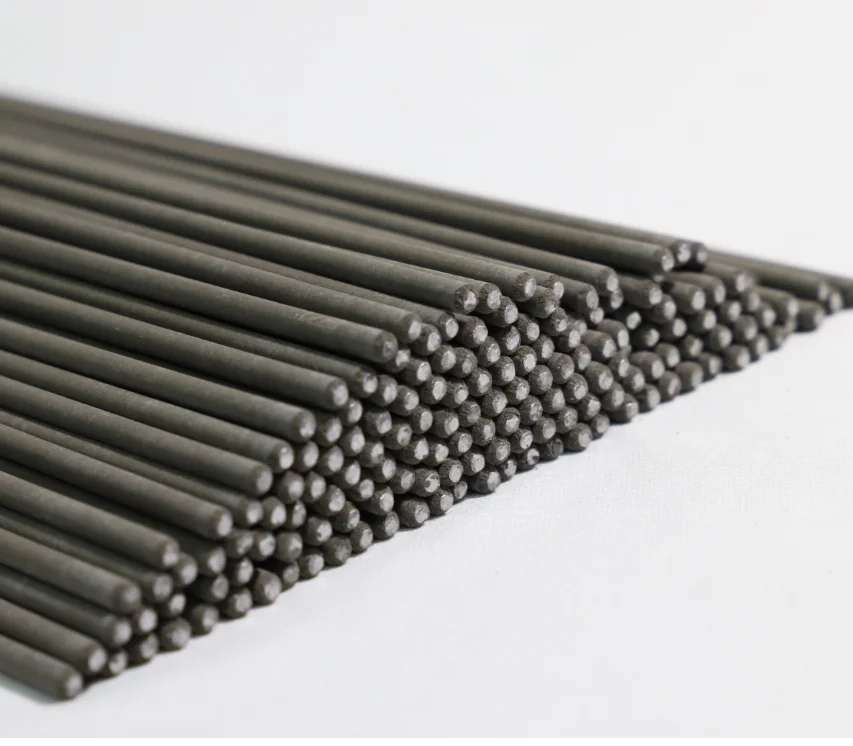

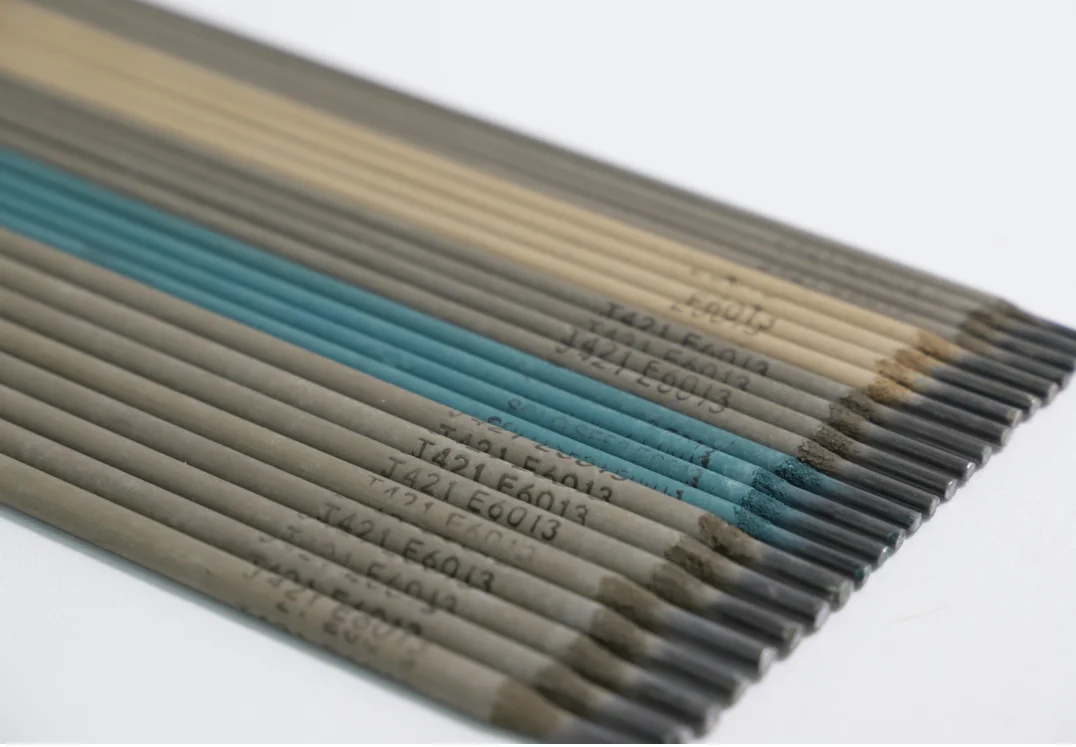

Welding Rod/Welding Electrode

AWS E6013 is a rutile sand coated electrode. It is suitable for welding low carbon steel structure, especially for the welding of thin plate and short weld of discontinuous and covering welding which requires smooth surface. Both alternative current(AC) and direct current (DC) can be applied. It can be welded in all positions.

Stable arc,Little spatter,Easy slag removal and Reignition-ability

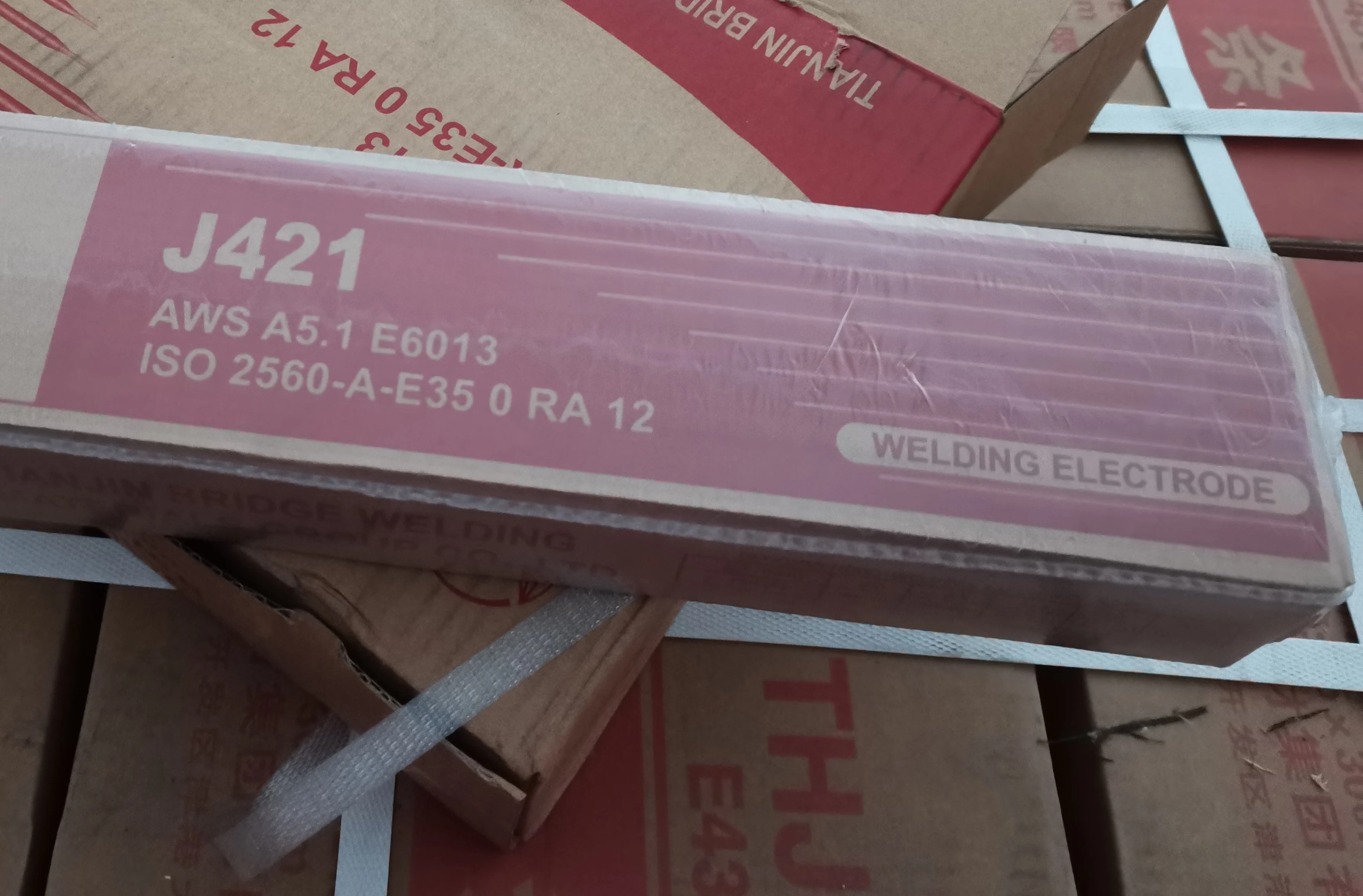

AWS A.5.1 E6013/ISO 2560-A-E350 RA12

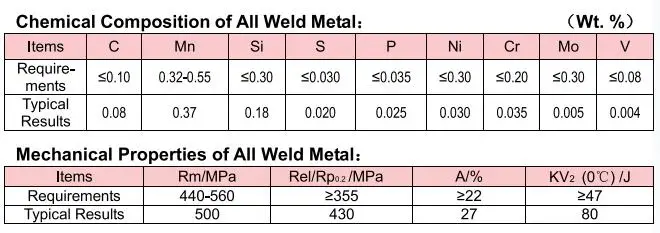

items

C

Mn

Si

S

P

Ni

Cr

Mo

V

Require-ments

≤0.10

0.32-0.55

≤0.30

≤0.030

≤0.035

≤0.30

≤0.20

≤0.30

≤0.08

Typical Results

0.08

0.37

0.18

0.02

0.025

0.03

0.035

0.005

0.004

items

Tensile Strength

Yield Strength Rel/Rp0.2 MPa

Elongation

Charpy V-Notch

Rm/MPa

A/%

KV2(J)0℃

Require-ments

440-560

≥355

≥22

≥47

Typical Results

500

430

27

80

Diameter

2

2.5

3.2

4

5

5.8

in(mm)

Current

40-70

50-90

80-130

150-200

180-240

220-280

in(A)

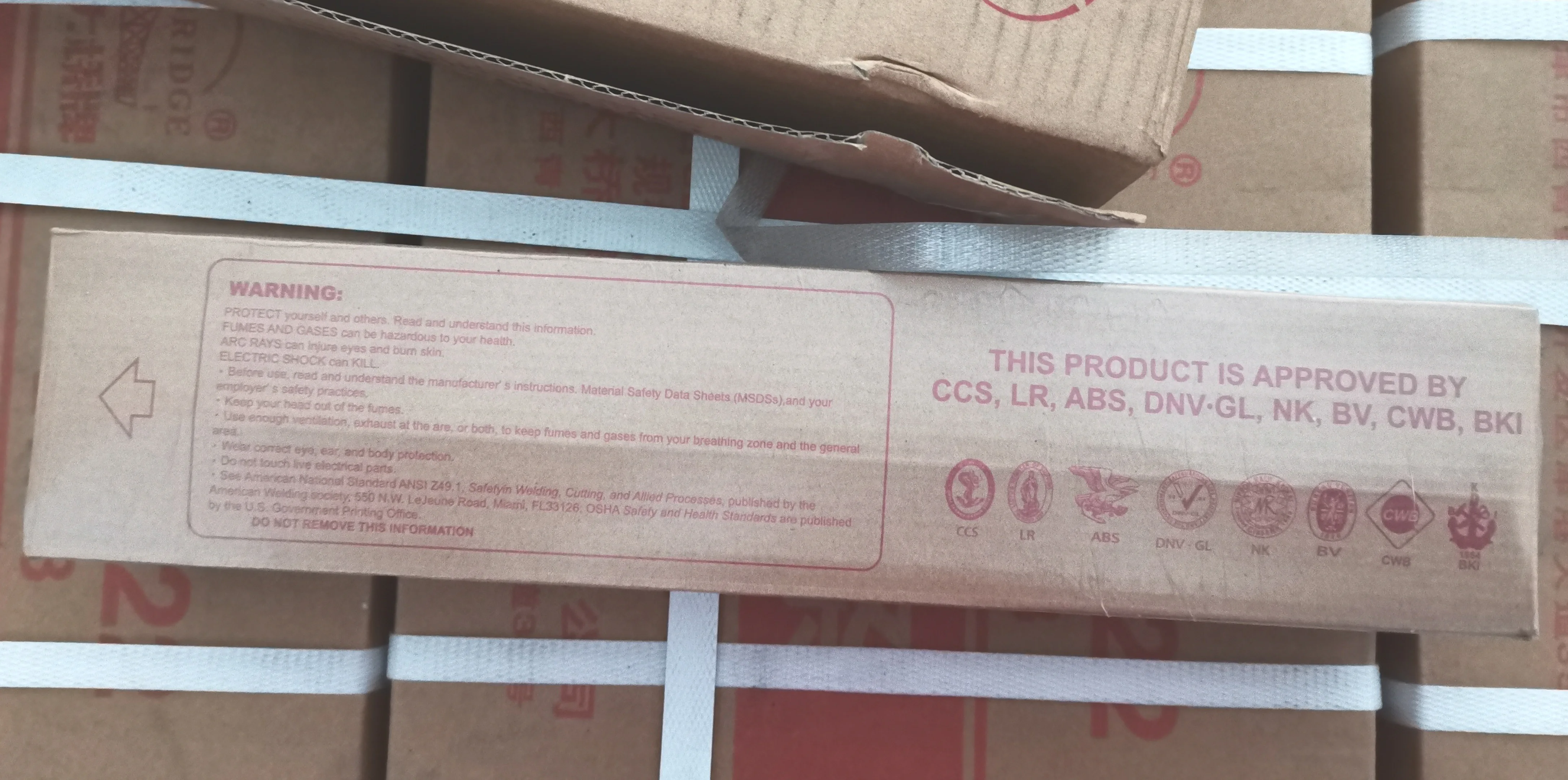

Ship inspection agency

ABS

BV

CCS

DNV

GL

LR

NK

CWB

Recognition level

2

2

2

2

2

2m

KMW2

E4313

Certification authority

CPD - CE certification of steel structure

Type

ISO 2560-A-E35 0 RA 12
