Use

It is suitable for extruding various kinds of rubber such as EPMD, NR, NBR, IIR AND Recycled rubber, used for building doors and windows sealing strip, automobile sealing composite strip, single extrusion production and construction, electrical appliances, machinery, water conservancy and other sheet, strip, tubular, plate shapes and density of foamed rubber products production.

Working flow:

Rubber extruder----Vulcanization box-----water tank----coiler machine

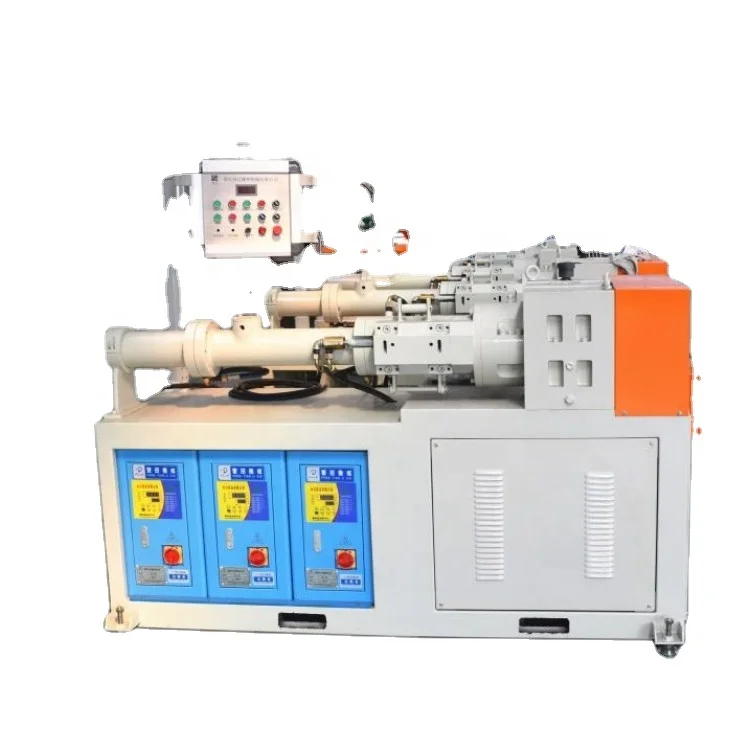

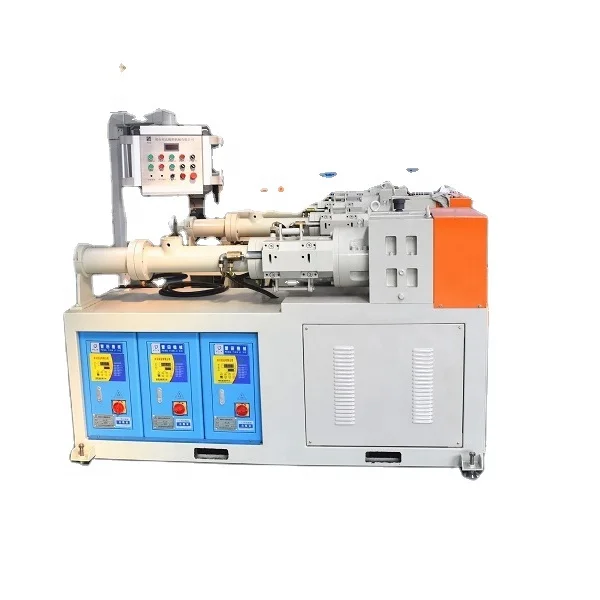

Rubber extruder:

More usually choose 75 or 90 rubber extruder have more output

The vacuum exhaust rubber extruder is designed with exhaust holes on the barrel, which can be connected to a vacuum pump for air extraction operation. In the production of rubber sealing strips and other products, the exhaust gas generated in the rubber can be extracted to ensure that the rubber product does not bubble and improve the production quality of the rubber product.

Vulcanization box:

the extruded product is shaped and vulcanized to change the raw rubber into mature rubber to maintain the performance of the rubber. The temperature of the vulcanization box and conveyor speeds can be adjustable according to different requirements. Continuous operation is convenient.

Water tank

The three-meter stainless steel aluminum wheel sink with traction not only has the effect of cooling and shaping the product, but also have the direction guiding and traction functions. In addition, the sink is equipped with four aluminum wheels, which gives enough power to pull rubber products with hard materials such as steel strips.

Coiler machine or traction machine with cutting function with fixed length

Rubber hose extruder

working flow:65rubber extruder ----water tank----- traction machine----coiler machine

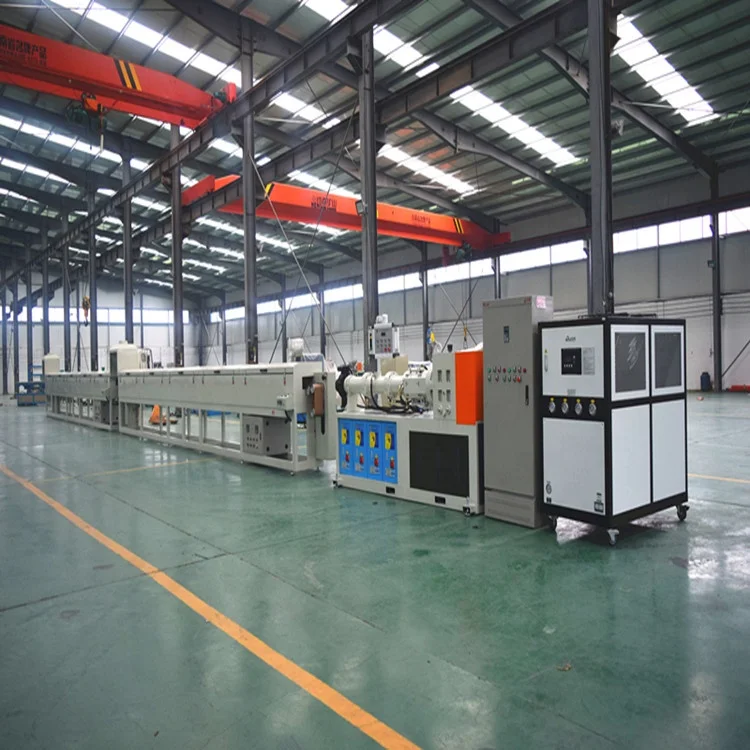

Rubber Extrusion Machine Vulcanization Production Line
Term Quantity (set)
1.90 mm cold feed vacuum extruder
2.3 M high-temperature forming machine
3.10 m 12KW air hot vulcanization oven
4.4 m Cooling water tank
5.Winding machine
6.PLC control

65 rubber extruder

Order Guide:

1. Ship date: 30----120 working days

2. Payment terms: T/T or L/C

3. Full range of devices to be provided on schedule, as per client demands.

4. Responsible for training technicians and operators for operation and maintenance of the equipment.

5. Responsible for installing and debugging all devices.

6. Formula available and long term technical supports.

7. Guarantee: One year guaranteed repair and lifelong tracking service,with parts provided.

8. All the parameters of the machine on metric units and in English.

9. Package: standard export wooden pallet.
