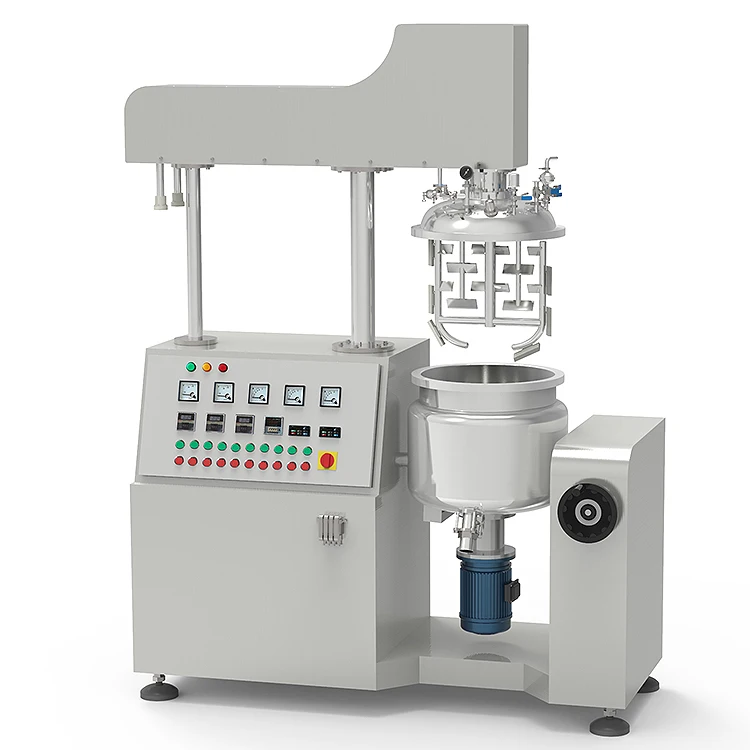

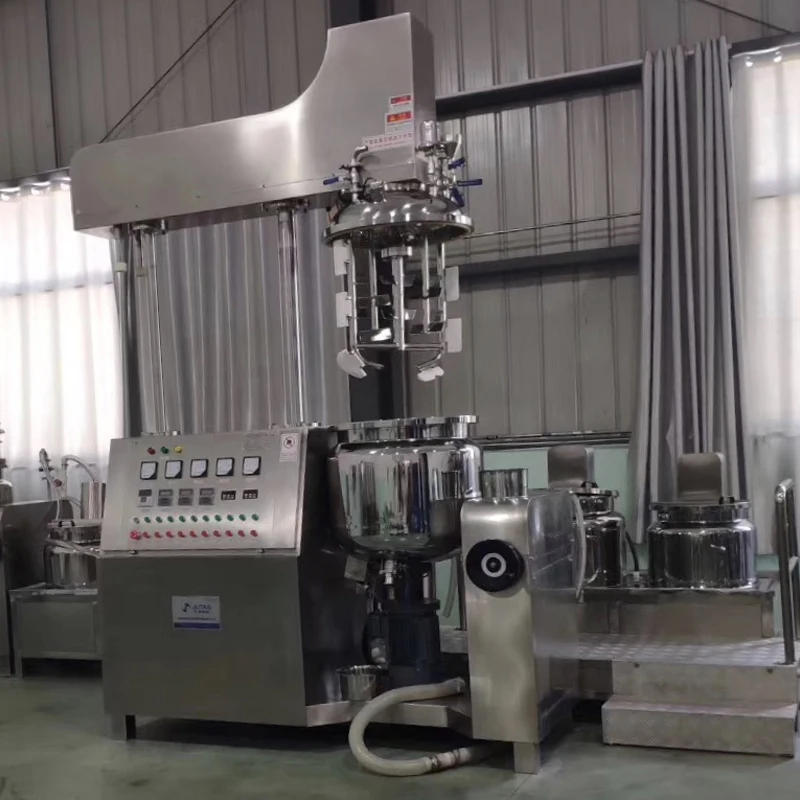

CE approved vacuum homogenizing emulsification machine for ointment





Performance and features



1. Composite scraper impeller is for all kinds of complex formula, optimizing energy efficiency. Ptfe scraper caters to agitation of tank, scraping the pot wall efficiently.
2. Homogenizer is installed at the bottom of the pot, increasing the power of the motor more thoroughly and more powerful. It could also give full play to the effect of homogeneous for a small amount of production. Homogenizer with frequency control of motor speed is optional, the highest rotating speed of which is 4500r/min. Motor with strength balanced isotactic curve and accordingly stator could realize high energy shear fluid, grinding, centrifugal, ensuring paste is exquisite, smooth; Pot body and pipe surface mirror polishing is 300 mesh (health), conforming to the cosmetic and the requirements of GMP.

3. Part of material in contact with material SUS316L , no dead corner , equipment inside and outside surface are mirror polished, it can meet GMP standard .

4. Mixing system adopts double scrape side mixing and frequency control of motor speed, can meet different process requirements of production.

5. Vacuum deaeration can make the material meet sanitary aseptic requirements, and can adopt suction feeding, especially the powder can prevent the dust float in the sky.



Technical Parameter:

Model	Main pot	Water pot	Oil pot	Emulsifying of main pot		Homogenizing of main pot		water and oil pot*2
	Volume(L)			Power(KW)	Speed(RPM)	Power(KW)	Speed(RPM)	Power(KW)	Speed(RPM)
JT-5	5	-	-	0.55	0-86	1.1	0-3600	0.25	0-1400
JT-10	10	8	5	0.55	0-86	1.1	0-3600	0.25	0-1400
JT-50	50	40	25	0.75	0-86	1.5	0-3600	0.55	0-1400
JT-100	100	80	50	1.1	0-86	3	0-3600	0.55	0-1400
JT-200	200	160	100	1.5	0-65	4	0-3600	0.75	0-1400
JT-300	300	240	150	2.2	0-65	4	0-3600	1.1	0-1400
JT-500	500	400	250	3	0-65	7.5	0-3500	1.5	0-1400
JT-1000	1000	800	500	5.5	0-55	15	0-3300	1.5	0-1400
JT-2000	2000	1600	1000	7.5	0-50	18.5	0-3000	2.2	0-1400
The tank volume can be customized



Detailed information of the machine:

Hydraulic lifting system

Used for materials discharge and easy to clean the pot, it is more convenient and safer for the operator.

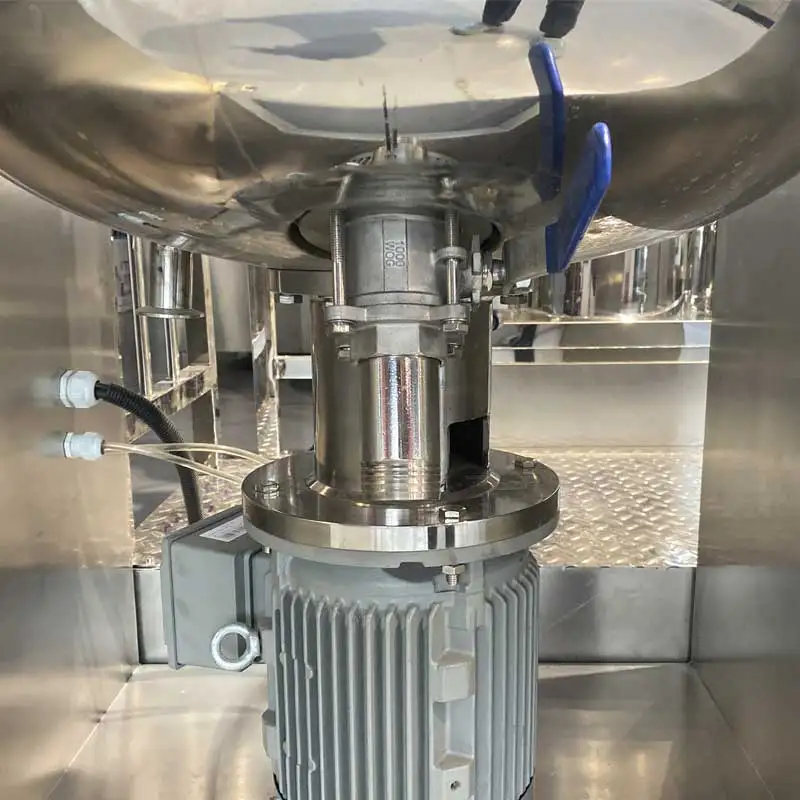

High shear homogenizer

Teethed type rotor and stator assembly installed on the vessel bottom or on the top as optional items.



Electric box

Button control or PLC touch screen control with frequency control, easy to operate.

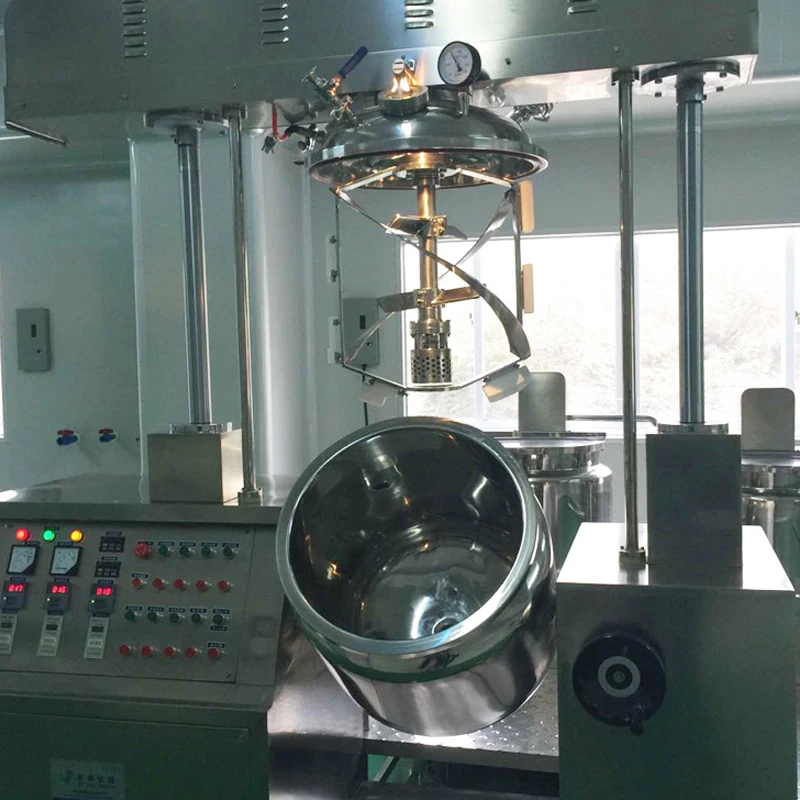

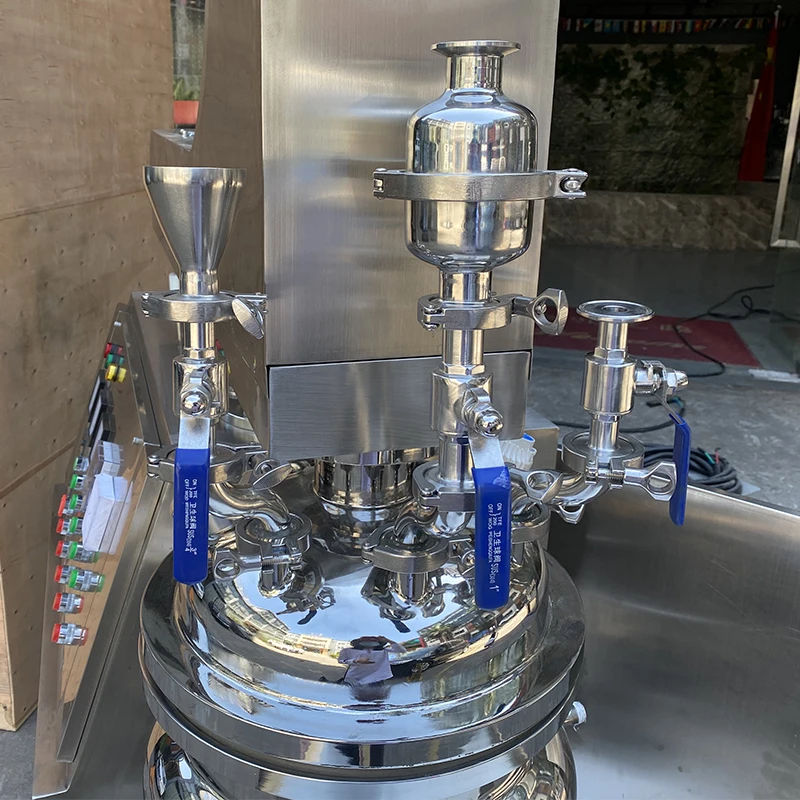

Main pot cover

The lid is with a light observation hole, which can keep control of the material emulsification situation in the kettle. There is a small material entrance, which is convenient to add special essence into the kettle. The cover of main boiler can lift up and down to ensure easy maintenance and clean.

Sightglass

The sightglass is on the main pot lid to check the materials to monitor the state of the material in the pot at all times.

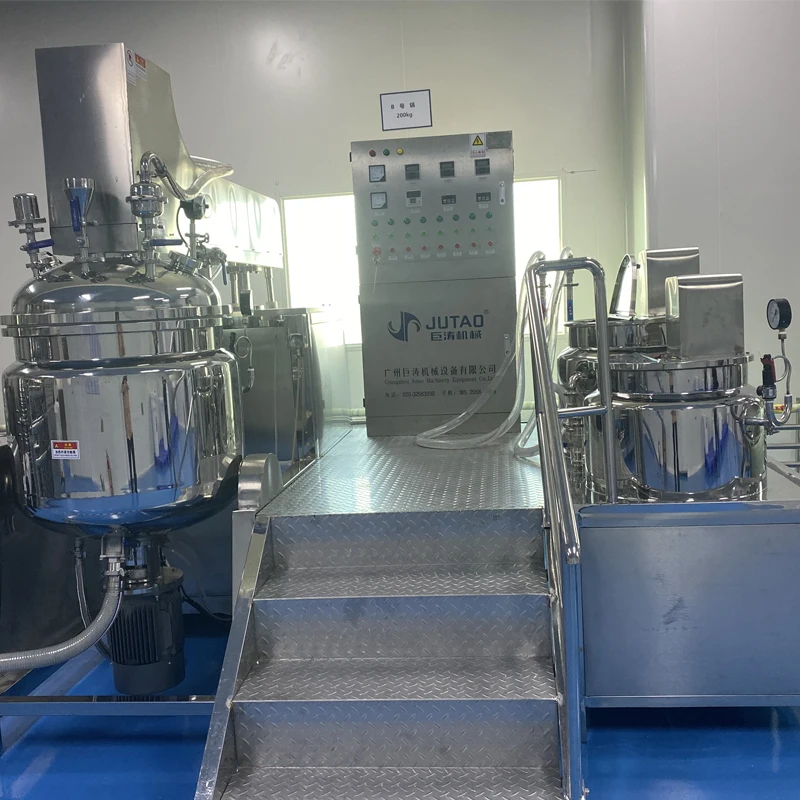

Water and oil pots

According to the process requirement,  the whole set machine can equip with oil and water pot for pretreating. Dispersing speed is 1440 RPM.



Applications and usage:

The machine is suitable for the production of various kinds of paste, cream products in cosmetic factory and pharmaceutical factory.

Our factory was established in 1997, with 5 production lines and rofessional manufacturer of cosmetics machinery and equipment, by integrating R&D, manufacturing, sales and service. Advanced production equipments are the guarantee for high quality products.

Having developed for 20 years, our company has built up solid strength to provide first-class service for every new and old customers. Besides, our machines are in strict conformity with GMP standards, possessing CE certificate already and receiving numerous customers' trust and recognition. Hence, there is nothing you can worry about our quality.covering an area of 12,000 square meters. It has developed into a professional manufacturer of cosmetics machinery and equipment, by integrating R&D, manufacturing, sales and service. Advanced production equipments are the guarantee for high quality products.
