Инвертор INVT 4 кВт VFD для погружного водяного насоса инвертор
- Категория: Inverters & Converters >>>
- Поставщик: Shenzhen,Invt,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.5 $* | 0.11 $* |
| Aug-19-2025 | 0.92 $* | 0.97 $* |
| Jul-19-2025 | 0.45 $* | 0.52 $* |
| Jun-19-2025 | 0.70 $* | 0.33 $* |
| May-19-2025 | 0.12 $* | 0.22 $* |
| Apr-19-2025 | 0.93 $* | 0.24 $* |
| Mar-19-2025 | 0.71 $* | 0.5 $* |
| Feb-19-2025 | 0.72 $* | 0.52 $* |
| Jan-19-2025 | 0.31 $* | 0.82 $* |
Характеристики
Main Products
Product Introduction
Goodrive100-PV series are inverters that INVT newly launches specially for solar pumping applications.
1.Improve the usability and performance and extend applicable voltage levels and power segments.
2.Provide users with options including the boost module,GPRS module,and mobile App,and provide protection level IP54 application in hostile environments.
Product Parameters
Series | Model | Rated output power(KW) | Rated input current(A) | Rated output current(A) |
-SS2 series Single-phase,220 input/output(0.4-2.2kw) | GD100-0R4G-SS2-PV | 0.4 | 6.5 | 4.2 |
GD100-0R7G-SS2-PV | 0.75 | 9.3 | 7.2 | |
GD100-1R5G-SS2-PV | 1.5 | 15.7 | 10.2 | |
GD100-2R2G-SS2-PV | 2.2 | 24 | 14 | |
GD100-0R4G-S2-PV | 0.4 | 6.5 | 2.5 | |
-S2 series Single-phase,220V input(0.4-2.2kw) | GD100-0R7G-S2-PV | 0.75 | 9.3 | 4.2 |
GD100-1R5G-S2-PV | 1.5 | 15.7 | 7.5 | |
GD100-2R2G-S2-PV | 2.2 | 24 | 10 | |
GD100-004G-2-PV | 4 | 17 | 16 | |
-2 series Three-phase, 220V(4-7.5kw) | GD100-5R5G-2-PV | 5.5 | 25 | 20 |
GD100-7R5G-2-PV | 7.5 | 33 | 30 | |
GD100-0R7G-4-PV | 0.75 | 3.4 | 2.5 | |
GD100-1R5G-4-PV | 1.5 | 5 | 4.2 | |
GD100-2R2G-4-PV | 2.2 | 5.8 | 5.5 | |
-4 series Three-phase,380V(0.75-37kw) | GD100-004G-4-PV | 4 | 13.5 | 9.5 |
GD100-5R5G-4-PV | 5.5 | 19.5 | 14 | |
GD100-7R5G-4-PV | 7.5 | 25 | 18.5 | |
GD100-011G-4-PV | 11 | 32 | 25 | |
GD100-015G-4-PV | 15 | 40 | 32 | |
GD100-018G-4-PV | 18.5 | 47 | 38 | |
GD100-022G-4-PV | 22 | 56 | 45 | |
GD100-030G-4-PV | 30 | 70 | 60 | |
GD100-037G-4-PV | 37 | 80 | 75 |
Product Details

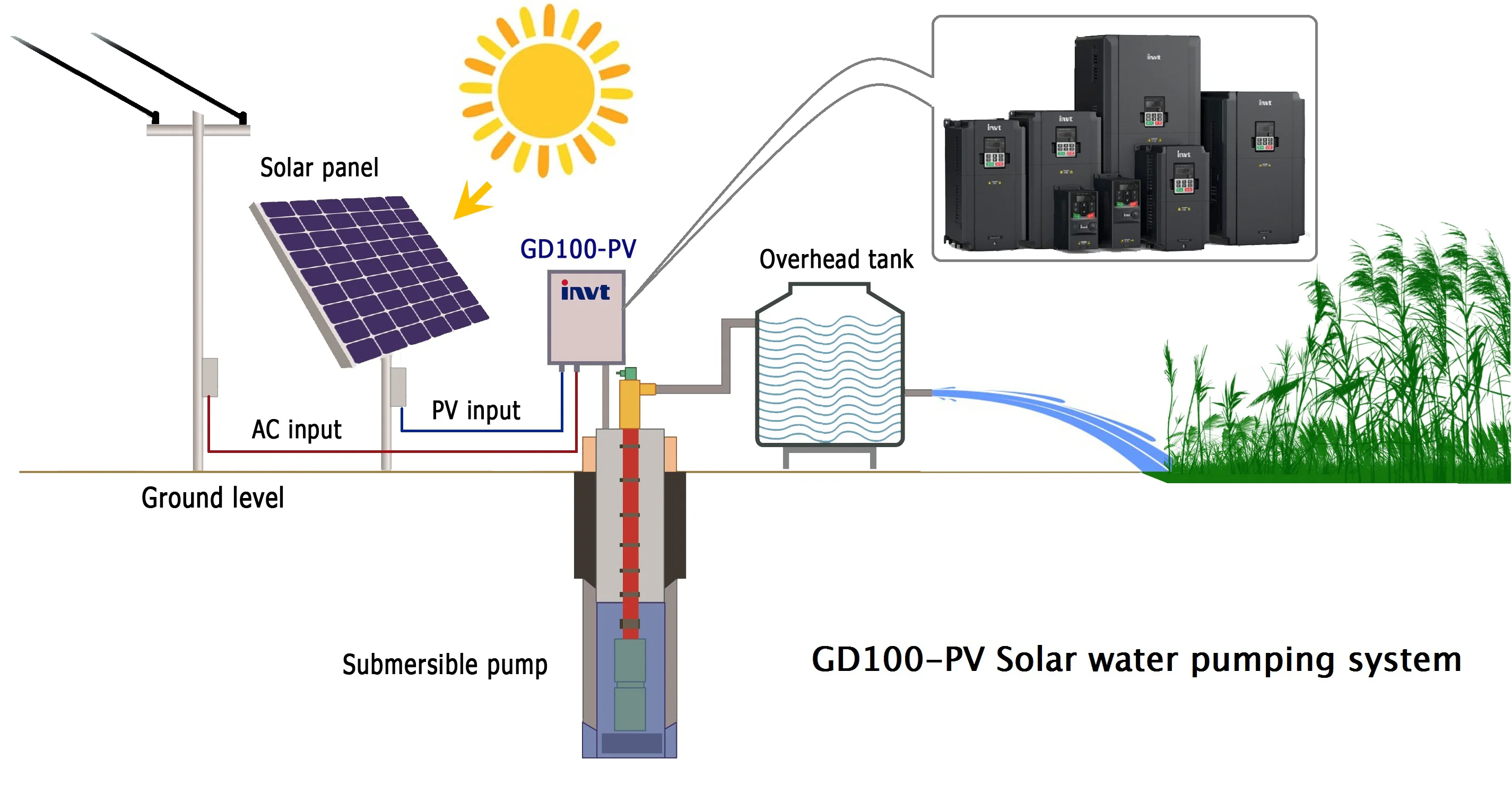

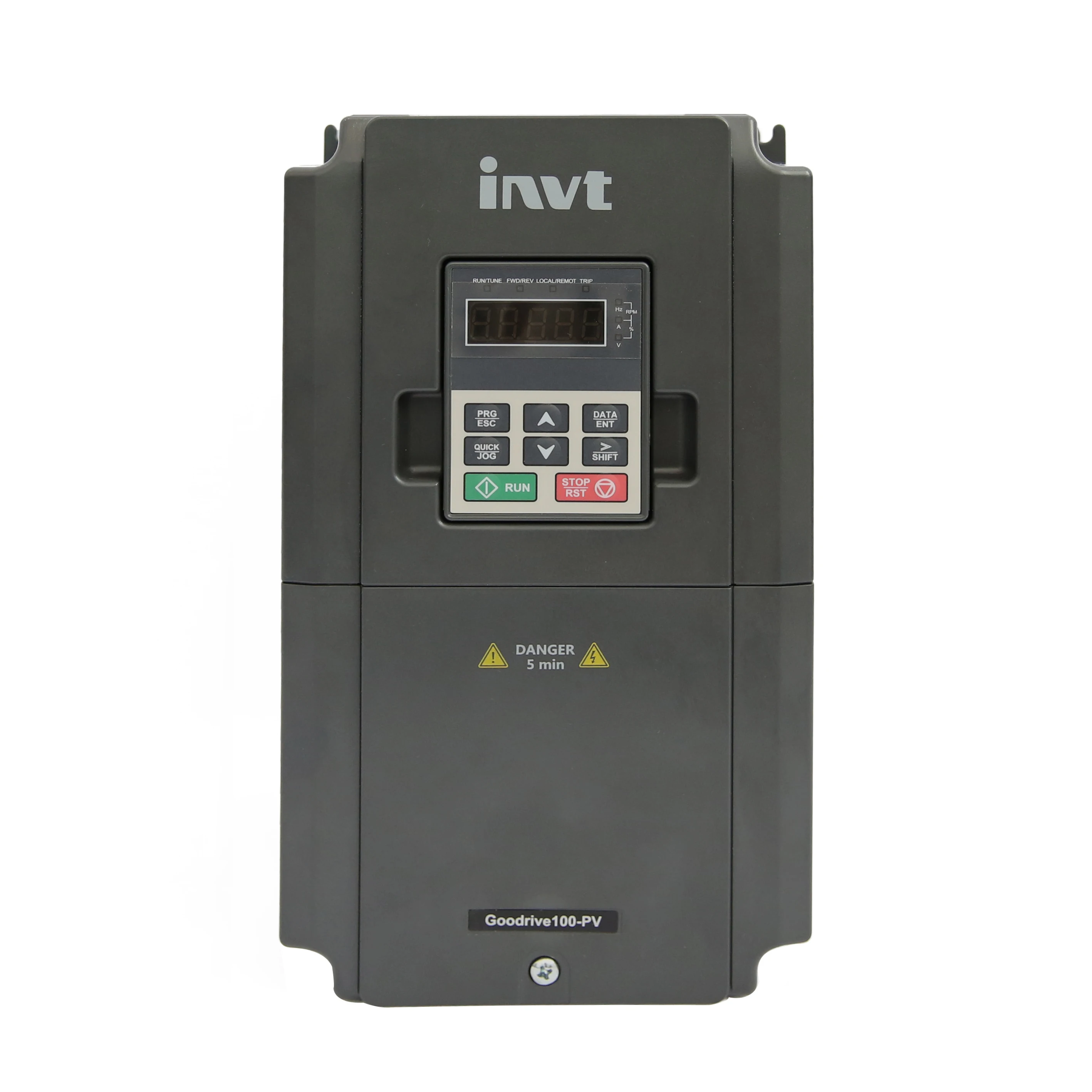

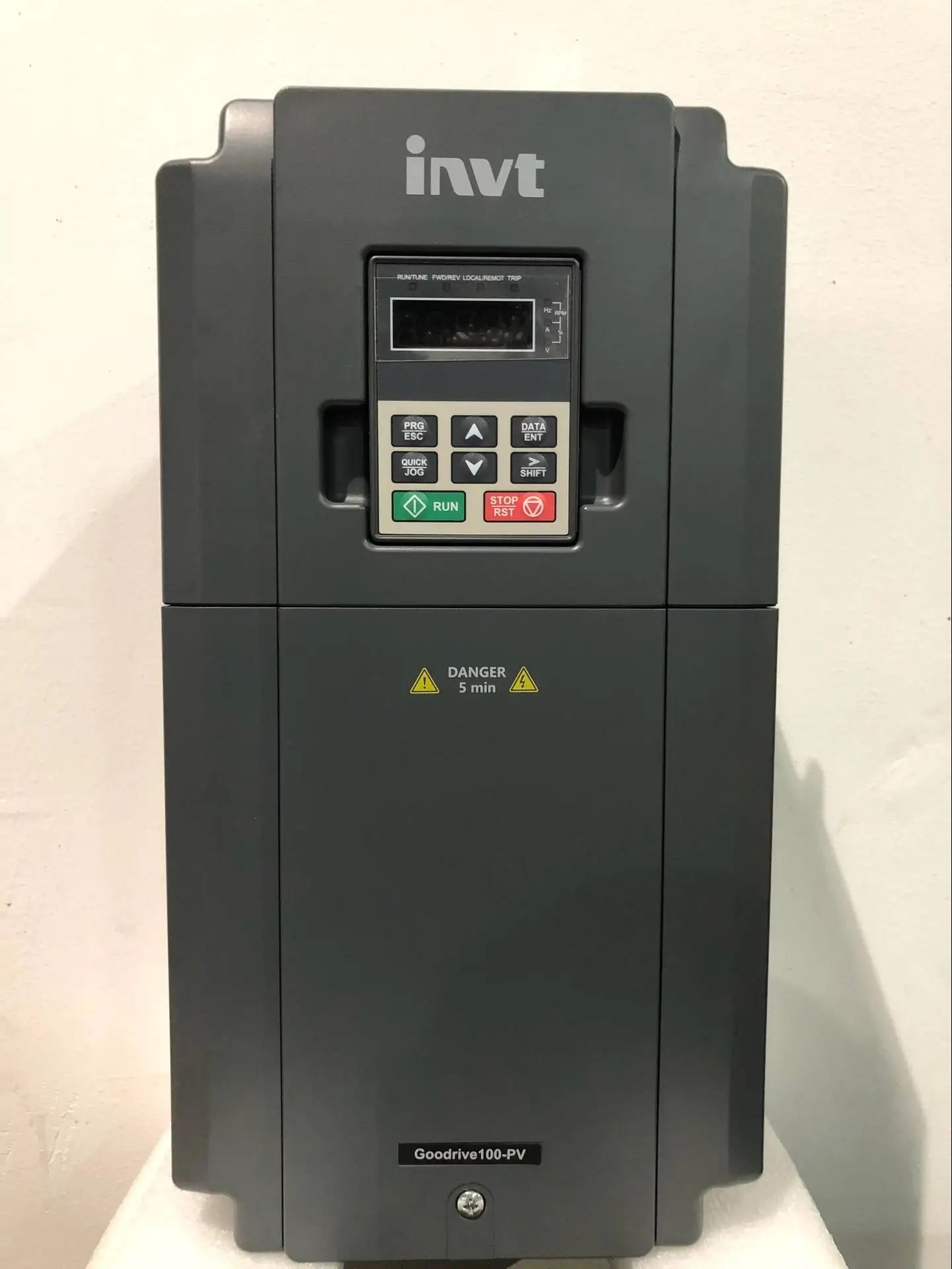

Goodrive100-PV Solar Water Pump Inverter /VFD
Goodrive100-PV series are inverters that INVT newly launches specially for solar pumping applications.
Product Advantages:
1.Improve the usability and performance and extend applicable voltage levels and power segments.
2.Provide users with options including the boost module,GPRS module,and mobile App,and provide protection level IP54 application in hostile environments.
The features of the Goodrive100-PV Solar Water Pump Inverter /VFD are as follows：
Cover voltage levels 220V AC and 380V AC
Support single-phase 220V and three-phase 220V/380V pumps,the power from 0.4KW to 37KW.
Easy to use
The inverters automatically start or sleep only after being connected to solar battery panels without any parameter setting.
Highly reliable for using multiple protective measures
Including PV over-voltage protection,PV polarity reverse warning,and auto derating against over-temperture,which extend product life.
Use advanced MPPT algorithms,ensuring that the solar power tracking efficiency reaches 99%
Models of 2.2kW or lower can be configured with boost module,meeting low-voltage work requirements.This reduces the use of solar battery panels and therefore the cost.
GD100-PV series can implement auto switch between solar input and grid input by configuring the boost or auto switching cabinet(meeting lightning protection requirements),implementing 24-hour unattended work.
Support the configuration of the GPRS module,which implements remote parameter viewing and control by using the mobile APP.
Support the cabinet solution for level IP54.
Why Choose US
New Products
Our Advantages：
1. A high-tech giant owning 16 subsidiaries, 2 production bases and over 3000 employees
2. 12 major R&D centers，17 years of Technology R&D and patents number reaching over 850
3. Established more than 30 domestic offices and warranty centers and 8 overseas branches
4. Products sold to more than 60 countries and regions
5. 400 call center provides customers with around-the-clock technical consulting and repair service.
6. Provide professional products and industrial solutions
Exhibition Room

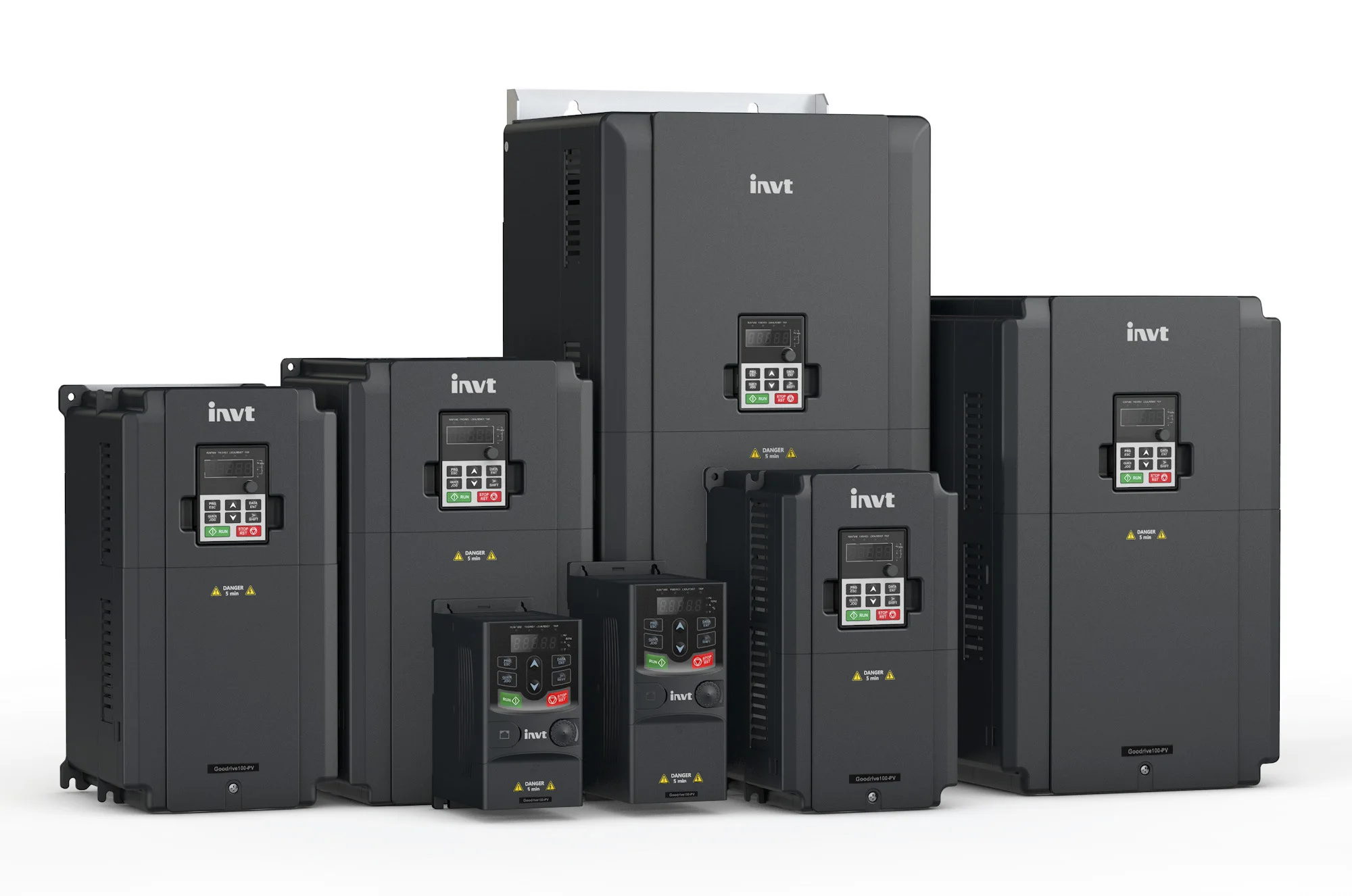

Electric Drive-Products
Electric Power-Products
industrial Control-Products
Product Processing
Product Packing
